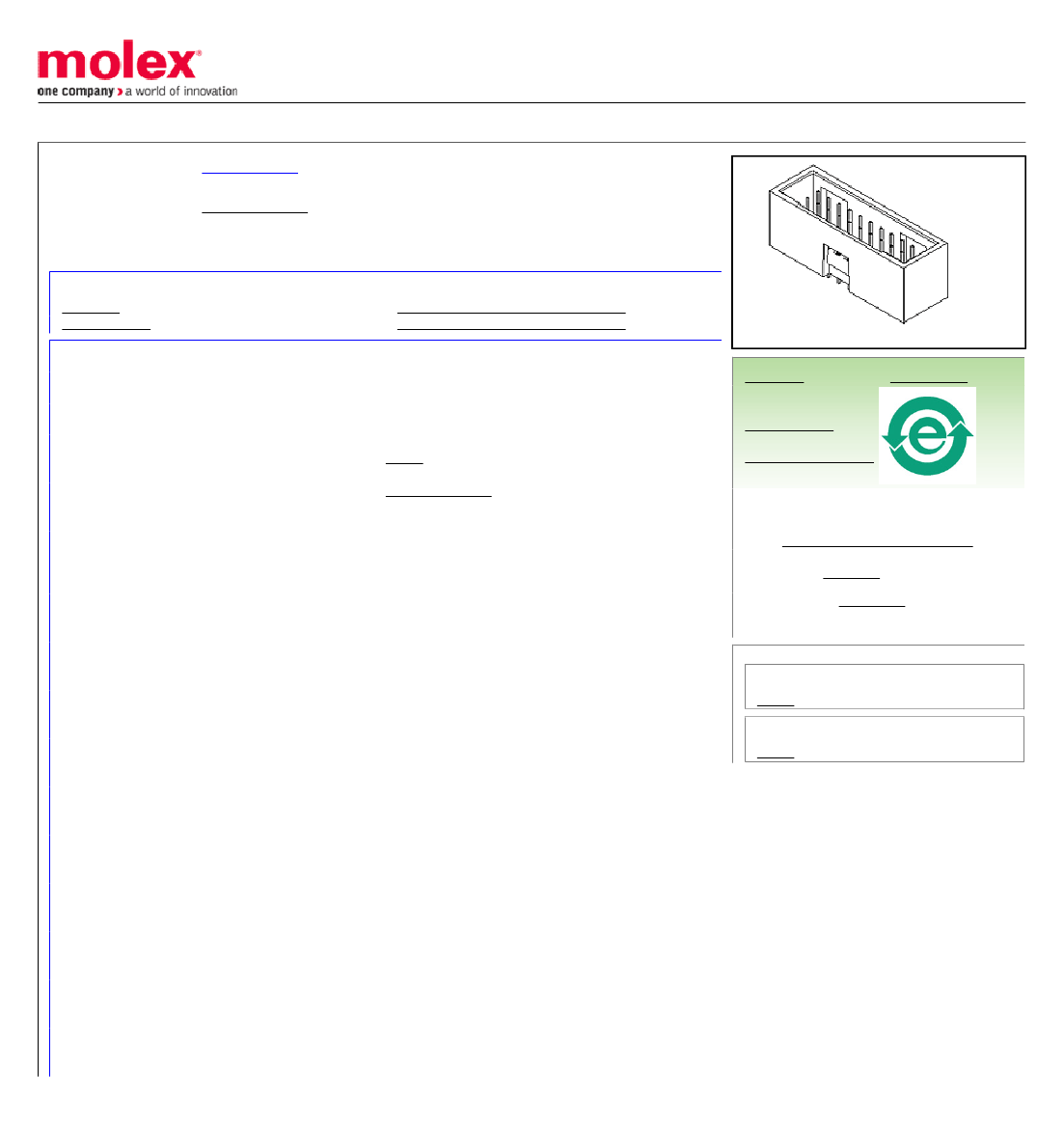

A-70567-0277: Description2.54mm Pitch C-GridÂ® Header, Through Hole without Peg, Dual Row, Vertical,; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

A-70567-0277 Overview

2.54mm Pitch C-GridÂ® Header, Through Hole without Peg, Dual Row, Vertical,

Preview

Download Datasheet

View All

This document was generated on 08/29/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

15-80-0149

Active

C-Grid® Products

2.54mm Pitch C-Grid® Header, Through Hole without Peg, Dual Row, Vertical,

Shrouded, High Temperature, 14 Circuits, 0.38µm Gold, (Au) Selective Plating, Tin (Sn)

PC Tail Plating, 3.81mm Inside Shroud to End Circuit Spacing

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70567 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

70567

Signal, Wire-to-Board

C-Grid® Products

C-Grid®

800753974661

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Black

94V-0

None

Yes

Brass, Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

2.787/g

Vertical

3.30mm

Yes

2.36mm

Tube

2.54mm

0.381µm

1.905µm

Open Ends

Yes

Search Parts in this Series

70567Series

Mates With

70013 Interim Clip

Recommended Resources

About the three-phase power grid measurement interface circuit diagram

Broadband high frequency amplifier

High power operational amplifier 02

Dual level detector circuit diagram
