SNJ54LS295BJ: DescriptionParallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14; Categorylogic logic; File Size783KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SNJ54LS295BJ Overview

Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14

SNJ54LS295BJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Counting direction	RIGHT
series	LS
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
length	19.56 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	30 MHz

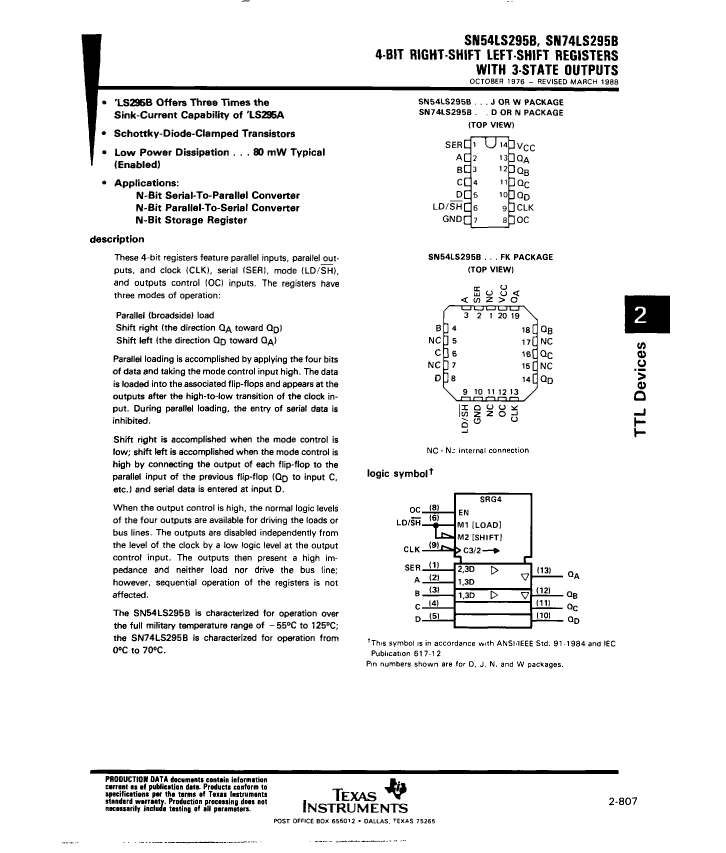

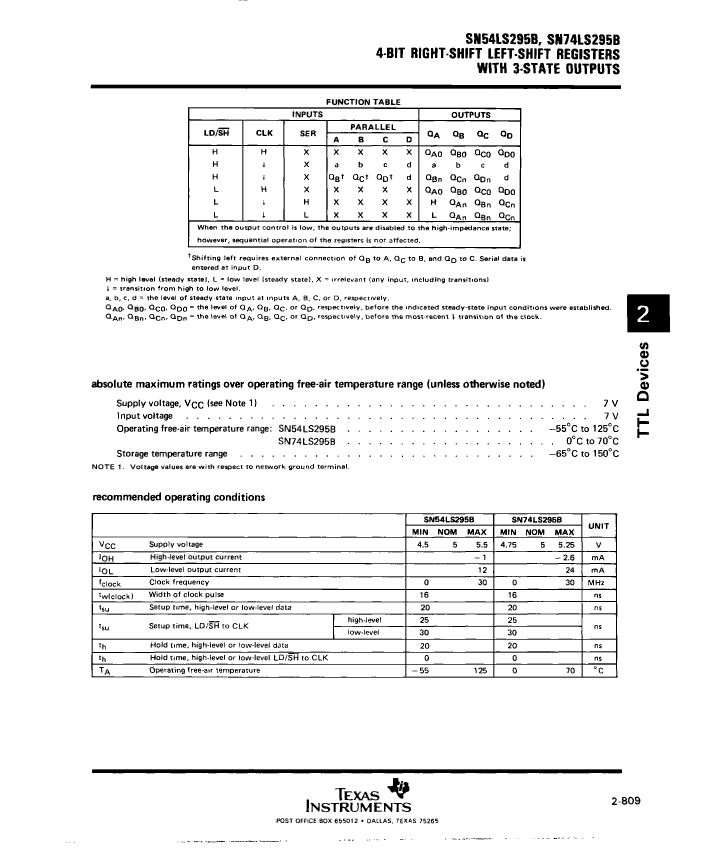

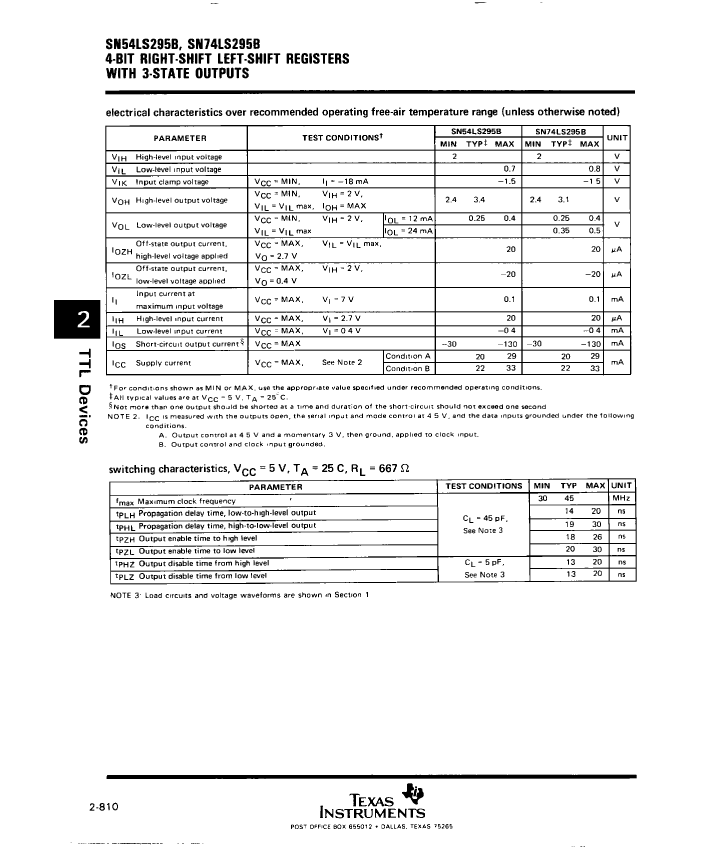

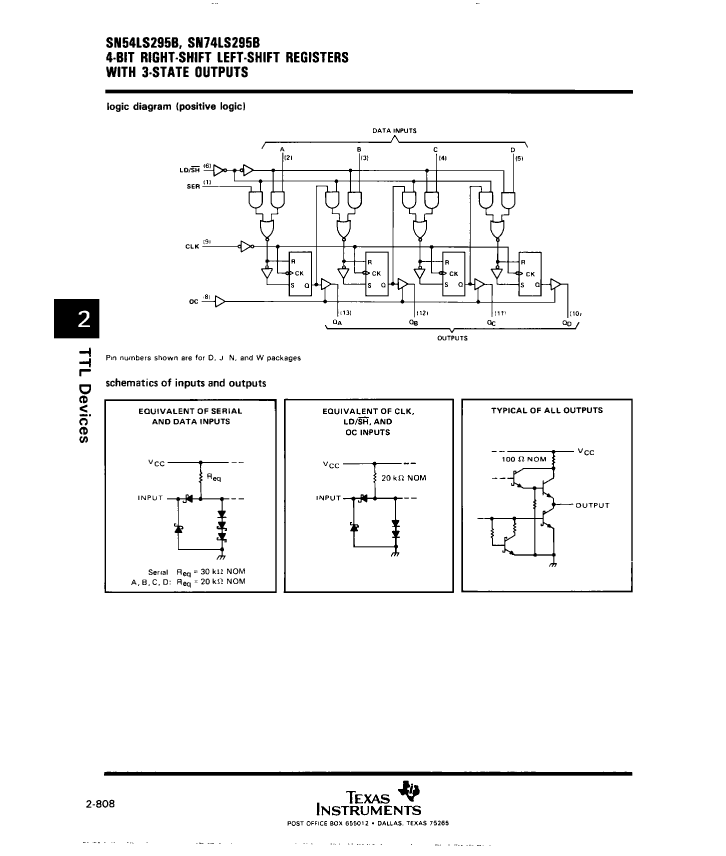

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

SNJ54LS295BJ Related Products

	SNJ54LS295BJ	SN74LS295BDR	SN74LS295BD	SN54LS295BFK	SNJ54LS295BFK	SNJ54LS295BW	SN54LS295BW
Description	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDIP14	LS SERIES, 4-BIT RIGHT PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO14	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, PDSO14	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CQCC20	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CQCC20	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDFP14	Parallel In Parallel Out, LS Series, 4-Bit, Right Direction, True Output, TTL, CDFP14
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	SOP,	SOP,	QCCN,	QCCN,	DFP,	DFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-CDIP-T14	R-PDSO-G14	R-PDSO-G14	S-CQCC-N20	S-CQCC-N20	R-CDFP-F14	R-CDFP-F14
length	19.56 mm	8.65 mm	8.65 mm	8.89 mm	8.89 mm	9.21 mm	9.21 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	14	14	14	20	20	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	SOP	SOP	QCCN	QCCN	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK
propagation delay (tpd)	30 ns	30 ns	30 ns	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	COMMERCIAL	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.75 mm	1.75 mm	2.03 mm	2.03 mm	2.03 mm	2.03 mm
Maximum supply voltage (Vsup)	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	NO LEAD	NO LEAD	FLAT	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	7.62 mm	3.9 mm	3.9 mm	8.89 mm	8.89 mm	6.29 mm	6.29 mm
minfmax	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz	30 MHz
Is it lead-free?	Contains lead	-	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
JESD-609 code	e0	-	e0	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	-	-
