Electrocomponents
®
Series 204
Data Sheet

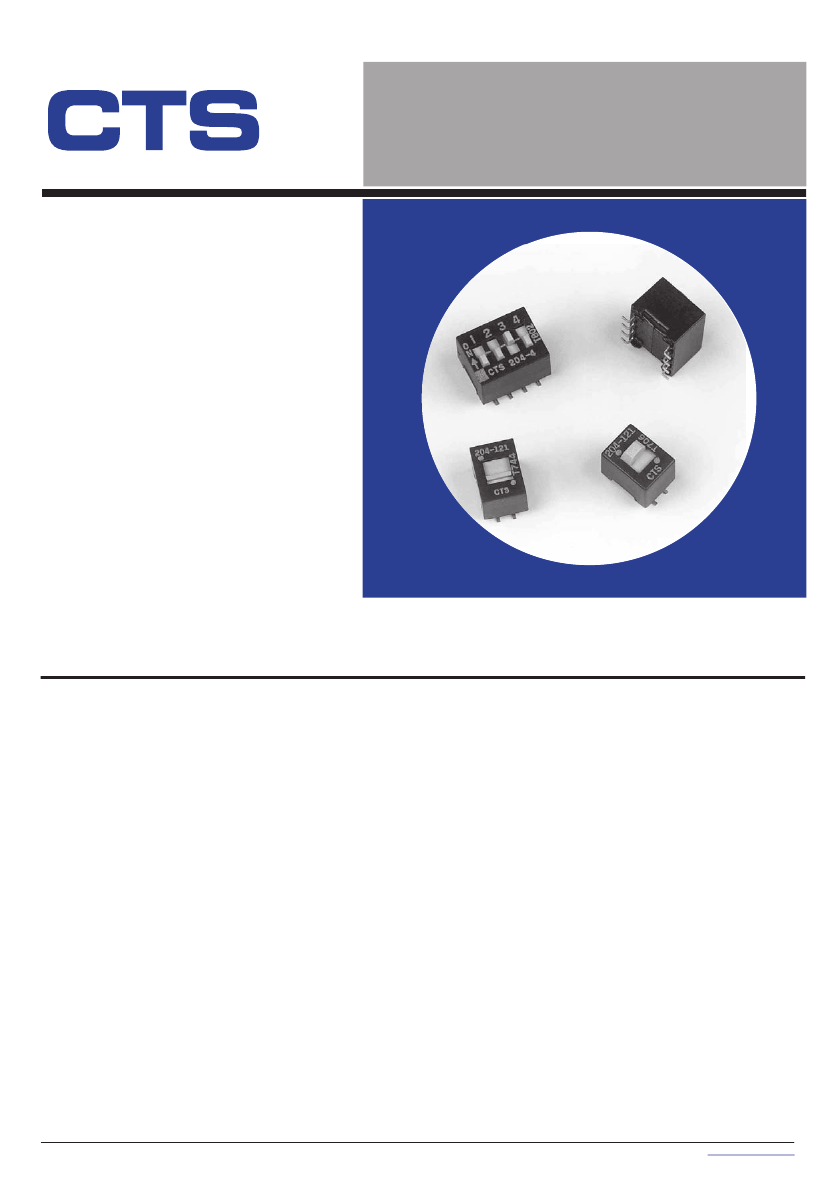

SMD DIP Switch
Surface Mount
Multi-Functional
DIP Switch
IR Solderable,
PCB Washable
Features
Optimized Mechanical Features
• Coplanarity: 0.1mm / .004” max.
• Compatible with SMT assembly including IR and
Vapor-Phase (up to 260°C)
• Enclosed actuators shield contacts from foreign particles
throughout life of switch
• Gull-wing terminal configurations
• Available with SPST,SPDT,DPST,DPDT,3PST,4PST
circuitry choices
• Removable tape seal to withstand IR solder temperature
and board washing
Optimized Contact System
• Contact wiping action on make and break
• Integral terminal and contact locked into thermoset base
• Available with low profile, standard, or extended actuators
• Electrostatic discharge shield rated to 22 KV
Materials
• Gold plated contacts for long-term contact corrosion resistance
• All UL 94 V-0 plastics used
• RoHS compliant
Electrical and Mechanical Specifications
Switch Function
SPST - 2 through 10 and 12 positions
SPDT & DPST - 1 through 6 positions
DPDT & 4PST - 1 through 3 positions
3PST - 1 through 4 positions
Contact Resistance
50 milliohms maximum initial
100 milliohms maximum at end of life
Insulation Resistance
1,000 megohms minimum between insulated terminals
Dielectric Strength
500 VAC for 1 minute between adjacent switches
Nonswitching Rating
100 mA or 50 VDC maximum
Switch Capacitance
5 pF maximum between adjacent closed switches
Operating Temperature
–55°C to +85°C
5,000 cycles switching 50 mA @ 24 VDC
Coplanarity
0.1mm/.004" max.
Allowable Solder Time
Up to 60 seconds at 260°C
Vibration
Per MIL-STD-202F, method 204D, condition B
(.06" or 15 G’s between 10 Hz to 2K Hz) with
no contact inconsistencies greater than 1 microsecond
Shock
Per MIL-STD-202F, method 213B, condition A
(50 G’s) with no contact inconsistencies
greater than 1
microsecond
Sealing
Bottom epoxy seal optional
Top tape seal optional
Marking
Special side or top marking available - consult CTS
Packaging
Standard : Anti-static tube packaging
Optional : Tape and reel packaging
Actuation Life
1-4
CTS Electrocomponents
©2013 CTS Corporation. All rights reserved. Information subject to change.
2/05/13
www.ctscorp.com
