Datasheet> All Categories > storage> storage> UPD4217100V-10

Preview

UPD4217100V-10: Description16MX1 FAST PAGE DRAM, 100ns, PZIP24, 0.425 INCH, PLASTIC, ZIP-24; Categorystorage storage; File Size419KB，16 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

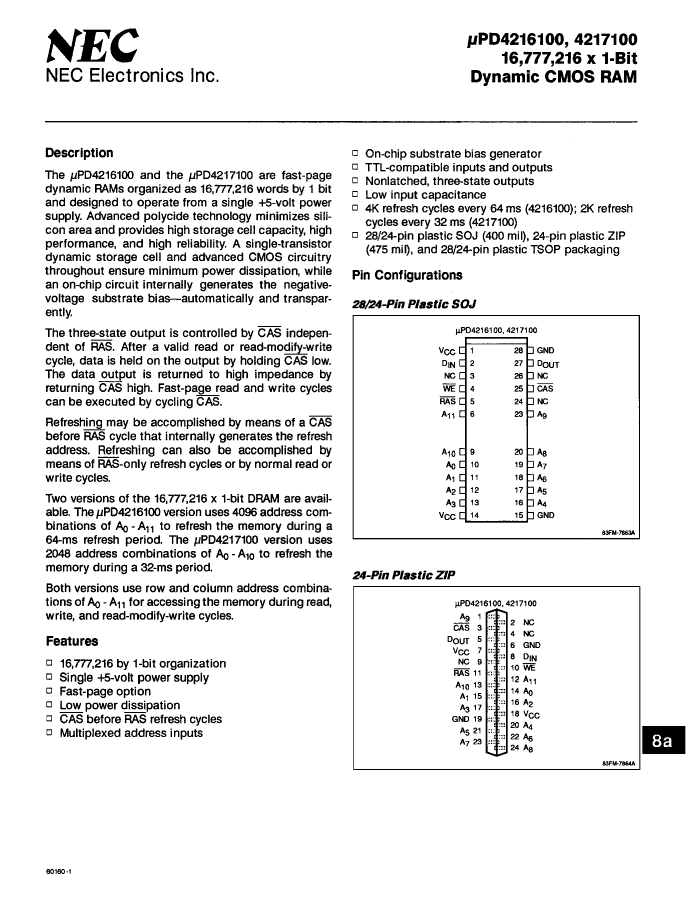

UPD4217100V-10 Overview

16MX1 FAST PAGE DRAM, 100ns, PZIP24, 0.425 INCH, PLASTIC, ZIP-24

UPD4217100V-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	ZIP
package instruction	ZIP,

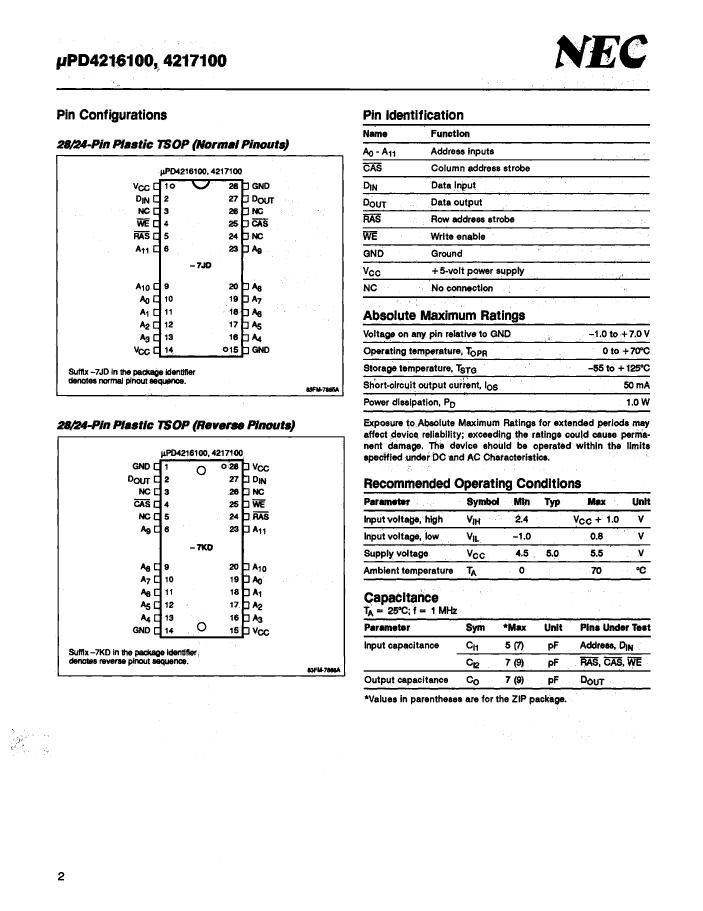

Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99

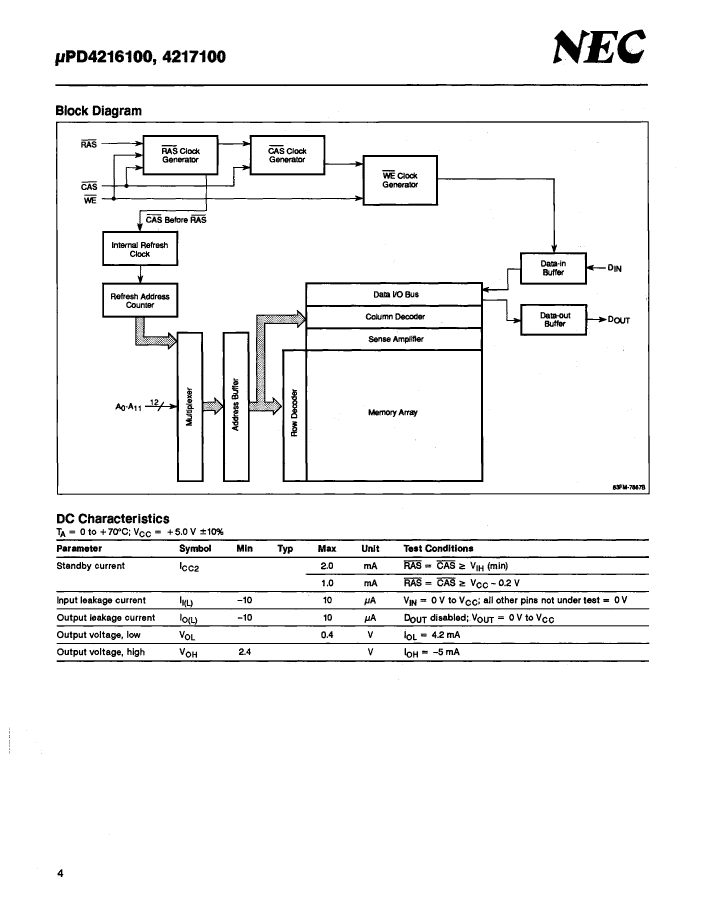

access mode	FAST PAGE

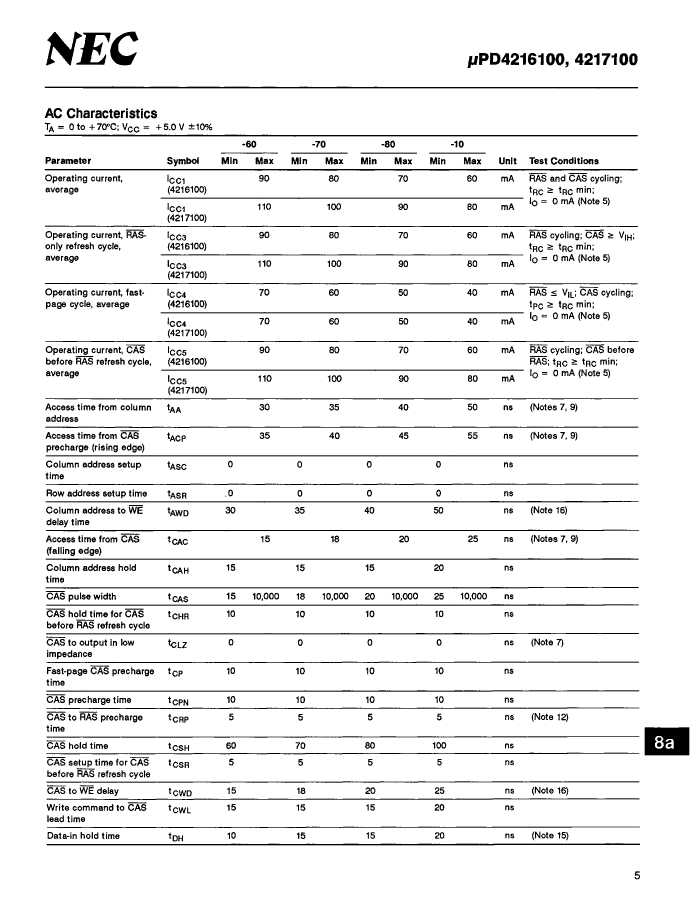

Maximum access time	100 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-PZIP-T24
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	24
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX1
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	12.07 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
width	2.8 mm

Preview

Download Datasheet

View All

UPD4217100V-10 Related Products

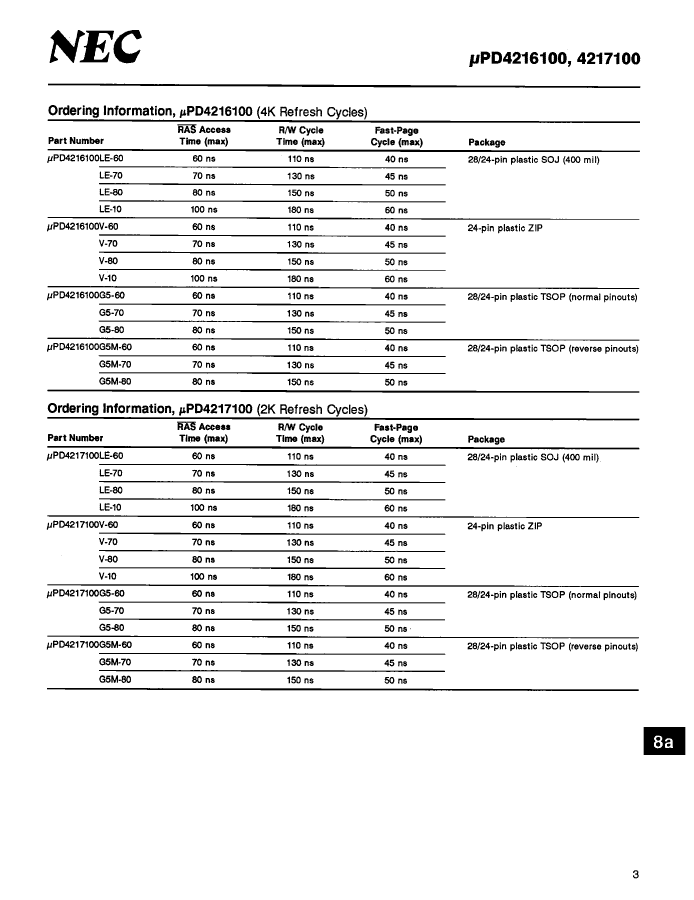

	UPD4217100V-10	UPD4217100LE-10	UPD4216100V-10	UPD4216100LE-10
Description	16MX1 FAST PAGE DRAM, 100ns, PZIP24, 0.425 INCH, PLASTIC, ZIP-24	IC,DRAM,FAST PAGE,16MX1,CMOS,SOJ,24PIN,PLASTIC	16MX1 FAST PAGE DRAM, 100ns, PZIP24, 0.425 INCH, PLASTIC, ZIP-24	16MX1 FAST PAGE DRAM, 100ns, PDSO24, 0.400 INCH, PLASTIC, SOJ-28/24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	ZIP	SOJ	ZIP	SOJ
package instruction	ZIP,	SOJ,	ZIP,	SOJ,
Contacts	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	100 ns	100 ns	100 ns
Other features	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH	RAS ONLY; CAS BEFORE RAS; HIDDEN REFRESH
JESD-30 code	R-PZIP-T24	R-PDSO-J24	R-PZIP-T24	R-PDSO-J24
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	1	1	1	1
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	24	24	24	24
word count	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	16MX1	16MX1	16MX1	16MX1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	ZIP	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	4096	4096
Maximum seat height	12.07 mm	3.7 mm	12.07 mm	3.7 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	ZIG-ZAG	DUAL
width	2.8 mm	10.16 mm	2.8 mm	10.16 mm
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
