A8D18RA29A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A8D18RA29A

A8D18RA29A: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

A8D18RA29A Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

A8D18RA29A Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	HOLE .125-.137
body width	0.368 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	600VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	A8D
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

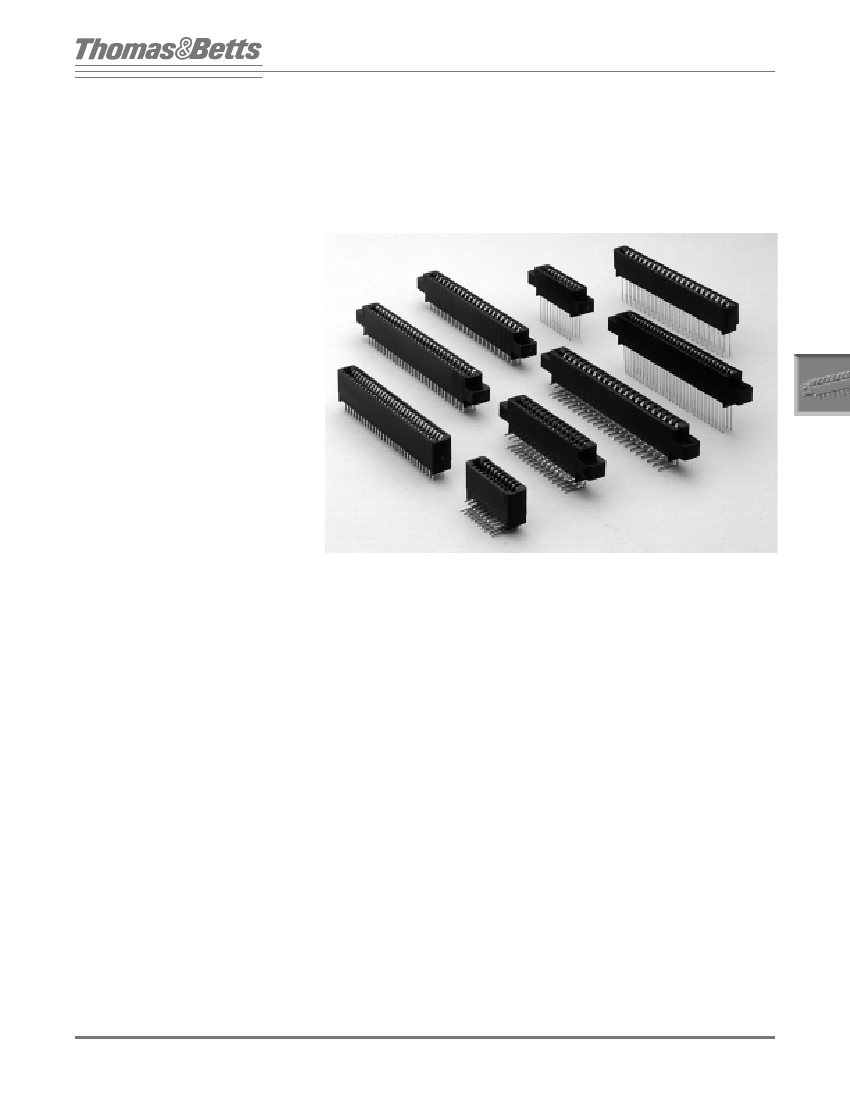

Cardedge

Modified Bellows

ESCRIPTION

PPLICATION

The Holmberg

line of modified

bellows cardedge connectors are

dual readout and are designed for

reliable termination to double sided

PCB boards.

HOLMBERG

MODIFIED

BELLOWS CARDEDGE

CONNECTORS

ESIGN

DVANTAGES

• Sizes from 6 to 65 dual positions.

• Contact mating surface optimizes

reliability by concentrating the

normal force in the actual contact

area.

• Mounting ear options accomodate

both Panel and PC Board

attachment.

• Solder stand-offs facilitate cleaning.

• Bifurcated contact design provides

redundant points of contact to

maximize reliability.

• Tail lengths available to accomodate

.062" through .125" thick PCB

Boards and Wire Wrap termination.

• Straight or Right Angle contact

configurations.

Bifurcated contact design provides maximum reliability

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

333
