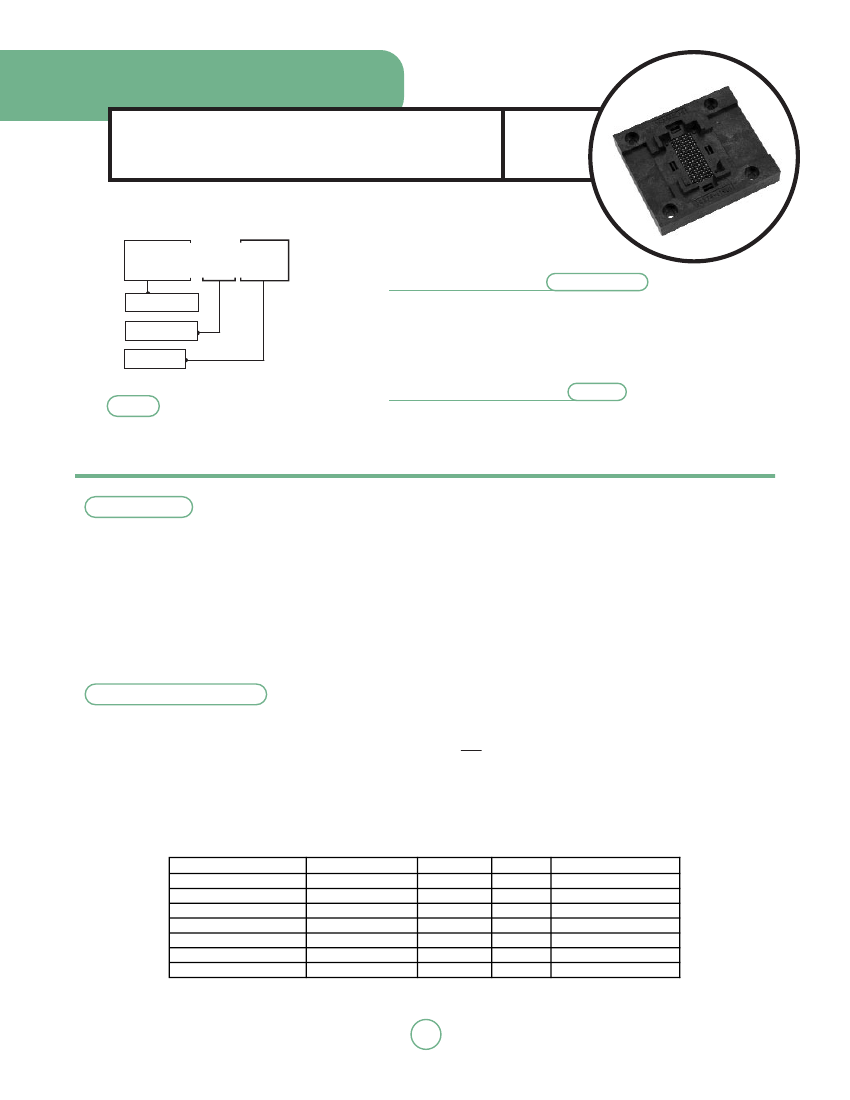

Test Contactors
IC274 Series
IC274- 151 202
Socket Series
No. of Leads
Design No.
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temperature:
Characteristics
1,000M½minimum at 500 VDC
500 VAC for 1 Minute
30m½ max. at 10mA/20mV (Initial)
-30ûC ~ +125ûC
Material
PEI (Glass Filled)
Micro Spring Probes
Gold over Nickel
NOTE:
Pogo Pin or Surface
Mount available.
Insulator:
Contact:
Plating:
DESCRIPTION
Test contactor sockets from Yamaichi are ideal for automated or manual testing of BGA, LGA and other packages such as
CSP with micro miniature balls down to .3mm in diameter, QFP and other gullwing leaded ICÕs.
These test contactors combine a low profile, small body with long life and excellent electrical characteristics as expected
in todayÕs increasingly advanced and specialized test environments.
Each test contactor is designed and manufactured with or without a lid for your specific device testing application, taking
any special requirement into consideration.
Single or double ended micro Contact Spring Probes are used in Series 274 and 275. These contacts provide an ideal
connection between the device and the test board. Pitch configurations are available from .50mm to 1.50mm.
ORDERING PROCEDURE
Note: Each Test Contactor Socket is custom built.
Part numbers listed are socket configurations previously designed and manufactured by Yamaichi for a specific device.
Caution:
Even if a device configuration matches the pin count and pitch shown in the listing it is strongly recommended to
contact the factory prior to selecting and ordering any socket.
The customer must specify only the Socket Series Number of choice in addition to providing all device parameters and
special requirements. The final part number will be determined by Yamaichi.
P a rt N um b er
t
m
IC274-03149
IC274-032155
IC274-03264
IC274-038192
IC274-040149
IC274-04248
IC274-048127
N o . o f L ea d s
a
31
32
32
38
40
42
48
Pitch
0.80mm
0.75mm
0.80mm
0.75mm
0.75mm
1.00mm
0.65mm
G rid
d
Ñ
6X6
4X8
5 X 10
6 X 11
6X7
6X8
B o d y Siz e
z
8.1mm X 11.7mm
8.02mm X 5.56mm
6.5mm X 9.5mm
5.18mm X 10.04mm
6.15mm X 10.65mm
8.41mm X 10.78mm
4.3mm X 8.46mm
127
