BQ014D0222JDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> BQ014D0222JDC

BQ014D0222JDC: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.0022uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size118KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

BQ014D0222JDC Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 63V, 0.0022uF, THROUGH HOLE MOUNT, RADIAL LEADED, LEAD FREE

BQ014D0222JDC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 3010
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0022 µF
Capacitor type	FILM CAPACITOR
Custom functions	Other Tolerances Values On Request
dielectric materials	POLYESTER
high	6.5 mm
JESD-609 code	e3
length	7.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	AMMO PACK
positive tolerance	5%
Rated (AC) voltage (URac)	40 V
Rated (DC) voltage (URdc)	63 V
size code	3010
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	2.5 mm

Preview

Download Datasheet

View All

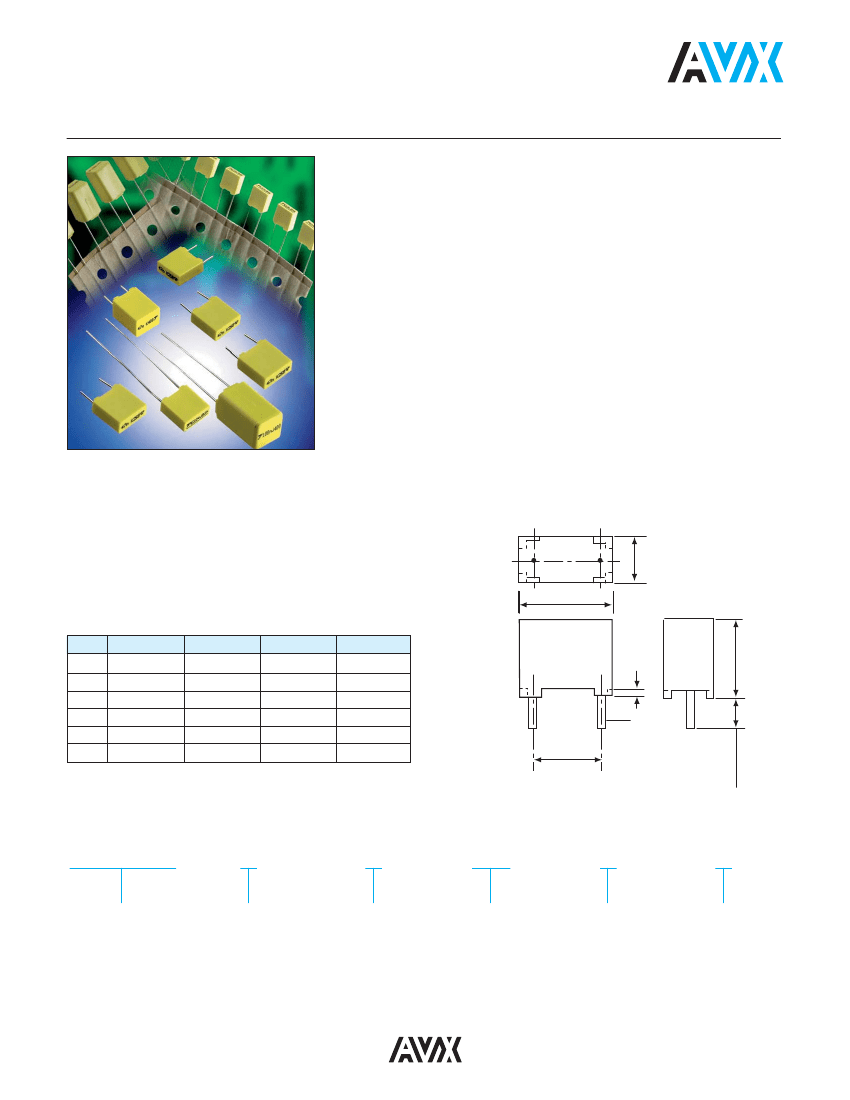

BF 01/02/07/06/05/04: Radial Leads

BQ 01/02/07/06/05/04: Lead Free

CPM-83----- pitch = 5.08mm (0.200")

GENERAL DESCRIPTION

Dielectric: Metallized polyester film (Polyethylene teraphtalate)

Stacked-film

Leads: Radial tin - plated wire

Protection: Plastic case (UL 94: V-O) / Epoxy Resin

Marking: Logo

Nominal Capacitance

Tolerance (EIA)

DC Nominal Voltage

Example:

T 100nK 63

Delivery Mode: Bulk

Taped (reel or ammopack)

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000

Sectional specifications:

CEI 384-2/CECC 30400

Complies with special specification:

CECC 30401-069

APPLICATIONS

• Commodity Product:

• Supply decoupling

• Filter

• Integrators

• Treatment of analog signals

• Rejection of line perturbations, etc.

DIMENSIONS

Case

L max

7.5 (0.295)

H max

6.5 (0.256)

8.0 (0.315)

12.0 (0.472)

9.6 (0.378)

8.0 (0.315)

13.0 (0.512)

millimeters (inches)

e max

2.5 (0.098)

3.2 (0.126)

6.0 (0.236)

5.0 (0.197)

7.5 (0.295)

ø ± 0.02

0.5 (0.020)

0.4 (0.016) min

(0.024)

5.08 (0.200)

+0.6 (0.004)

-0.1

*L dimension measured 3mm above base of case

HOW TO ORDER

BF01 or BQ01

0104

Type

Class

Voltage

Capacitance

Tolerance

Suffix

4.10 (0.161)

0.5 (0.020)
