DAC71-CBIN-I

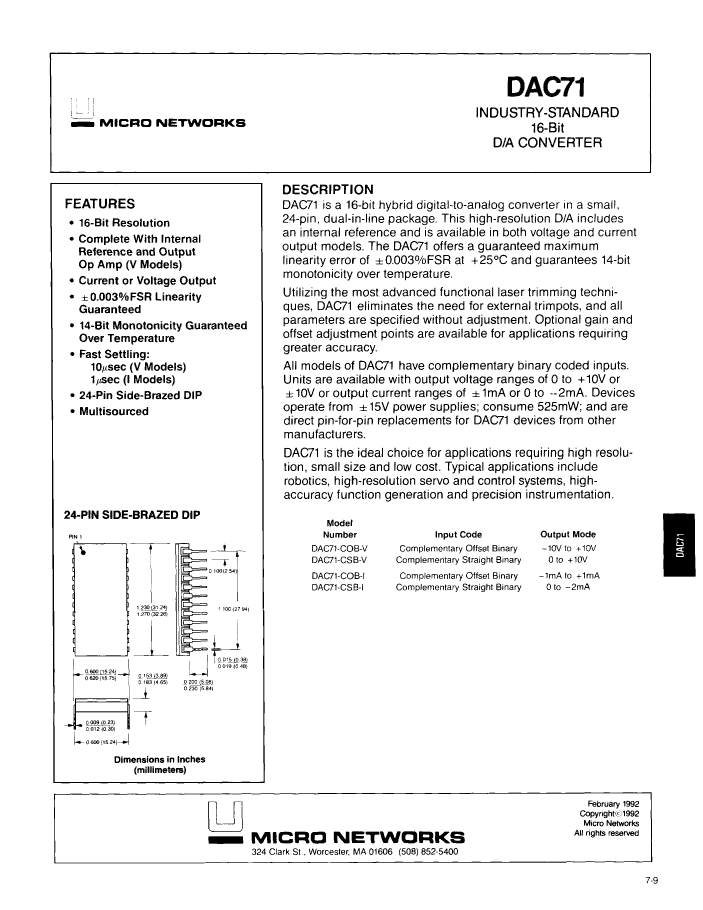

Description
D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24
CategoryAnalog mixed-signal IC    converter
File Size177KB,4 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric Compare View All

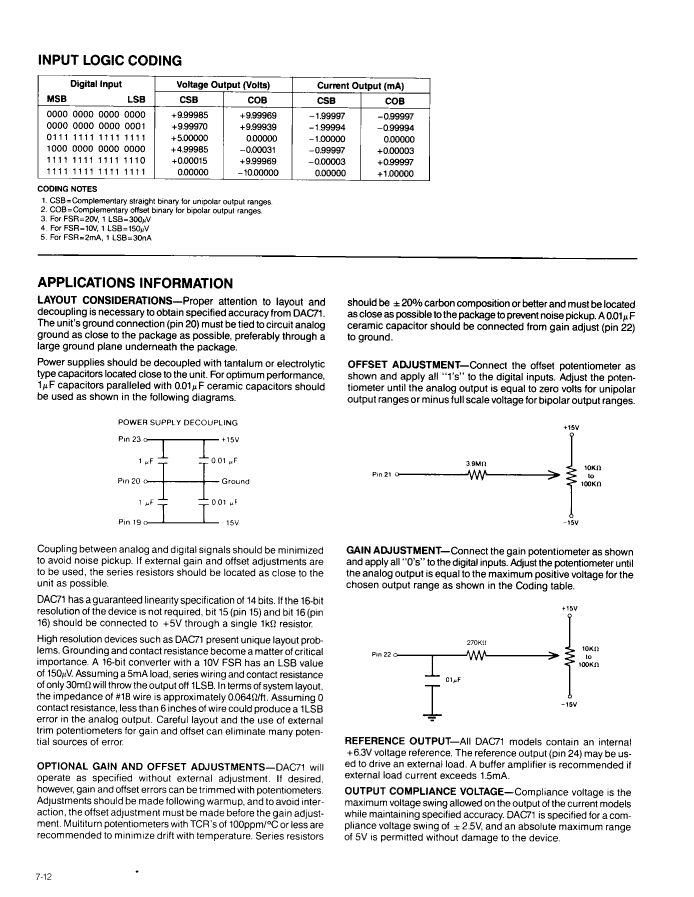

DAC71-CBIN-I Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24

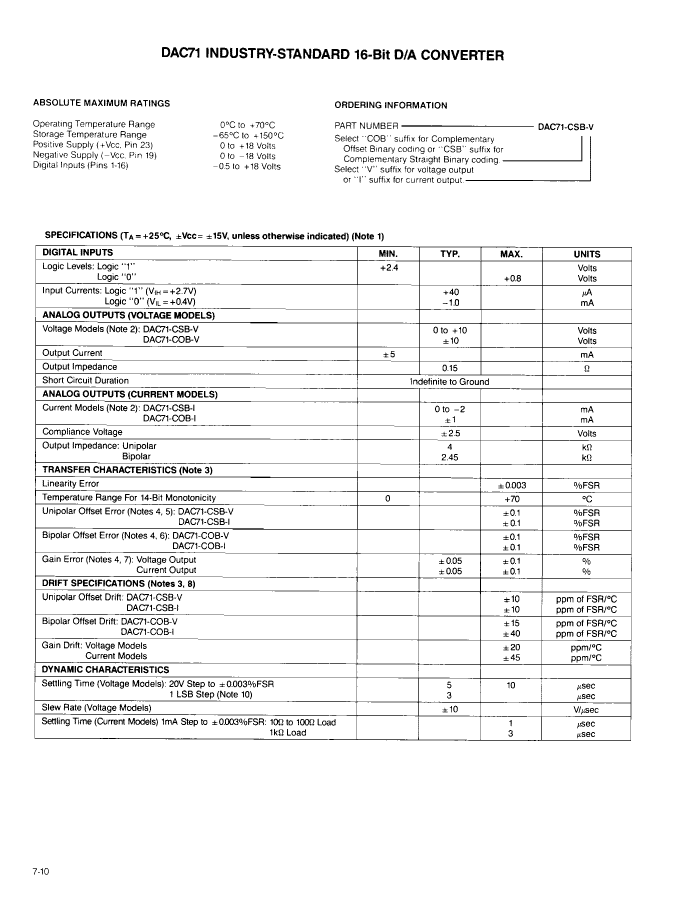

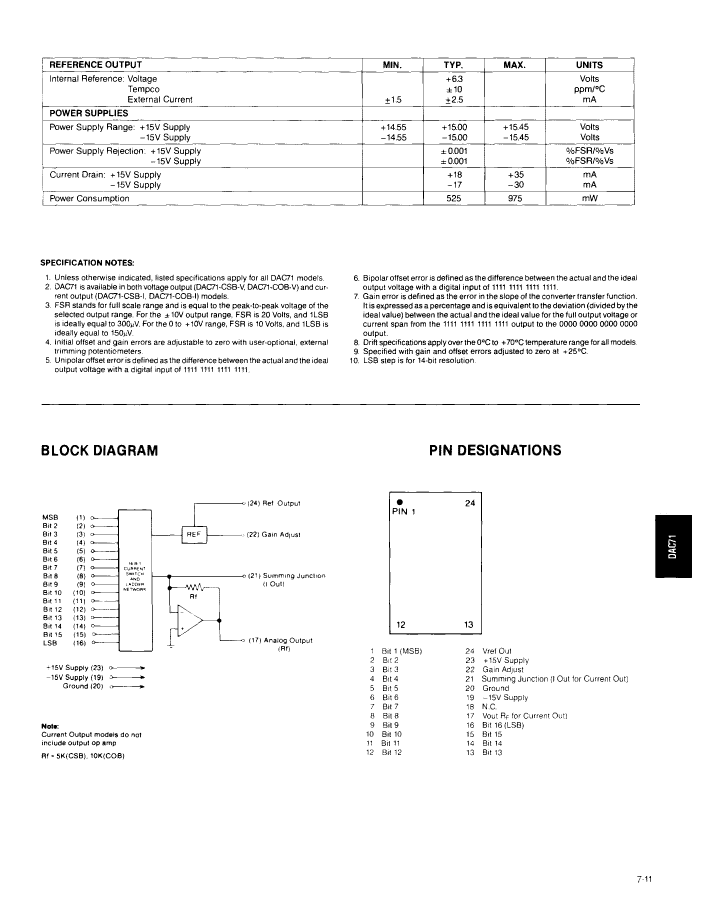

DAC71-CBIN-I Parametric

Parameter NameAttribute value
MakerSpectrum Microwave
package instructionDIP,
Reach Compliance Codeunknown
ECCN code3A001.A.5.B
Maximum analog output voltage10 V
Minimum analog output voltage
Converter typeD/A CONVERTER
Enter bit codeCOMPLEMENTARY BINARY
Input formatPARALLEL, WORD
JESD-30 codeR-CDIP-T24
Maximum linear error (EL)0.003%
Nominal negative supply voltage-15 V
Number of digits16
Number of functions1
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum stabilization time3 µs
Nominal settling time (tstl)5 µs
Maximum slew rate35 mA
Nominal supply voltage15 V
surface mountNO
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal locationDUAL

DAC71-CBIN-I Related Products

DAC71-CBIN-I DAC71-CBIN-V
Description D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24 D/A Converter, 1 Func, Parallel, Word Input Loading, 5us Settling Time, CDIP24
Maker Spectrum Microwave Spectrum Microwave
package instruction DIP, DIP,
Reach Compliance Code unknown unknown
ECCN code 3A001.A.5.B 3A001.A.5.B
Maximum analog output voltage 10 V 10 V
Converter type D/A CONVERTER D/A CONVERTER
Enter bit code COMPLEMENTARY BINARY COMPLEMENTARY BINARY
Input format PARALLEL, WORD PARALLEL, WORD
JESD-30 code R-CDIP-T24 R-CDIP-T24
Maximum linear error (EL) 0.003% 0.003%
Nominal negative supply voltage -15 V -15 V
Number of digits 16 16
Number of functions 1 1
Number of terminals 24 24
Maximum operating temperature 70 °C 70 °C
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Certification status Not Qualified Not Qualified
Maximum stabilization time 3 µs 10 µs
Nominal settling time (tstl) 5 µs 5 µs
Maximum slew rate 35 mA 35 mA
Nominal supply voltage 15 V 15 V
surface mount NO NO
Temperature level COMMERCIAL COMMERCIAL
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL
