CA82C55A-8CD datasheet, PDF - EEWORLD Datasheet

CA82C55A-8CD: DescriptionParallel I/O Port, 24 I/O, CMOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size641KB，20 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

CA82C55A-8CD Overview

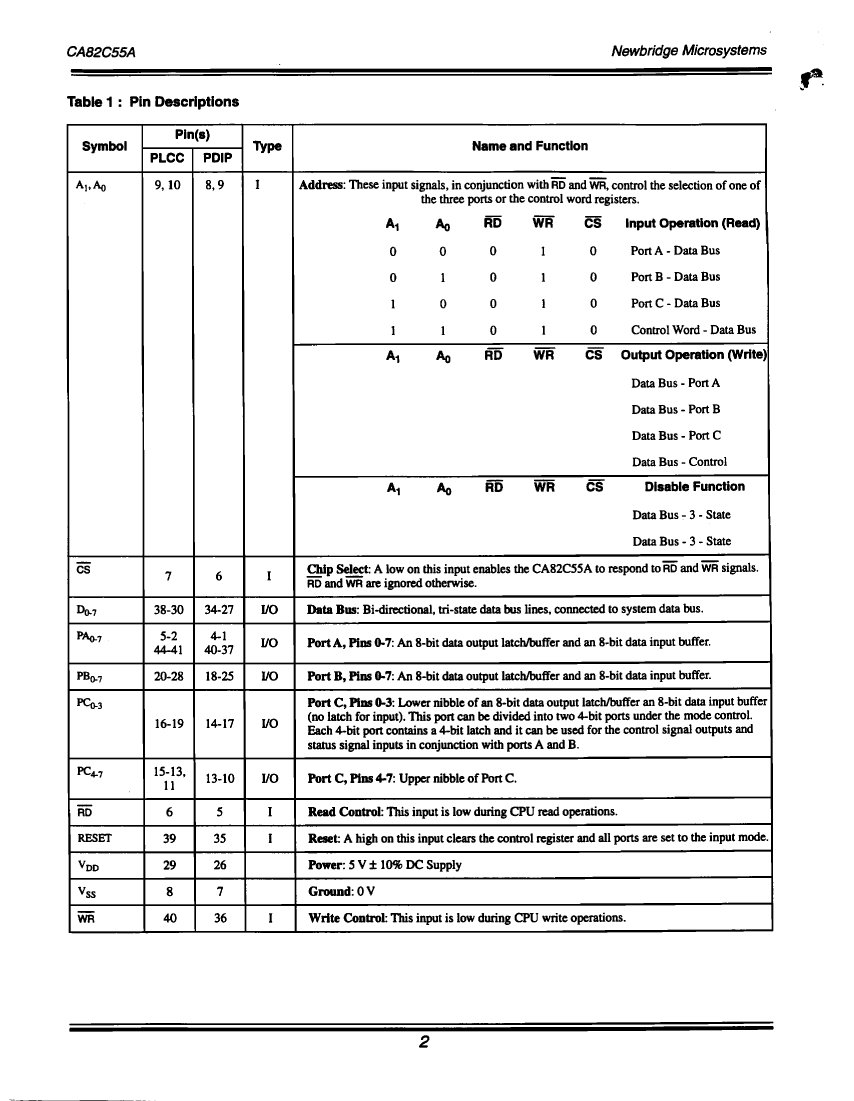

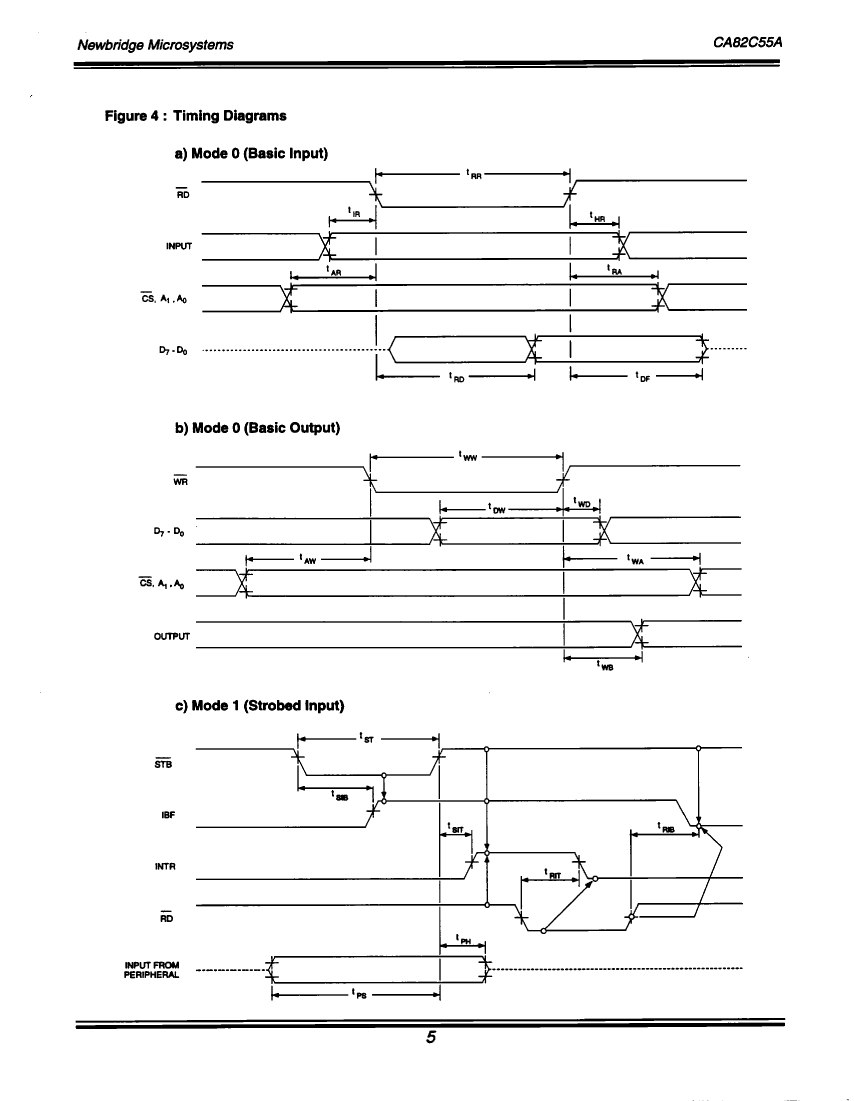

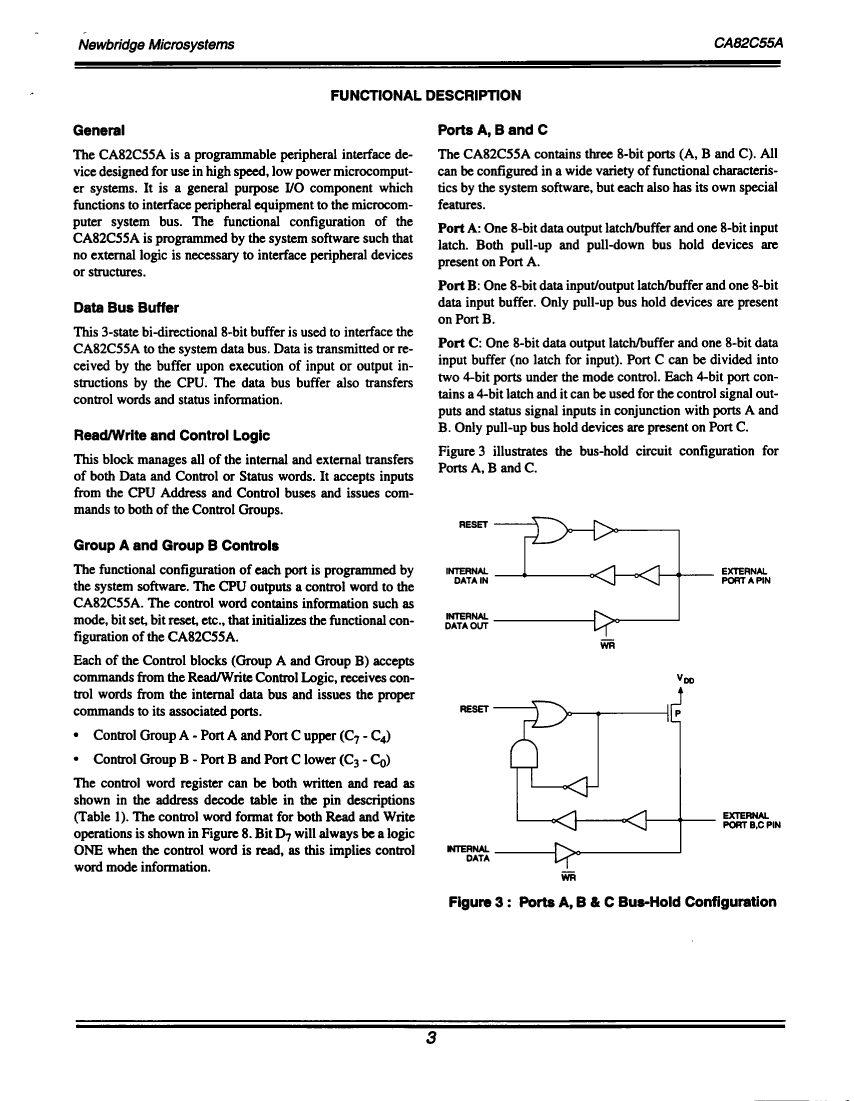

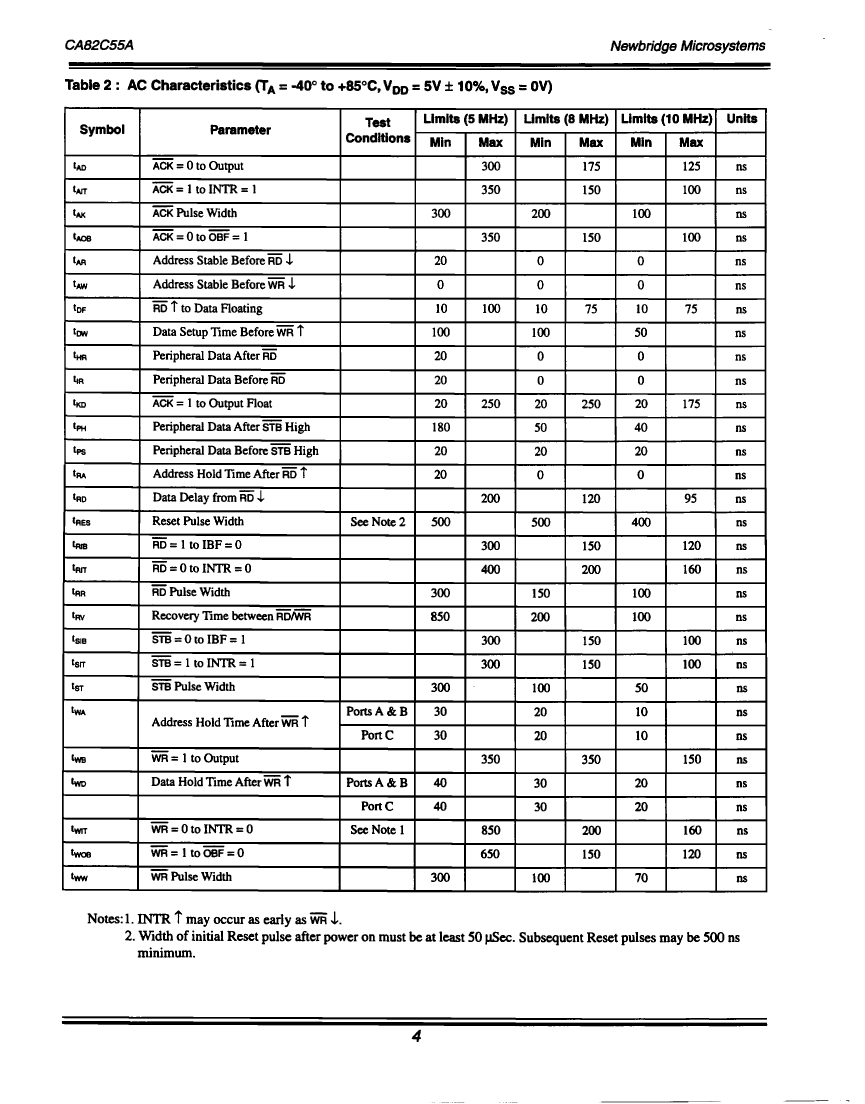

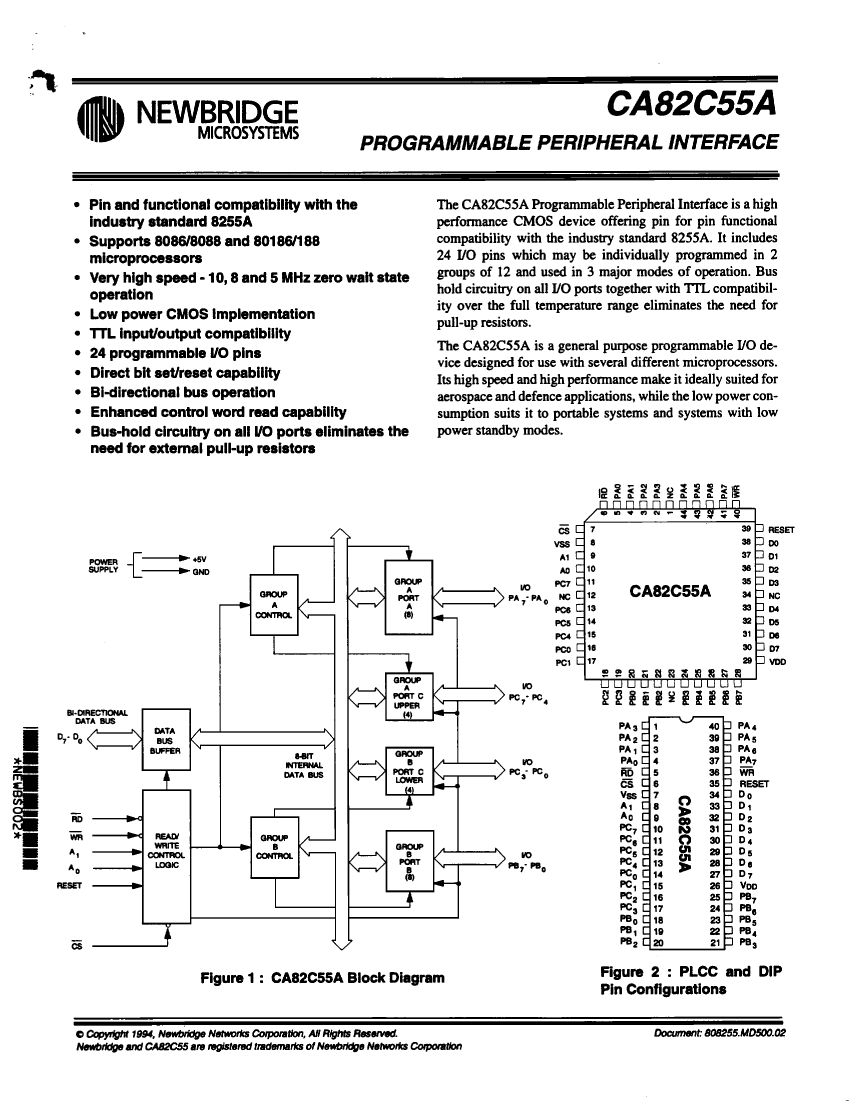

Parallel I/O Port, 24 I/O, CMOS, CDIP40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	8 MHz
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
Number of I/O lines	24
Number of ports	3
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	10 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
