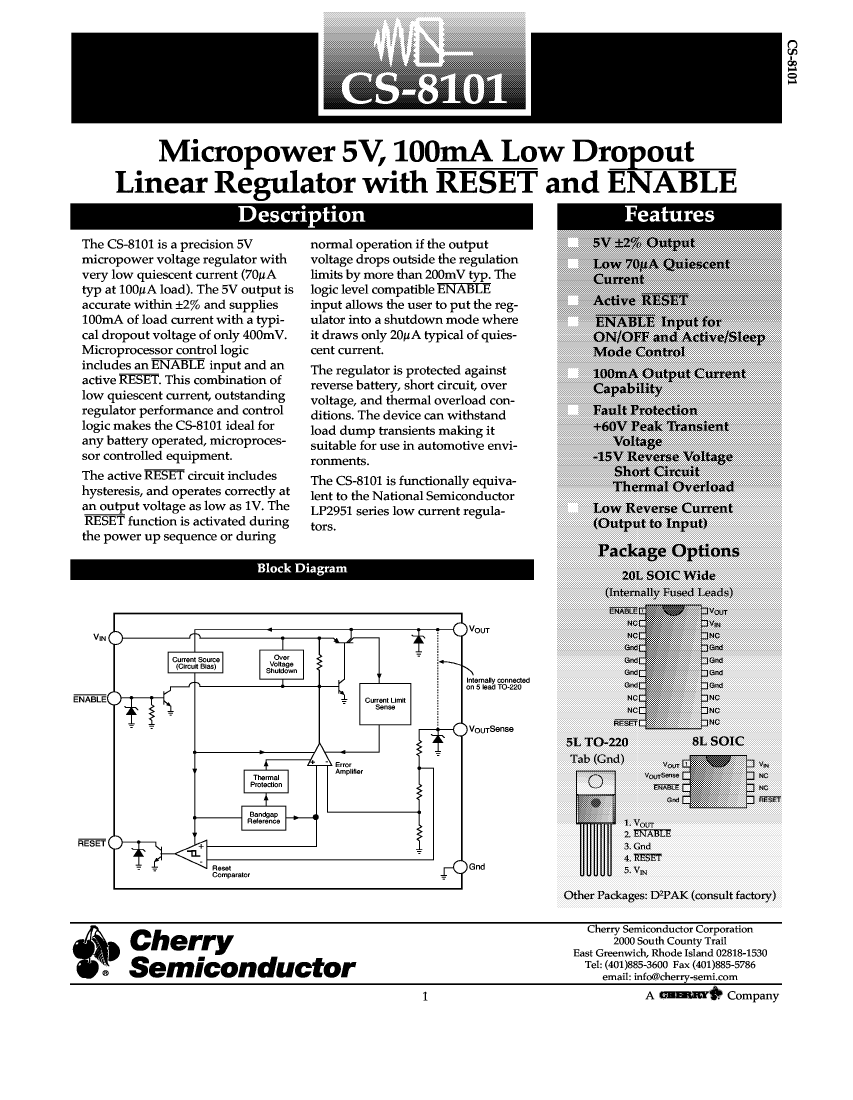

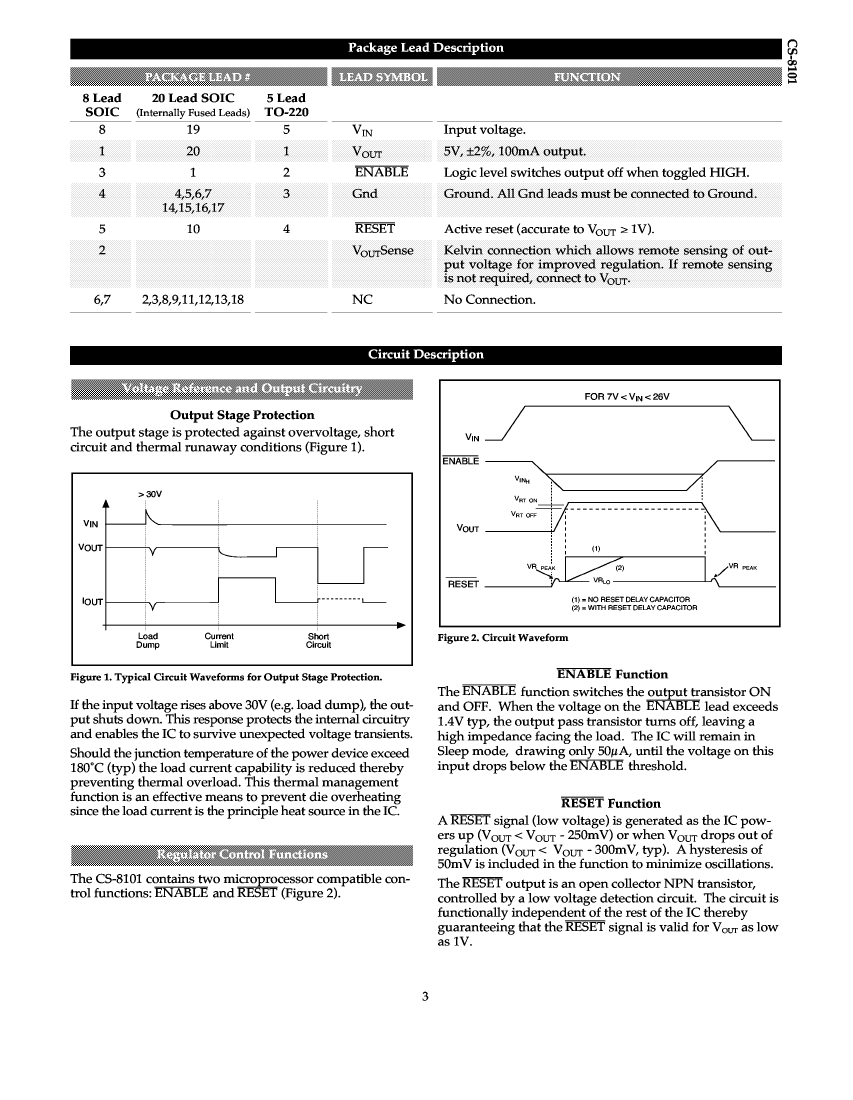

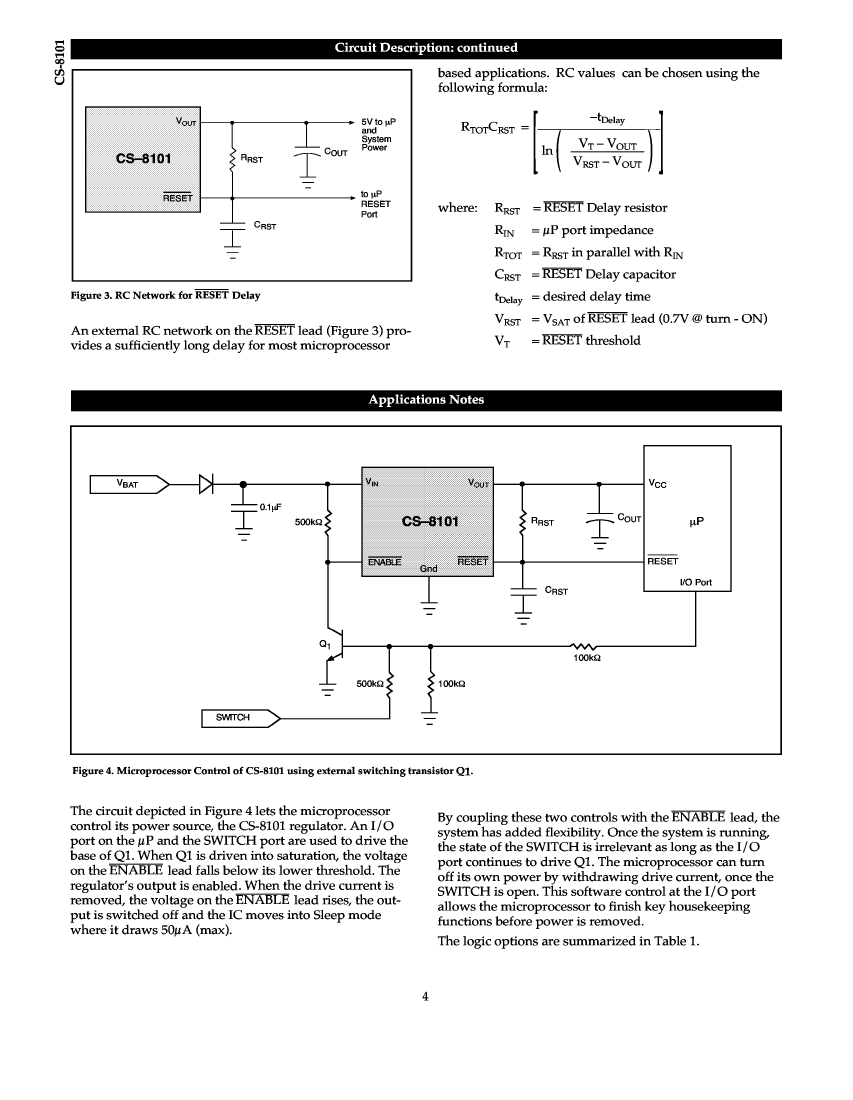

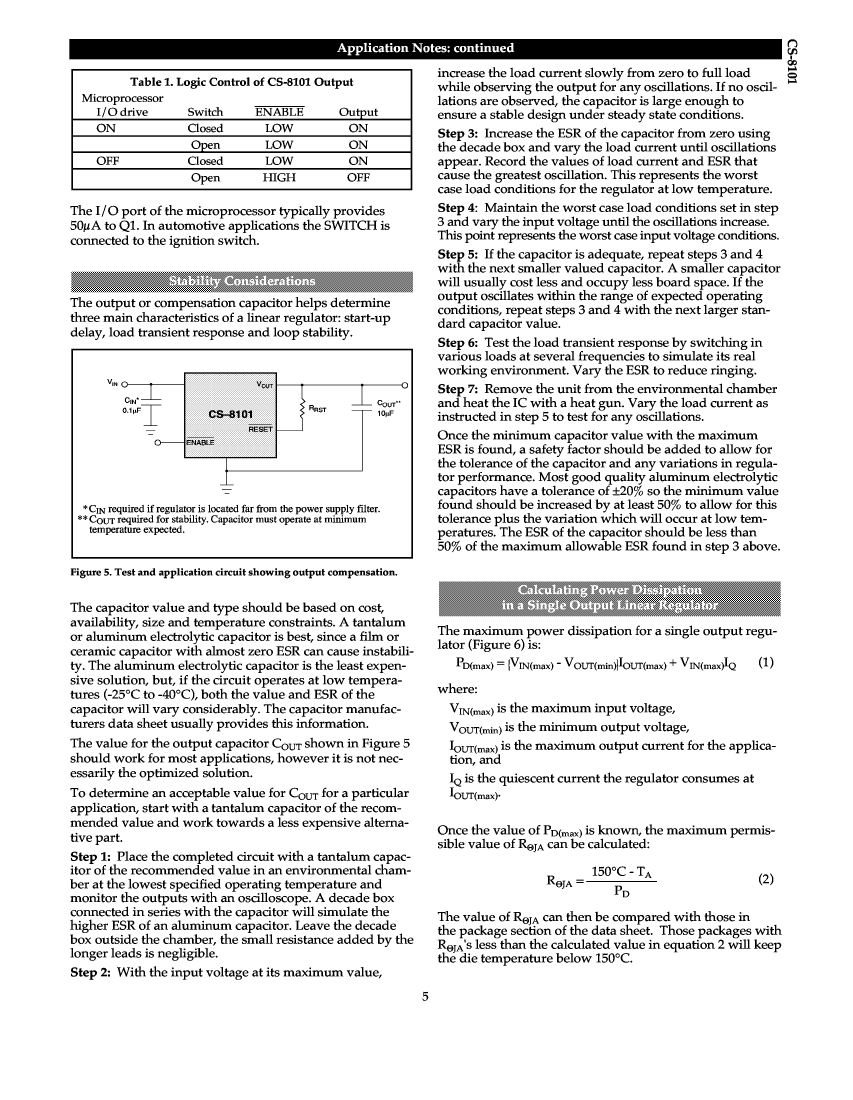

Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PDSO20, SOIC-20

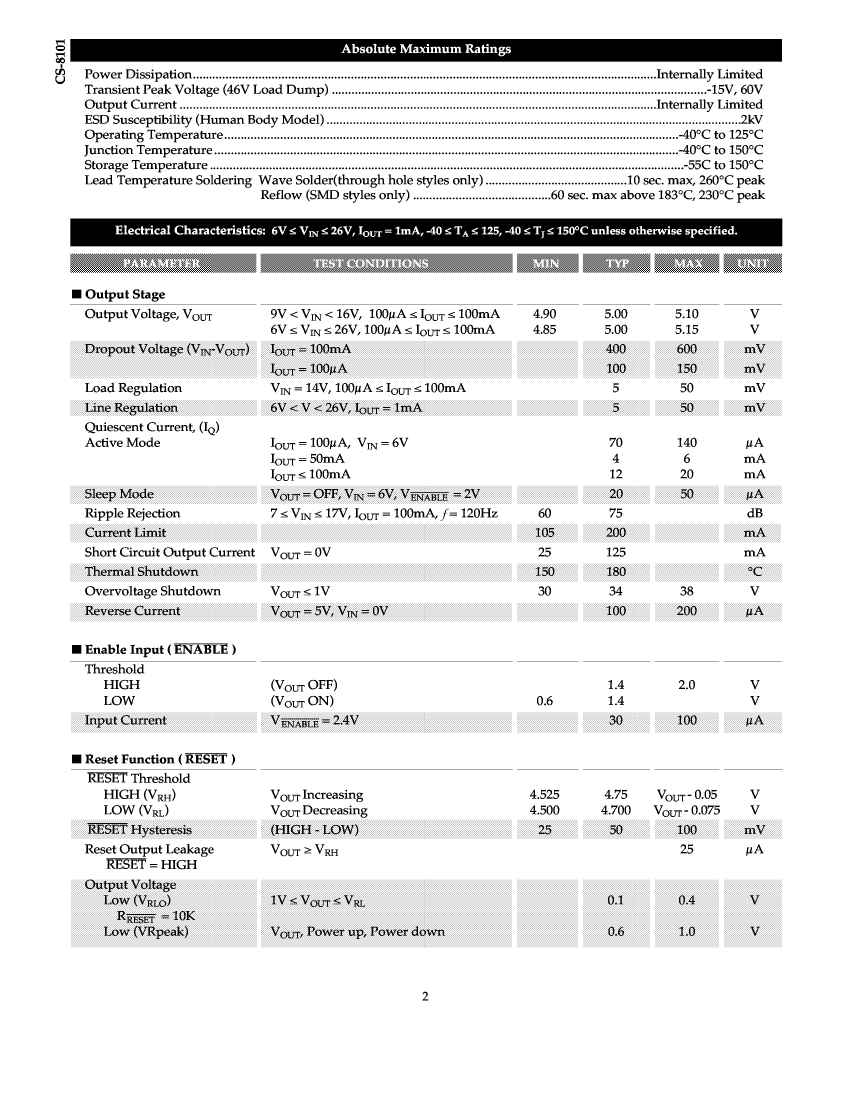

| Parameter Name | Attribute value |
| Maker | CHERRY |
| package instruction | SOIC-20 |
| Reach Compliance Code | unknown |
| Maximum drop-back voltage 1 | 0.6 V |
| Maximum input voltage | 26 V |
| Minimum input voltage | 6 V |
| JESD-30 code | R-PDSO-G20 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Working temperatureTJ-Max | 150 °C |
| Working temperature TJ-Min | -40 °C |
| Maximum output current 1 | 0.1 A |
| Maximum output voltage 1 | 5.15 V |
| Minimum output voltage 1 | 4.85 V |
| Nominal output voltage 1 | 5 V |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| CS-8101DWR20 | CS-8101D8 | CS-8101DW20 | CS-8101TV5 | CS-8101DR8 | |
|---|---|---|---|---|---|
| Description | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PDSO20, SOIC-20 | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO8, SOIC-8 | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PDSO20, SOIC-20 | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, PSFM5, VERTICAL, TO-220, 5 PIN | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, PDSO8, SOIC-8 |
| package instruction | SOIC-20 | SOIC-8 | SOIC-20 | ZIP, ZIP5,.15,.2,67TB | SOIC-8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Maximum drop-back voltage 1 | 0.6 V | 0.6 V | 0.6 V | 0.6 V | 0.6 V |
| Maximum input voltage | 26 V | 26 V | 26 V | 26 V | 26 V |
| Minimum input voltage | 6 V | 6 V | 6 V | 6 V | 6 V |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G8 | R-PDSO-G20 | R-PSFM-T5 | R-PDSO-G8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 8 | 20 | 5 | 8 |
| Working temperatureTJ-Max | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Working temperature TJ-Min | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current 1 | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Maximum output voltage 1 | 5.15 V | 5.15 V | 5.15 V | 5.15 V | 5.15 V |
| Minimum output voltage 1 | 4.85 V | 4.85 V | 4.85 V | 4.85 V | 4.85 V |
| Nominal output voltage 1 | 5 V | 5 V | 5 V | 5 V | 5 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | FLANGE MOUNT | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | YES | YES | YES | NO | YES |
| Terminal form | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | SINGLE | DUAL |
| Maker | CHERRY | CHERRY | CHERRY | - | - |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | - |
| Adjustability | - | FIXED | FIXED | FIXED | - |
| Nominal dropback voltage 1 | - | 0.4 V | 0.4 V | 0.4 V | - |
| JESD-609 code | - | e0 | e0 | e0 | - |
| Maximum grid adjustment rate | - | 0.05% | 0.05% | 0.05% | - |
| Maximum load regulation | - | 0.05% | 0.05% | 0.05% | - |
| Output times | - | 1 | 1 | 1 | - |
| Maximum operating temperature | - | 125 °C | 125 °C | 125 °C | - |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C | - |
| encapsulated code | - | SOP | SOP | ZIP | SOP |
| Encapsulate equivalent code | - | SOP8,.25 | SOP20,.4 | ZIP5,.15,.2,67TB | - |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| technology | - | BIPOLAR | BIPOLAR | BIPOLAR | - |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal pitch | - | 1.27 mm | 1.27 mm | 1.7 mm | - |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Maximum voltage tolerance | - | 3% | 3% | 3% | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 |
