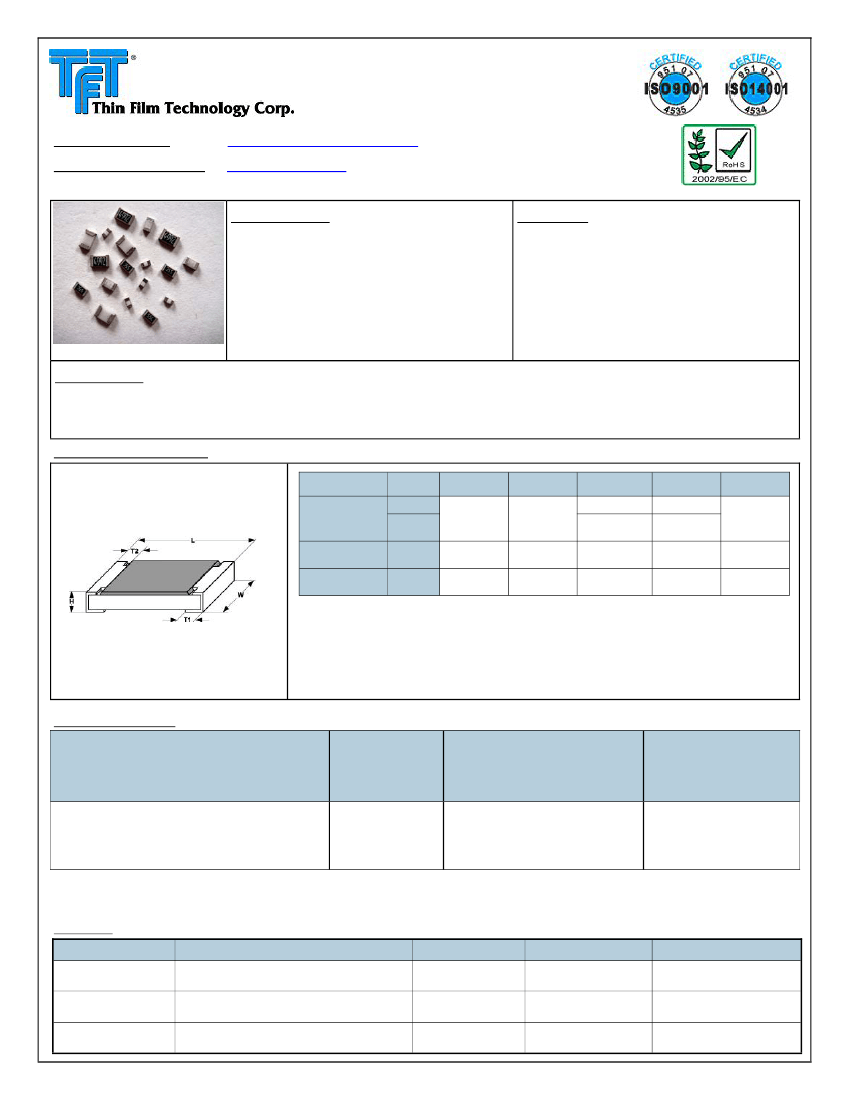

Product Family:
Part Number Series:
High Power Chip Resistor
RP, RPH Series
Construction:
•
•
•
•
High Purity Alumina Substrate
Ni alloy thin-film resistive element
Wrap around electrodes
100% matte tin over Ni terminations
(RoHS compliant & Pb Free)
Features:
•
•
•
•
•
0402, 0603, 0805 sizes
Power ratings of 1/3W, 1/4W, 1/5W and
1/6W
Tolerances of 1%, 2% or 5%
Higher power than conventional chip
resistors of same size
High volume production suitable for
commercial and special applications
Description:
These resistors offer a higher power in a smaller size than our conventional chip resistors. Resistances are offered
between 10 milliohms and 100 ohms with tolerances of 1%, 2% and 5%.
Product Dimensions:
Dimension
RP1005
(0402)
RP1608 / RPH1608
(0603)
RP2012
(0805)
Type
Single
Double
Single
Single
L
0.040 ±0.002
W
0.020 ±0.002
H
0.014 ±0.004
0.014
+0.006 / -0.004
0.018 ±0.004
0.016 ±0.004
T1
0.010 ±0.004
0.006 ±0.004
0.010 ±0.008
0.016 ±0.008
T2
0.006 ±0.004
0.063 ±0.008
0.080 ±0.008
0.032 ±0.004
0.050 ±0.008
0.008 ±0.006
0.016 ±0.008
Notes: All dimensions are shown in inches, but use metric size when ordering as shown in the
part numbering section. English case sizes are shown in parenthesis. Where double-
sided products are listed, the resistive element is on both sides of the product. This
applies to products whose resistance is equal to or less than 0.16Ω
Part Numbering:
Ex: RP1608S3R3G*
Product Designator & Metric Size
(English Size)
RP1005 (0402)
RP1608 (0603)
RPH1608 (0603)
RPH2012 (0805)
Temp.
Coefficient of
Resistance
(TCR)
0~+200 (S)
0~+350 (T)
Resistance Value
Resistance
Tolerance
±1.0% (F)
±2.0% (G)
±5.0% (J)
Use 3 digit code for all values of 0.1Ω
or greater and 4 digit for values of less
than 0.1Ω. “R” denotes decimal
position as necessary.
*Note: T&R package quantity (-T#) will be appended by us to the end of the part number. Refer to the following page
for standard package sizes.
Examples:
Part Number
RP1608S3R3G*
RP1005SR47G*
RPH1608TR082F*
Product Designator/Metric (English size)
RP1608 (0603)
RP1005 (0402)
RPH1608 (0603)
TCR
S
(0~+200ppm/°C)
S
(0~+200ppm/°C)
T
(0~+350ppm/°C)
Resistance (ohms)
3R3
(3.3 ohm)
R47
(0.47 ohm)
R082
(0.082 ohm)
Tolerance
G
(±2.0%)
G
(±2.0%)
F
(±1.0%)

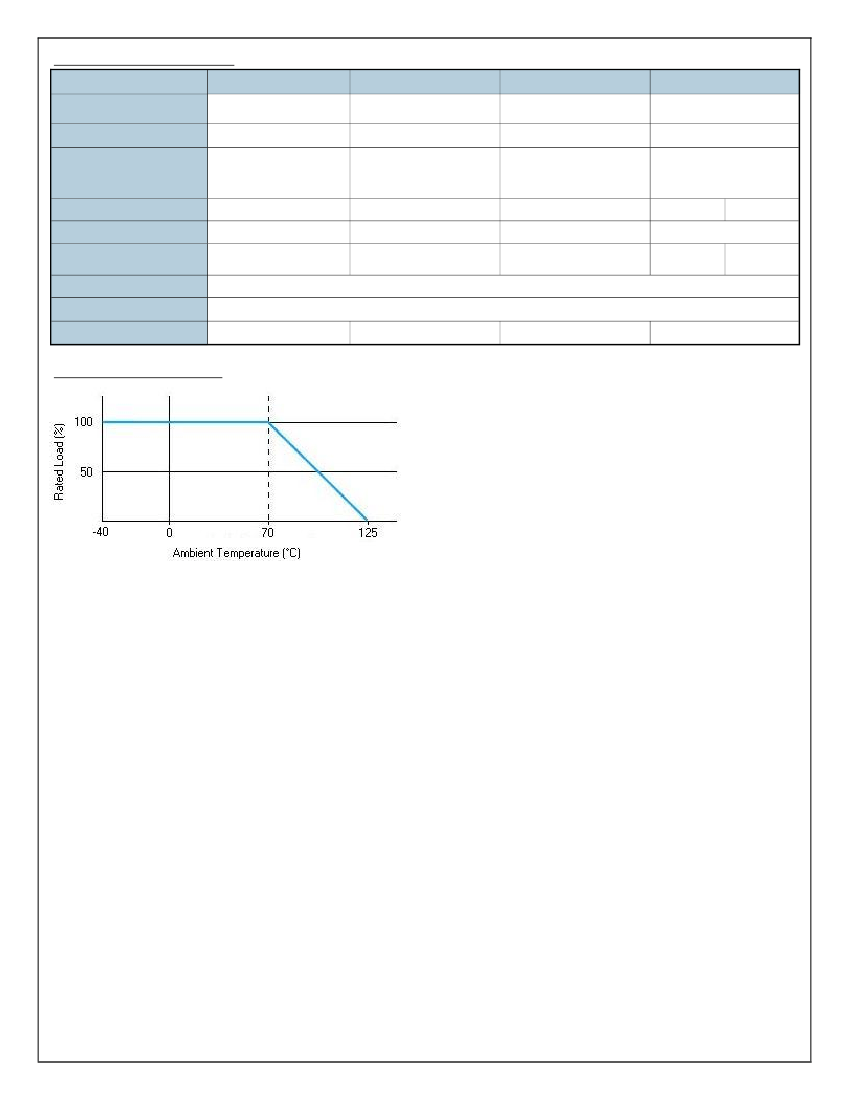

Thin Film Technology Corp. / 1980 Commerce Drive, North Mankato, MN 56003 (USA) / (507) 625-8445 / www.thin-film.com
