RT100KP90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RT100KP90

RT100KP90: DescriptionTrans Voltage Suppressor Diode, 90V V(RWM), Unidirectional,; CategoryDiscrete semiconductor diode; File Size122KB，4 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com; Environmental Compliance

Download Datasheet Parametric View All

RT100KP90 Overview

Trans Voltage Suppressor Diode, 90V V(RWM), Unidirectional,

RT100KP90 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MDE Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Breakdown voltage nominal value	100.5 V
Maximum clamping voltage	146.4 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	90 V
surface mount	NO

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414

1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

RT100KP SERIES

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE-28.0 TO 400 Volts

100000 Watt Peak Pulse Power

FEATURES

• Plastic package has Underwriters Laboratory

Flammability Classification 94V-0

• Glass passivated junction

• 100000W Peak Pulse Power

capability on 6.4/6.9µs waveform

• Excellent clamping capability

• Repetition rate (duty cycle):0.05%

• Low incremental surge resistance

• Fast response time: typically less

than 1.0 ps from 0 volts to BV

• High temperature soldering guaranteed:

265°C/10 seconds/.375", (9.5mm) lead

length, 5lbs., (2.3kg) tension

• 100KW Tranisent Voltage Suppressor (TVS) are

designed for aircraft applications requiring high power

transient protection.This includes various treats such as

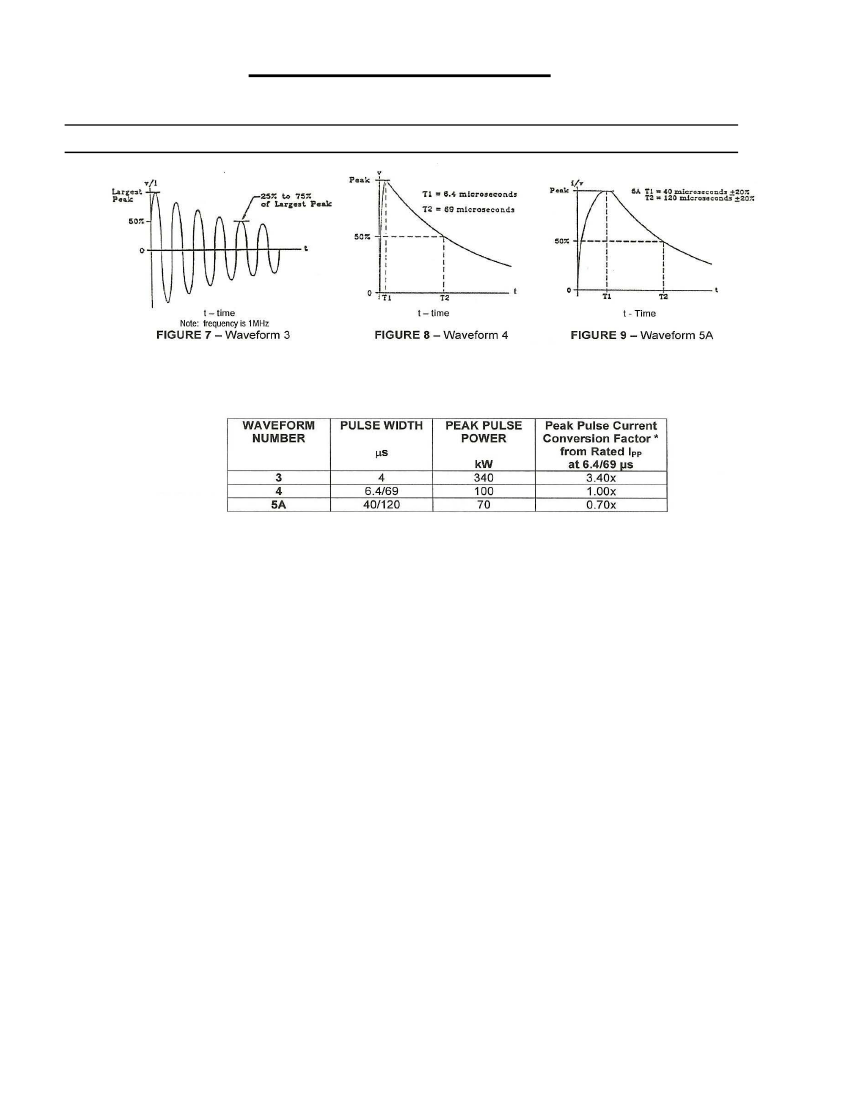

"Waveform 4" at 6.4/69 µs per RTCA/DO-160E Section 22

P-600

1.0(25.4) MIN

.360(9.1)

.340(8.6)

DIA

.360(9.1)

.340(8.6)

.052(1.3)

DIA

1.0(25.4) MIN

MECHANICAL DATA

Case:Molded plastic over glass passivated junction

Terminals: Matte Tin Plated Axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoted positive end (cathode)

except Bipolar

Mounting Position: Any

Weight: 0.07 ounce, 2.5 gram

Dimensions in inches (milimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA Suffix for types RT100KP28 thru types RT1000KP400

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation on 6.4/6.9µs

waveform

Peak Pulse Current of on 6.4/69µs waveform

Steady State Power Dissipation at Tl=75 °C

Lead Lengths.375", (9.5mm)

Peak Forward Surge Current, 8.3ms Sine-Wave

Superimposed on Rated Load, (JEDEC Method)

Operatings and Storage Temperature Range

Certified RoHS Compliant

SYMBOL

PPM

(AV)

VALUE

Minimum 100000

SEE TABLE 1

8.0

UNITS

Watts

Amps

Watts

FSM

, T

STG

400.0

-55 to +175

Amps

°C

8/21/2013
