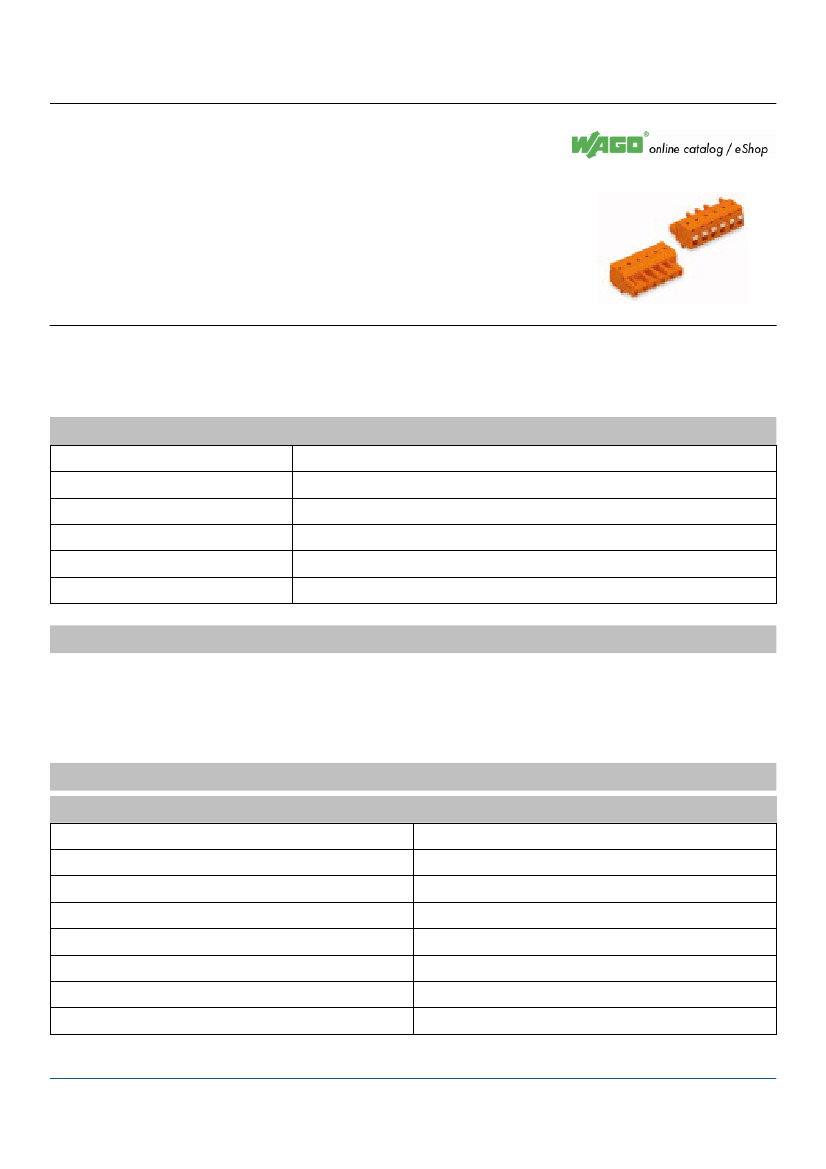

Printview: Female connector; with snap-in mounting feet; 7-pole; with integrated push-buttons; Pin spacing
7.62 mm / 0.3 in; with 209-137 mounting adapter also for DIN 35 rail; codable; with 2 latches; Plate
thickness 0.6x1.2 mm - Item No.: 2231-707/008-000
.
Female connector; with snap-in mounting feet; 7-pole; with
integrated push-buttons; Pin spacing 7.62 mm / 0.3 in; with 209-
137 mounting adapter also for DIN 35 rail; codable; with 2 latches;
Plate thickness 0.6x1.2 mm
Item No.: 2231-707/008-000
.
Female connector; with snap-in mounting feet; 7-pole; with integrated push-buttons; Pin spacing 7.62 mm / 0.3 in;
with 209-137 mounting adapter also for DIN 35 rail; codable; with 2 latches; Plate thickness 0.6x1.2 mm
.
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2231-707/008-000
1
1
Item description:Universal connection for all conductor typesEasy-to-use design does not require special toolsAbility
to wire while matedSimple, push-in termination of solid and ferruled stranded conductorsIntegrated test ports for
testing parallel to conductor entryCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
7
7.62 mm (0.3 in %)
7
7
orange
IEC/EN 60664-1
500 [V]
6 [kV]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Female connector; with snap-in mounting feet; 7-pole; with integrated push-buttons; Pin spacing
7.62 mm / 0.3 in; with 209-137 mounting adapter also for DIN 35 rail; codable; with 2 latches; Plate
thickness 0.6x1.2 mm - Item No.: 2231-707/008-000
Technical data
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Weight [g]
Width
Height
Height from the surface
Length
Type of mounting
Mounting type
630 [V]
6 [kV]
1000 [V]
6 [kV]
16 [A]
1
1
Push-in CAGE CLAMP®
1
Betätigungsdrücker
0.2 … 2.5 mm² / 24 … 12 AWG
0.2 … 2.5 mm² / 24 … 12 AWG
0.25 … 1.5 mm² / …
0.25 … 2.5 mm² / …
10 … 11 mm / 0.39 … 0.43 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Copper alloy
tin-plated
10.678 [g]
52.22 mm / 2.056 in
19.5 mm / 0.768 in
15 mm / 0.591 in
25.6 mm / 1.008 in
Oberflächenmontage
Rastfuß
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Female connector; with snap-in mounting feet; 7-pole; with integrated push-buttons; Pin spacing
7.62 mm / 0.3 in; with 209-137 mounting adapter also for DIN 35 rail; codable; with 2 latches; Plate
thickness 0.6x1.2 mm - Item No.: 2231-707/008-000

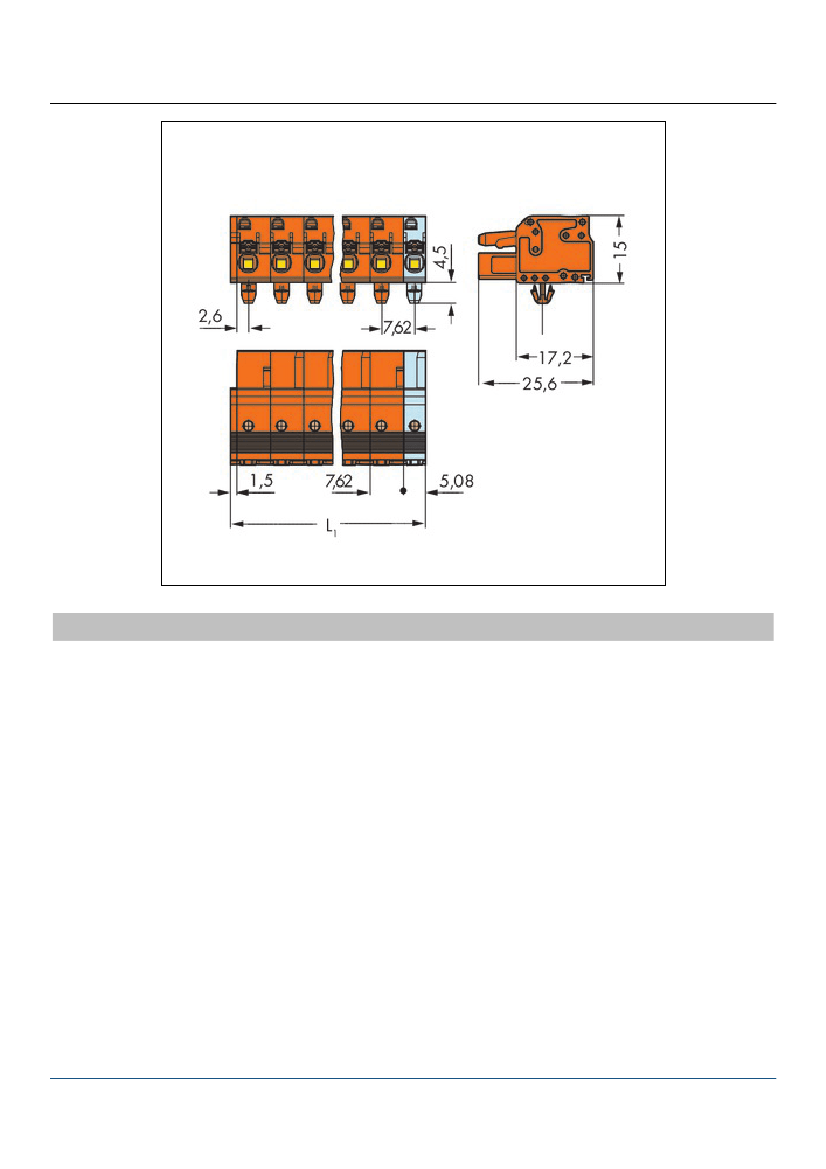

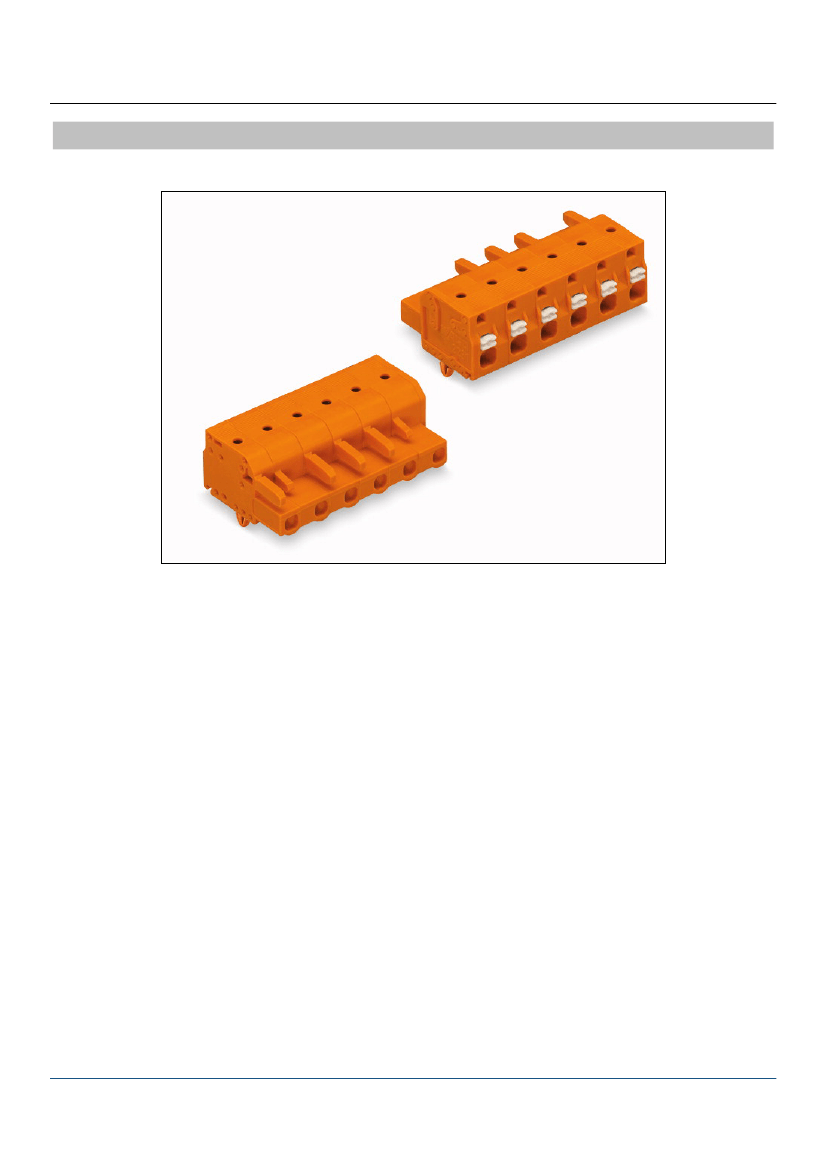

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Female connector; with snap-in mounting feet; 7-pole; with integrated push-buttons; Pin spacing
7.62 mm / 0.3 in; with 209-137 mounting adapter also for DIN 35 rail; codable; with 2 latches; Plate
thickness 0.6x1.2 mm - Item No.: 2231-707/008-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
