LM2576-5.0BT-LB02 datasheet, PDF

LM2576-5.0BT-LB02: Description3.5A SWITCHING REGULATOR, 52kHz SWITCHING FREQ-MAX, PSFM5; CategoryPower/power management The power supply circuit; File Size241KB，8 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

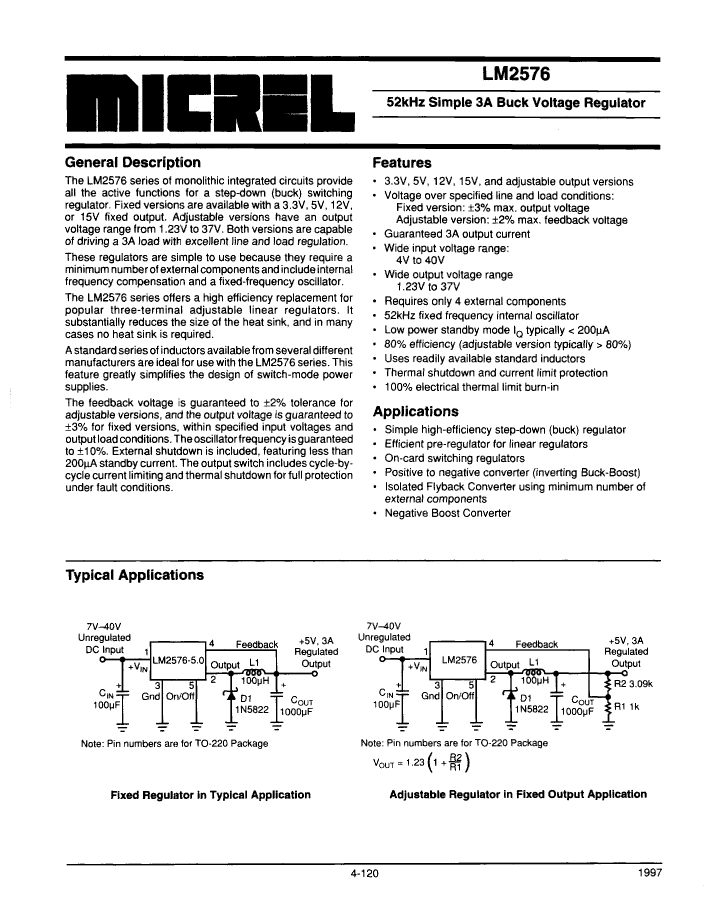

LM2576-5.0BT-LB02 Overview

3.5A SWITCHING REGULATOR, 52kHz SWITCHING FREQ-MAX, PSFM5

Parameter Name	Attribute value
Maker	Microchip

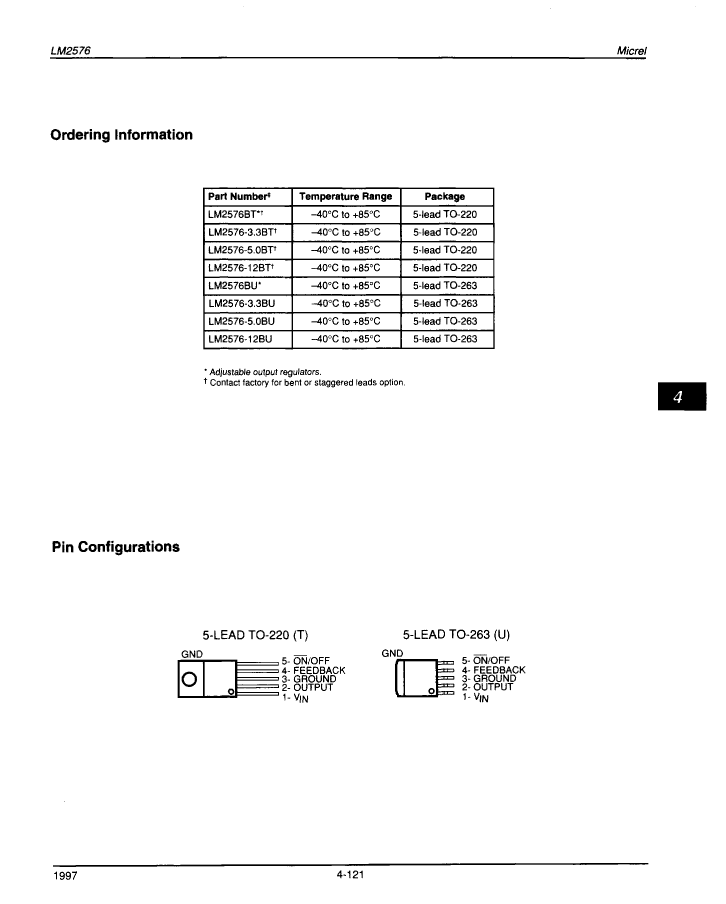

package instruction	TO-220, 5 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION

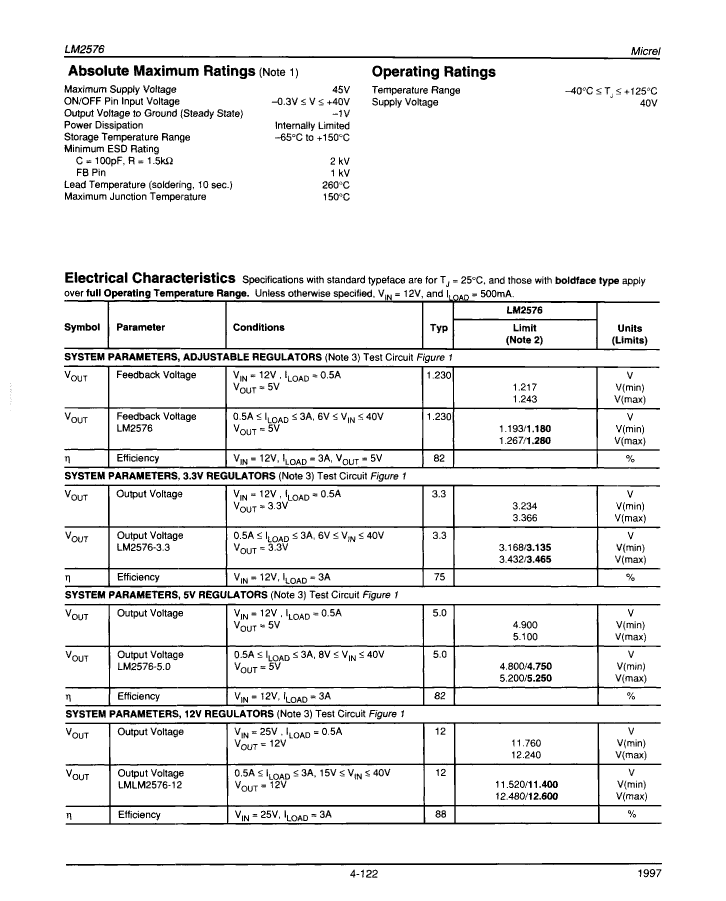

Maximum input voltage	40 V
Minimum input voltage	4 V
Nominal input voltage	12 V
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	3.5 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-220
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply current (Isup)	10 mA
surface mount	NO
Switch configuration	BUCK

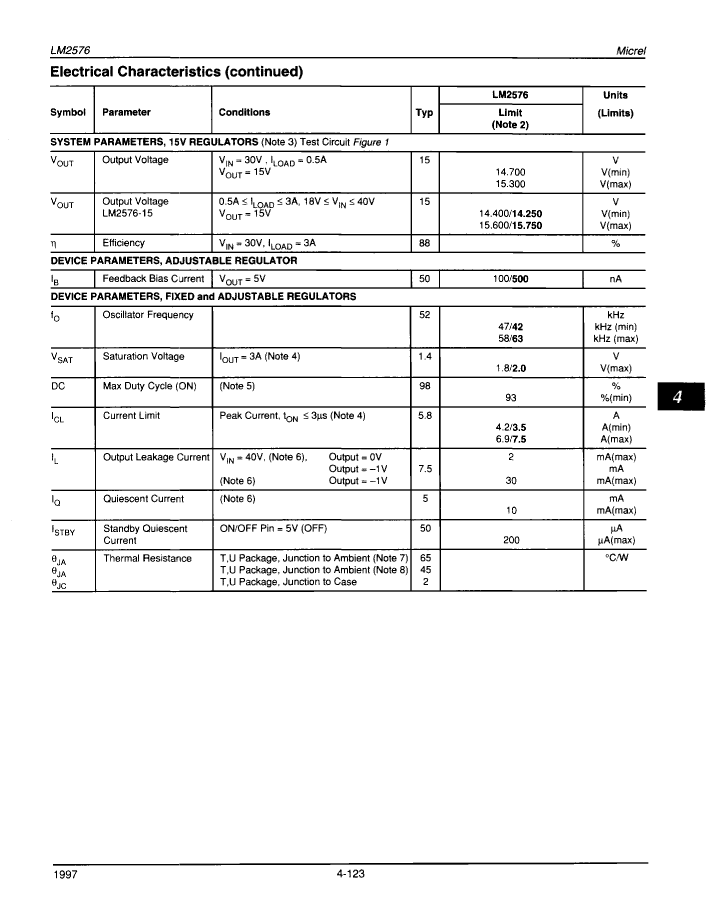

Maximum switching frequency	52 kHz
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

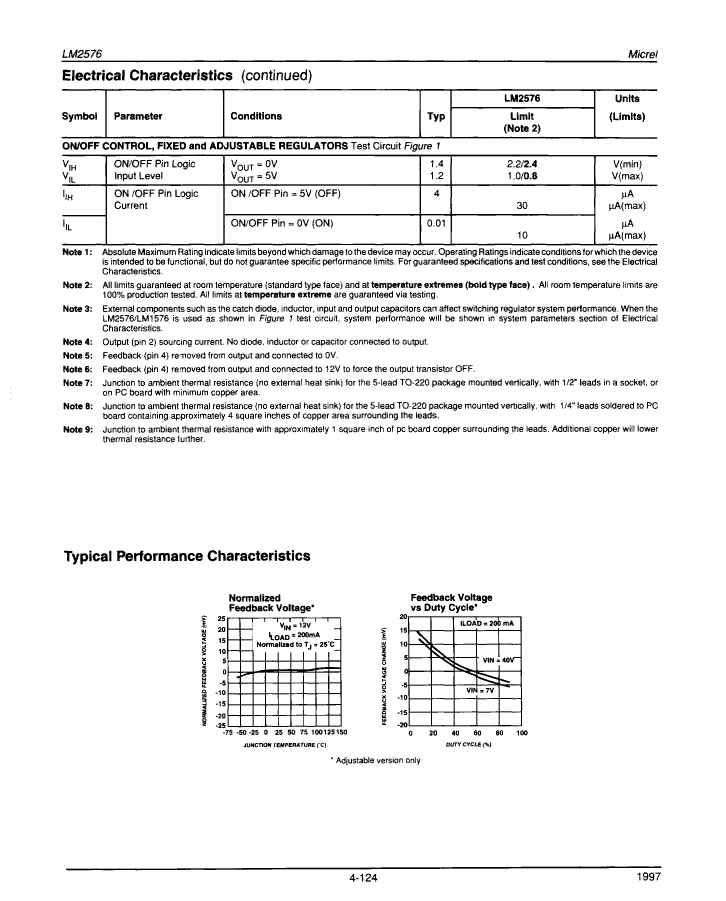

	LM2576-5.0BT-LB02	LM2576-12BT-LB02
Description	3.5A SWITCHING REGULATOR, 52kHz SWITCHING FREQ-MAX, PSFM5	3.5A SWITCHING REGULATOR, 52kHz SWITCHING FREQ-MAX, PSFM5
package instruction	TO-220, 5 PIN	TO-220,
Reach Compliance Code	compliant	compli
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	40 V	40 V
Minimum input voltage	4 V	4 V
Nominal input voltage	12 V	12 V
JESD-30 code	R-PSFM-T5	R-PSFM-T5
Number of functions	1	1
Number of terminals	5	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	3.5 A	3.5 A
Nominal output voltage	5 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-220	TO-220
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	10 mA	10 mA
surface mount	NO	NO
Switch configuration	BUCK	BUCK
Maximum switching frequency	52 kHz	52 kHz
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
