MB81C78A-45PSK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MB81C78A-45PSK

MB81C78A-45PSK: Description8KX8 STANDARD SRAM, 45ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28; Categorystorage storage; File Size297KB，16 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MB81C78A-45PSK Overview

8KX8 STANDARD SRAM, 45ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28

MB81C78A-45PSK Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	45 ns
Other features	AUTOMATIC POWER-DOWN
JESD-30 code	R-PDIP-T28
length	35.36 mm
memory density	65536 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.25 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

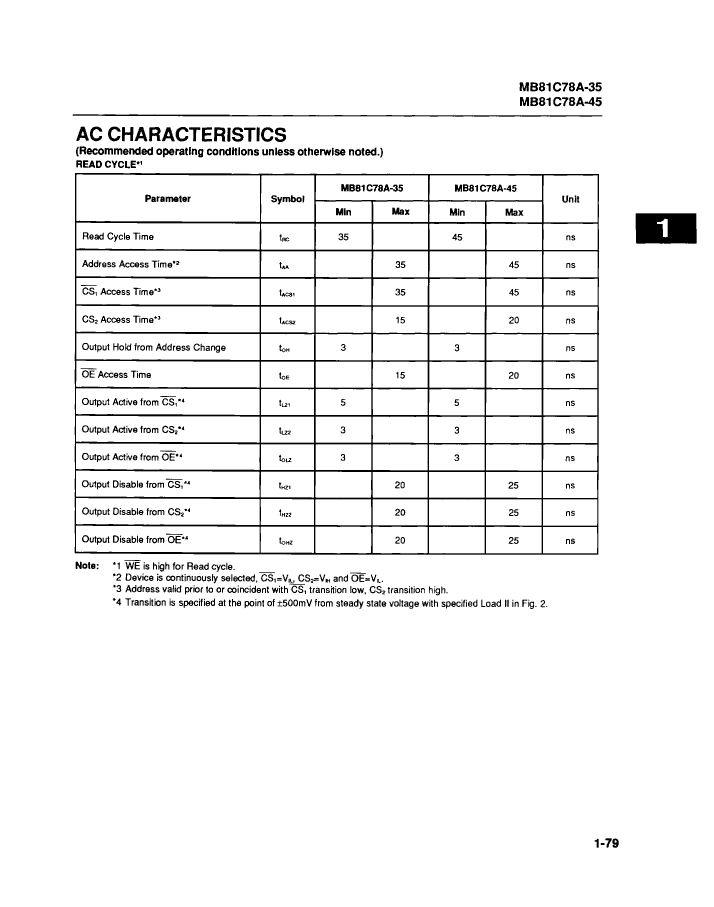

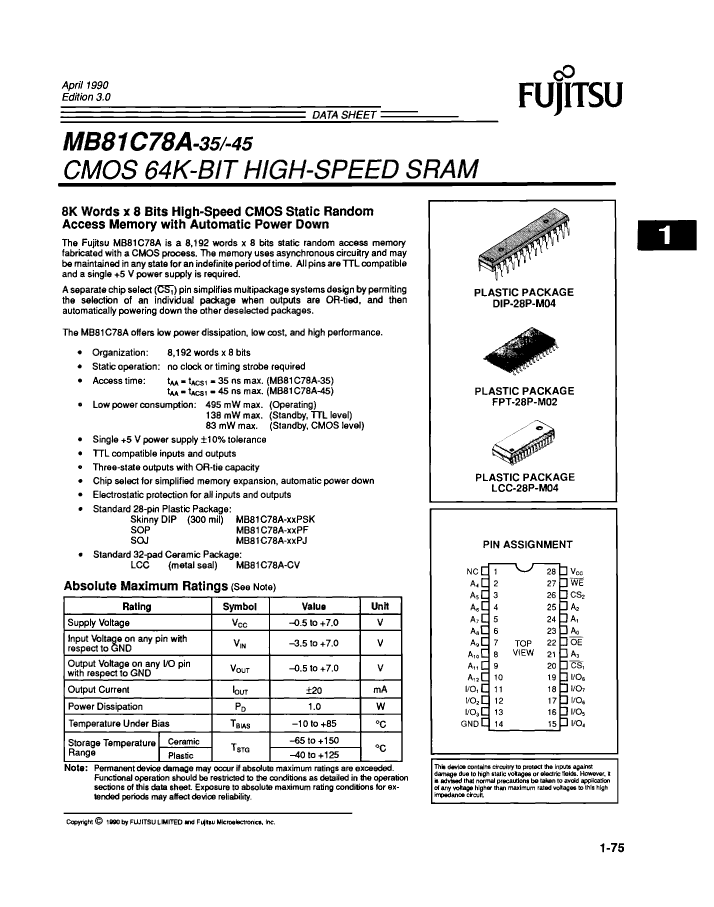

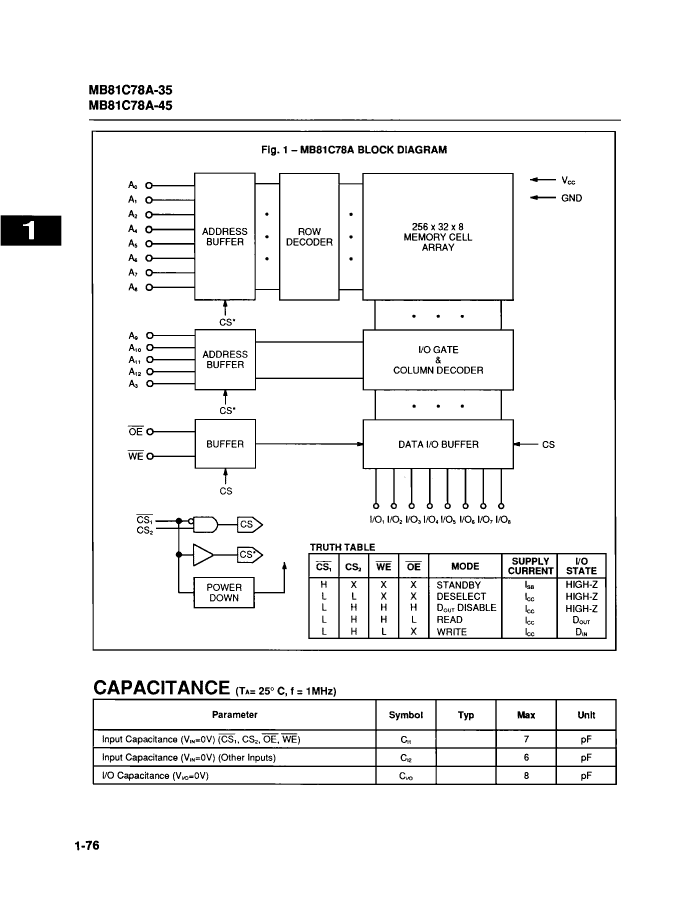

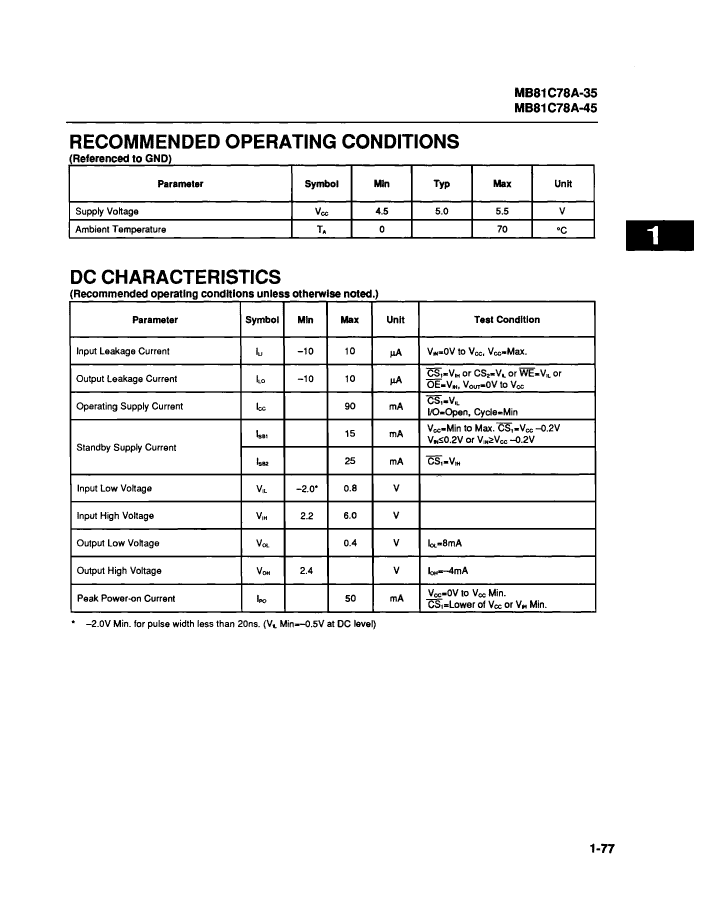

Preview

Download Datasheet

View All

MB81C78A-45PSK Related Products

	MB81C78A-45PSK	MB81C78A-45CV	MB81C78A-35PJ	MB81C78A-45PF	MB81C78A-35PSK	MB81C78A-35PF	MB81C78A-45PJ
Description	8KX8 STANDARD SRAM, 45ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	Standard SRAM, 8KX8, 45ns, CMOS, CQCC32	Standard SRAM, 8KX8, 35ns, CMOS, PDSO28	Standard SRAM, 8KX8, 45ns, CMOS, PDSO28	8KX8 STANDARD SRAM, 35ns, PDIP28, 0.300 INCH, SKINNY, PLASTIC, DIP-28	Standard SRAM, 8KX8, 35ns, CMOS, PDSO28	Standard SRAM, 8KX8, 45ns, CMOS, PDSO28
Parts packaging code	DIP	QFJ	SOJ	SOIC	DIP	SOIC	SOJ
package instruction	DIP,	QCCN, LCC32,.45X.55	SOJ, SOJ28,.34	SOP, SOP28,.5	DIP,	SOP, SOP28,.5	SOJ, SOJ28,.34
Contacts	28	32	28	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	45 ns	45 ns	35 ns	45 ns	35 ns	35 ns	45 ns
JESD-30 code	R-PDIP-T28	R-XQCC-N32	R-PDSO-J28	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDSO-J28
memory density	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8
Number of terminals	28	32	28	28	28	28	28
word count	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000	8000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8	8KX8
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	SOJ	SOP	DIP	SOP	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	NO LEAD	J BEND	GULL WING	THROUGH-HOLE	GULL WING	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	FUJITSU	-	FUJITSU	FUJITSU	FUJITSU	FUJITSU	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-	incompatible	incompatible
I/O type	-	COMMON	COMMON	COMMON	-	COMMON	COMMON
JESD-609 code	-	e0	e0	e0	-	e0	e0
Output characteristics	-	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE
Encapsulate equivalent code	-	LCC32,.45X.55	SOJ28,.34	SOP28,.5	-	SOP28,.5	SOJ28,.34
power supply	-	5 V	5 V	5 V	-	5 V	5 V
Maximum standby current	-	0.015 A	0.015 A	0.015 A	-	0.015 A	0.015 A
Maximum slew rate	-	0.09 mA	0.09 mA	0.09 mA	-	0.09 mA	0.09 mA
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
