AM2841APC datasheet, PDF - EEWORLD Datasheet

AM2841APC: DescriptionFIFO, 64X4, Asynchronous, MOS, PDIP16; Categorystorage storage; File Size407KB，6 Pages; ManufacturerMsis Semiconductor Inc

Download Datasheet Parametric Compare View All

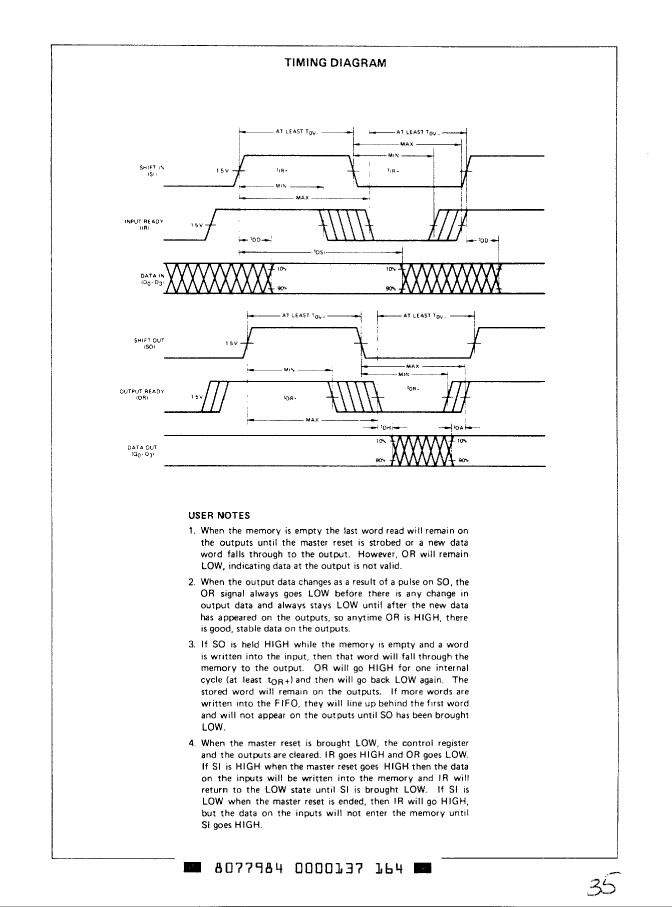

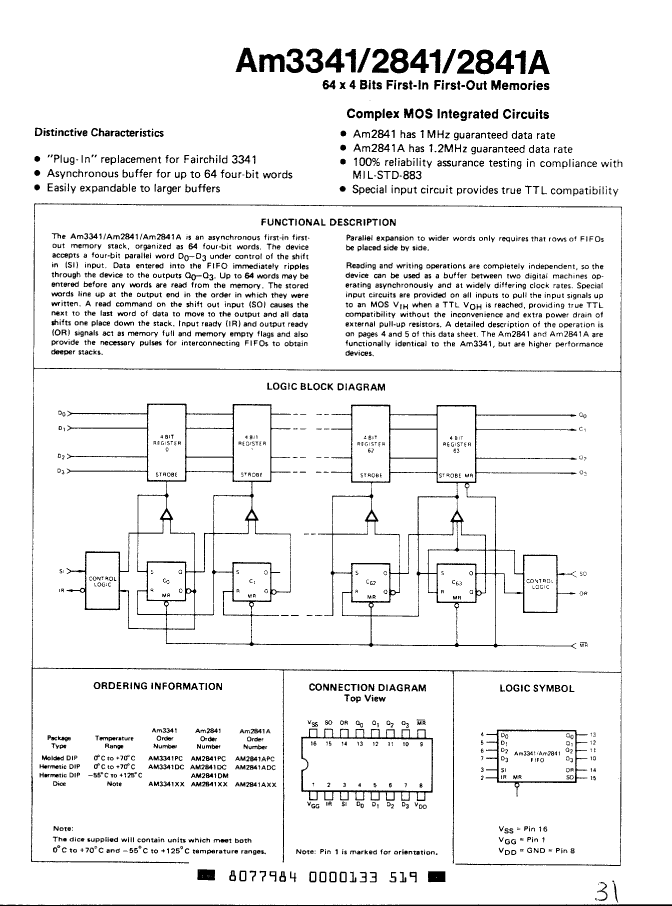

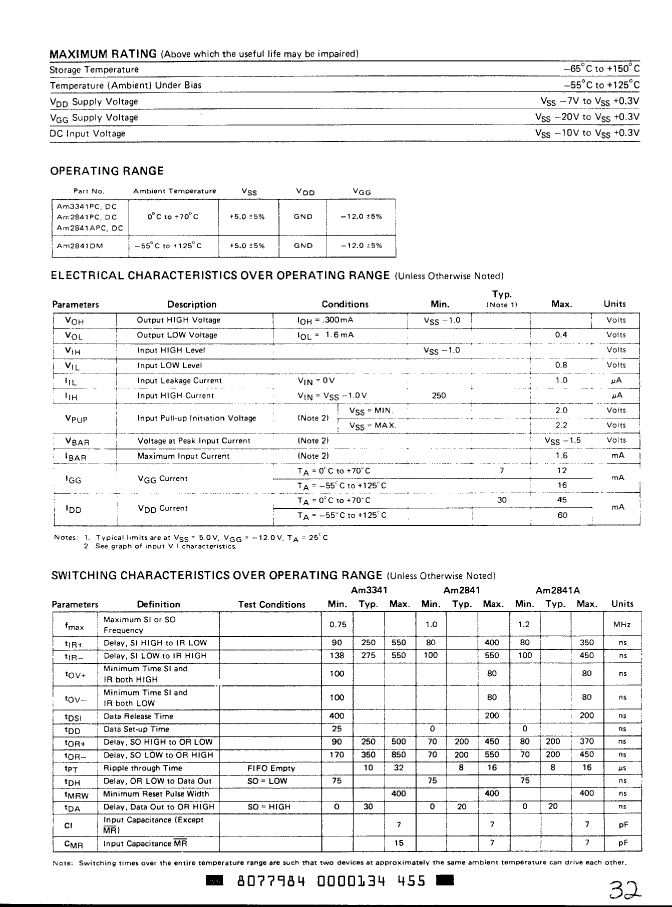

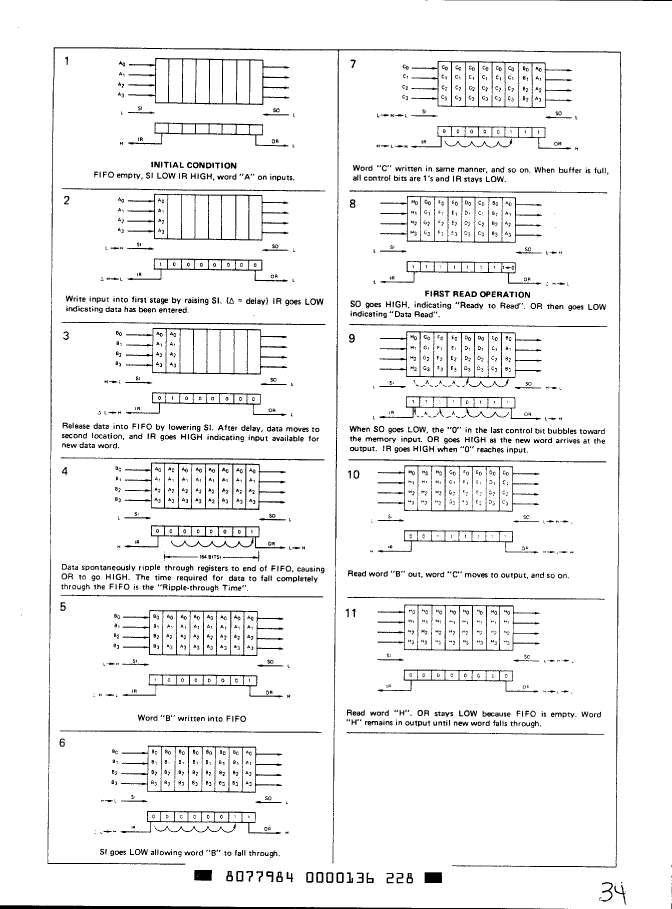

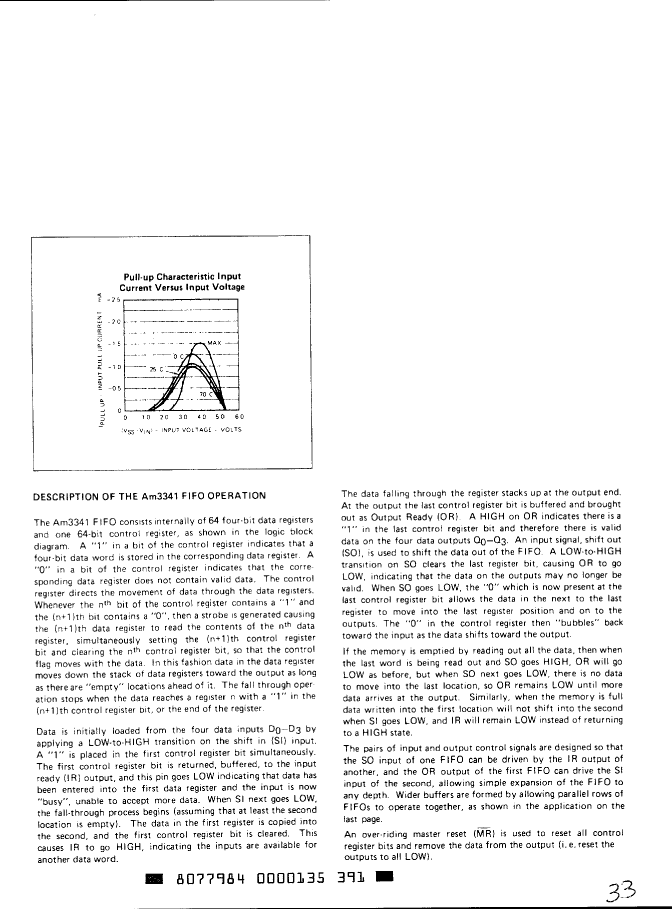

AM2841APC Overview

FIFO, 64X4, Asynchronous, MOS, PDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Msis Semiconductor Inc
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Maximum clock frequency (fCLK)	1.2 MHz
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Memory IC Type	OTHER FIFO
memory width	4
Number of terminals	16
word count	64 words
character code	64
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64X4
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	0.045 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	AM2841APC	AM2841ADC	AM2841PC
Description	FIFO, 64X4, Asynchronous, MOS, PDIP16	FIFO, 64X4, Asynchronous, MOS, CDIP16	FIFO, 64X4, Asynchronous, MOS, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Msis Semiconductor Inc	Msis Semiconductor Inc	Msis Semiconductor Inc
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown
Maximum clock frequency (fCLK)	1.2 MHz	1.2 MHz	1 MHz
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	4	4	4
Number of terminals	16	16	16
word count	64 words	64 words	64 words
character code	64	64	64
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	64X4	64X4	64X4
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.045 mA	0.045 mA	0.045 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
