BAS40-04-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS40-04-C

BAS40-04-C: DescriptionRectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size238KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

BAS40-04-C Overview

Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3

BAS40-04-C Parametric

Parameter Name	Attribute value
Maker	SECOS
package instruction	HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.225 W
Maximum repetitive peak reverse voltage	70 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL

BAS40-04-C Preview

BAS40/-04/-05/-06

Elektronische Bauelemente

Surface Mount Schottky Barrier Diodes

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Low Turn-on Voltage

Low Forward Voltage

Very Low Capacitance

Less Than 5.0pF @ 0V

For high speed switching application,

circuit protection

Collector

SOT-23

Dim

Min

2.800

1.200

0.890

0.370

1.780

0.013

0.085

0.450

0.890

2.100

0.450

Max

3.040

1.400

1.110

0.500

2.040

0.100

0.177

0.600

1.020

2.500

0.600

Base

Emitter

MECHANICAL DATA

Case: SOT-23, Molded Plastic

Terminals: Solderable per MIL-STD-202,

Method 208

Polarity: See Diagrams Below

Weight: 0.008 grams (approx.)

Mounting Position: Any

Top View

B S

All Dimension in mm

BAS40 Marking: 43

BAS40-04 Marking: 44

BAS40-05 Marking: 45

BAS40-06 Marking: 46

ABSOLUTE MAXIMUM RATINGS at Ta = 25°C

Parameter

Reverse Voltage

Forward Continuous Current

Single Forward Current, t≦10 ms

Thermal Resistance

(Note 1)

Junction−to−Ambient (Note 2)

Forward Power Dissipation

@ T

= 25°C

Derate above 25°C

Junction, Storage Temperature

, T

STG

Symbol

FSM

θJA

Ratings

200

600

508

311

325

1.8

-55 ~ +150

Unit

°C/W

mW /

°C

ELECTRICAL CHARACTERISTICS

(at Ta = 25°C unless otherwise specified)

Parameters

Reverse Breakdown Voltage

Reverse Current

Forward Voltage

Diode Capacitance

Reverse Recovery Time

Symbol

(BR)R

TOT

Min.

Max.

200

380

1000

5.0

Unit

= 30V

= 1mA

Test Conditions

= 10

μA

= 40mA

= 0, f=1MHz

= 1 mA, I

=10mA, R

=100Ω

http://www.SeCoSGmbH.com

Any changes of specification will not be informed individually.

22-Sept-2008 Rev.C

Page 1 of 2

BAS40/-04/-05/-06

Elektronische Bauelemente

Surface Mount Schottky Barrier Diodes

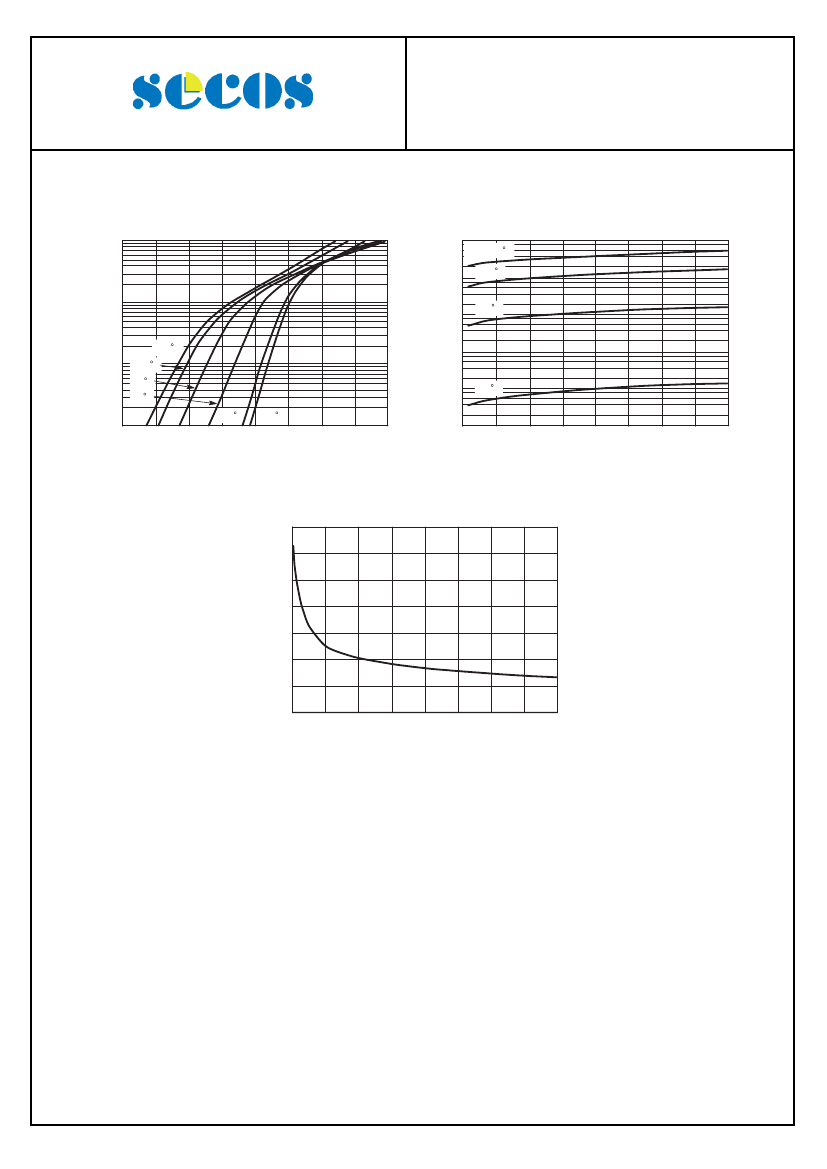

RATINGS AND CHARACTERISTIC CURVES

100

1.0

TA = 150 C

125 C

85 C

IF, Forward Current (mA)

150 C

1.0

1 25 C

85 C

25 C

0.1

-40 C

0.1

0.2

0.3

-55 C

0.4

0.5

0.6

0.7

0.8

IR , Reverse Current (μA)

0.1

0.01

25 C

0.001

VF, Forward Voltage (V)

VR, Reverse Voltage (V)

Figure 1. Typical Forward Voltage

Figure 2. Reverse Current versus Reverse

Voltage

3.5

3.0

C T, Capacitance (pF)

2.5

2.0

1.5

1.0

0.5

5.0

V R, Reverse Voltage (V)

Figure 3. Typical Capacitance

http://www.SeCoSGmbH.com

Any changes of specification will not be informed individually.

22-Sept-2008 Rev.C

Page 2 of 2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BAS40-04-C Related Products

	BAS40-04-C	BAS40-06-C	BAS40-05-C	BAS40-C
Description	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	Rectifier Diode, Schottky, 1 Element, 0.07A, 70V V(RRM), Silicon, HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3
Maker	SECOS	SECOS	SECOS	SECOS
package instruction	HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3	HALOGEN AND LEAD FREE, PLASTIC PACKAGE-3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	2	2	2	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.07 A	0.07 A	0.07 A	0.07 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.225 W	0.225 W	0.225 W	0.225 W
Maximum repetitive peak reverse voltage	70 V	70 V	70 V	70 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
