Part Number

Search

LVCH244APWDH

Description
IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver
Categorylogic    logic
File Size163KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

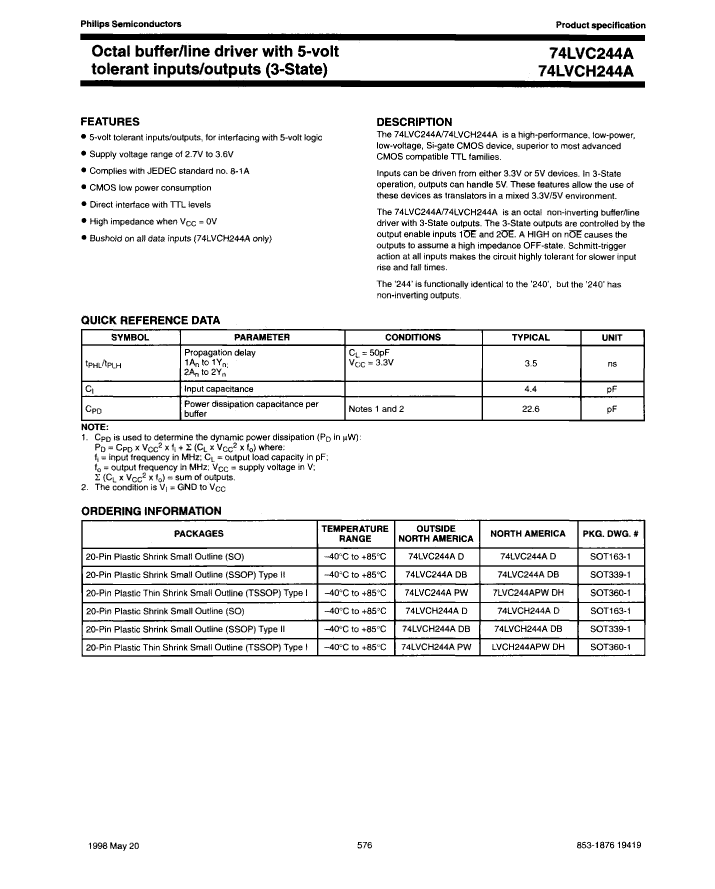

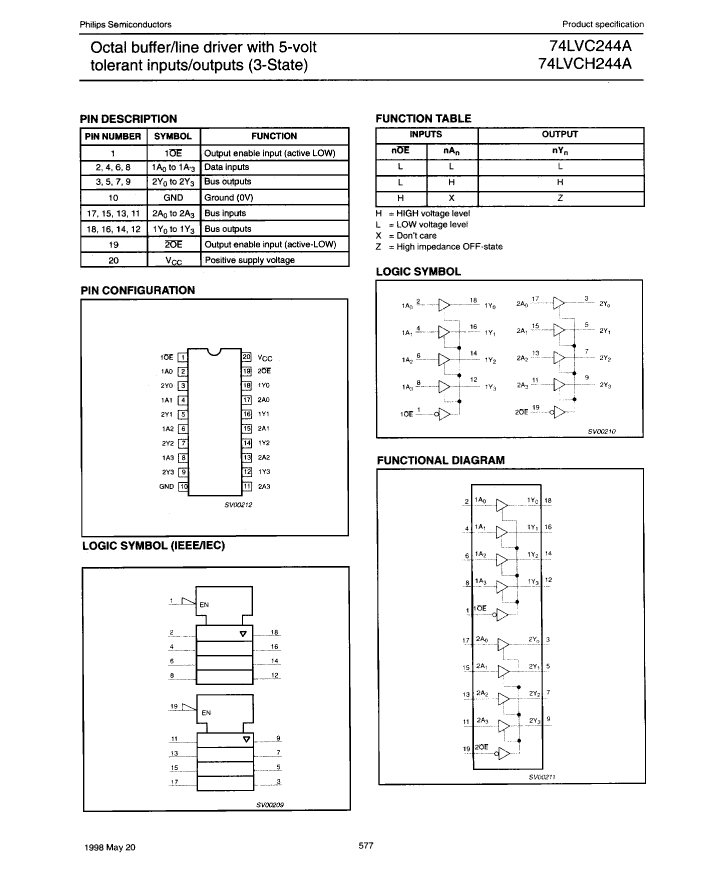

LVCH244APWDH Overview

IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver

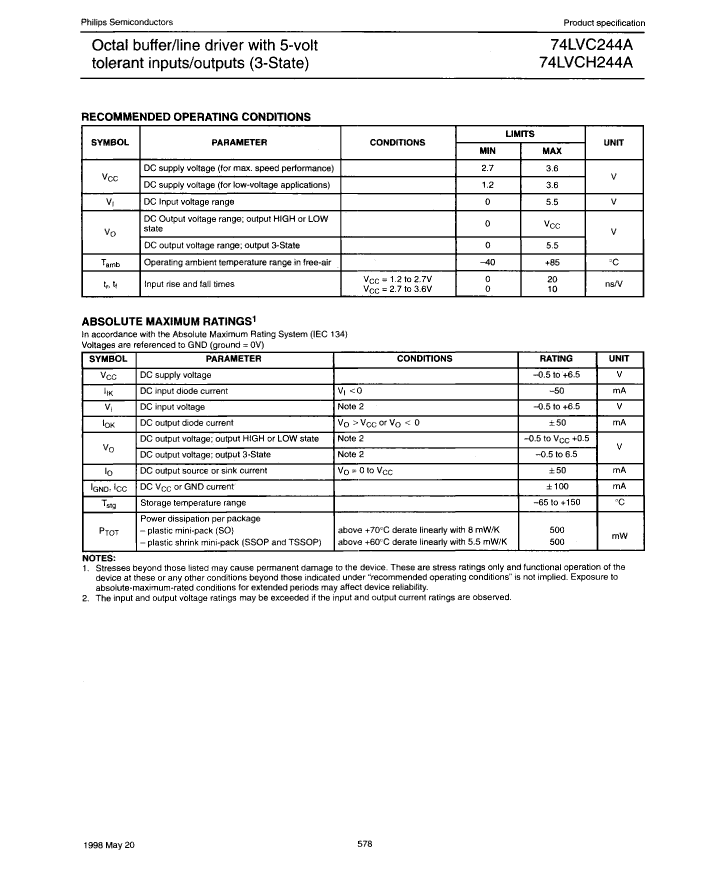

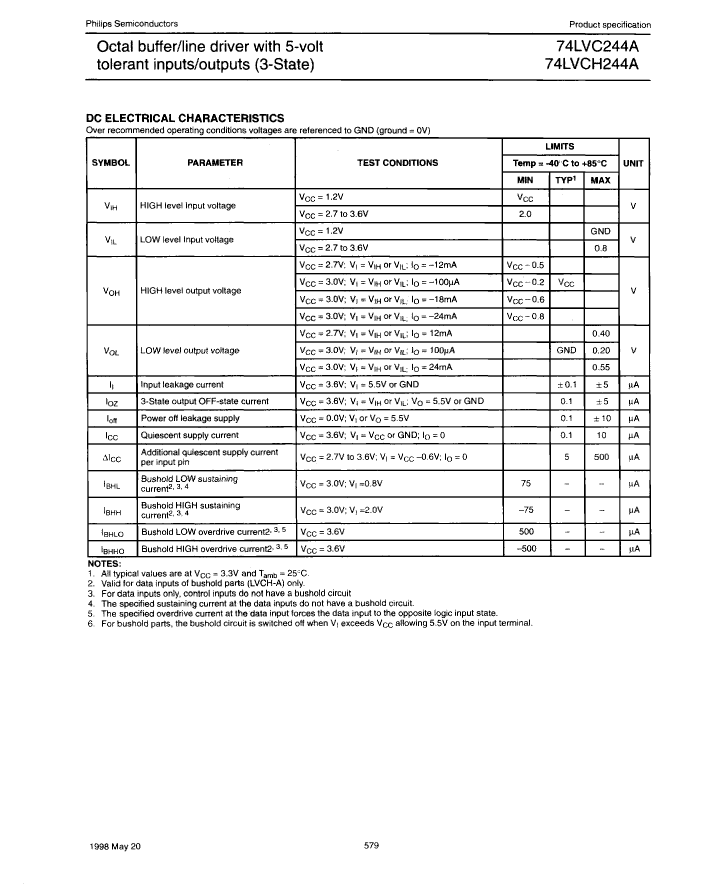

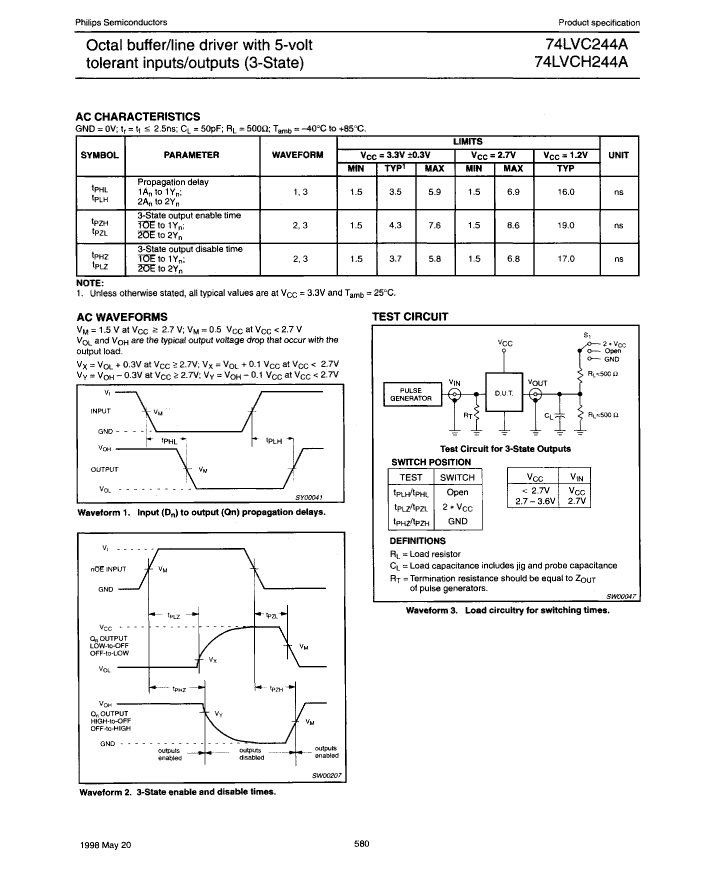

LVCH244APWDH Parametric

Parameter NameAttribute value
MakerNXP
package instructionTSSOP,
Reach Compliance Codeunknown
seriesLVC/LCX/Z
JESD-30 codeR-PDSO-G20
length6.5 mm
Logic integrated circuit typeBUS DRIVER
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)6.9 ns
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)1.2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width4.4 mm

LVCH244APWDH Related Products

LVCH244APWDH 7LVC244APWDH-T 7LVC244APWDH LVCH244APWDH-T
Description IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver IC LVC/LCX/Z SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver
Maker NXP NXP NXP NXP
Reach Compliance Code unknown unknown unknown unknown
series LVC/LCX/Z LVC/LCX/Z LVC/LCX/Z LVC/LCX/Z
JESD-30 code R-PDSO-G20 R-PDSO-G20 R-PDSO-G20 R-PDSO-G20
length 6.5 mm 6.5 mm 6.5 mm 6.5 mm
Logic integrated circuit type BUS DRIVER BUS DRIVER BUS DRIVER BUS DRIVER
Number of digits 4 4 4 4
Number of functions 2 2 2 2
Number of ports 2 2 2 2
Number of terminals 20 20 20 20
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE TRUE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSSOP TSSOP TSSOP TSSOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd) 6.9 ns 6.9 ns 6.9 ns 6.9 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.1 mm 1.1 mm 1.1 mm 1.1 mm
Maximum supply voltage (Vsup) 3.6 V 3.6 V 3.6 V 3.6 V
Minimum supply voltage (Vsup) 1.2 V 1.2 V 1.2 V 1.2 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V 3.3 V
surface mount YES YES YES YES
technology CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.65 mm 0.65 mm 0.65 mm 0.65 mm
Terminal location DUAL DUAL DUAL DUAL
width 4.4 mm 4.4 mm 4.4 mm 4.4 mm
package instruction TSSOP, TSSOP, - TSSOP,
