MX28F002BTC-90C4 datasheet, PDF

Datasheet> All Categories > storage> storage> MX28F002BTC-90C4

MX28F002BTC-90C4: DescriptionFlash, 256KX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40; Categorystorage storage; File Size1MB，31 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

MX28F002BTC-90C4 Overview

Flash, 256KX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40

MX28F002BTC-90C4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Macronix
Parts packaging code	TSOP1
package instruction	TSOP1, TSSOP40,.56,20
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	90 ns
Other features	10000 ERASE/PROGRAM CYCLES
startup block	BOTTOM
command user interface	YES
Data polling	NO
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	18.4 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	1,2,1,1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP40,.56,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Department size	16K,8K,96K,128K
Maximum standby current	0.0001 A
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	NO
type	NOR TYPE
width	10 mm

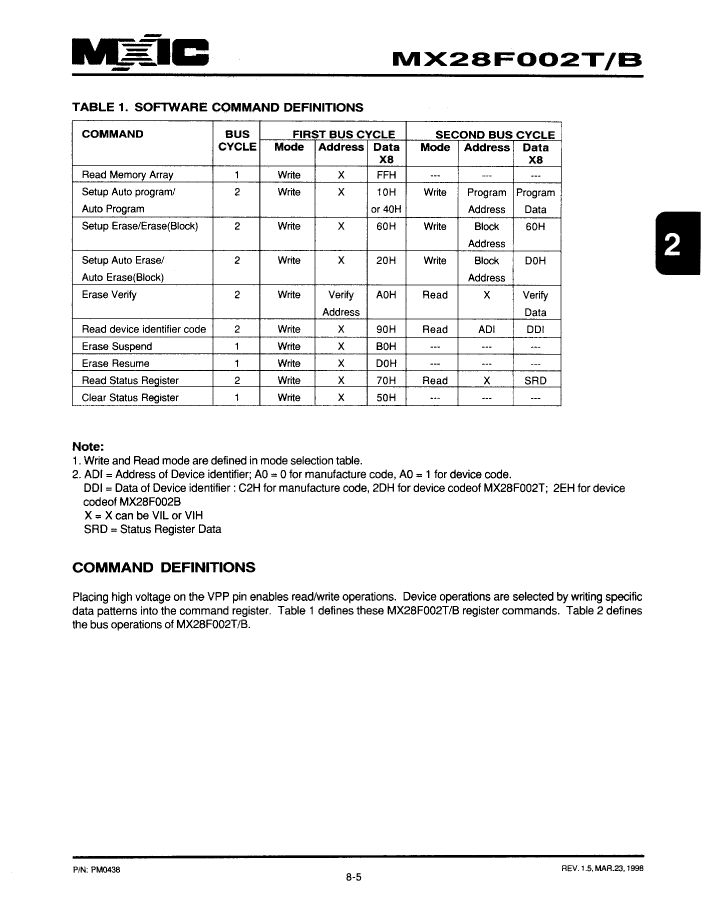

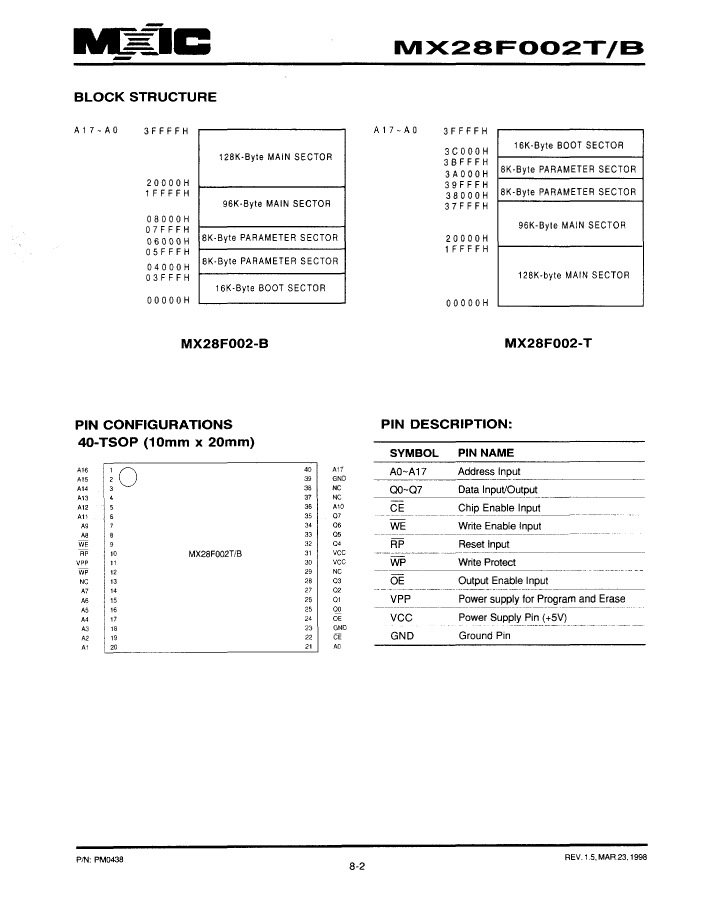

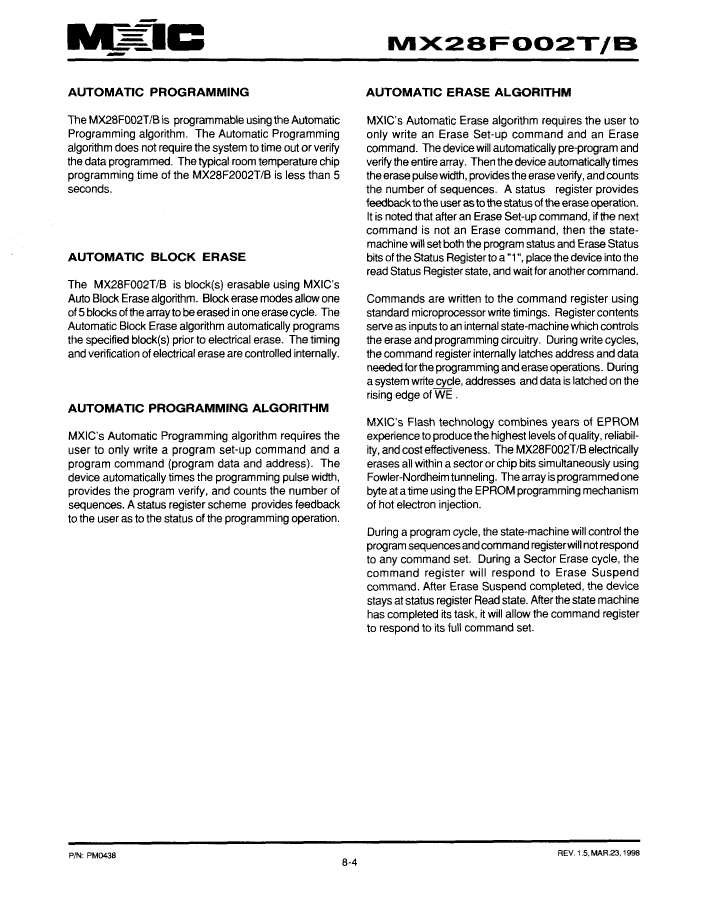

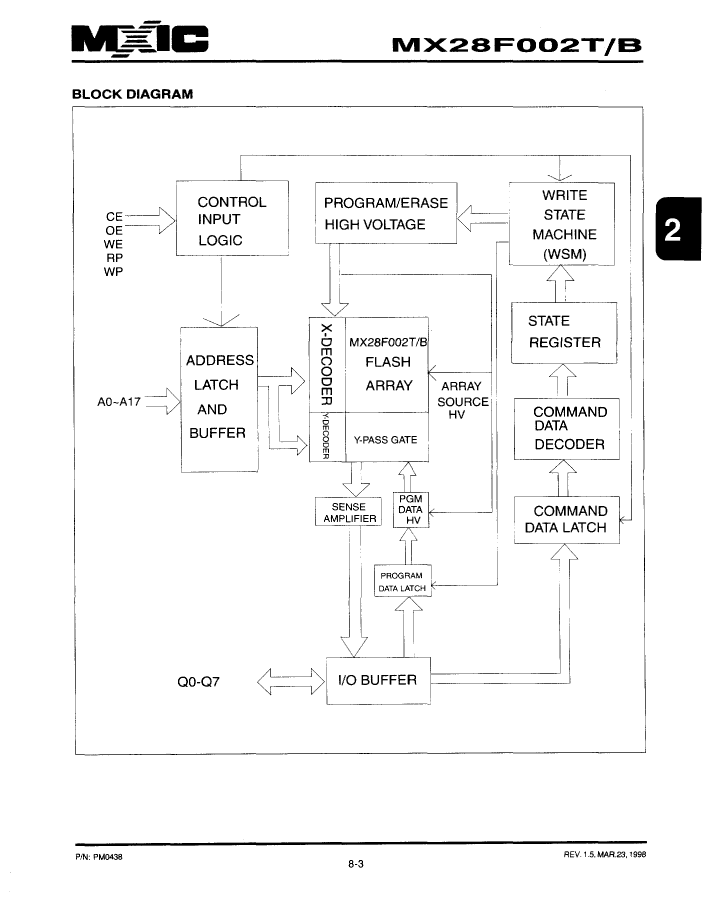

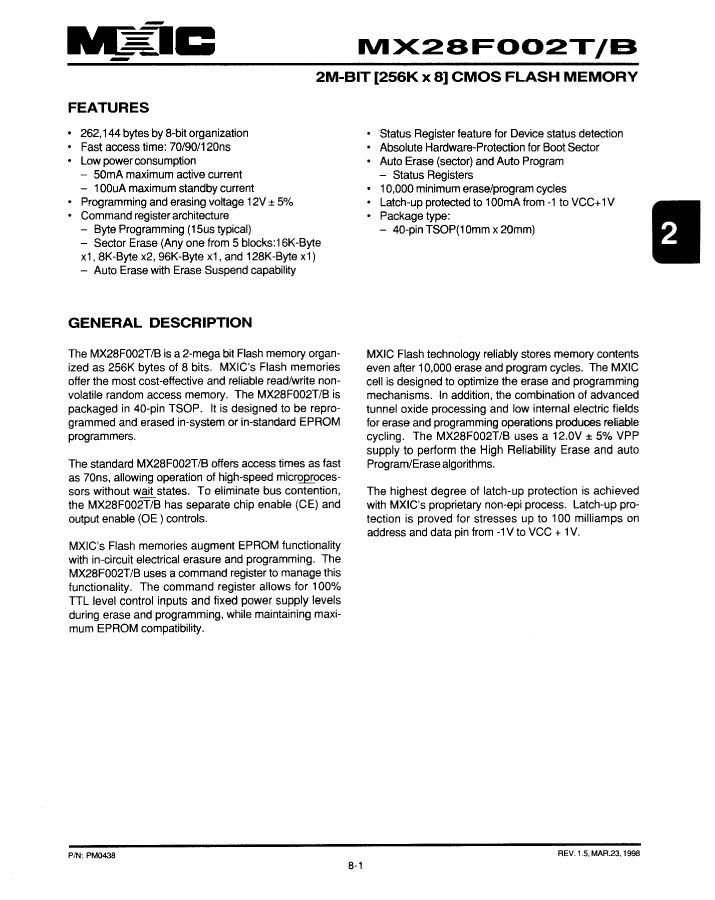

Preview

Download Datasheet

View All

MX28F002BTC-90C4 Related Products

	MX28F002BTC-90C4	MX28F002BTC-70C4	MX28F002TTC-12C4	MX28F002BTC-12C4	MX28F002TTC-90C4	MX28F002TTC-70C4
Description	Flash, 256KX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 120ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 90ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40	Flash, 256KX8, 70ns, PDSO40, 10 X 20 MM, PLASTIC, TSOP1-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Macronix	Macronix	Macronix	Macronix	Macronix	Macronix
Parts packaging code	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1
package instruction	TSOP1, TSSOP40,.56,20	10 X 20 MM, PLASTIC, TSOP1-40	TSOP1, TSSOP40,.56,20	10 X 20 MM, PLASTIC, TSOP1-40	TSOP1, TSSOP40,.56,20	TSOP1, TSSOP40,.56,20
Contacts	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	90 ns	70 ns	120 ns	120 ns	90 ns	70 ns
Other features	10000 ERASE/PROGRAM CYCLES	10000 ERASE/PROGRAM CYCLES	10000 ERASE/PROGRAM CYCLES	10000 ERASE/PROGRAM CYCLES	10000 ERASE/PROGRAM CYCLES	10000 ERASE/PROGRAM CYCLES
startup block	BOTTOM	BOTTOM	TOP	BOTTOM	TOP	TOP
command user interface	YES	YES	YES	YES	YES	YES
Data polling	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40	R-PDSO-G40
JESD-609 code	e0	e0	e0	e0	e0	e0
length	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of departments/size	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1	1,2,1,1
Number of terminals	40	40	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1	TSOP1
Encapsulate equivalent code	TSSOP40,.56,20	TSSOP40,.56,20	TSSOP40,.56,20	TSSOP40,.56,20	TSSOP40,.56,20	TSSOP40,.56,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	12 V	12 V	12 V	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Department size	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K	16K,8K,96K,128K
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	NO	NO	NO	NO	NO	NO
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
