BZT52C2V4-BZT52C39
0.5W Zener Diodes
SOD-123
Features
Planar Die Construction
500mW Power Dissipation on Ceramic PCB
General Purpose, Medium Current
Ideally Suited for Automated Assembly
Processes
0.022(0.55)
Typ. Min.
0.053(1.35)
Max.
0.152(3.85)
0.140(3.55)
0.112(2.85)
0.100(2.55)
Mechanical Data
Case: SOD-123, Plastic
UL Flammability Classification Rating 94V-0
Polarity: Cathode Band
Weight: 0.01 grams (approx.)
0.006(0.15)
Typ. Min.
0.010(0.25)
Min.
0.067(1.70)
0.055(1.40)
0.004(0.10)
Max.
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Maximum Ratings
Characteristic
Forward Voltage (Note 2)
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Notes:
@ I
F
= 10mA
Symbol
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
500
305
-65 to +150
Unit
V
mW
°C/W
°C
1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm
2
.
2. Short duration test pulse used to minimize self-heating effect.
http://www.luguang.cn
mail:lge@luguang.cn
BZT52C2V4-BZT52C39
0.5W Zener Diodes
Electrical Characteristics
Zener Voltage Range
(Note 2)
V
z
@I
ZT
Nom (V)
BZT52C2V4
BZT52C2V7
BZT52C3V0
BZT52C3V3
BZT52C3V6
BZT52C3V9
BZT52C4V3
BZT52C4V7
BZT52C5V1
BZT52C5V6
BZT52C6V2
BZT52C6V8
BZT52C7V5
BZT52C8V2
BZT52C9V1
BZT52C10
BZT52C11
BZT52C12
BZT52C13
BZT52C15
BZT52C16
BZT52C18
BZT52C20
BZT52C22
BZT52C24
BZT52C27
BZT52C30
BZT52C33
BZT52C36
BZT52C39
Notes:
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
Min (V)
2.2
2.5
2.8
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28.0
31.0
34.0
37.0
Max (V)
2.6
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
I
ZT
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
Z
ZT
Maximum Zener
Impedance (Note 3)
@
I
ZT
Type
Number
Maximum
Reverse
Current
(Note 2)
I
R
uA
50
20
10
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@ V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Z
ZK
@ I
ZK
W
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
Typical
Temperature
Coefficient
@ I
ZTC
mV/°C
Min
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-3.5
-2.7
-2
0.4
1.2
2.5
3.2
3.8
4.5
5.4
6.0
7.0
9.2
10.4
12.4
14.4
16.4
18.4
21.4
24.4
27.4
30.4
33.4
Max
0
0
0
0
0
0
0
0.2
1.2
2.5
3.7
4.5
5.3
6.2
7.0
8.0
9.0
10.0
11.0
13.0
14.0
16.0
18.0
20.0
22.0
25.3
29.4
33.4
37.4
41.2
Test
Current
I
ZTC
mA
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
1. Device mounted on ceramic PCB; 7.6mm x 9.4mm x 0.87mm with pad areas 25mm
2
.
2. Short duration test pulse used to minimize self-heating effect.
3. f = 1kHz.
http://www.luguang.cn
mail:lge@luguang.cn
BZT52C2V4-BZT52C39
0.5W Zener Diodes
0.6
50
T
j
= 25°C
C2V7
C3V9
C5V6
C6V8
C6V2
C8V2
0.5
C3V3
0.4
I
Z
, ZENER CURRENT (mA)
40
C4V7
P
D
, POWER DISSIPATION (W)
30
0.3
20
0.2
0.1
10
Test Current I
Z
5.0mA
0
0
0
25
50
75
100
125
150
0
1
T
A
, AMBIENT TEMPERATURE (
°
C)

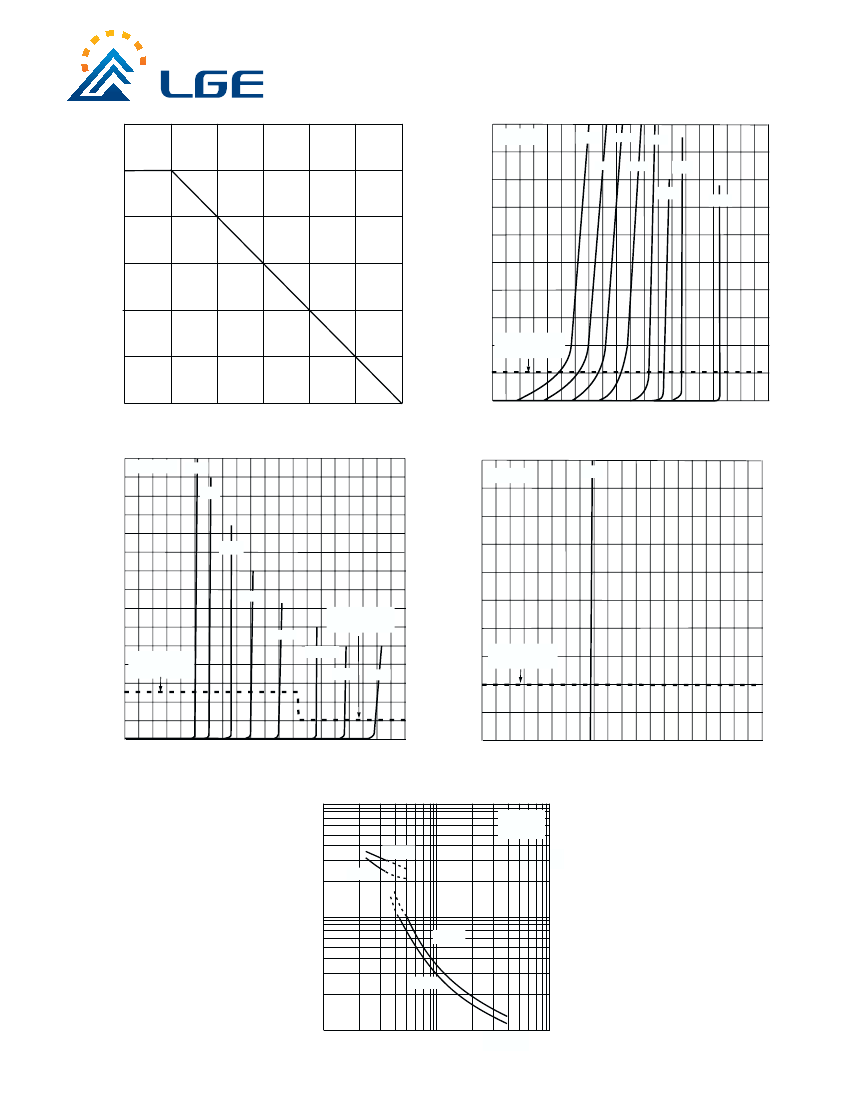

Fig. 1 Power Dissipation vs Ambient Temperature
30
T
j
= 25°C
C10
C12
10
3
4
5
6
8
9
7
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Zener Breakdown Characteristics
C39
2
10
T
j
= 25°C
I
Z
, ZENER CURRENT (mA)
20
C15
I
Z
, ZENER CURRENT (mA)
8
6
C18
Test current I
Z
2mA
C27
C33
C36
10
C22
Test current I
Z
5mA
4
Test Current I
Z
2mA
2
0
0
10
20
30
V
Z
, ZENER VOLTAGE (V)
Fig. 3 Zener Breakdown Characteristics
1000
40
0
10
30 40 50 60 70 80 90 100
V
Z
, ZENER VOLTAGE (V)
Fig. 4 Zener Breakdown Characteristics
20
T
j
= 25 °C
f = 1MHz
C
T
, TOTAL CAPACITANCE (pF)
V
R
= 1V
V
R
= 2V
100
V
R
= 1V
V
R
= 2V
10
1
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 5 Total Capacitance vs Nominal Zener Voltage
