T3011NLT: DescriptionTelecom Transformer, ROHS COMPLIANT; CategoryPower management transformer; File Size83KB，2 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

T3011NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T3011NLT	-	-	View	Buy Now

T3011NLT Overview

Telecom Transformer, ROHS COMPLIANT

T3011NLT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TURNS RATIO: 1:1, HEIGHT DIM INCLUDES TERMINAL ALSO
Certification	UL
high	6.35 mm
length	7.62 mm
Manufacturer's serial number	T3011
Installation features	SURFACE MOUNT
Maximum operating frequency	340000 kHz
Minimum operating frequency	200 kHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L7.62XB7.0XH6.35 (mm)
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	7 mm

Preview

Download Datasheet

View All

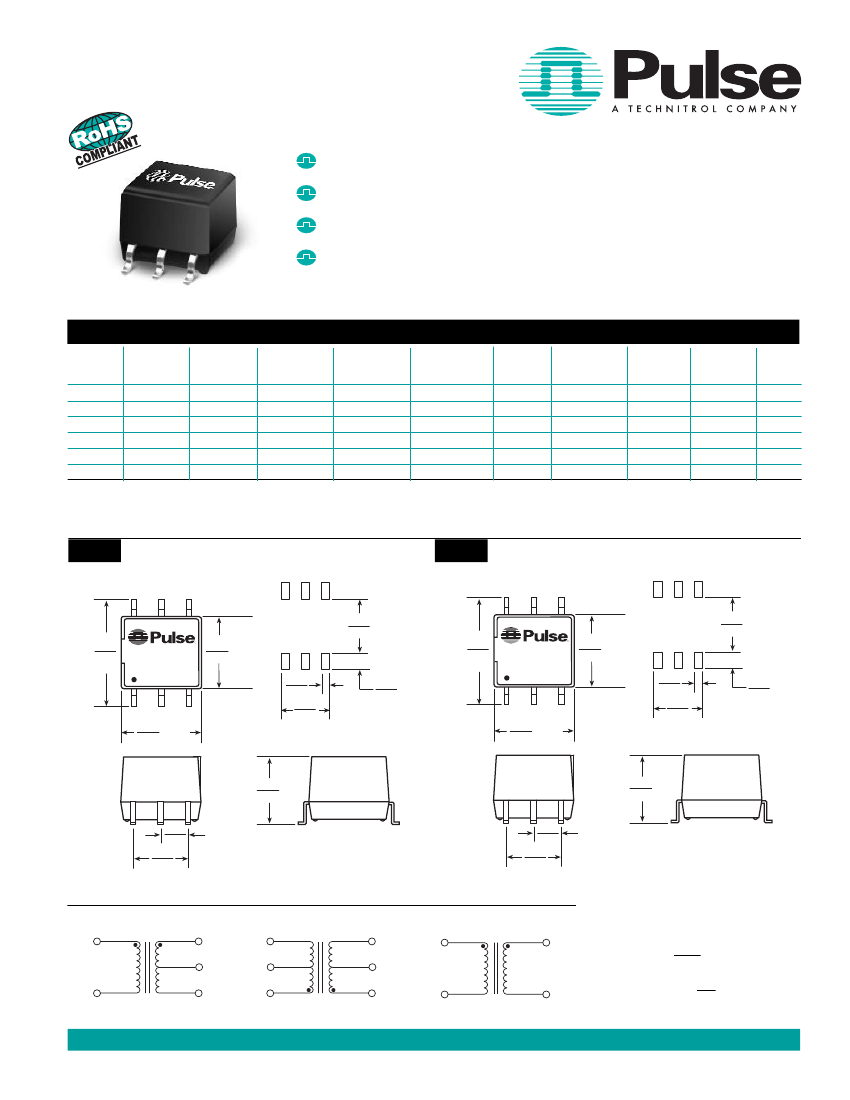

T3/DS3/E3/STS-1 TRANSFORMERS

Extended Temperature Range

Operating temperature of -40°C to +85°C

Models matched to leading transceiver ICs

Return loss meets requirements of G.703

UL recognized (some parts pending)

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-5

Part No.

RoHS-6

Part No.

Turns Ratio OCL Primary

Pri:Sec

@ 25°C

(±2%)

(µH MIN)

100

40

100

40

OCL Primary

@ -40°C

(µH MIN)

40

19

40

19

20

L

@ 100kHz

0.2Vrms

(µH TYP)

.110

.10

.150

C

W/W

(pF MAX)

10

12

10

12

10

12

Bandwidth

Ω

75Ω System

(MHz TYP)

.200 - 340

.250 - 500

.200 - 340

.250 - 500

.200 - 340

Isolation

Package/ Primary

Voltage

Schematic

Pins

(Vrms MIN)

1500

LS-2/E

LS-2/C

LS-1/E

LS-1/C

LS-2/F

LS-2/C

1-3

4-6

1-3

4-6

T3001

T3001NL

1:1

T3002

T3002NL

1:2CT

T3011*

T3011NL*

1:1

T3012*

T3012NL*

1:2CT

T3027

T3027NL

1CT:1CT

T3029

T3029NL

1:1.155CT

*Models with alternate pinout configurations.

Mechanicals

LS-1

1

2

3

.258

6,55

LS-2

6

5

4

.258

6,55

.390

9,91

T301X

DATE CODE

.275 MAX

7,00

.040

1,02

.240

6,10

.390

9,91

.075

1,91

T30XX

DATE CODE

.275 MAX

7,00

.040

1,02

.240

6,10

.075

1,91

6

5

4

.300 MAX

7,62

1

SUGGESTED PAD LAYOUT

2

3

.300 MAX

7,62

SUGGESTED PAD LAYOUT

.250 MAX

6,35

.100

2,54

.200

5,08

.100

2,54

.200

5,08

.250 MAX

6,35

Schematics

4

C

3

2

4

5

6

F

3

2

1

4

E

3

Weight

. . . . . . . . . . . . . .0.6 grams

Tape & Reel

. . . . . . . . . . . .600/reel

Tube

. . . . . . . . . . . . . . . . . .70/tube

Dimensions:

Inches

mm

Unless otherwise specified,

all tolerances are ± .010

0,25

6

1

6

1

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com
