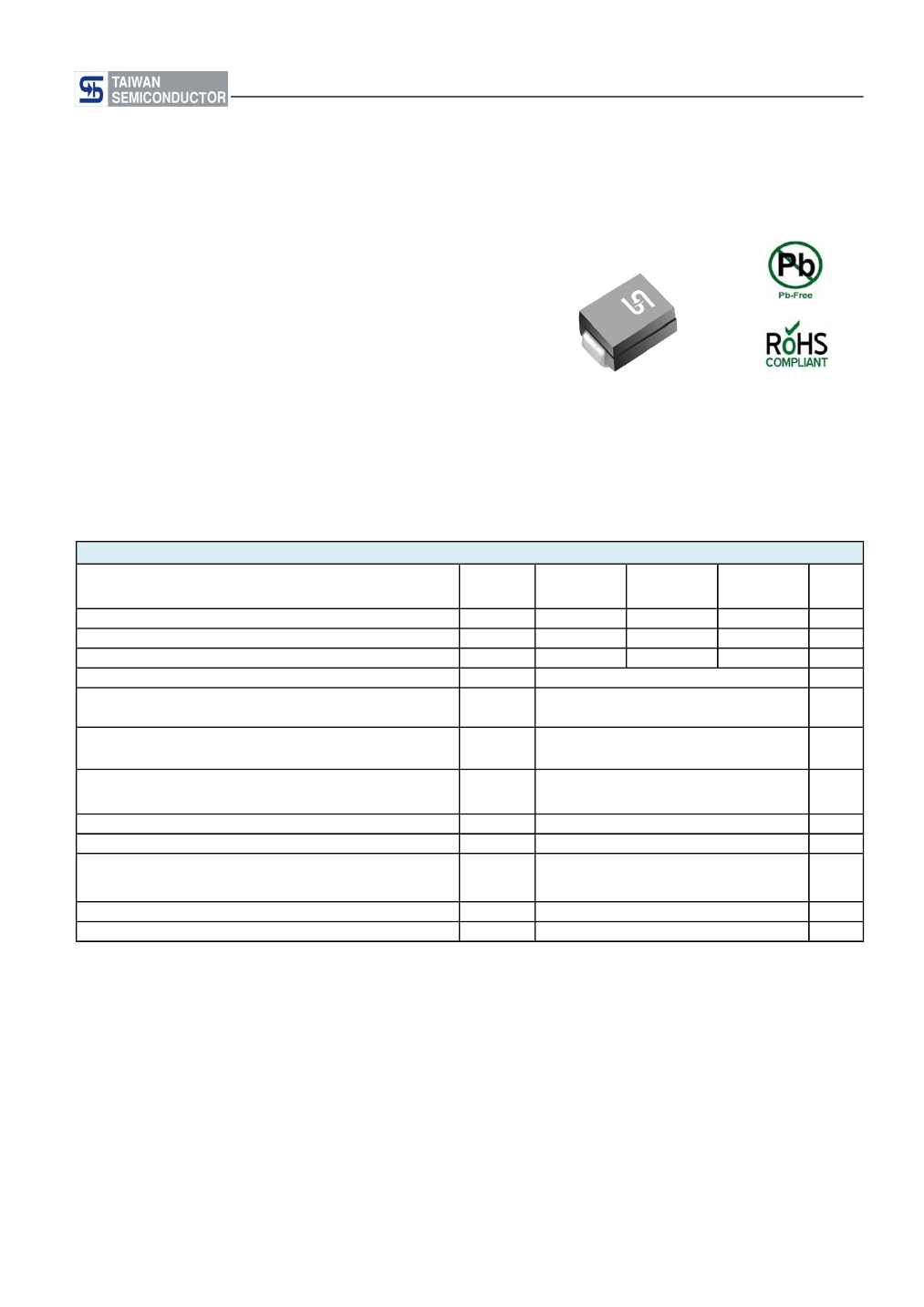

ESH2B thru ESH2D
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Glass passivated junction chip
- Ideal for automated placement
- Low profile package
- Ultra fast recovery time for high efficiency
- Moisture sensitivity: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Ultra Fast Rectifiers
MECHANICAL DATA
Case：DO-214AA(SMB)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant
Terminal：Matte
tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity：Indicated
by cathode band
Weight：0.09
gram (approximately)
DO-214AA(SMB)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@2A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJL
R
θJA
T
J
T
STG
ESH2B
100
70
100
ESH2C
150
105
150
2
60
0.90
2
50
20
25
20
75
- 55 to + 175
- 55 to + 175
O
ESH2D
200
140
200
UNIT
V
V
V
A
A
V
uA
nS
pF
C/W
O
O
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1：Pulse test with PW=300u sec, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
C
C
Document Number：DS_D1309020
Version:E13
ESH2B thru ESH2D
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PACKING CODE
R5
R4
M4
Suffix "G"
GREEN COMPOUND
CODE
ESH2x
(Note 1)
SMB
SMB
SMB
850 / 7" Plastic reel
3000 / 13" Paper reel
3000 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 100V (ESH2B) to 200V (ESH2D)
EXAMPLE
PREFERRED P/N
ESH2D R5
ESH2D R5G
PART NO.
ESH2D
ESH2D
PACKING CODE
R5
R5
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

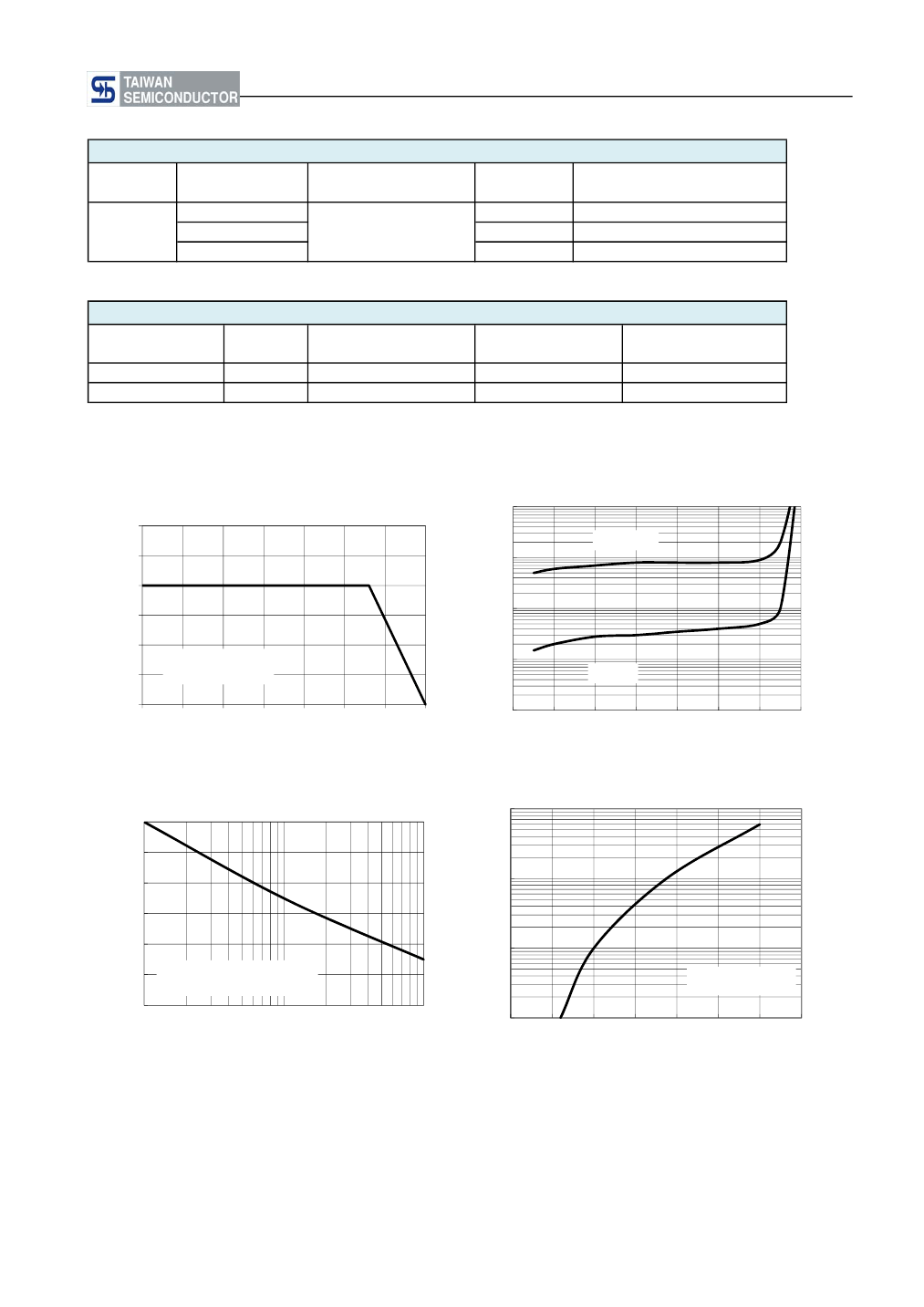

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
3
2.5
2
1.5
1
0.5
0
0
25
50
75
100
125
150
175
RESISTER OR
INDUCTIVE LOAD
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT
(uA)
TJ=125℃
10
1
0.1
TJ=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
LEAD TEMPERATURE (
o
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT
(A)
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
JEDEC Method
INSTANTANEOUS FORWARD CURRENT
(A)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
10
1
Pulse Width=300us
1% Duty Cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8

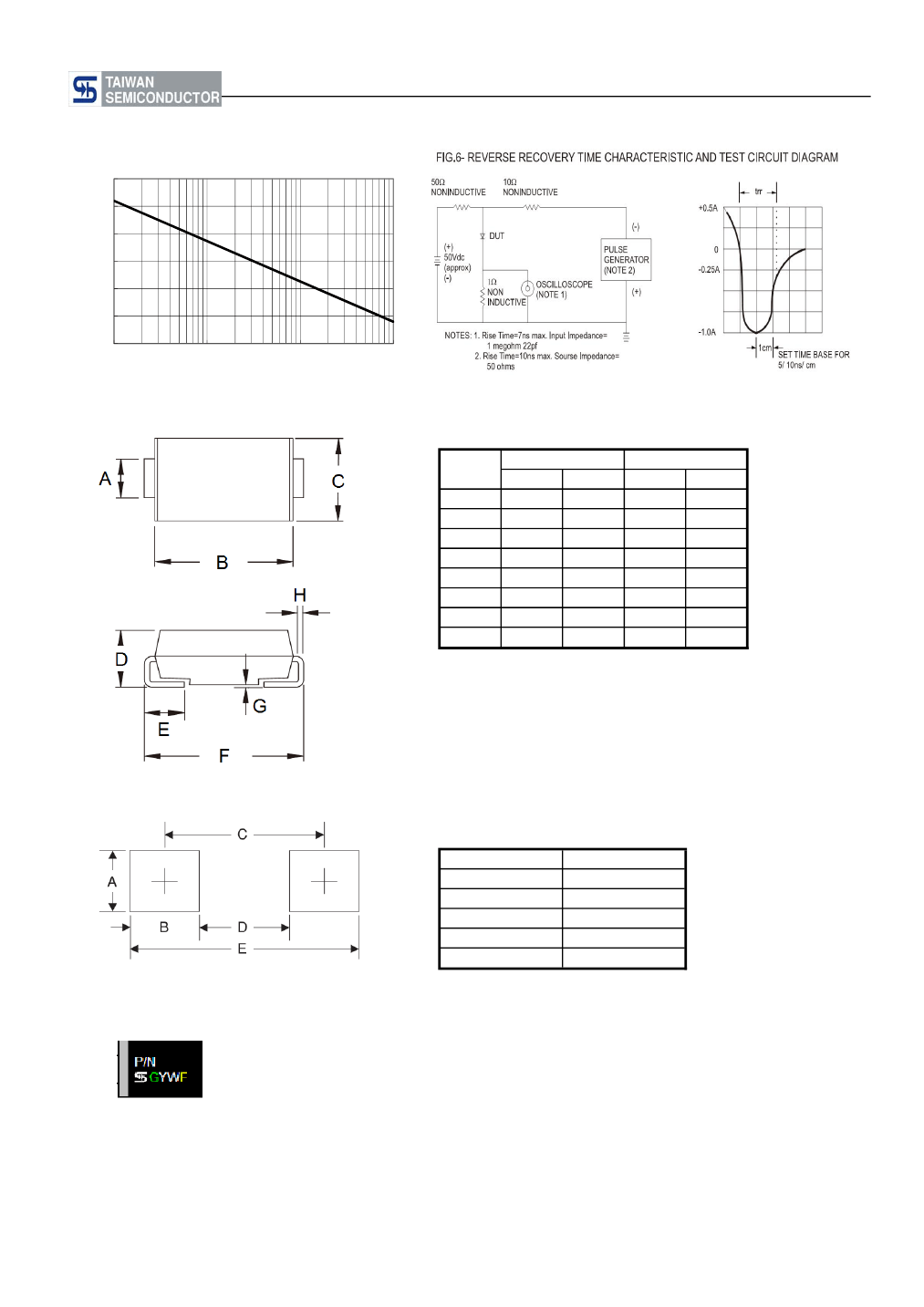

Document Number：DS_D1309020
Version:E13
