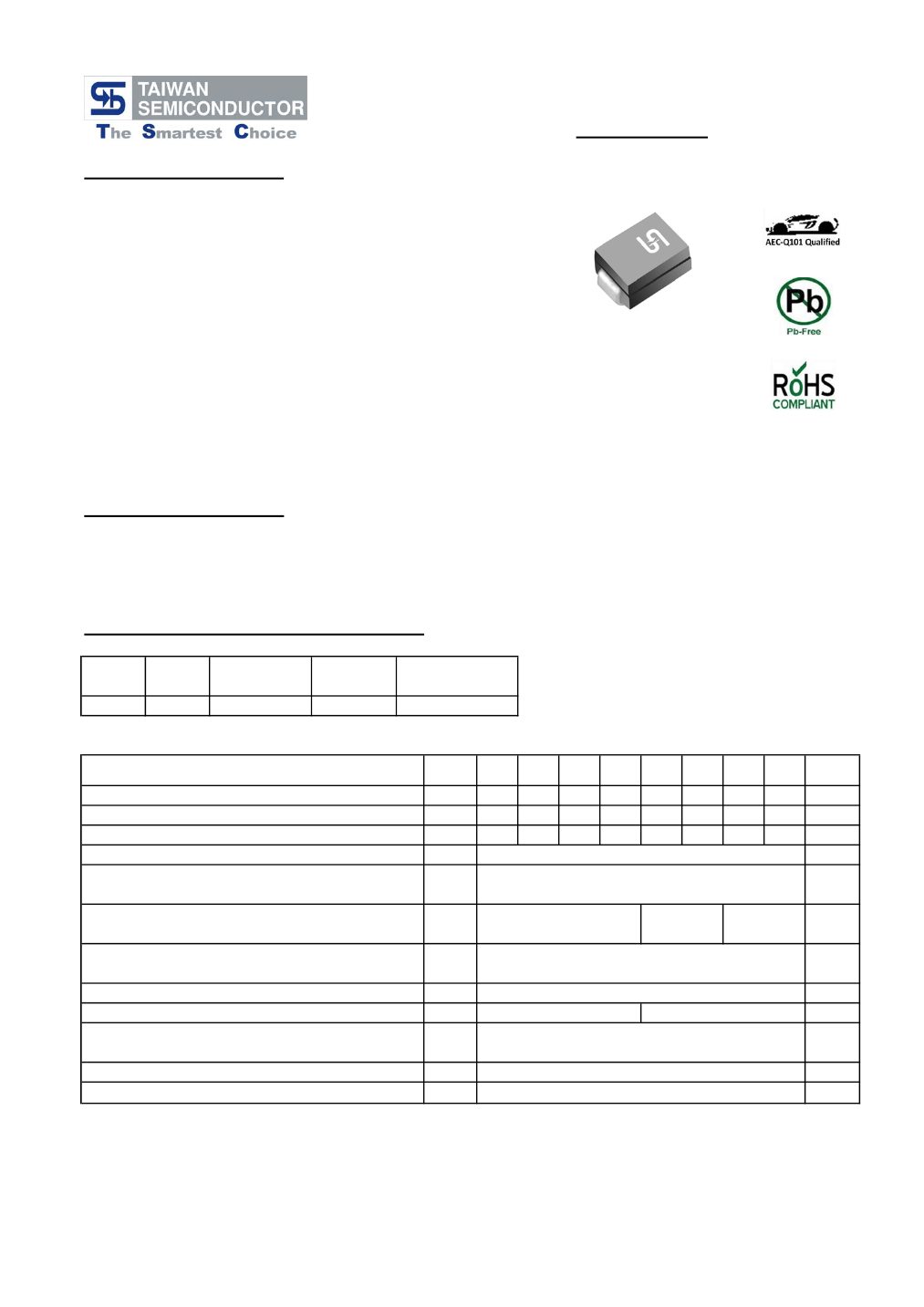

ES2A - ES2J
2.0AMPS. Surface Mount Super Fast Rectifiers

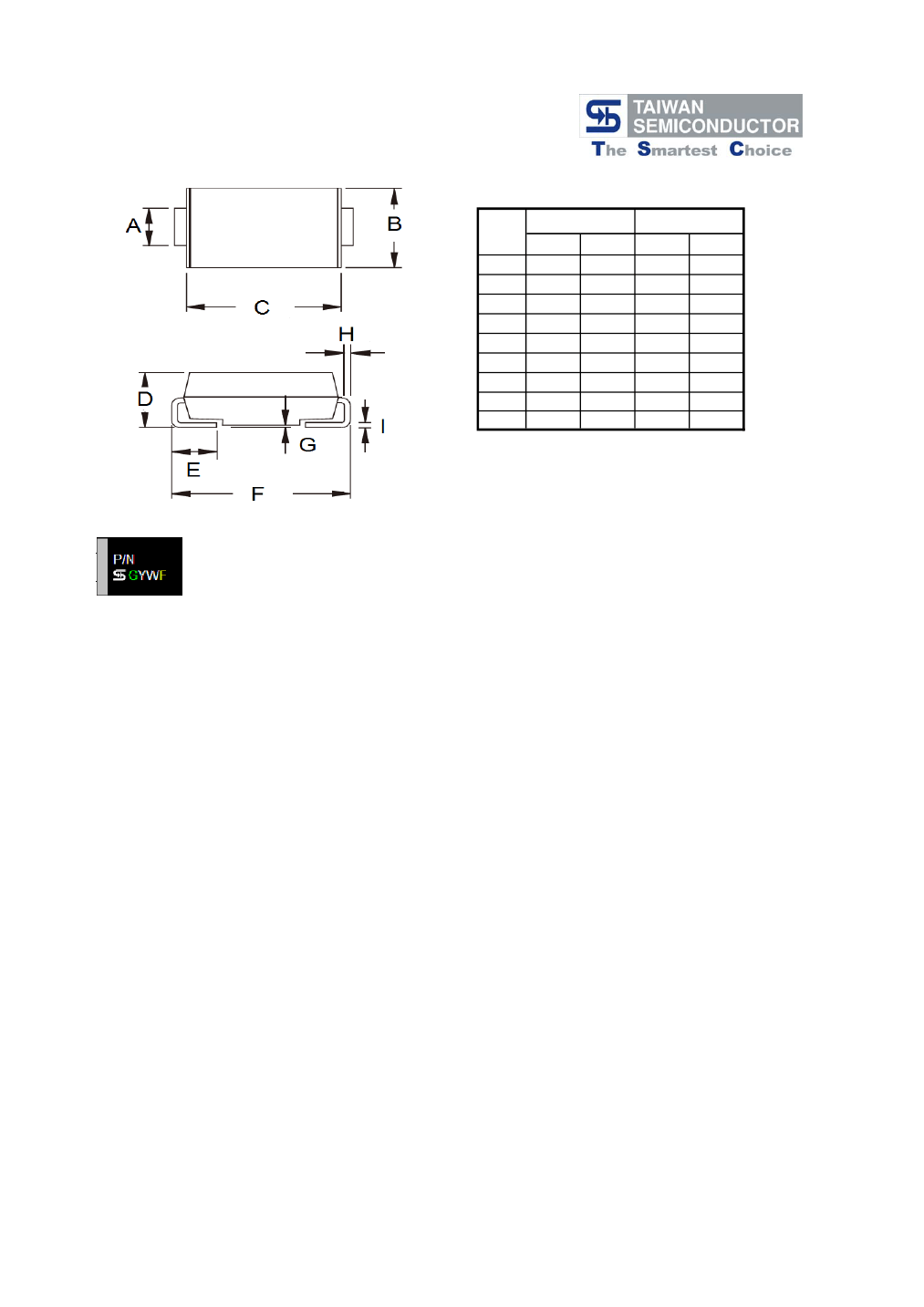

SMB/DO-214AA
Features
Glass passivated junction chip
For surface mounted application
Low profile package
Built-in strain rellef
Ideal for automated placement
Easy pick and place
Super fast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:
260℃/10 seconds at terminals
Meet MSL level 1, per J-STD-020D,
lead free maximum peak of 260℃
Plastic material used carries Underwriters
Laboratory Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Cases: Molded plastic
Terminals: Pure tin plated, lead free
Polarity: Indicated by cathode band

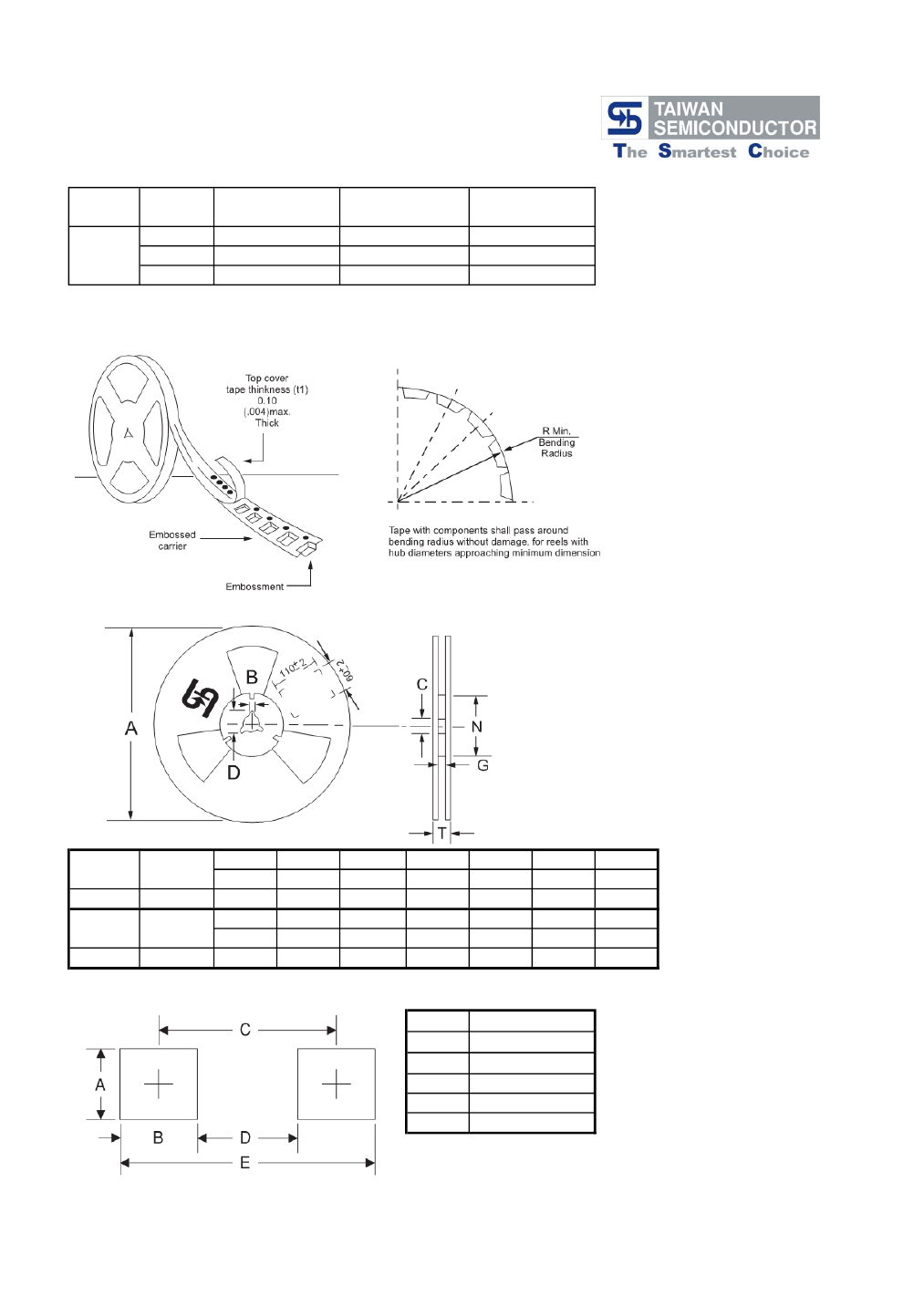

Packing: 12mm tape per EIA STD RS-481
Weight: 0.093 grams
Ordering Information (example)
Part No.
ES2A
Package
SMB
Packing
850 / 7" REEL
Packing code
R5
Packing code
(Green)
R5G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@2A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJA
R
θJL
T
J
T
STG
ES
2A
50
35
50
ES
2B
100
70
100
ES
2C
150
105
150
ES
2D
200
140
200
2
50
ES
2F
300
210
300
ES
2G
400
280
400
ES
2H
500
350
500
ES
2J
600
420
600
Units
V
V
V
A
A
0.95
10
350
35
25
75
20
1.3
1.7
V
uA
uA
nS
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Maximum Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
20
O
pF
C/W
O
O
- 55 to + 150
- 55 to + 150
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:G13

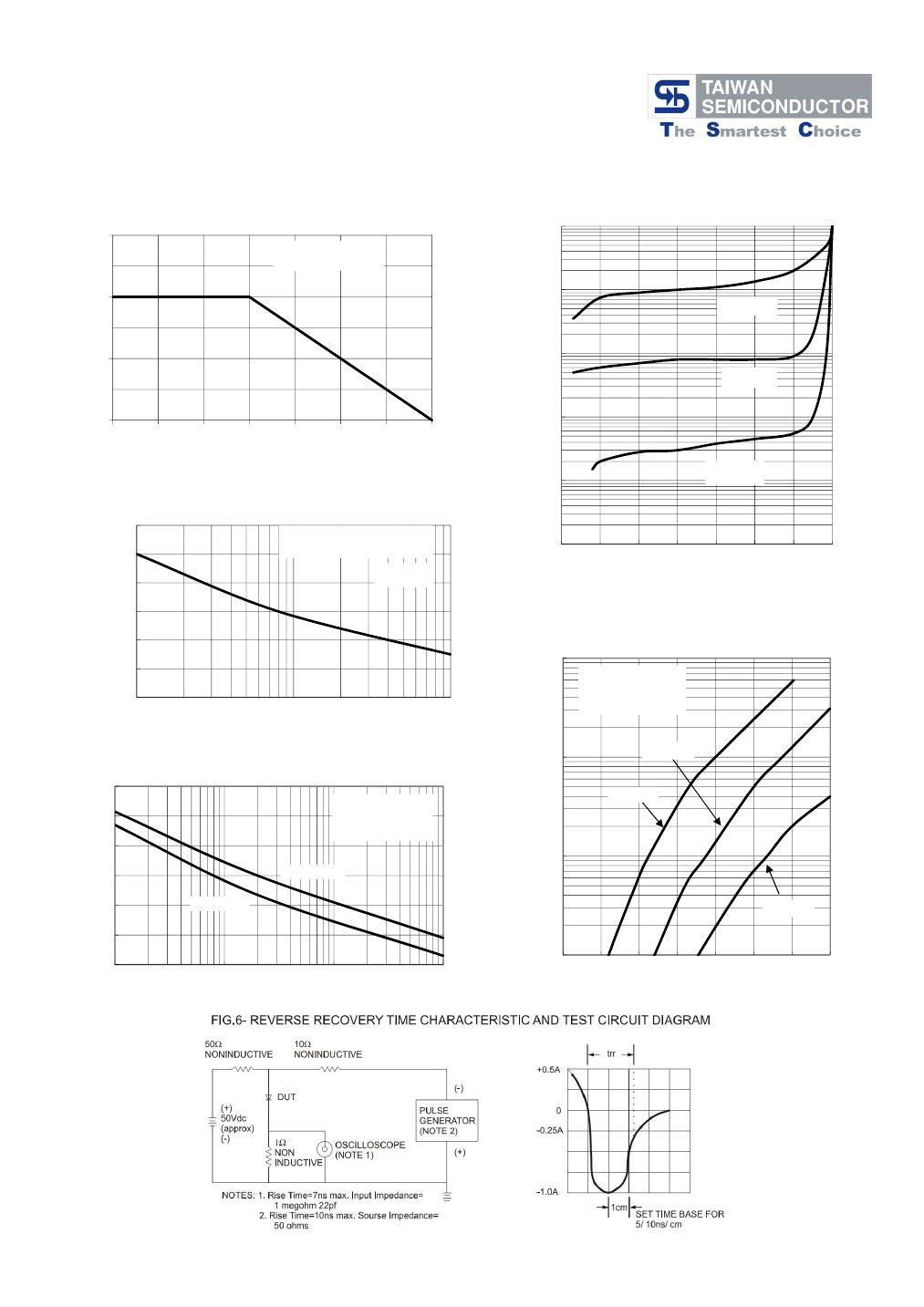

RATINGS AND CHARACTERISTIC CURVES (ES2A THRU ES2J)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
3
RESISTER OR
INDUCTIVE LOAD
2
100
INSTANTANEOUS REVERSE CURRENT (uA)
TA=125℃
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1000
AVERAGE FORWARD CURRENT (A)
1
10
TA=75℃
0
80
90
100
110
120
130
140
150
1
LEAD TEMPERATURE (
o
C)
0.1
TA=25℃
PEAK FORWARD SURGE CURRENT
(A)
60
50
40
30
20
10
0
FIG. 3- MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
8.3mS Single Half Sine Wave
JEDEC Method
TA=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
TA=25℃
Pulse Width=300us
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT (A)
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 4- TYPICAL JUNCTION CAPACITANCE
60
JUNCTION CAPACITANCE (pF)
50
40
30
20
10
0
0.1
1
10
100
REVERSE VOLTAGE (V)
ES2F-J
ES2A-D
TA=25
o
C
f=1.0MHz
Vsig=50mVp-p
10
ES2F-2G
ES2A-2D
1
ES2H-2J
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version:G13
