Document 171-1
SMT Power Inductors – DO3340 Series

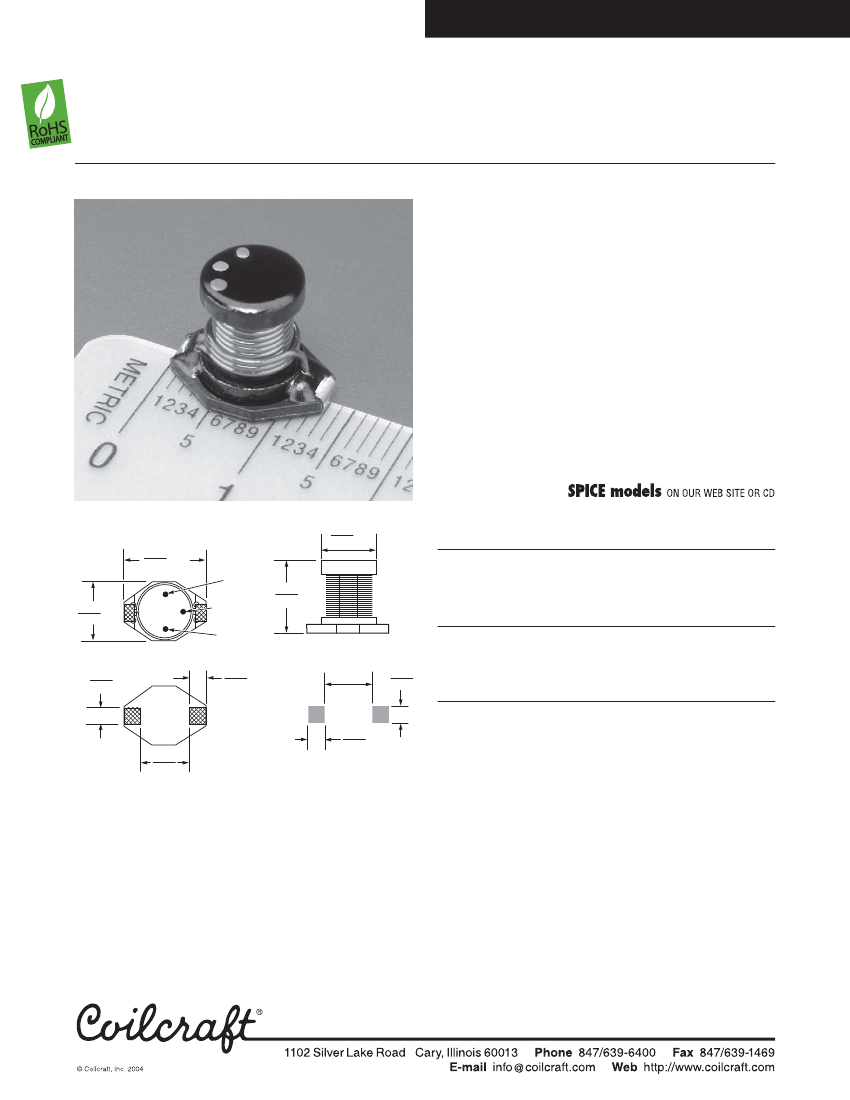

These surface mount power inductors provide excellent
current carrying capabilities in a small footprint compo-
nent — up to 3.5 Arms with an 8 Adc saturation current
rating for a 10 µH part.
These parts were engineered from the start for reliable
surface mounting. They have a flat top and robust
temperature deflection to prevent damage during solder
reflow.
In addition to the standard versions shown here, custom
inductors are available to meet your exact requirements.
Coilcraft
Designer’s Kit C110
contains three samples
each of the standard parts shown. To order, contact
Coilcraft or visit
http://order.coilcraft.com.
0.330
dia
8,38
0.510
max
12,95
1st
significant
digit
2nd
significant
digit
Multiplier
Part
number
1
DO3340P-103
DO3340P-153
DO3340P-223
DO3340P-333
DO3340P-473
DO3340P-683
DO3340P-104
DO3340P-154
DO3340P-224
DO3340P-334
DO3340P-474
DO3340P-684
DO3340P-105
L ±20%
2
DCR max SRF typ
Isat
3
(µH)
(Ohms)
(MHz)
(A)
10
15
22
33
47
68
100
150
220
330
470
680
1000
0.040
0.050
0.066
0.080
0.110
0.17
0.22
0.34
0.44
0.70
0.95
1.2
2.0
22
18
11
9
8
7
5
4
3.5
2.5
2.0
2.0
1.5
8.0
7.0
5.5
4.0
3.8
3.0
2.5
2.0
1.6
1.2
1.0
1.0
0.8
Irms
4
(A)
3.5
3.0
2.5
2.0
1.6
1.2
1.2
0.9
0.7
0.6
0.3
0.2
0.1
0.370
max
9,40
0.450
max
11,43
0.100
2,54
0.100
2,54
0.290
7,37
0.110
2,79
0.115
2,92
0.300
7,62
Recommended
Land Pattern
Weight:
1.8 – 2.8 g
Terminations:
Nickel/gold over phos bronze
Tape and reel:
225/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
1. Part number on reel label may have a B suffix to indicate that the
reel is not machine ready.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DC current at which inductance drops 10% (typ) from its value
without current.
4. Average current for a 40°C rise above 25°C ambient.
5. Operating temperature range -40°C to +85°C.
6. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Specifications subject to change without notice.

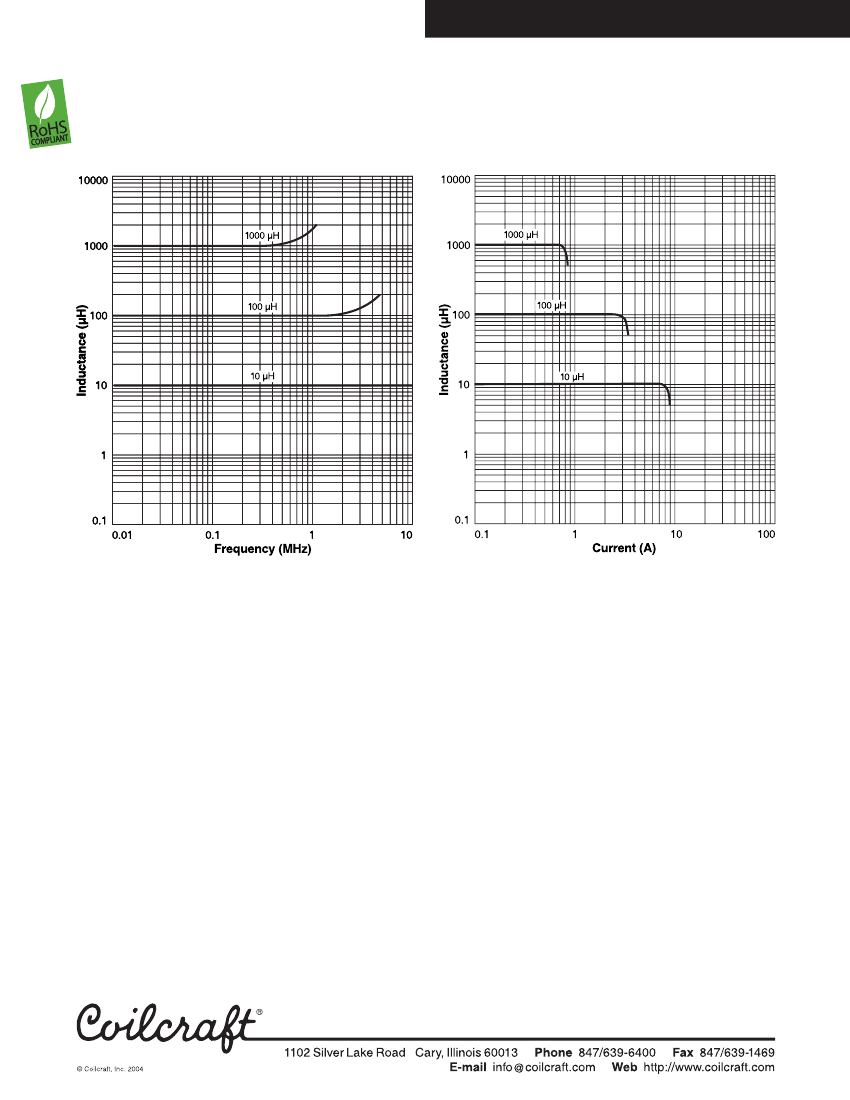

Please check our website for latest information. Document 171-1
Revised 12/10/04
