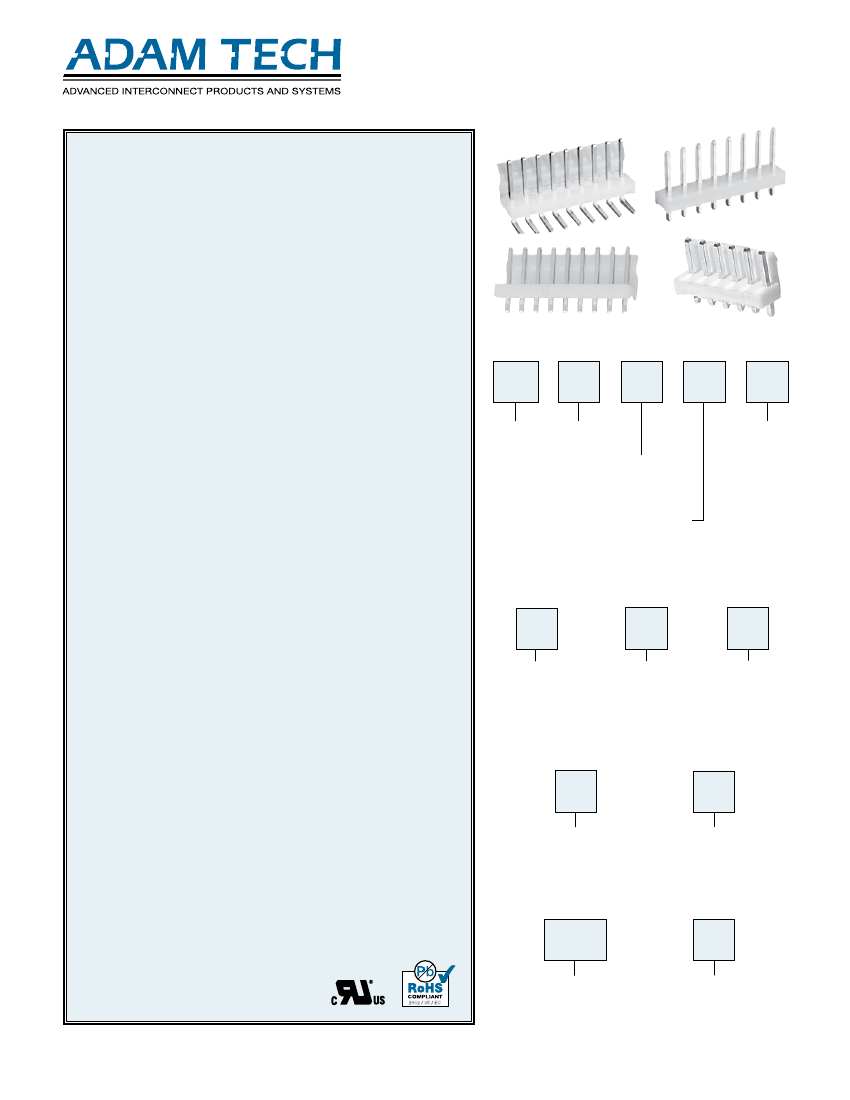

.156" HEADER & HOUSING SETS
.156" [3.96] CENTERLINE
LHB, LHC, LHD & MTB SERIES
INTRODUCTION:
Adam Tech .156" Headers and Housings are two matched sets of
Crimp Wire Housings and PCB mounted Latching Headers available
in Straight and Right Angle orientation. This system is available with
a front locking header, a rear locking header or without a locking
feature. Each of the locking types are polarized to fit in only one
direction with the housing. This system provides a sturdy, high
current, high reliability connection with or without the polarized
locking option.
FEATURES:
Matched Latching Housing & Header system
Straight, Right Angle mounting Headers
Choice of Two Latching Types
Housings feature High pressure, Low insertion force contacts
MATING CONNECTORS:
Adam Tech MTB series and all industry standard latching type
.156 [3.96mm] centers
SPECIFICATIONS:
Material:
Insulator: Nylon 66, rated UL94V-2
Insulator Color: Natural
Contacts: Phosphor bronze and Brass
Contact Plating:
Tin over copper underplate overall
Electrical:
Operation voltage: 250V AC max.
Current rating: 5 Amp max.
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Recommended wire size: 18 to 24 Awg
Environmental:
Operating temperature: -25°C to +85°C
PACkAGING:
Anti-static plastic bags
APPROVALS AND CERTIFICATIONS:
UL Recognized & CSA Certified, File no. E224053

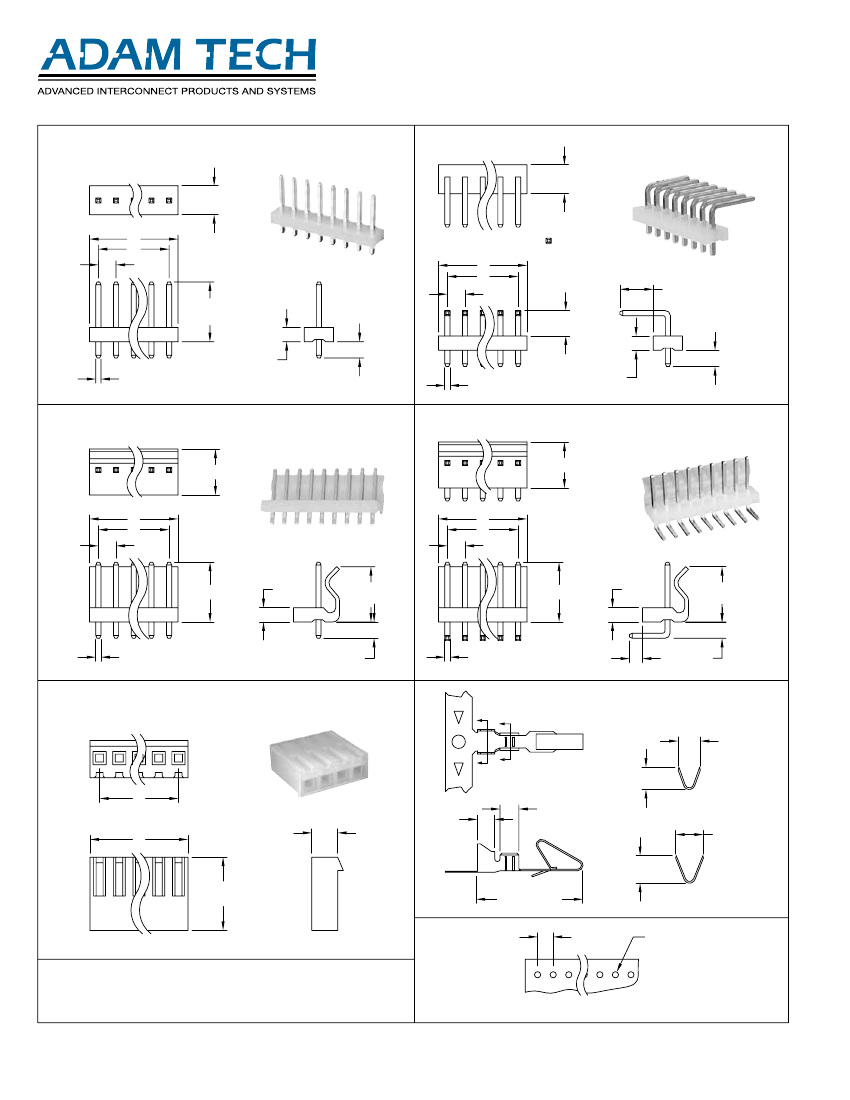

POWER HEADER
LHB
12
S
A
1
FRICTION LOCk
/ POLARIZER
OPTION
1 = With Lock
Polarizer
2 = Without Lock
Polarizer
POSITIONS
SERIES
INDICATOR
2 thru 20
LHB
= Power
PIN TyPE
Header
S = Square Post
PIN ANGLE
A
= Straight
B
= Right Angle

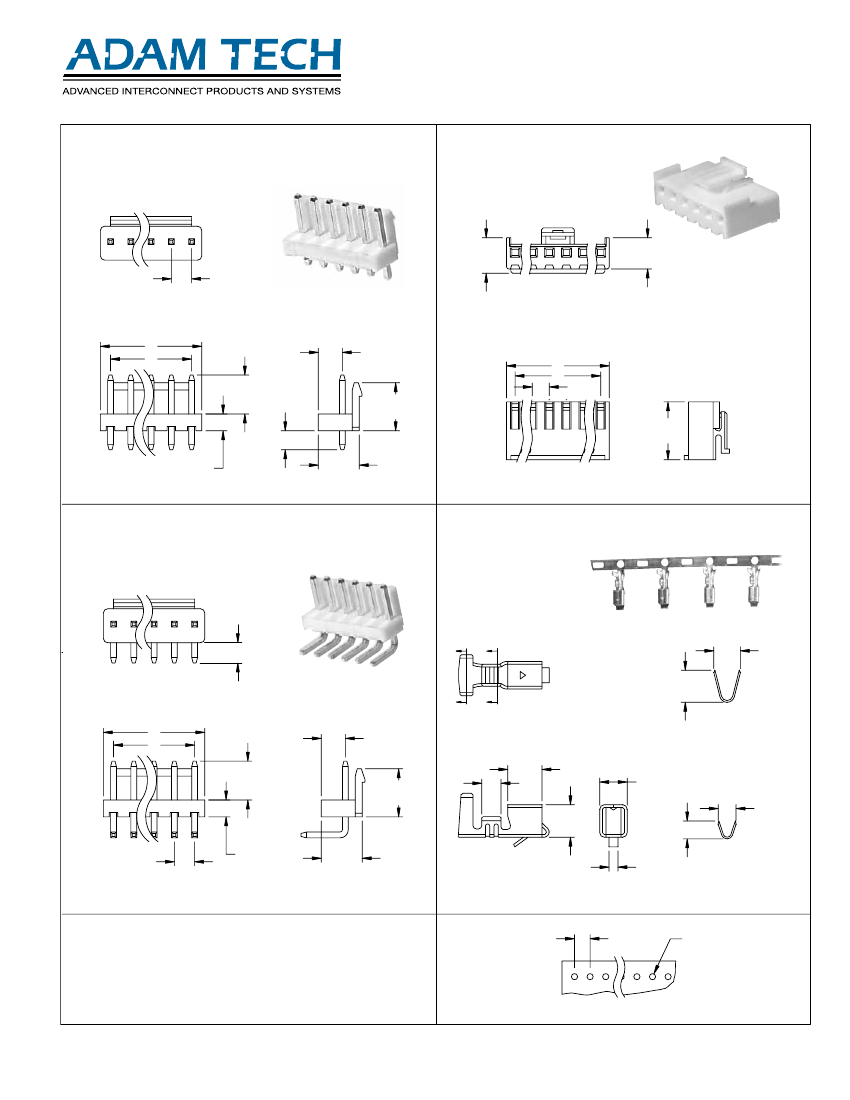

POWER HEADER
LHC
SERIES INDICATOR
LHC
= Locking Header
LHD
= Short Back
Locking Header
10
POSITIONS
2 thru 20
TS
PIN ANGLE
TS
= Straight
TRA
= Right Angle
TRB
= Reverse
Right Angle
HOUSING
MTB
SERIES INDICATOR
MTB
= Wire housing
MTC
= Latching Housing
12
POSITIONS
2 thru 20
CRIMP CONTACT
MTB-C
SERIES INDICATOR
MTB-C
= Crimp contact
MTC-C
= Crimp contact
R
PACkAGING
B
= 1000 pieces loose cut
R
= 6000 pieces on reel
