K8S3215ETD-DC7B0

Description
Flash, 2MX16, 90ns, PBGA44, 7.50 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, FBGA-44
Categorystorage    storage
File Size858KB,37 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/
Environmental Compliance
Download Datasheet Parametric Compare View All

K8S3215ETD-DC7B0 Overview

Flash, 2MX16, 90ns, PBGA44, 7.50 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, FBGA-44

K8S3215ETD-DC7B0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSAMSUNG
Parts packaging codeBGA
package instruction7.50 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, FBGA-44
Contacts44
Reach Compliance Codecompliant
ECCN code3A991.B.1.A
Maximum access time90 ns
Other featuresSYNCHRONOUS BURST MODE OPERATION ALSO POSSIBLE
startup blockTOP
JESD-30 codeR-PBGA-B44
JESD-609 codee1
length7.5 mm
memory density33554432 bit
Memory IC TypeFLASH
memory width16
Humidity sensitivity level2
Number of functions1
Number of terminals44
word count2097152 words
character code2000000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize2MX16
Package body materialPLASTIC/EPOXY
encapsulated codeVFBGA
Package shapeRECTANGULAR
Package formGRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)260
Programming voltage1.8 V
Certification statusNot Qualified
Maximum seat height1 mm
Maximum supply voltage (Vsup)1.95 V
Minimum supply voltage (Vsup)1.7 V
Nominal supply voltage (Vsup)1.8 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN SILVER COPPER
Terminal formBALL
Terminal pitch0.5 mm
Terminal locationBOTTOM
Maximum time at peak reflow temperature40
typeNOR TYPE
width5 mm

K8S3215ETD-DC7B0 Preview

K8S3215ETD
FLASH MEMORY
Document Title
32M Bit (2M x16) Muxed Burst , Multi Bank NOR Flash Memory
Revision History
Revision No. History
0.0
0.1
Initial
Revision
- Change the operating temperature range
-25°C ~ 85°C --> -40°C ~ 85°C
Revision
- Specification finalized
Draft Date
June 23, 2004
July 9, 2004
Remark
1.0
December 22, 2005
1
Revision 1.0
March, 2005
K8S3215ETD
FEATURES
Single Voltage, 1.7V to 1.95V for Read and Write operations
Organization
- 2,097,152 x 16 bit ( Word Mode Only)
Multiplexed Data and Address for reduction of interconnections
- A/DQ0 ~ A/DQ15
Read While Program/Erase Operation
Multiple Bank Architecture
- 16 Banks (2Mb Partition)
Read Access Time (@ C
L
=30pF)
- Asynchronous Random Access Time : 90ns (54MHz)
- Synchronous Random Access Time : 88.5ns (54MHz)
- Burst Access Time : 14.5ns (54MHz)
Burst Length :
- Continuous Linear Burst
- Linear Burst : 8-word & 16-word with No-wrap & Wrap
Block Architecture
- Eight 4Kword blocks and sixty three 32Kword blocks
- Bank 0 contains eight 4 Kword blocks and three 32 Kword
blocks
- Bank 1 ~ Bank 15 contain sixty 32Kword blocks
Reduce program time using the V
PP
Power Consumption (Typical value, C
L
=30pF)
- Burst Access Current : 25mA
- Program/Erase Current : 15mA
- Read While Program/Erase Current : 35mA
- Standby Mode/Auto Sleep Mode : 5uA
Block Protection/Unprotection
- Using the software command sequence
- Last two boot blocks are protected by WP=V
IL
- All blocks are protected by V
PP
=V
IL
Handshaking Feature
- Provides host system with minimum latency by monitoring
RDY
Erase Suspend/Resume
Program Suspend/Resume
Unlock Bypass Program/Erase
Hardware Reset (RESET)
Data Polling and Toggle Bits
- Provides a software method of detecting the status of program
or erase completion
Endurance
100K Program/Erase Cycles Minimum
Data Retention : 10 years
Industrial Temperature : -40°C ~ 85°C
Support Common Flash Memory Interface
Low Vcc Write Inhibit
Package : 44 - ball FBGA Type, 7.5X5.0mm
0.5 mm ball pitch
1.0 mm (Max.) Thickness
FLASH MEMORY
GENERAL DESCRIPTION
The K8S3215E featuring single 1.8V power supply is a 32Mbit
Muxed Burst Multi Bank Flash Memory organized as 4Mx16.
The memory architecture of the device is designed to divide its
memory arrays into 71 blocks with independent hardware pro-
tection. This block architecture provides highly flexible erase
and program capability. The K8S3215E NOR Flash consists of
sixteen banks. This device is capable of reading data from one
bank while programming or erasing in the other bank.
Regarding read access time, at 54MHz, the K8S3215E pro-
vides a burst access of 14.5ns with initial access times of
88.5ns at 30pF. The device performs a program operation in
units of 16 bits (Word) and erases in units of a block. Single or
multiple blocks can be erased. The block erase operation is
completed within typically 0.7 sec. The device requires 15mA
as program/erase current in the extended temperature ranges.
The K8S3215E NOR Flash Memory is created by using Sam-
sung's advanced CMOS process technology. This device is
available in 44 ball FBGA package.
32M Bit (2M x16) Muxed Burst , Multi Bank NOR Flash Memory
PIN DESCRIPTION
Pin Name
A16 - A20
Pin Function
Address Inputs
A/DQ0 - A/DQ15 Multiplexed Address/Data input/output
CE
OE
RESET
V
PP
WE
WP
CLK
RDY
AVD
Vcc
V
SS
Chip Enable
Output Enable
Hardware Reset Pin
Accelerates Programming
Write Enable
Hardware Write Protection Input
Clock
Ready Output
Address Valid Input
Power Supply
Ground
SAMSUNG ELECTRONICS CO., LTD.
reserves the right to change products and specifications without notice.
2
Revision 1.0
March, 2005
K8S3215ETD

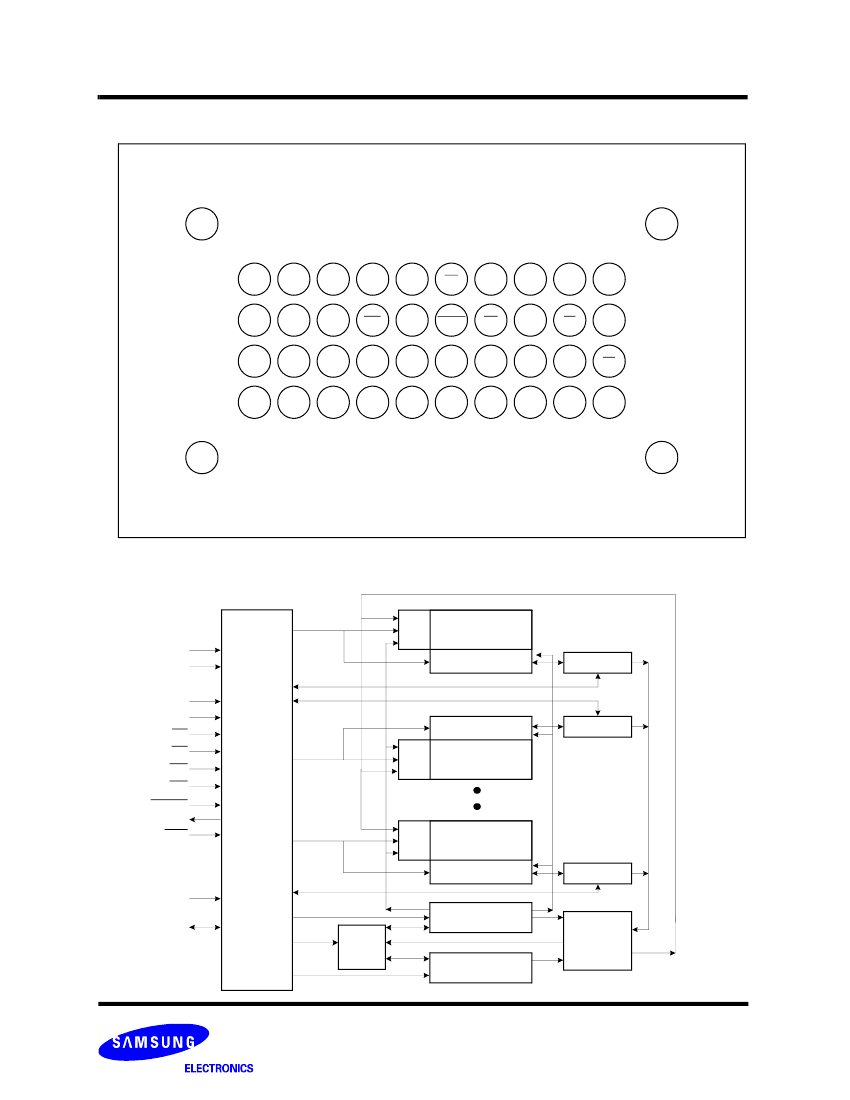

44 Ball FBGA TOP VIEW (BALL DOWN)
