227 Idema Road, Markham,
Ontario Canada, L3R 1B1
Tel: +1 416 754‐3322
Fax: +1 416 754‐3299
Email: info@edac.net
http://www.edac.net

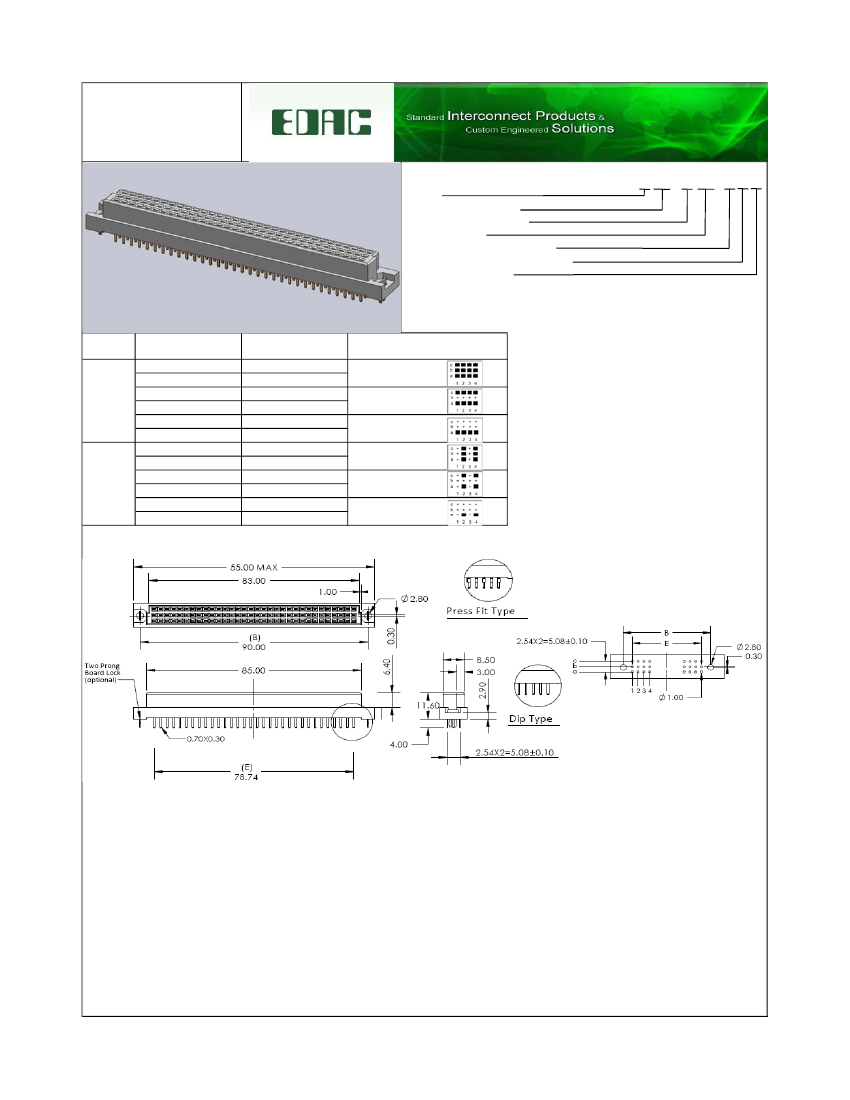

STYLE
NUMBER OF CONTACTS
GOLD PLATING THICKNESS
CONTACT CODE
CONTACT ROW ARRANGEMENT
CONTACT SPACING ARRANGEMENT
MOUNTING OPTIONS
STYLE
1‐ STANDARD STYLE (STRAIGHT)
PITCH
NUMBER OF CONTACTS
96
48
64
32
32
16
48
24
32
16
16
8
CONTACT ROW
ARRANGEMENT
CONTACT SPACING ARRANGEMENT
1‐ ROWS
FULLY LOADED
1‐ ROWS
FULLY LOADED
1‐ ROWS
FULLY LOADED
2‐ EVEN NUMBER
LOADED
2‐ EVEN NUMBER
LOADED
2‐ EVEN NUMBER
LOADED
SERIES 496‐196‐221 ‐311
2.54MM
5.08MM
a b c
a b c
a ‐ c
a ‐ c
a ‐ ‐
a ‐ ‐
a b c
a b c
a ‐ c
a ‐ c
a ‐ ‐
a ‐ ‐
GOLD PLATING THICKNESS
2‐ GOLD FLASH
3‐ 15 MICROINCHES OF GOLD
6‐ 30 MICROINCHES OF GOLD
CONTACT CODE
21‐ PCB TAIL .157 (4.0) LG.
22‐ PCB TAIL .098 (2.5) LG.
40‐ W.W. TAIL .512 (13.0) LG.
41‐ W.W. TAIL .669 (17.0) LG.
70‐ PRESS‐FIT TAIL .182 (4.6) LG.
73‐ PRESS‐FIT TAIL .248 (6.3) LG.
80‐ PRESS‐FIT, W.W.TAIL .512 (13.0) LG.
81‐ PRESS‐FIT, W.W.TAIL .669 (17.0) LG.
CONTACT ROW ARRANGEMENT
1‐ CONTACTS ON ROW "A"
3‐ CONTACTS ON ROW "A," "B" AND "C"
6‐ CONTACTS ON ROW "A" AND "C"
CONTACT SPACING ARRANGEMENT
1‐ ROWS FULLY LOADED
2‐ EVEN NUMBER LOADED
MOUNTING OPTIONS
1‐ ø.110" (ø2.80mm) , THROUGH HOLE
3‐ ø.110" (ø2.80mm) HOLE WITH
TWO‐PRONG BOARD LOCK
P.C. BOARD PATTERN
Dimension E at 2.54 Pitch:
1 Row: E = No. of Positions‐1 X 2.54
2 Rows: E = (No. of Positions/2)‐1 X 2.54
3 Rows: E = (No. of Positions/3)‐1 X 2.54
Features:
Specifications:
∙ High density 96 Contacts 3 Row Metal‐to‐Metal Connector on 2.54mm
∙ Current Rating: 2 Amperes @ 20°C
(.100”) Grid
∙ Contact Material: Phosphor Bronze
∙ Contacts: Straight
∙ Contact Plating: Selective Gold Plating
∙ Contact Material: Phosphor Bronze with selective gold plating
and tin on tails:
∙ Contact Resistance: 30 milliohms, maximum
2‐Gold Flash Plating
∙ Insulator Material: 30% Glass Filled PBT, UL 94V‐0
3‐ 15u" of Gold Plating
∙ Insulation Resistance: Mated ‐
1000 Mega (10⁶) ohms
6‐ 30u" of Gold Plating
∙ Dielectric Withstanding Voltage: 1000 V.A.C RMS
∙ Contact Tails: 0.7 x 0.3mm (.028” x .012”) Rectangular
∙ Basic Grid: 2.54mm (.100”)
∙ Contact Spacing: 2.54 x 2.54mm (.100” x .100”) single, double or triple rows;
∙ Operating Temperature: ‐55°C to +105°C
or 2.54 x 5.08mm (.100” x .200”) single, double or triple rows.
∙ Available in: 8, 16, 24, 32, 48, 64, and 96 positions
∙ Connectors designed to meet DIN 41612‐C (Female) specifications
