JWF2140-1122

Description
Rocker Switch, DPST, Latched, Solder Terminal, Knob Type Actuator, Through Hole-right Angle, LEAD FREE
CategoryMechanical and electronic products    switch
File Size66KB,2 Pages
ManufacturerSMK
Websitehttps://www.smk.co.jp/
Environmental Compliance
Download Datasheet Parametric View All

JWF2140-1122 Overview

Rocker Switch, DPST, Latched, Solder Terminal, Knob Type Actuator, Through Hole-right Angle, LEAD FREE

JWF2140-1122 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSMK
package instructionLEAD FREE
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator typeKNOB TYPE
body width25.1 mm
body height12.5 mm
Body length or diameter19 mm
Contact (AC) maximum rated R load10A@250VAC
Maximum contact current (AC)10 A
Maximum contact voltage (AC)250 V
Electrical life10000 Cycle(s)
Manufacturer's serial numberJW
Installation featuresTHROUGH HOLE-RIGHT ANGLE
surface mountNO
Switch actionLATCHED
switch functionDPST
Switch typeROCKER SWITCH
Termination typeSOLDER
POWER SWITCH
Power Supply Snap-in Rocker Switch, JW Series
Features
Variation
JWF21 0-
1. It’s construction is highly resistant to an in-rush current. It’s
secured with contact gap of 3mm compatible with Class 2
under European Standards.
2. It is mountable, compatible with A type in our JW Series (in
chassis mounting dimensions).
F Type
Hot Stamp Color
0 Without
1 Black
2 Red
3 White
Hot Stamp Indication
ROCKER SWITCH
Specifications
1. Rating
2. In-Rush Current
3. Withstanding Voltage
4. Electrical Life
5. Circuit
: 10A 250V AC
: 100A(5msec max.)
: AC2000V for one minute
: 10,000 cycles
: DPST
1
2
3
4
: Lead Wiring
: Faston
: P.C.Board(Straight)
: P.C.Board(Right-Angle)
0
1
2
3
Without
4
5
6
Safty Standard Approval No.
UL
JWF2110
JWF2120
JWF2130
JWF2140
(Cat. No. JA47)
CSA
SEMKO
DEMKO
VDE
TÜV
SEV
Knob Color
0 Black
1 Orange
2 Beige
3 Gray
Case Color
0 Black
1 Orange
2 Beige
3 Gray
Size of Mounting Hole
X
Precautions on Use
1. Setting the switching current to as low as 0.5 amperes or
less might result in an instable contact. If you apply the
product in such usage, please make a separate inquiry with
us.
2. The power switch is designed to have an alternating current
rated. If you apply it with a direct current, please make a
separate inquiry with us.
3. The rush performance (at an in-rush current of 100 amperes)
has been evaluated under the RC load conditions subject to
IEC65. The rush-resistant performance may vary with the
conditions of a load, etc. It rest separately on an on-
equipment basis.
Thickness of mounting board
0.75 1.25
1.25 2.00
X
19.2
19.4
+0.1
0
+0.1
0
Y
12.9
+0.1
0
+0.1
12.9
0
Y

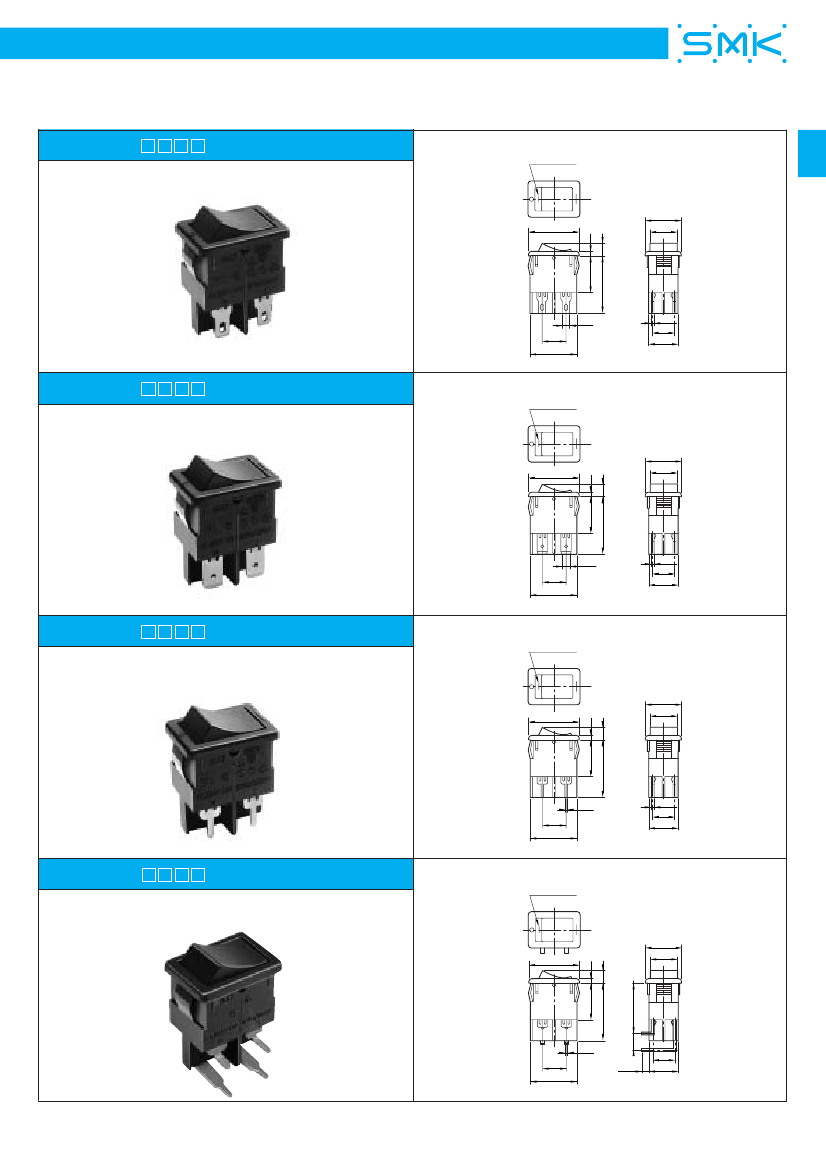

Refer to the following drawing for a mounting hole.
Stamping direction
Switch operation side
Precaution when mounting a switch
Switch design is on the basis of mounting on a SPCC(steel)panel.
If use of soft materials such as plastic panels in place of standard
SPCC panels is planned,decision should be made after
verification of usability,particularly mounting strength for an
extended period of time,under actual application conditions.
18
