EMC filters
3-line filters
for converters and power electronics
Rated current 8 to 200 A
Series/Type:
Date:
B84143B*R110
January 2006
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet and the
information contained therein without EPCOS’ prior express consent is prohibited.
3-line filters
for converters and power electronics
Power line filters for 3-phase systems
Rated voltage 520/300 V AC, 50/60 Hz
Rated current 8 to 200 A
Construction
■
3-line filter
■
Metal case
■
Book size
B84143B*R110
Features
■
■
■
■
■
■
■
Very high insertion loss
Optimized leakage current
Space saving by optimized footprint
Litz wires on the load side reduce mounting time
Low weight
Degree of protection: IP 20
1)
Optimized for long motor cables and operation
under full load
■
Design complies with
EN 133200, UL 1283, CSA C22.2 No.8
■
UL and cUL approval pending
Applications
■
Frequency converters for motor drives, e.g.
elevators, pumps, traction systems, conveyor systems,
HVAC systems (heating, ventilation and air conditioning)
■
Wind farms
■
Power supplies
Terminals
■
Line side: Finger-safe terminal blocks
■
Load side: Litz wires
Marking
Marking on component:
Manufacturer’s logo, ordering code,
rated voltage, rated current, rated temperature,
climatic category, date code
Minimum marking on packaging:
Manufacturer’s logo, ordering code
1) To IEC 60529
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
01/06
3-line filters
for converters and power electronics
Technical data and measuring conditions
Rated voltage V
R
Rated current I
R
Test voltage V
test
Overload capability (thermal)
Leakage current I
leak
Climatic category (IEC 60068-1)
Approvals
520/300 V AC, 50/60 Hz
B84143B*R110
Referred to 40
°C
ambient temperature
1770 V DC, 2 s (line/line)
2700 V DC, 2 s (lines/case)
1.5 · I
R
for 3 min per hour or
2.5 · I
R
for 30 s per hour
At 480 V AC, 50 Hz
25/100/21 (– 25
°C/+
100
°C/21
days damp heat test)
UL 1283 and CSA C22.2 No.8 pending
Characteristics and ordering codes
V
R
AC
I
R
Terminal cross section I
leak
Line side:
Load side:
terminal
litz
blocks
wires
2
mm
mA
mm
2
8
16
25
36
50
66
90
120
150
200
4
4
6
6
16
25
25
50
50
95
1.5
2.5
4
6
10
16
25
35
35
70 / 35
1)
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
<
14
R
typ
Approx.
weight
Ordering code
V
520/300
A
mΩ
26
13
10
6.5
4.3
2.7
2.0
1.4
0.9
0.5
kg
1.5
1.5
2.7
3.2
3.7
4.3
7.7
8.3
9.7
13.5
B84143B0008R110
B84143B0016R110
B84143B0025R110
B84143B0036R110
B84143B0050R110
B84143B0066R110
B84143B0090R110
B84143B0120R110
B84143B0150R110
B84143B0200R110
1) PE litz wire
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/06
3-line filters
for converters and power electronics

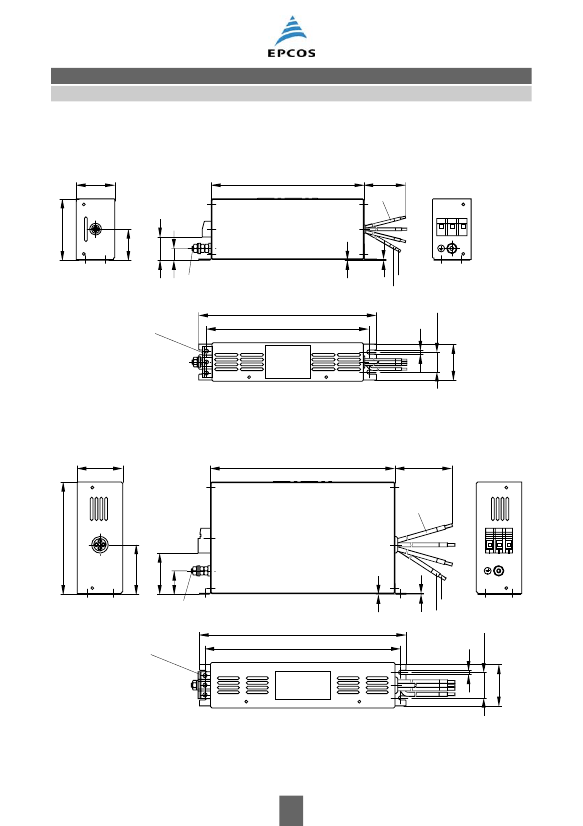

Dimensional drawings
B84143B0008R110, B84143B0016R110 (8 and 16 A)
50
200
300±10
Litz wire
B84143B*R110
80
40
31
15
0.5
1
Wire end ferrule
Litz wire markings
PE M6 x 24
Terminal blocks 4 mm
2
Tightening torque 0.6 ... 0.8 Nm
230
215±0.5
L1’
L1
L2’
L2
L3
Marking
L3’
PE
PE
LINE LOAD
25±0.3
SSB2188-F-E
6.5
B84143B0025R110 (25 A)
60
250
400±10
Litz wire
150
75
60
30
0.5
1
Wire end ferrule
Litz wire markings
PE M6 x 24
Terminal blocks 4 mm
2
Tightening torque 0.6 ... 0.8 Nm
280
265±0.5
L1
L2
Marking
L3
PE LINE LOAD
L1’
L2’
L3’
PE
46
6.5
35±0.3
SSB2189-N-E
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
01/06
56
