BQ2000PN datasheet, PDF - EEWORLD Datasheet

BQ2000PN: DescriptionPower Supply Support Circuit, BICMOS, PDIP8, PLASTIC, DIP-8; CategoryPower/power management The power supply circuit; File Size407KB，16 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

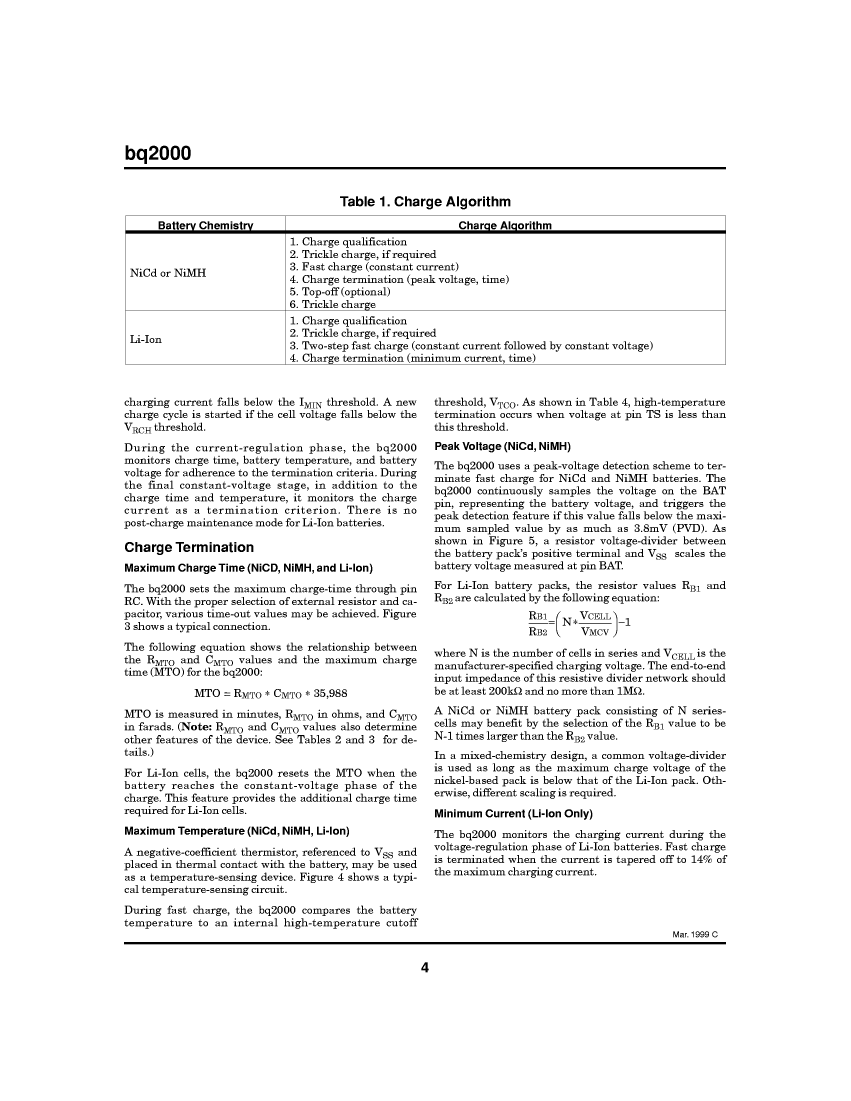

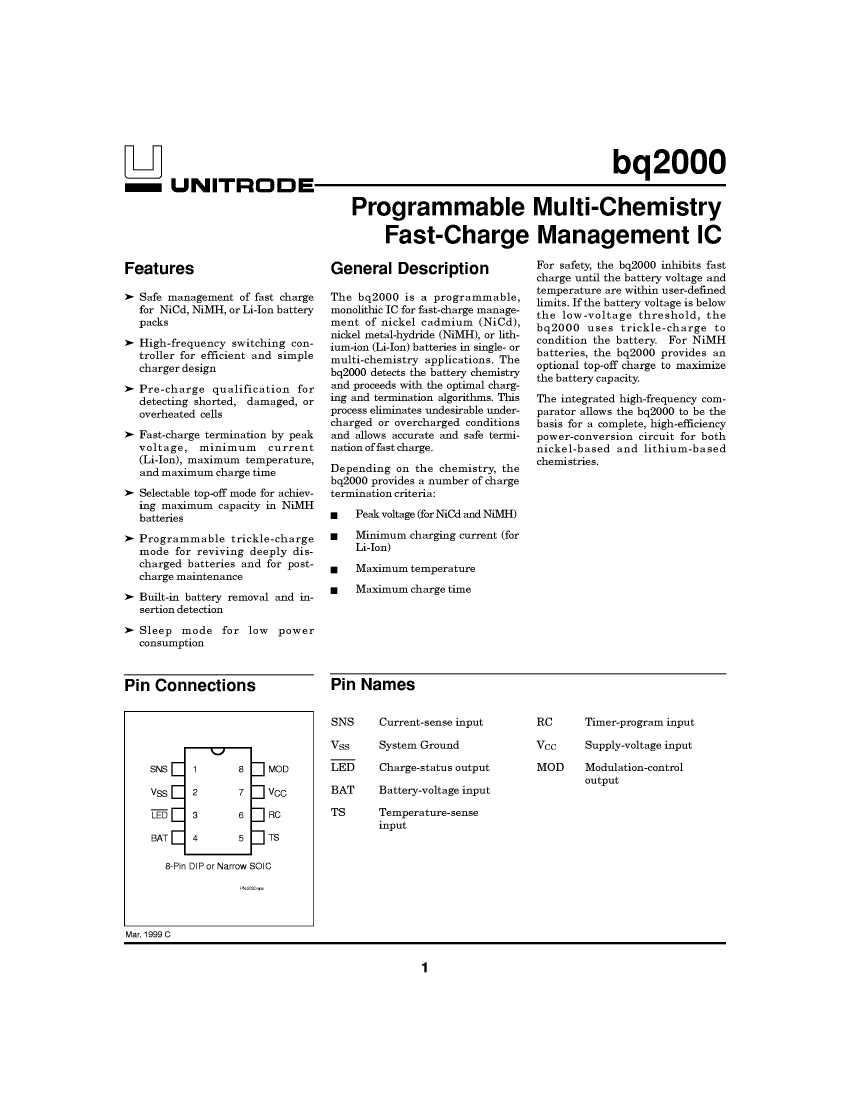

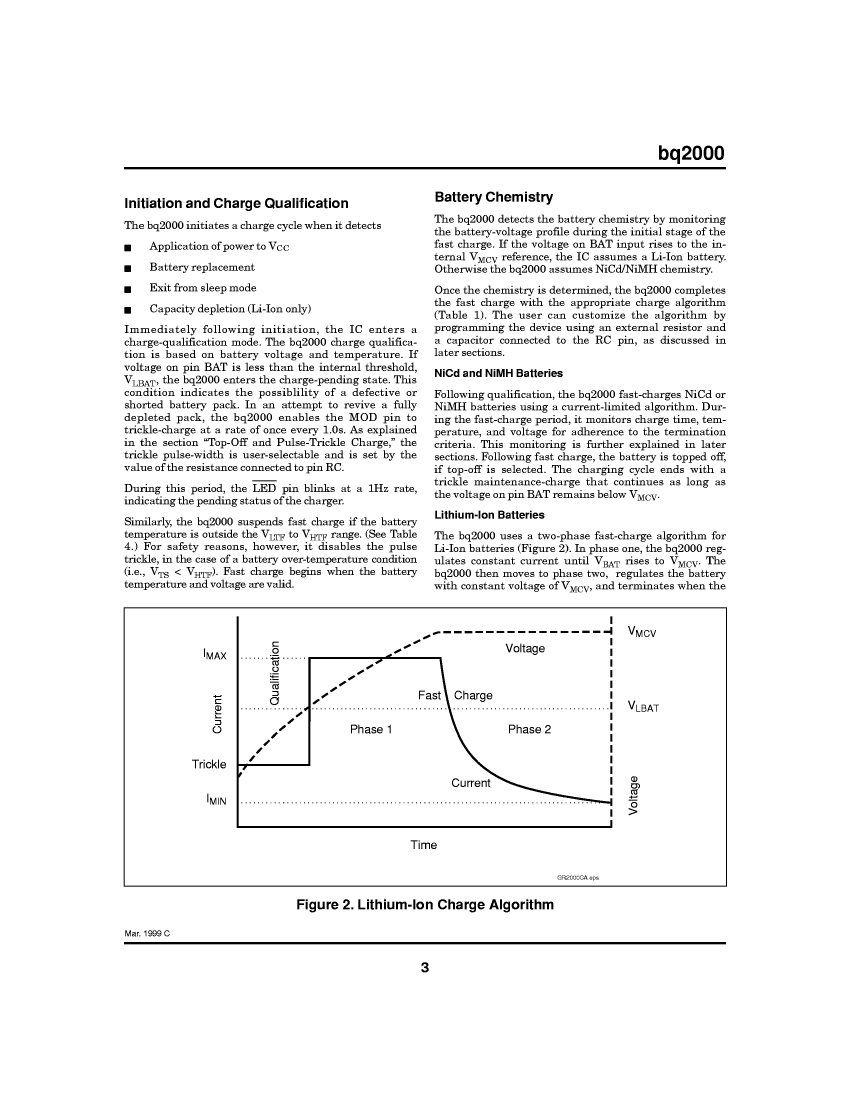

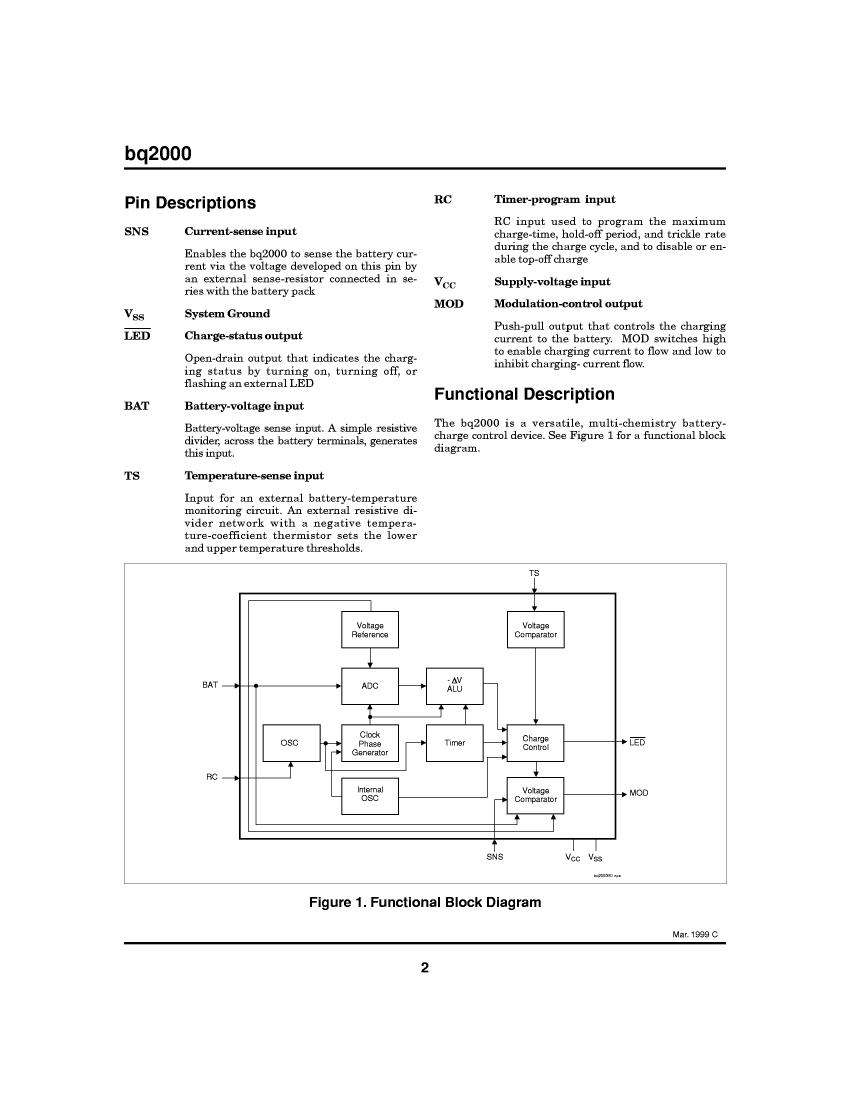

BQ2000PN Overview

Power Supply Support Circuit, BICMOS, PDIP8, PLASTIC, DIP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Unitrode Corporation
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	1 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	BQ2000PN	BQ2000SN
Description	Power Supply Support Circuit, BICMOS, PDIP8, PLASTIC, DIP-8	Power Supply Support Circuit, BICMOS, PDSO8, SOIC-8
Is it Rohs certified?	incompatible	incompatible
Maker	Unitrode Corporation	Unitrode Corporation
package instruction	DIP, DIP8,.3	SOP, SOP8,.25
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	1 mA	1 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
