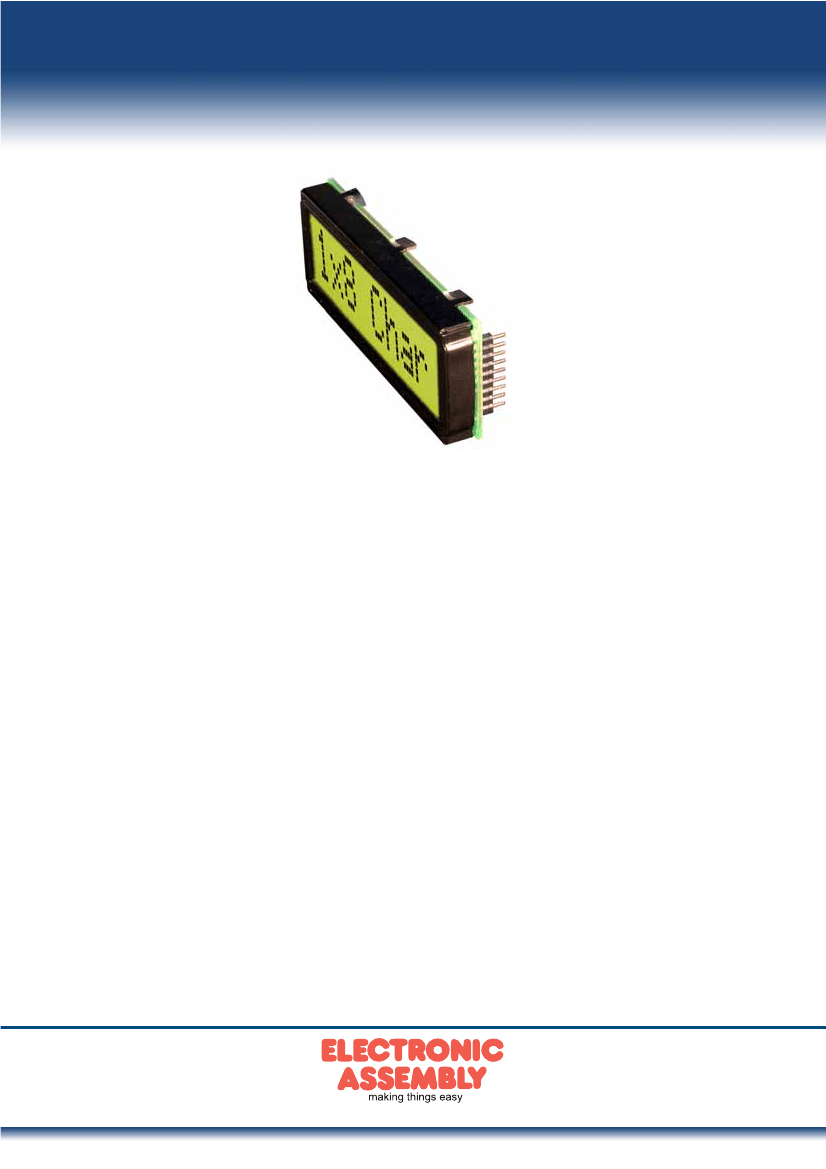

LCD MODULE 1x8 - 11.48mm
INCL. CONTROLLER HD 44780
Issue 04.2011
g
tin
oun
m
ore uired
m
no
req

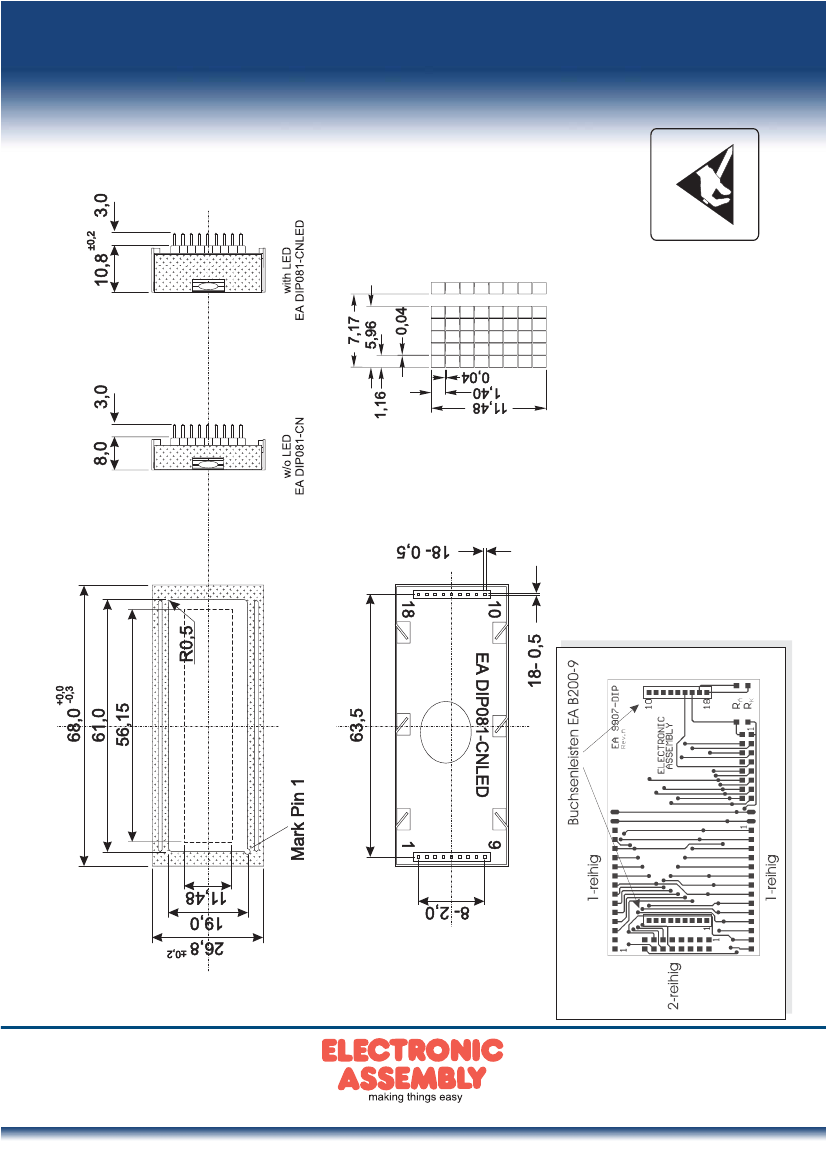

Dimension 68 x 27 mm
11mm flat even with LED B/L
FEATURES
HIGH CONTRAST LCD SUPERTWIST DISPLAY GRAY OR YELLOW/GREEN
COMPATIBLE TO HD 44780 STANDARD
INTERFACE FOR 4- AND 8-BIT DATA BUS
POWER SUPPLY
+2.7~5.5V
(BACKLIGHT 4.1V)
OPERATING TEMPERATURE RANGE 0~+50°C OR -20~+70°C
BULIT-IN TEMP. COMP. WITH EA DIP081-CHNLED
LED BACKLIGHT Y/G typ. 150mA@4.1V, max. 200mA
SOME MORE MODULES WITH SAME MECHANIC AND SAME PINOUT:
- DOTMATRIX 2x16, 4x20
- GRAPHIC 122x32
*
NO SCREWS REQUIRED: SOLDER ON IN PCB ONLY
*
DETACHABLE VIA 9-PIN SOCKET EA B200-9 (2 PCS. REQUIRED)
*
*
*
*
*
*
*
*
ORDERING INFORMATION
LCD MODULE 1x8 - 11.48mm WITH BACKLIGHT Y/G
SAME BUT WITH T
OP.
-20~+70°C, INCL. TEMP.COMP.
9-PIN SOCKET, HEIGHT 4.3mm (1 PC.)
SUITABLE BEZEL (WINDOW 60.0x14.8 mm)
ADAPTOR PCB WITH STANDARD PINOUT PITCH 2.54mm
EA
EA
EA
EA
EA
DIP081-CNLED
DIP081-CHNLED
B200-9
017-2UKE
9907-DIP
Zeppelinstr. 19 · D-82205 Gilching · Tel. 08105-77 80 90 · Fax 08105-77 80 99 · www.lcd-module.de · info@lcd-module.de
