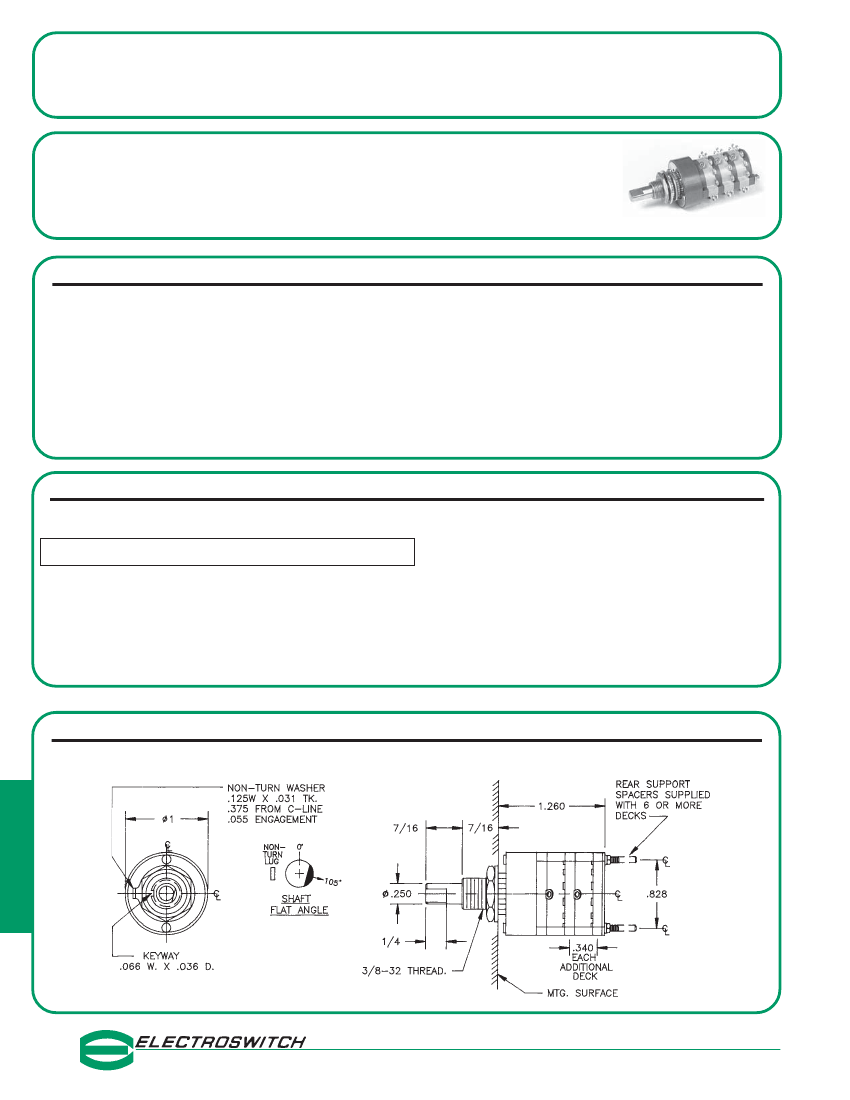

M5 - SERIES
1" DIAMETER
2.0 AMPS @ 28 VDC
SPECIFICATIONS AND ORDERING INFORMATION
The M5 Series was orginally designed to meet the requirements of
MIL-S-3786/4. Standard construction includes 30° indexing up to 12
positions, solder lug terminals and adjustable stops. A very reliable
switch for long life.
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
2.0 amps @ 28 VDC; 2.5 amp @ 120 VAC.
Current Carrying Capacity:
12 amps.
Dielectric Strength:
1,500 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 5 milliohms.
Insulation Resistance:
In excess of 100,000 megohms
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Terminals:
Copper alloy with silver plating as standard.
Insulation:
Diallyl phthalate.
Index:
Dual-ball, hill and valley design.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
Positive 30° standard, 36°, 45°, 60°, and 90° available.
Index Stops:
Fixed standard, adjustable, or continuous.
Stop Strength:
15 in. lbs. minimum.
STANDARD PART NUMBER
ADJUSTABLE STOPS
SWITCHES - 30° INDEXING - STOPS SET @ 2 POS. - SOLDER LUG TERMINALS
ACTIVE
POLES POSITIONS
01
02
02
03
04
04
06
08
02-12
02-12
02-06
02-12
02-12
02-06
02-06
02-06
POLES/
DECK
1
1
2
1
1
2
2
2
NO. OF
DECKS
1
2
1
3
4
2
3
4
SHORTING
M5D0112S - A
M5D0212S - A
M5D0206S - A
M5D0312S - A
M5D0412S - A
M5D0406S - A
M5D0606S - A
M5D0806S - A
NON-
SHORTING
M5D0112N - A
M5D0212N - A
M5D0206N - A
M5D0312N - A
M5D0412N - A
M5D0406N - A
M5D0606N - A
M5D0806N - A
FIG.
CE
CE
CJ
CE
CE
CJ
CJ
CJ
*
* FIGURES ARE SHOWN ON PAGE 55.
DIMENSIONS
STANDARD CONSTRUCTION
M5D
- DIALLYL PHTHALATE CONSTRUCTION
M
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
48
ADDITIONAL OPTIONS AND ORDERING INFORMATION
M5 - SERIES
INDEX
ANGLE
30°
36°
45°
*60°
*90°
STOP
TYPE
F - FIXED
A - ADJ.
(30° AND 36°
ONLY)
How to Order Additional Options:
2 DIGIT
SERIES
M5
INSULATION
TYPE
D - DIALLYL
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
12 - MAX @ 30°
10 - MAX @ 36°
08 - MAX @ 45°
06 - MAX @ 60°
04 - MAX @ 90°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
SHAFT/
BUSHING
SHAFT
FLAT
C - CONT.
SEE
CHART
“A”
SEE
CHART
“B”
*NOT AVAILABLE IN SHORTING
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
M 5
D
(SPECIFY)
(SPECIFY)
(SPECIFY)
SHAFT
,
BUSHING
,
AND FLAT OPTIONS
CHART "A"
P/N
OPT.
01
02
CHART "B"
P/N
OPT.
- STD
U
B
SHAFT
LGTH.
"A"
7/16
3/8
BUSH.
LGTH.
"B"
7/16
5/16
FLAT
ANGLE
105°
ROUND
- STD
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
U
M
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
49
