502578-9200

Description
CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits
File Size51KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

502578-9200 Overview

CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits

This document was generated on 04/24/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
502578-9200
Active
CLIK-Mate™ Wire-to-Board Connectors
CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Crimp Housings
502578
Signal, Wire-to-Board
CLIK-Mate™ Wire-to-Board Connectors
CLIK-Mate™
884982705395
Series

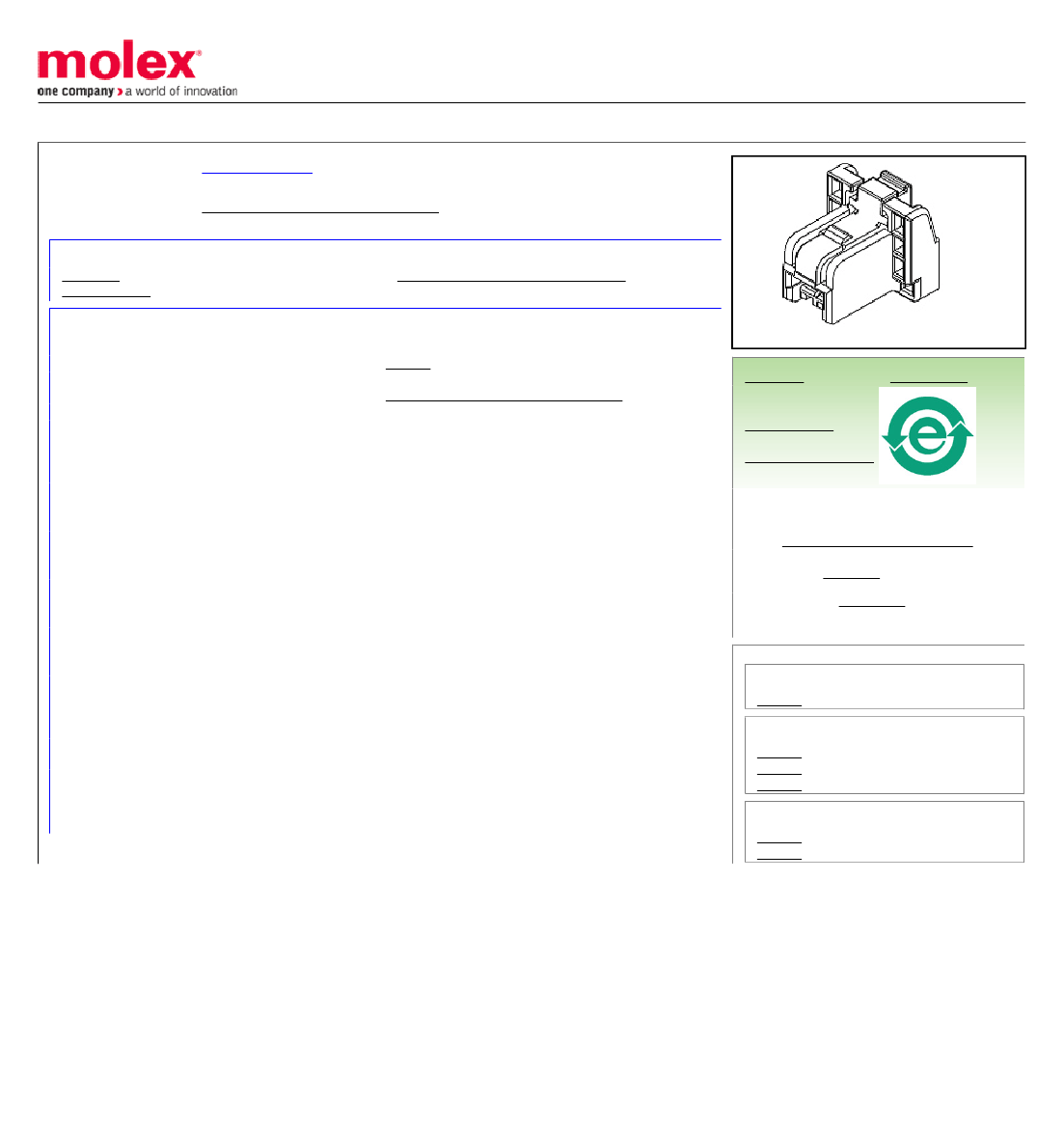

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
Physical
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
2
Beige
Plug
No
Yes
Yes
204.300/mg
1
Bag
No
1.50mm
Yes
No
-40°C to +85°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
2A
Search Parts in this Series
502578Series
Mates With
503395 Bottom-Entry PCB Receptacle .
502585 Right-Angle PCB Receptacle .
502584 Vertical PCB Receptacle
Use With
502579 Crimp Terminal for 24-28 AWG .
503429 Crimp Terminal for 26-30 AWG
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
RPS-502584-009
SD-502578-002
This document was generated on 04/24/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
