1. Device mounted on ceramic PCB: 7.6mm × 9.4mm × 0.87mm with pad areas 25mm²
2. Short duration test pulse used to minimize self-heating effect
Specification Table
Zener Voltage Range
Part Number
BZT52C10+
BZT52C18+
BZT52C33+
BZT52C3V9+
BZT52C4V7+
BZT52C5V1+
Part Number
BZT52C10+
BZT52C18+
BZT52C33+
BZT52C3V9+
BZT52C4V7+
BZT52C5V1+
Marking
Nom(V)
WF
WL
WR
W5
W7
W8
10
18
33
3.9
4.7
5.1
V
z
@ I
zt
Min(V)
9.4
16.8
31
3.7
4.4
4.8
Max(V)
10.6
19.1
35
4.1
5
5.4
Test Current
IZTC
mA
5
5
2
5
5
5
Izt
mA
5
5
2
5
5
5
20
45
80
90
80
60
Maximum Zener Impedance
z
zt
@I
zt
Ω
150
225
325
600
500
480
z
zk
@I
zk
I
zk
mA
1
1
0.5
1
1
1
Maximum
Reverse Current
IR
μA
0.2
0.1
0.1
3
3
2
VR
V
7
12.6
23.1
1
2
2
Typical Temperature
Coefficient @ IztC = mV/°C
Min.
4.5
12.4
27.4
-3.5
-3.5
-2.7
Max.
8
16
33.4
0
0.2
1.2
www.element14.com
www.farnell.com
www.newark.com
Page <1>
13/06/17
V1.1
Zener Diode

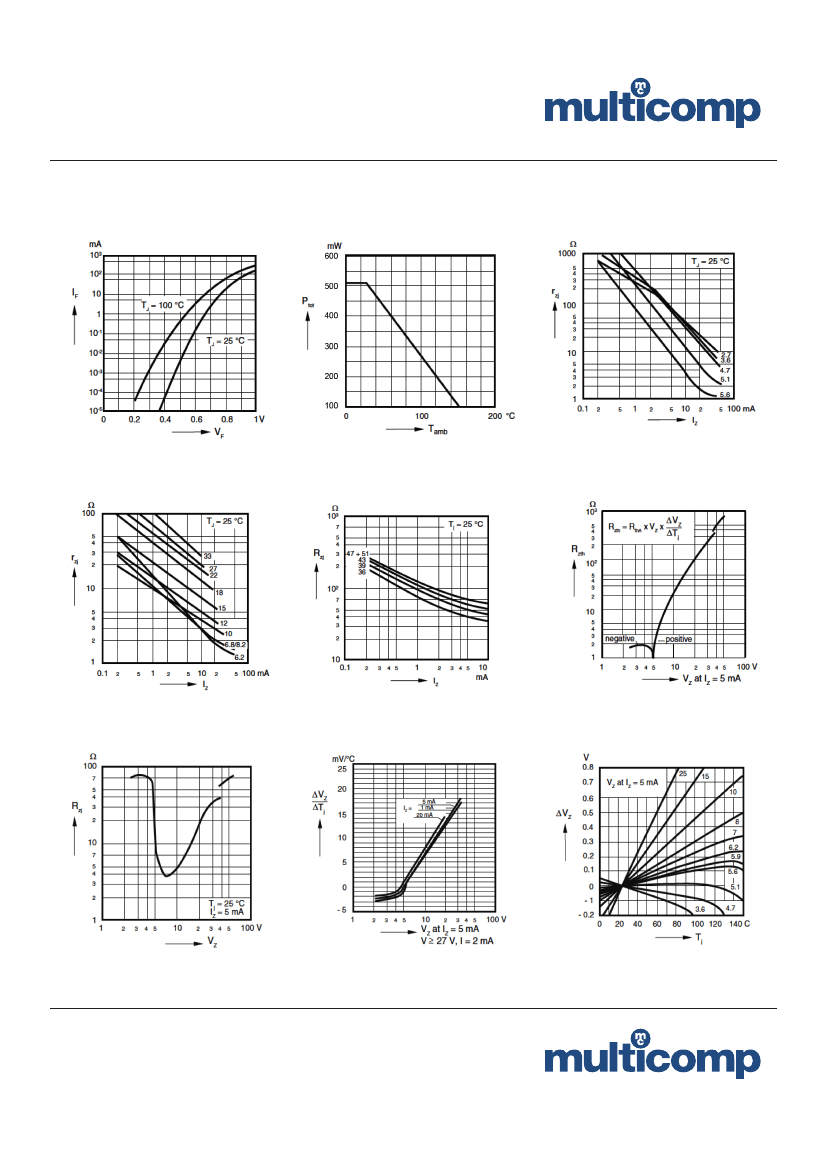

Rating and Characteristic Curves
Forward Characteristics
Admissible Power Dissipation
Vs. Ambient Temperature
Dynamic Resistance
Vs. Zener Current
Dynamic Resistance
Vs. Zener Current
Dynamic Resistance
Vs. Zener Current
Thermal Differential Resistance
Vs. Zener Voltage
Dynamic Resistance
Vs. Zener Voltage
Temperature Dependence of
Zener Voltage Vs. Zener Voltage
Change of Zener Voltage
Vs. Junction Temperature
www.element14.com
www.farnell.com
www.newark.com
Page <2>
13/06/17
V1.1
Zener Diode

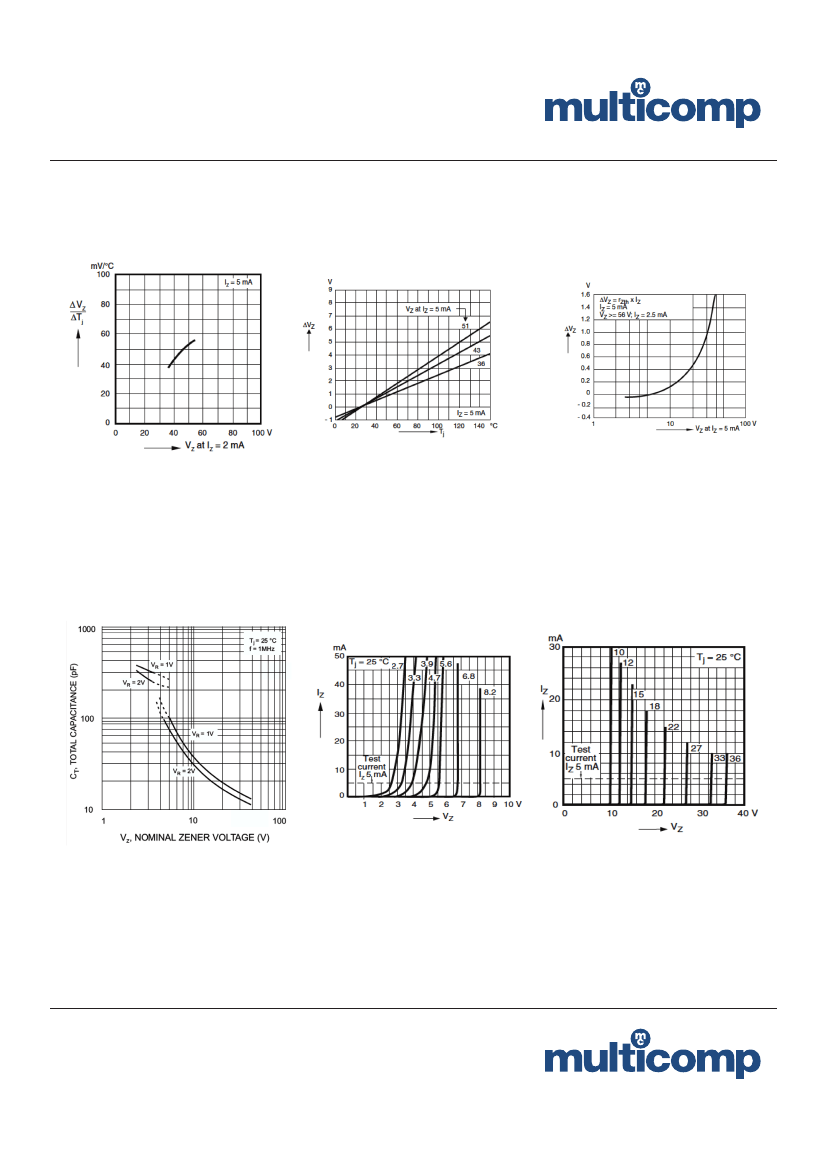

Temperature Dependence of
Zener Voltage Vs. Zener Voltage
Change of Zener Voltage
Vs. Junction Temperature
Change of Zener Voltage from
Turn-on up to the point of
Thermal Equilibrium Vs. Zener
Voltage
Total capacitance
Vs Nominal Zener Voltage
Breakdown Characteristics
Breakdown Characteristics
www.element14.com
www.farnell.com
www.newark.com
Page <3>
13/06/17
V1.1
Zener Diode
Dimensions:
SOD-123
Symbol
A
A1
A2
b
c
D
Dimensions
Min.
1.02
0
1.05
0.45
0.08
1.5
Max.
1.25
0.1
1.15
0.65
0.15
1.7
Symbol
E
E1
L
L1
θ
Dimensions
Min.
2.6
3.55
0.25
0°
Max.
2.8
3.85
0.45
8°
0.5 REF
Dimensions : Millimetres
Part Number Table
Description
Zener - Single 500mW 10V SOD-123
Zener - Single 500mW 18V SOD-123
Zener - Single 500mW 33V SOD-123
Zener - Single 500mW 3.9V SOD-123
Zener - Single 500mW 4.7V SOD-123
Zener - Single 500mW 5.1V SOD-123
Part Number
BZT52C10+
BZT52C18+
BZT52C33+
BZT52C3V9+
BZT52C4V7+
BZT52C5V1+
