F980J476MSA

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size401KB，4 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric Compare View All

F980J476MSA Online Shopping

Suppliers Part Number Price MOQ In stock
F980J476MSA - - View Buy Now

F980J476MSA Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

F980J476MSA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAVX
package instruction, 0603
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
capacitance47 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR6000 mΩ
high0.8 mm
JESD-609 codee4
leakage current0.003 mA
length2 mm
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 7 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
GuidelineAEC-Q200
size code0603
surface mountYES
Delta tangent0.25
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width1.25 mm

F980J476MSA Preview

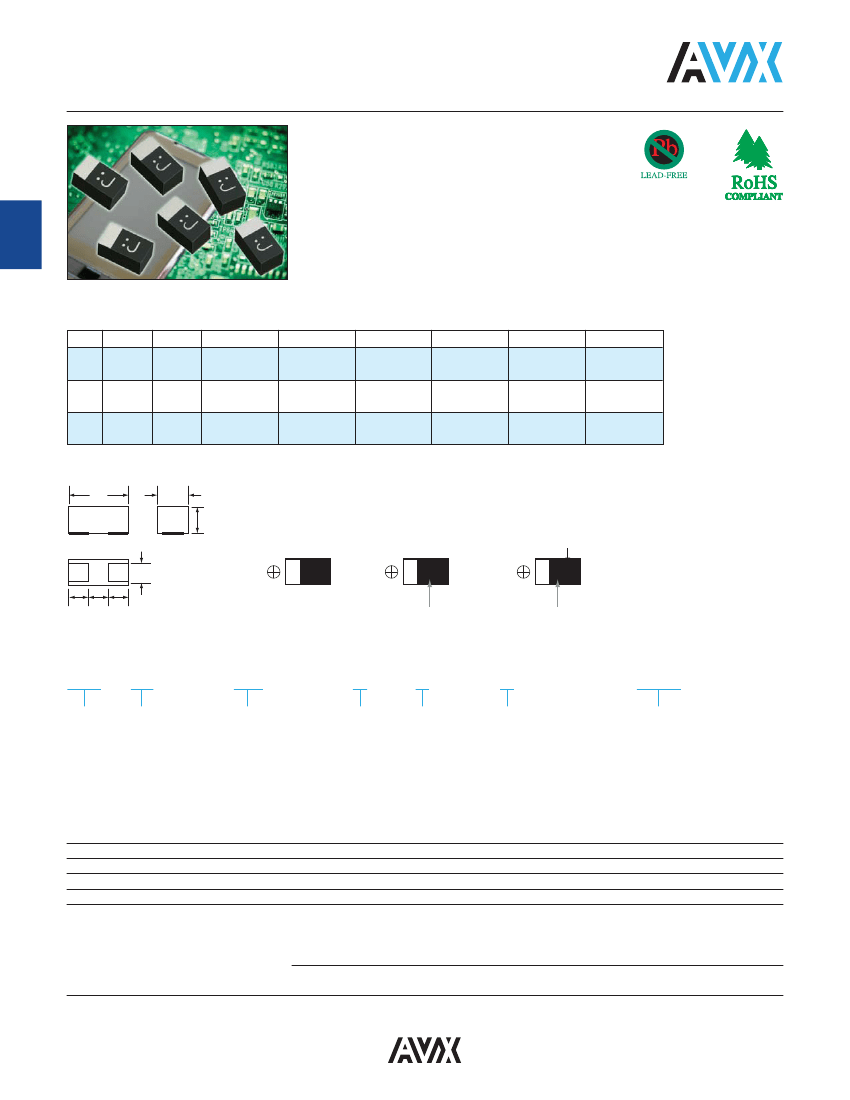

F98 Series
Resin-Molded Chip, High CV Undertab
FEATURES
• Compliant to the RoHS2 directive 2011/65/EU
• SMD face down design
• Small and low profile
APPLICATIONS
•
•
•
•
Smartphone
Mobile phone
Wireless module
Hearing aid
LEAD-FREE COMPATI-
BLE
COMPONENT
CASE DIMENSIONS:
millimeters (inches)
Code EIA Code EIA Metric
M
S
U
0603
0805
0402
1608-09
2012-09
1106-06
1.60
(0.063
2.00
(0.079
L
+0.20
-0.10
+0.008
-0.004
+0.20
-0.10
+0.008
-0.004
W
1
)
)
0.85
(0.033
1.25
(0.049
+0.20
-0.10
+0.008
-0.004
+0.20
-0.10
+0.008
-0.004
W
2
)
)
0.65±0.10
(0.026±0.004)
0.90±0.10
(0.035±0.004)
0.35±0.05
(0.014±0.002)
H
0.80±0.10*
3
(0.031±0.004)
0.80±0.10
(0.031±0.004)
0.55±0.05
(0.022±0.002)
S
1
0.50±0.10
(0.020±0.004)
0.50±0.10
(0.020±0.004)
0.30±0.05
(0.012±0.002)
S
2
0.60±0.10
(0.024±0.004)
1.00±0.10
(0.039±0.004)
0.50±0.05
(0.020±0.002)
1.10±0.05
(0.043±0.002)
0.60±0.05
(0.024±0.002)
*
3
F980J107MMAAXE: 1.0mm Max.
L
W
1
H
MARKING
U CASE
M CASE
S CASE
*Capacitance
Code
W
2
J
Js
S
1
S
2
S
1
Rated Voltage
Code
Rated Voltage
Code
HOW TO ORDER
F98
0J
Type
Rated
Voltage
106
M
Tolerance
M = ±20%
M
Case
Size
See
table
above
Packaging
See Tape & Reel
Packaging Section
Specification Suffix
LZT = Rated temperature 60ºC only
AXE = Rated temperature 60ºC and
H dimension 1.0mm Max
Capacitance
Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
TECHNICAL SPECIFICATIONS
Category Temperature Range:
Rated Temperature:
Capacitance Tolerance:
Dissipation Factor:
ESR 100kHz:
Leakage Current:
-55 to +125°C
+85°C
±20% at 120Hz
Refer to next page
Refer to next page
Refer to next page
Provided that:
After 5 minute’s application of rated voltage, leakage current at 85°C
10 times or less than 20ºC specified value.
After 5 minute’s application of rated voltage, leakage current at 125°C
12.5 times or less than 20ºC specified value.
58
010418
F98 Series
Resin-Molded Chip, High CV Undertab
CAPACITANCE AND RATED VOLTAGE RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
μF
Code
0.47
474
1.0
105
2.2
225
4.7
475
10
106
15
156
22
226
33
336
47
476
68
686
100
107
220
227
2.5 (0e)
4V (0G)
6.3V (0J)
Rated Voltage
10V (1A)
16V (1C)
U
M
M/U
M
M/U**
M
M
S
M**/S
M**/S
S
20V (1D)
M
25V (1E)
M
35V (1V)
S
*Cap
Code
N
A
J
S
a
e
J
n
s
w
A
J
M
U
U
U
M/U**
M
M
M/S
M/S
S
M/U
M/U**
M
M
S
M*
4
/S
Released ratings
*
4
Rated temperature 60°C and H dimension 1.0mm Max only. Please contact AVX
when you need detail spec.
**Rated temperature 60ºC only. Please contact AVX when you need detail spec.
We can consider the type of compliance to AEC-Q200.
Please contact to your local AVX sales office when these series
are being designed in your application.
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Voltage
(V)
*2
DCL
(μA)
DF
ESR
@ 120Hz @ 100kHz
(%)
(Ω)
*1
ΔC/C
(%)
MSL
AVX
Part No.
Case Capacitance
Size
(μF)
Rated
Voltage
(V)
*2
DCL
(μA)
DF
ESR
@ 120Hz @ 100kHz
(%)
(Ω)
*1
ΔC/C
(%)
MSL
F980E476MMA
F980G475MUA
F980G106MUA
F980G156MUA
F980G226MMA
F980G226MUALZT
F980G336MMA
F980G476MMA
F980G686MMA
F980G686MSA
F980G107MMA
F980G107MSA
F980G227MSA
F980J475MMA
F980J475MUA
F980J106MMA
F980J106MUALZT
F980J226MMA
F980J336MMA
F980J476MMA
F980J476MSA
F980J107MMAAXE
F980J107MSA
M
U
U
U
M
U
M
M
M
S
M
S
S
M
U
M
U
M
M
M
S
M
S
47
4.7
10
15
22
22
33
47
68
68
100
100
220
4.7
4.7
10
10
22
33
47
47
100
100
2.5 Volt
2.5
4 Volt
4
4
4
4
4
4
4
4
4
4
4
4
6.3 Volt
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
1.2
0.5
0.8
9.0
0.9
25.0
1.3
1.9
27.2
2.7
80.0
4.0
132
0.5
0.6
0.6
6.3
1.4
4.2
29.6
3.0
126
63.0
30
20
25
40
15
40
30
40
50
30
60
35
80
20
20
8
30
20
35
45
25
80
50
4
20
20
25
7.5
20
4
8
10
4
10
4
5
7.5
20
6
30
6
8
10
6
10
8
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
F981A225MMA
F981A225MUA
F981A475MMA
F981A475MUALZT
F981A106MMA
F981A226MMALZT
F981A226MSA
F981A336MMALZT
F981A336MSA
F981A476MSA
F981C474MUA
F981C105MMA
F981C225MMA
F981C475MMA
F981C106MSA
F981D105MMA
F981E105MMA
F981V105MSA
M
U
M
U
M
M
S
M
S
S
U
M
M
M
S
M
M
S
2.2
2.2
4.7
4.7
10
22
22
33
33
47
0.47
1
2.2
4.7
10
1
1
1
10 Volt
10
10
10
10
10
10
10
10
10
10
16 Volt
16
16
16
16
16
20 Volt
20
25 Volt
25
35 Volt
35
0.5
0.5
0.5
4.7
1.0
11.0
2.2
33.0
3.3
9.4
0.5
0.5
0.5
0.8
1.6
0.5
0.5
0.7
6
15
6
25
20
30
20
45
30
35
6
6
6
12
18
6
8
20
7.5
15
6
25
7.5
8
4
8
6
5
25
10
10
12
4
10
10
8
±30
±30
±30
±30
±30
±30
±30
±30
±30
±30
±20
±30
±30
±30
±30
±30
±30
±30
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Moisture Sensitivity Level (MSL) is defined according to J-STD-020.
*2: Leakage Current
After 5 minute’s application of rated voltage,
leakage current at 20ºC.
010418
59
F98 Series
Resin-Molded Chip, High CV Undertab
QUALIFICATION TABLE
TEST
Damp Heat
(Steady State)
Temperature Cycles
Resistance to
Soldering Heat
F98 series (Temperature range -55ºC to +125ºC)
Condition
At 40°C, 90 to 95% R.H., 500 hours (No voltage applied)
Capacitance Change ........... Refer to page 59 (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
-55°C / +125°C, 30 minutes each, 5 cycles
Capacitance Change ........... Refer to page 59 (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
10 seconds reflow at 260°C, 5 seconds immersion at 260°C.
Capacitance Change ........... Refer to page 59 (*1)
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After application of surge in series with a 1kΩ resistor at the rate of 30 seconds ON, 30 seconds OFF,
for 1000 successive test cycles at 85ºC, capacitors shall meet the characteristic requirements in the table above.
Capacitance Change ........... Refer to page 59 (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
After 1000 hours’ application of rated voltage in series with a 3Ω resistor at 85°C,
capacitors shall meet the characteristic requirements in the table above.
Capacitance Change ........... Refer to page 59 (*1)
Dissipation Factor ................ 150% or less of initial specified value
Leakage Current .................. 200% or less of initial specified value
After applying the pressure load of 5N for 10±1 seconds horizontally to the center of capacitor side body
which has no electrode and has been soldered beforehand on a substrate, there shall be found neither
exfoliation nor its sign at the terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside down and supporting the substrate at
both of the opposite bottom points 45mm apart from the center of capacitor, the pressure strength is
applied with a specified jig at the center of substrate so that the substrate may bend by 1mm as
illustrated. Then, there shall be found no remarkable abnormality on the capacitor terminals.
Surge
Endurance
Shear Test
Terminal Strength
60
010418
F98 Series
Resin-Molded Chip, High CV Undertab

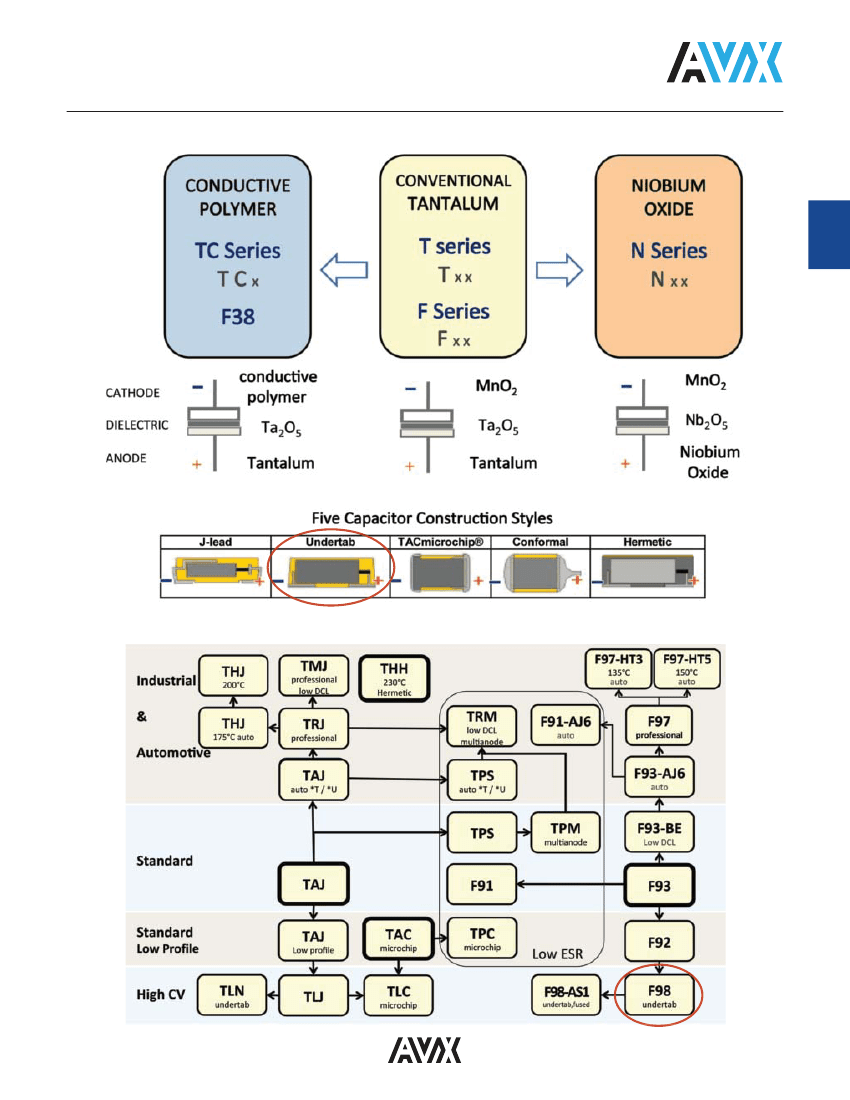

AVX SOLID ELECTROLYTIC CAPACITOR ROADMAP
SERIES LINE UP: CONVENTIONAL SMD MnO
2
010418
61
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

F980J476MSA Related Products

F980J476MSA F981A225MUA F981A475MMA
Description Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 2.2uF, 0402, ROHS COMPLIANT Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 4.7uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to
Maker AVX AVX AVX
package instruction , 0603 , 0402 , 0603
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Factory Lead Time 13 weeks 15 weeks 13 weeks
capacitance 47 µF 2.2 µF 4.7 µF
Capacitor type TANTALUM CAPACITOR TANTALUM CAPACITOR TANTALUM CAPACITOR
dielectric materials TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID) TANTALUM (DRY/SOLID)
ESR 6000 mΩ 15000 mΩ 6000 mΩ
high 0.8 mm 0.55 mm 0.8 mm
length 2 mm 1.1 mm 1.6 mm
negative tolerance 20% 20% 20%
Number of terminals 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package form SMT SMT SMT
method of packing TR, 7 INCH TR, 7 Inch TR, 7 INCH
polarity POLARIZED POLARIZED POLARIZED
positive tolerance 20% 20% 20%
Rated (DC) voltage (URdc) 6.3 V 10 V 10 V
Guideline AEC-Q200 AEC-Q200 AEC-Q200
size code 0603 0402 0603
width 1.25 mm 0.6 mm 0.85 mm
JESD-609 code e4 - e4
leakage current 0.003 mA - 0.0005 mA
Installation features SURFACE MOUNT - SURFACE MOUNT
Package shape RECTANGULAR PACKAGE - RECTANGULAR PACKAGE
surface mount YES - YES
Delta tangent 0.25 - 0.06
Terminal surface Gold (Au) - with Nickel (Ni) barrier - Gold (Au)
Terminal shape WRAPAROUND - ONE SURFACE

Recommended Resources

Transistor meter circuit c

Electronic relay phase failure protection circuit

Grinding machine foot switch circuit diagram

Rain sound generator circuit

Internal circuit and pin arrangement of LS7232

High resistance power distribution circuit

About Hive
I have a problem. I added hive components and drivers to the pb. After compiling, ce cannot start, and the hyperterminal cannot display Real timings. After deleting and recompiling, everything is norm...
XX糖WL Embedded System
RF technology and integration strategy of mobile phone RF components
The integration of low-frequency and high-frequency RF wireless systems is very different. In the high-frequency band, CMOS technology is the preferred technology for RF circuits because it can achiev...
JasonYoo RF/Wirelessly
vxworks.vxsim.tornado.error
I just started learning VxWorks programming today. I installed Tornado and followed the examples in the book step by step. However, when I used the standard simulator to create, an error message appea...
stone8530 Real-time operating system RTOS
Please help me
Dear friends, I am learning ARM now. I simulated Linux under cgywin and compiled uclinux with the kernel 2.6.13. Now when I use the make menuconfig command, it prompts me that HOSTCC has no executable...
whiteshark Linux and Android
Help: A strange problem about cs8900 interrupt!
I bought a 2410 board, which uses cs8900 to drive the network port. I configured the cs8900 these days. Now when the 8900 generates an interrupt, it can trigger the EINT9 pin of the 2410 through its o...
berryfan Embedded System
What does this program mean?
Please help me explain the following program. I am used to Arduino, but I suddenly don't understand the SAM4L program. I have been reading the official routine for a day, but I don't understand what t...
suoma ARM Technology
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. RCA1218442KFKEKLS
  2. SMBJ120-GT3
  3. SP6331EK1-L-X-E-B
  4. CD2-500/472KY5P2F-
  5. 1-796414-5
  6. DCMOP06-48S24B-PT
  7. ED14S126-12AMBTEL
  8. ABM11-50.0000MHZ-I-7-T
  9. PDZ12B-AU_R1_000A1
  10. A2550HL-2x17P
  11. A2541WV-2x8P-C965D381-T
  12. CC6904SO-20A

Popular Articles

  1. Nayuki Tea’s affiliated companies have added “integrated circuit design” to their business scope
  2. Infineon Technologies' latest technology enables 22 kW reference design for industrial general purpose motor drives
  3. VC MIPI modules and accessories are now available from Mouser Electronics
  4. What causes the recent shortage of automotive chips?
  5. Automatic digital voltage meter digital tube display based on 51 single chip ADC0808
  6. Oscilloscope Mini-class: How to optimize oscilloscope performance
  7. Debugging Circuits Using a Tektronix TDS3000C Series Oscilloscope
  8. Qorvo® Design Summit Webinar Series Returns
  9. FG25 sub-GHz SoC with long transmission distance, large memory and high security is now generally available
  10. How to use 2225 arbitrary function signal generator

Technical ResourceMore

  1. Control valve calculation and selection textbook
  2. The most complete 106 packages and pictures
  3. Semiconductor packaging dicing process and optimization
  4. Loss calculation of optical splitter in CATV optical network system
  5. MCU test solution for caller ID DTMF decoder 9270D
  6. Design of Computer Automatic Control System for Sluice Pump Station
  7. MAX3108A Chinese documentation
  8. MAX7365,pdf( I2C-interfaced peripheral that provides microprocessors)
  9. LVDS Application Manual
  10. Greek network electronic magazine editing system.

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2159  2247  2377  1221  802  44  46  48  25  17
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
