F951A107MBAAM1Q2 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> F951A107MBAAM1Q2

F951A107MBAAM1Q2: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size420KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

F951A107MBAAM1Q2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F951A107MBAAM1Q2	-	-	View	Buy Now

F951A107MBAAM1Q2 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT

F951A107MBAAM1Q2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1272425076
package instruction	, 1411
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	AVX 100μF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 10 V dc ±20%, Audio F95 Series
Samacsys Manufacturer	AVX
Samacsys Modified On	2023-02-22 15:27:29
YTEOL	7.5
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	100 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	400 mΩ
high	1.8 mm
leakage current	0.01 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	184 mA
size code	1411
surface mount	YES
Delta tangent	0.14
Terminal shape	WRAPAROUND
width	2.8 mm

Preview

Download Datasheet

View All

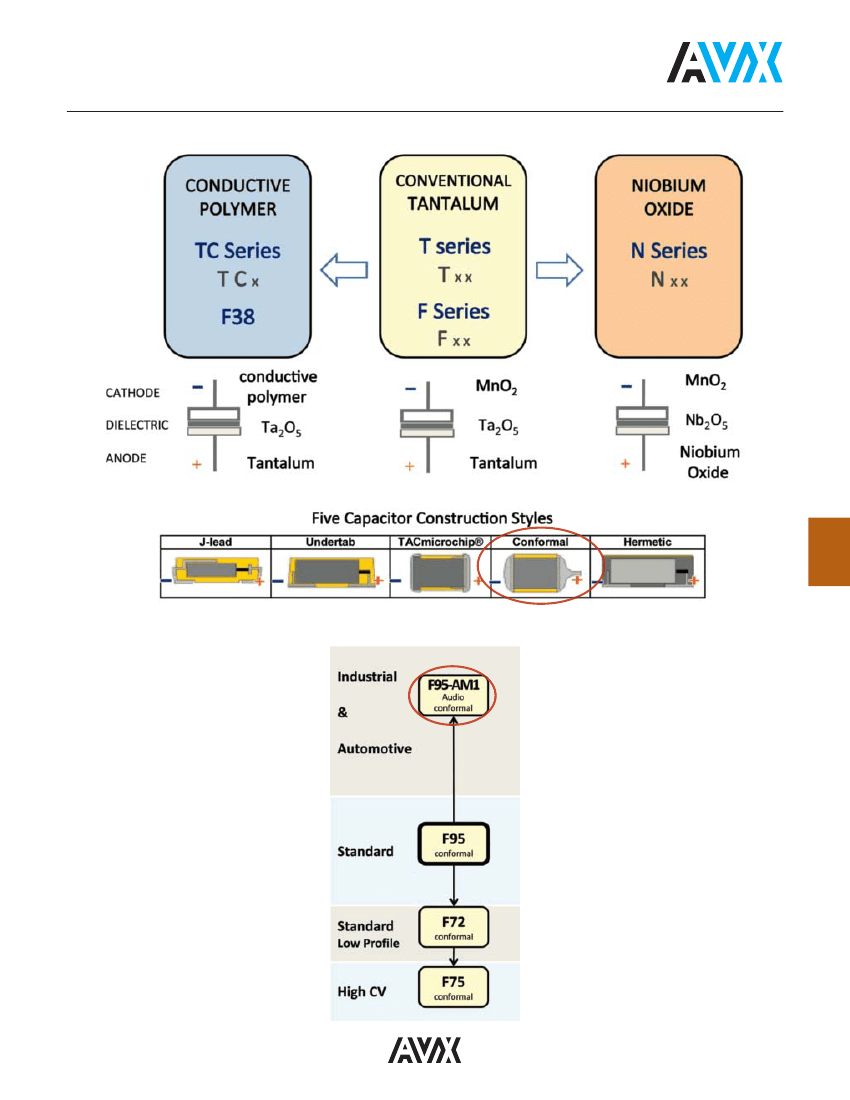

AUDIO F95 Series

Conformal Coated Chip Optimized for Audio Applications

FEATURES

• Compliant to the RoHS2 directive 2011/65/EU

• Rich sound in the bass register and clear sound,Materials are strictly selected to

achieve high level sound. F95 series has no lead-frame, and no vibration factor

• Low ESR, Low ESL

• Line up miniature size and high capacitance, necessary to mobile design

• SMD conformal

• Small and high CV

LEAD-FREE COMPATI-

BLE

COMPONENT

APPLICATIONS

• Mobile Audio Player

• Smartphone

• Mobile phone

• Wireless Microphone System

Resin

Solder electrode

(D)

Single-side electrodes

(Both electrodes at bottom side only)

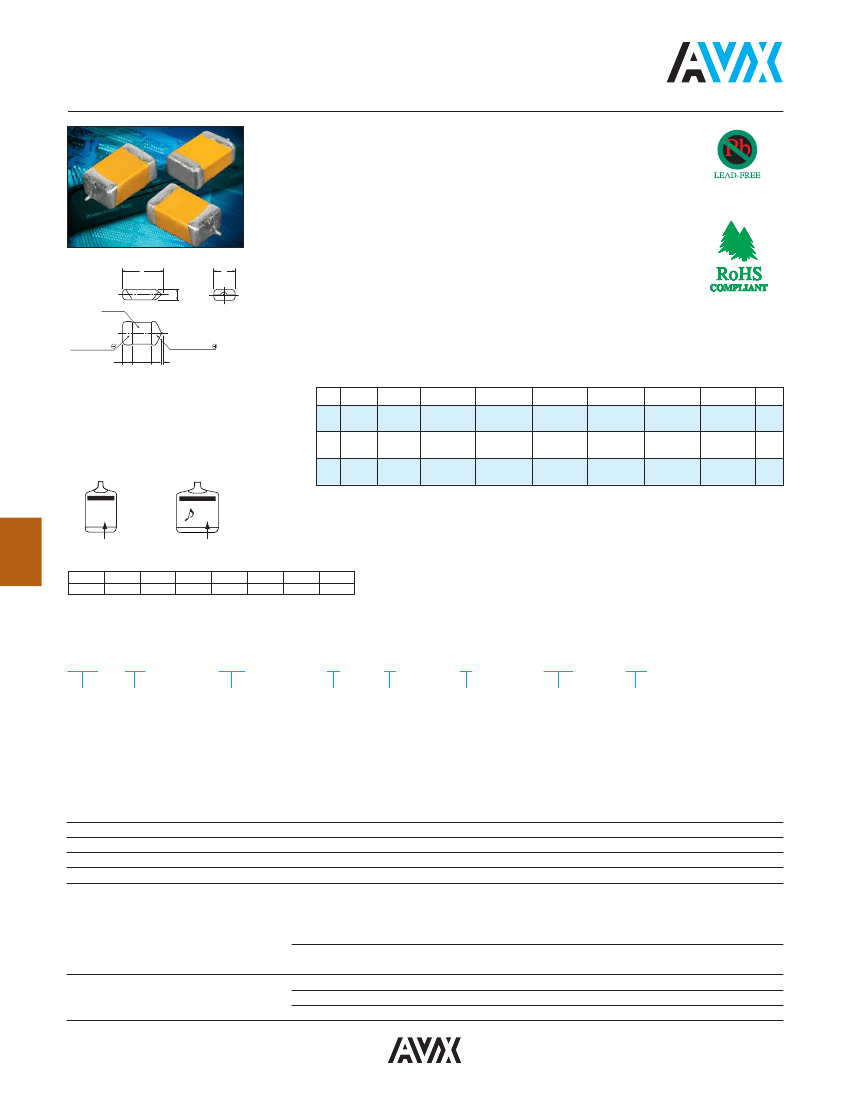

CASE DIMENSIONS:

millimeters (inches)

Code EIA Code EIA Metric

1411

1306

1411

3528-20

3216-12

3527-12

3.50±0.20

(0.138±0.012)

3.20±0.30

(0.126±0.012)

3.50±0.20

(0.138±0.012)

2.80±0.20

(0.110±0.012)

1.60±0.30

(0.063±0.008)

2.70±0.20

(0.106±0.012)

1.80±0.20

(0.031±0.008)

1.00±0.20

(0.039±0.008)

1.00±0.20

(0.039±0.008)

0.80±0.30

(0.031±0.012)

0.80±0.30

(0.031±0.012)

0.80±0.20

(0.031±0.008)

1.20±0.30

(0.047±0.012)

1.20±0.30

(0.047±0.012)

1.20±0.20

(0.047±0.008)

1.10±0.30

0.20

(0.043±0.012) (0.008)

0.80±0.30

0.20

(0.031±0.012) (0.008)

1.10±0.30

0.20

(0.043±0.012) (0.008)

MARKING

S CASE

B, T CASE

*D dimension only for reference

Capacitance

Code

μF

code

100

Capacitance

Code

150

220

330

470

680

HOW TO ORDER

F95

227

Type

Rated

Voltage

Capacitance

Code

pF code: 1st two digits

represent significant figures,

3rd digit represents multiplier

(number of zeros to follow)

Tolerance

K = ±10%

M = ±20%

Case

Size

See

table

above

Packaging

See Tape & Reel

Packaging Section

AM1

AUDIO

Series

Code

Single

Face

Electrode

TECHNICAL SPECIFICATIONS

Category Temperature Range:

Rated Temperature:

Capacitance Tolerance:

Dissipation Factor:

ESR 100kHz:

Leakage Current:

-55 to +125°C

+85°C

±20%, ±10% at 120Hz

Refer to next page

Provided that:

After 1 minute’s application of rated voltage, leakage current at 85°C

10 times or less than 20ºC specified value.

After 1 minute’s application of rated voltage, leakage current at 125°C

12.5 times or less than 20ºC specified value.

+15% Max. at +125°C

+10% Max. at +85°C

-10% Max. at -55°C

Capacitance Change By Temperature

160

102417

F951A107MBAAM1Q2 Related Products

	F951A107MBAAM1Q2	RNC60K2104DMR36	F950G157MSAAM1Q2	F950G686MSAAM1Q2	F950J686MAAAM1Q2
Description	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT	RESISTOR, METAL FILM, 0.125 W, 0.5 %, 100 ppm, 2100000 ohm, THROUGH HOLE MOUNT, AXIAL LEADED	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 4V, 20% +Tol, 20% -Tol, 150uF, 1206	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 4V, 20% +Tol, 20% -Tol, 68uF, 1206	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 1307, CHIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to
package instruction	, 1411	Axial,	, 1206	, 1206	, 1307
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	175 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-65 °C	-55 °C	-55 °C	-55 °C
method of packing	TR, 7 INCH	TR, 11.5 INCH	TR, 7 Inch	TR, 7 Inch	TR, 7 INCH
capacitance	100 µF	-	150 µF	68 µF	68 µF
Capacitor type	TANTALUM CAPACITOR	-	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	-	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
ESR	400 mΩ	-	800 mΩ	800 mΩ	-
high	1.8 mm	-	1 mm	1 mm	-
length	3.5 mm	-	3.2 mm	3.2 mm	-
Installation features	SURFACE MOUNT	THROUGH HOLE MOUNT	-	-	SURFACE MOUNT
negative tolerance	20%	-	20%	20%	20%
Package form	SMT	Axial	SMT	SMT	-
polarity	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	-	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	-	4 V	4 V	6.3 V
size code	1411	-	1206	1206	1307
surface mount	YES	NO	-	-	YES
Terminal shape	WRAPAROUND	WIRE	-	-	WRAPAROUND
width	2.8 mm	-	1.6 mm	1.6 mm	-
Maker	-	-	AVX	AVX	AVX
Factory Lead Time	-	-	42 weeks	42 weeks	42 weeks

Recommended Resources

Oscillation circuit diagram of a multivibrator

DC electromagnet strong excitation fast pull-in circuit one b

Automatic doorbell production circuit

Hall switch integrated circuit

Temperature difference measurement circuit

TP-8CB type 10W FM speaker circuit diagram
