W180
Peak Reducing EMI Solution
Features
•
Cypress PREMIS™ family offering
• Generates an EMI optimized clocking signal at the
output
• Selectable output frequency range
• Single 1.25% or 3.75% down or center spread output
• Integrated loop filter components
• Operates with a 3.3V or 5V supply
• Low power CMOS design
• Available in 8-pin SOIC (Small Outline Integrated
Circuit)
Table 1. Modulation Width Selection
SS%
0
1
W180-01, 02, 03
Output
F
in
≥
F
out
≥
F
in
–
1.25%
F
in
≥
F
out
≥
F
in
–
3.75%
W180-51, 52, 53
Output
F
in
+ 0.625%
≥
F
in
≥
–
0.625%
F
in
+ 1.875%
≥
F
in
≥
–1.875%
Table 2. Frequency Range Selection
W180 Option#
FS2
0
0
1
1
FS1
0
1
0
1
-01, 51
(MHz)
8
≤
F
IN
≤
10
10
≤
F
IN
≤
15
15
≤
F
IN
≤
18
18
≤
F
IN
≤
28
-02, 52
(MHz)
8
≤
F
IN
≤
10
10
≤
F
IN
≤
15
N/A
N/A
-03, 53
(MHz)
N/A
N/A
15
≤
F
IN
≤
18
18
≤
F
IN
≤
28
Key Specifications
Supply Voltages: ...........................................V
DD
= 3.3V±5%
or V
DD
= 5V±10%
Frequency Range: .............................. 8 MHz
≤
F
in
≤
28 MHz
Cycle to Cycle Jitter: ....................................... 300 ps (max.)
Selectable Spread Percentage: ....................1.25% or 3.75%
Output Duty Cycle: ............................... 40/60% (worst case)
Output Rise and Fall Time: .................................. 5 ns (max.)
Simplified Block Diagram
3.3V or 5.0V
Pin Configurations
SOIC
W180-01/51
X1
XTAL
Input
CLKIN or X1
NC or X2
GND
SS%
X2
1
2
3
4
8
7
6
5
FS2
FS1
VDD
CLKOUT
W180
Spread Spectrum
Output
(EMI suppressed)
W180-02/03
W180-52/53
CLKIN or X1
NC or X2
GND
SS%
1
2
3
4
8
7
6
5
SSON#
FS1
VDD
CLKOUT
3.3V or 5.0V
Oscillator or
Reference Input
W180
Spread Spectrum
Output
(EMI suppressed)
PREMIS is a trademark of Cypress Semiconductor Corporation.
Cypress Semiconductor Corporation
Document #: 38-07156 Rev. *A
•
3901 North First Street
•
San Jose
•
CA 95134 • 408-943-2600
Revised September 25, 2001
W180
Pin Definitions
Pin Name
CLKOUT
CLKIN or X1
Pin No.
5
1
Pin
Type
O
I
Pin Description
Output Modulated Frequency:
Frequency modulated copy of the unmodu-
lated input clock (SSON# asserted).
Crystal Connection or External Reference Frequency Input:
This pin has
dual functions. It may either be connected to an external crystal, or to an
external reference clock.
Crystal Connection:
Input connection for an external crystal. If using an ex-
ternal reference, this pin must be left unconnected.
Spread Spectrum Control (Active LOW):
Asserting this signal (active LOW)
turns the internal modulation waveform on. This pin has an internal pull-down
resistor.
Frequency Selection Bit(s) 1 and 2:
These pins select the frequency range
of operation. Refer to
Table 2.
These pins have internal pull-up resistors.
Modulation Width Selection:
When Spread Spectrum feature is turned on,
this pin is used to select the amount of variation and peak EMI reduction that
is desired on the output signal. Internal pull-up resistor.
Power Connection:
Connected to 3.3V or 5V power supply.
Ground Connection:
This should be connected to the common ground plane.
NC or X2
SSON#
2
8 (-02, -03
52, 53)
7, 8 (-01, 51)
4
I
I
FS1:2
SS%
I
I
VDD
GND
6
3
P
G
Document #: 38-07156 Rev. *A
Page 2 of 9
W180
Overview
The W180 products are one series of devices in the Cypress
PREMIS family. The PREMIS family incorporates the latest
advances in PLL spread spectrum frequency synthesizer tech-
niques. By frequency modulating the output with a low-fre-
quency carrier, peak EMI is greatly reduced. Use of this tech-
nology allows systems to pass increasingly difficult EMI testing
without resorting to costly shielding or redesign.
In a system, not only is EMI reduced in the various clock lines,
but also in all signals which are synchronized to the clock.
Therefore, the benefits of using this technology increase with
the number of address and data lines in the system. The Sim-
plified Block Diagram on page 1 shows a simple implementa-
tion.
input. The output frequency is then equal to the ratio of P/Q
times the reference frequency. (Note: For the W180 the output
frequency is equal to the input frequency.) The unique feature
of the Spread Spectrum Frequency Timing Generator is that a
modulating waveform is superimposed at the input to the VCO.
This causes the VCO output to be slowly swept across a pre-
determined frequency band.
Because the modulating frequency is typically 1000 times
slower than the fundamental clock, the spread spectrum pro-
cess has little impact on system performance.
Frequency Selection With SSFTG
In Spread Spectrum Frequency Timing Generation, EMI re-
duction depends on the shape, modulation percentage, and
frequency of the modulating waveform. While the shape and
frequency of the modulating waveform are fixed for a given
frequency, the modulation percentage may be varied.
Using frequency select bits (FS2:1 pins), the frequency range
can be set (see
Table 2).
Spreading percentage is set with pin
SS% as shown in
Table 1.
A larger spreading percentage improves EMI reduction. How-
ever, large spread percentages may either exceed system
maximum frequency ratings or lower the average frequency to
a point where performance is affected. For these reasons,
spreading percentages options are provided.
Functional Description
The W180 uses a phase-locked loop (PLL) to frequency mod-
ulate an input clock. The result is an output clock whose fre-
quency is slowly swept over a narrow band near the input sig-
nal. The basic circuit topology is shown in
Figure 1.
The input
reference signal is divided by Q and fed to the phase detector.
A signal from the VCO is divided by P and fed back to the
phase detector also. The PLL will force the frequency of the
VCO output signal to change until the divided output signal
and the divided reference signal match at the phase detector
V
DD
Clock Input
Freq.
Divider
Q
Phase
Detector
Charge
Pump
Reference Input
Σ
VCO
Post
Dividers
CLKOUT
(EMI suppressed)
Modulating
Waveform
Feedback
Divider
P
PLL
GND
Figure 1. Functional Block Diagram
Document #: 38-07156 Rev. *A
Page 3 of 9
W180
Spread Spectrum Frequency Timing
Generation
The device generates a clock that is frequency modulated in
order to increase the bandwidth that it occupies. By increasing
the bandwidth of the fundamental and its harmonics, the am-
plitudes of the radiated electromagnetic emissions are re-
duced. This effect is depicted in
Figure 2.
As shown in
Figure 2,
a harmonic of a modulated clock has a
much lower amplitude than that of an unmodulated signal. The
reduction in amplitude is dependent on the harmonic number
and the frequency deviation or spread. The equation for the
reduction is:
dB = 6.5 + 9*log
10
(P) + 9*log
10
(F)
Where
P
is the percentage of deviation and
F
is the frequency
in MHz where the reduction is measured.
The output clock is modulated with a waveform depicted in
Figure 3.
This waveform, as discussed in “Spread Spectrum
Clock Generation for the Reduction of Radiated Emissions” by
Bush, Fessler, and Hardin produces the maximum reduction
in the amplitude of radiated electromagnetic emissions.
Figure
3
details the Cypress spreading pattern. Cypress does offer
options with more spread and greater EMI reduction. Contact
your local Sales representative for details on these devices.
EMI Reduction
SSFTG
Typical Clock
Amplitude (dB)
Amplitude (dB)
Spread
Spectrum
Enabled
Non-
Spread
Spectrum
Frequency Span (MHz)
Center Spread
Frequency Span (MHz)
Down Spread

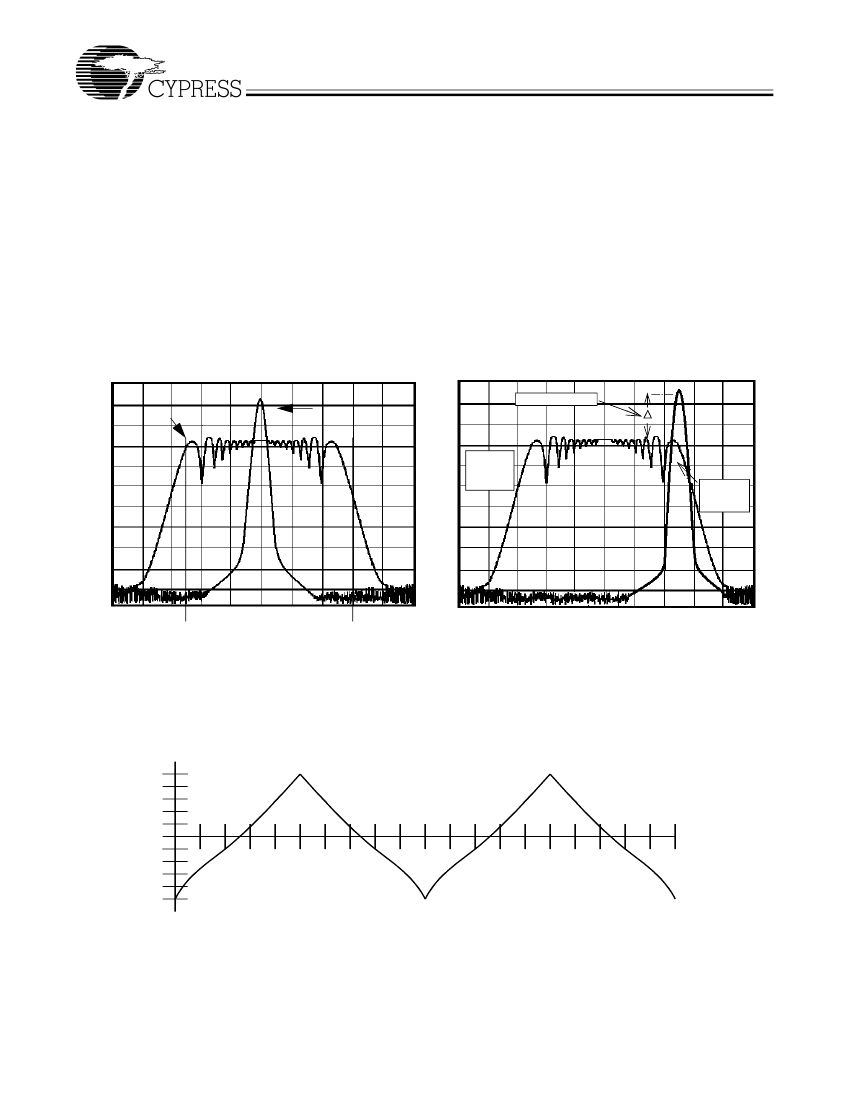

Figure 2. Clock Harmonic with and without SSCG Modulation Frequency Domain Representation
MAX.
FREQUENCY
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10%
20%
30%
40%
50%
60%
70%
80%
90%
MIN.
Figure 3. Typical Modulation Profile
Document #: 38-07156 Rev. *A
100%
Page 4 of 9
W180
Absolute Maximum Ratings
[1]
Stresses greater than those listed in this table may cause per-
manent damage to the device. These represent a stress rating
only. Operation of the device at these or any other conditions
.
above those specified in the operating sections of this specifi-
cation is not implied. Maximum conditions for extended peri-
ods may affect reliability.
Rating
–0.5 to +7.0
–65 to +150
0 to +70
–55 to +125
0.5
Unit
V
°C
°C
°C
W
Parameter
V
DD
, V
IN
T
STG
T
A
T
B
P
D
Description
Voltage on any pin with respect to GND
Storage Temperature
Operating Temperature
Ambient Temperature under Bias
Power Dissipation
DC Electrical Characteristics
:
0°C < T
A
< 70°C, V
DD
= 3.3V ±5%
Parameter
I
DD
t
ON
V
IL
V
IH
V
OL
V
OH
I
IL
I
IH
I
OL
I
OH
C
I
R
P
Z
OUT
Description
Supply Current
Power Up Time
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Input Low Current
Input High Current
Output Low Current
Output High Current
Input Capacitance
Input Pull-Up Resistor
Clock Output Impedance
500
25
Note 2
Note 2
@ 0.4V, V
DD
= 3.3V
@ 2.4V, V
DD
= 3.3V
15
15
7
2.4
–50
50
2.4
0.4
First locked clock cycle after Power
Good
Test Condition
Min.
Typ.
18
Max.
32
5
0.8
Unit
mA
ms
V
V
V
V
µA
µA
mA
mA
pF
kΩ
Ω
Note:
1.
Single Power Supply:
The voltage on any input or I/O pin cannto exceed the power pin during power-up.
2. Inputs FS2:1& SS% have a pull-up resistor; Input SSON# has a pull-down resistor.
Document #: 38-07156 Rev. *A
Page 5 of 9
