34EWMSP22S6RT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 34EWMSP22S6RT

34EWMSP22S6RT: DescriptionTOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size313KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

34EWMSP22S6RT Overview

TOGGLE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-RIGHT ANGLE

34EWMSP22S6RT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	8 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

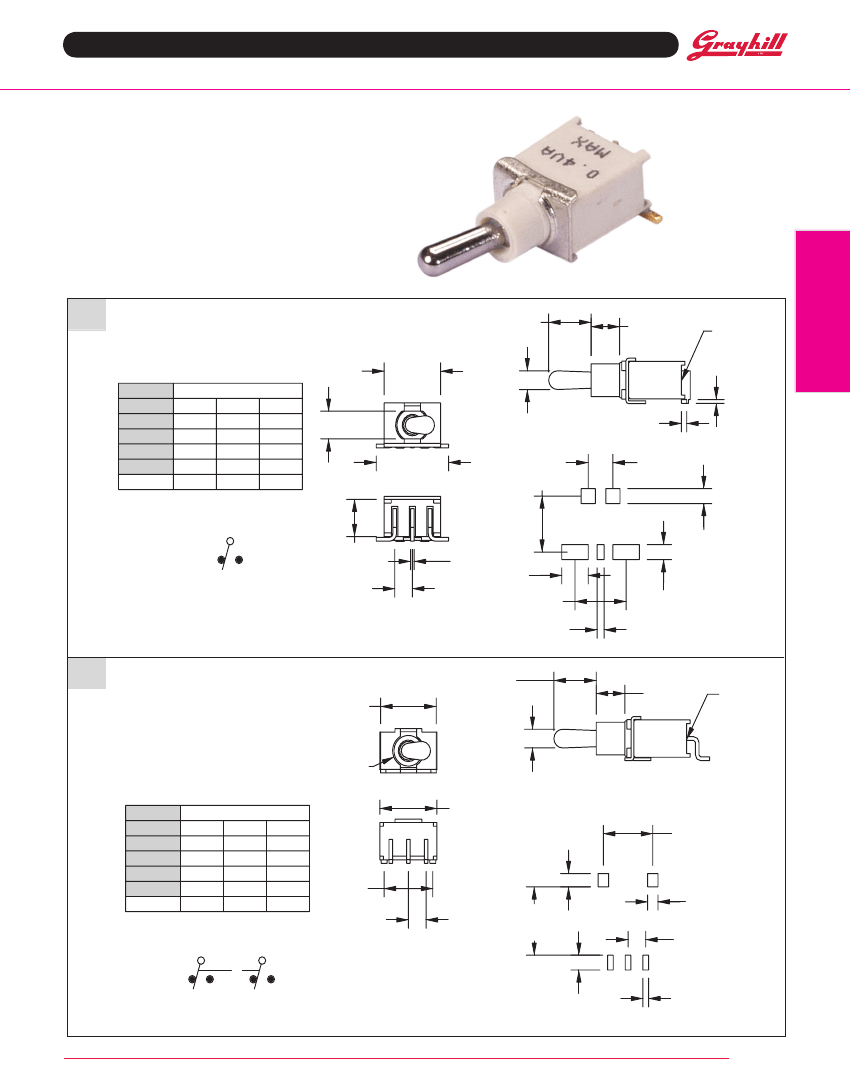

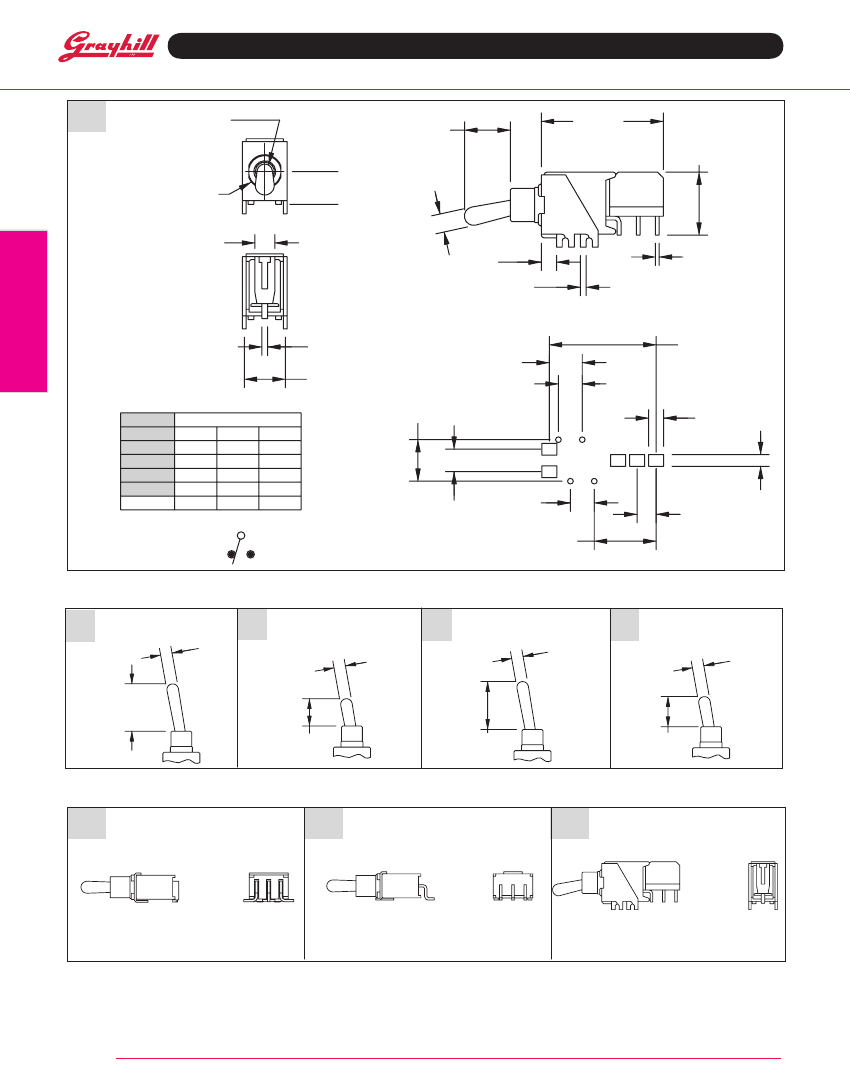

Series 34E: Sealed Surface Mount Toggle Switches

SerieS 34e

Sealed Surface Mount Toggle Switches

FeATUreS

• Save Space and Weight

• SPDT Circuitry

• Choice of Actuators and Terminations

• Sealed per IP67

ModelS

in inches (and millimeters)

DIP Switches

Toggle Switches

.240

(6.10)

.148

(3.78)

MODEL NO.

WMSP1

WMSP2

WMSP3

WMSP4

WMSP5

TERM. COMM.

.162

(4.11)

SPdT

SWITCH POSITION

NONE

NONE (ON)

OFF

(ON)

OFF

(ON)

OPEN

2-3

2-1

()=MOMENTARY

02COMM.

.320

(8.13)

.100

(2.52)

.410

(10.40)

.300

(7.62)

.030

(0.76)

.140

(3.56)

EPOXY

SEAL

.020

(0.51)

SCHEMATIC

.200

(5.08)

.100

(2.54)

.020

(0.62)

.150

(3.81)

.080

(2.03)

.290

(7.37)

.040

(1.02)

.080

(2.03)

SPdT

.315

(8.00)

Ø.179

(Ø4.55)

MODEL NO.

WMSP1

WMSP2

WMSP3

WMSP4

WMSP5

TERM. COMM.

.240

(6.10)

.162

(4.11)

EPOXY

SEAL

.100

(2.52)

.323

(8.20)

.071

(1.80)

.280

(7.10)

SWITCH POSITION

NONE

NONE (ON)

OFF

(ON)

OFF

(ON)

OPEN

2-3

2-1

()=MOMENTARY

02COMM.

05COMM.

.276

(7.00)

.100

(2.54)

.366

(9.30)

.059

(1.50)

.100

(2.54)

.032

(0.80)

3 4

SCHEMATIC

.079

(2.00)
