Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2011
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
807-SL133.2M-02A
133.2 MHz IF SAW Filter 430 KHz Bandwidth
Specification Contents
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Response
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
807-SL133.2M-02A
January 2011 Rev A
133.2 MHz IF SAW Filter 430 KHz Bandwidth

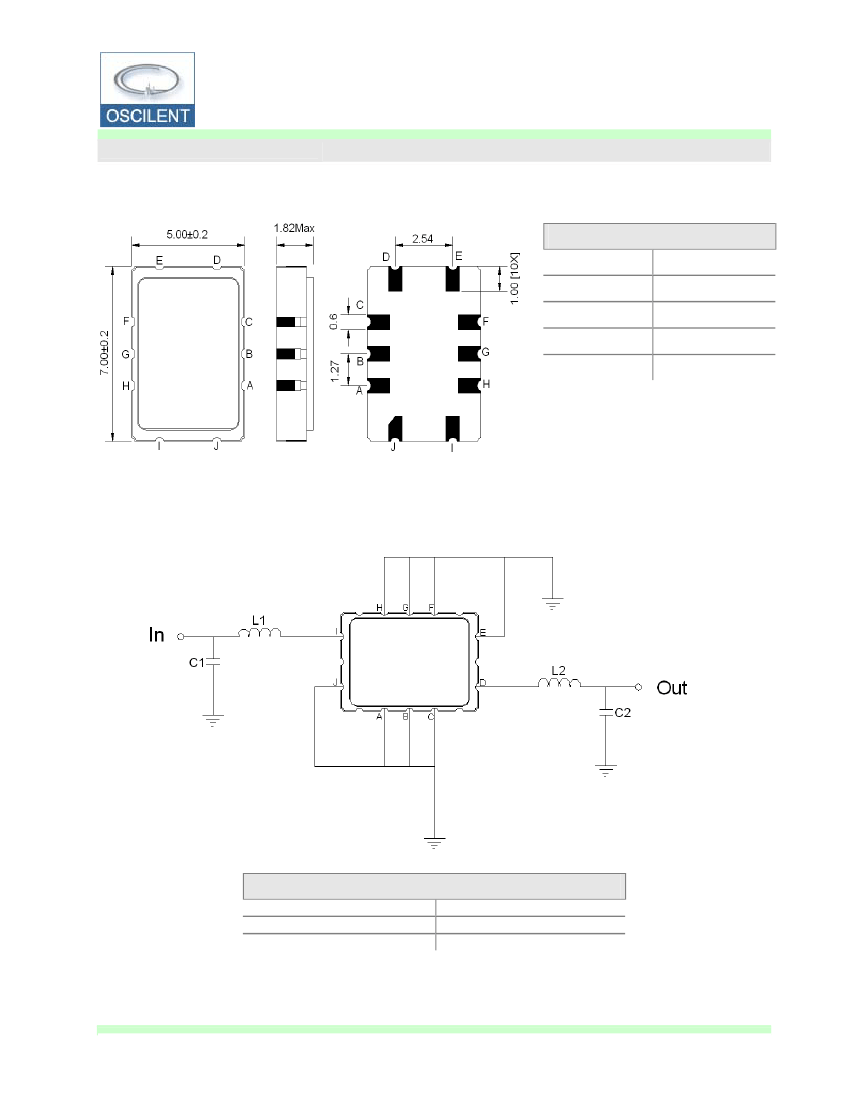

Mechanical Dimensions
(mm)
Pin Description
A, B, C, F, G, H Ground
I Input
J Input or Ground
D Output
E Output or Ground
Test Circuit
Test Fixture & Values
Input L1=408nH, C1 = 27pF
Output L2=408nH, C2 = 27pF
Source/Load Impedance 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
807-SL133.2M-02A
January 2011 Rev A
133.2 MHz IF SAW Filter 430 KHz Bandwidth
Test Fixture & Values
Input L1-1=L1-2=280nH, C1 = 10pF
Output L2-1=L2-2=280nH, C2 = 9pF
Source/Load Impedance 200
Ω
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single/balanced ended)
(1)
Load Impedance (single/balanced ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-40
-40
-
-
-
-
Typical
-
-
-
-
50/200
50/200
Maximum
85
85
10
10
-
-
Notes: With Matching Network (Ref. Testing Environment Circuit as shown above).
Those impedances could be modified with different impedance values and/or structures, if necessary.
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
807-SL133.2M-02A
January 2011 Rev A
133.2 MHz IF SAW Filter 430 KHz Bandwidth
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo (including losses in matching circuit)
Group Delay variation at Fo ± 100 KHz
Amplitude ripple variation at Fo ± 100 KHz
Temperature Coefficient
Bandwidth at -3dB
Relative Attenuation
Fc ±250KHz ~ Fc ±400KHz
Fc ±400KHz ~ Fc ±600KHz
Fc ±600KHz ~ Fc ±800KHz
Fc ±800KHz ~ Fc ±3.0MHz
Fc ±3.0MHz ~ Fc ±7.0MHz
Fc ±7.0MHz ~ Fc ±30MHz
dBc
dBc
dBc
dBc
dBc
dBc
3
15
20
29
35
40
5
16
28
31
42
47
-
-
-
-
-
-
Unit
MHz
dB
nsec
dB
p-p
ppm/°
C
KHz
Minimum
-
-
-
-
-
-
Typical
133.2
4.5
300
0.50
-0.036
430
Maximum
-
8.0
1000
1.00
-
-

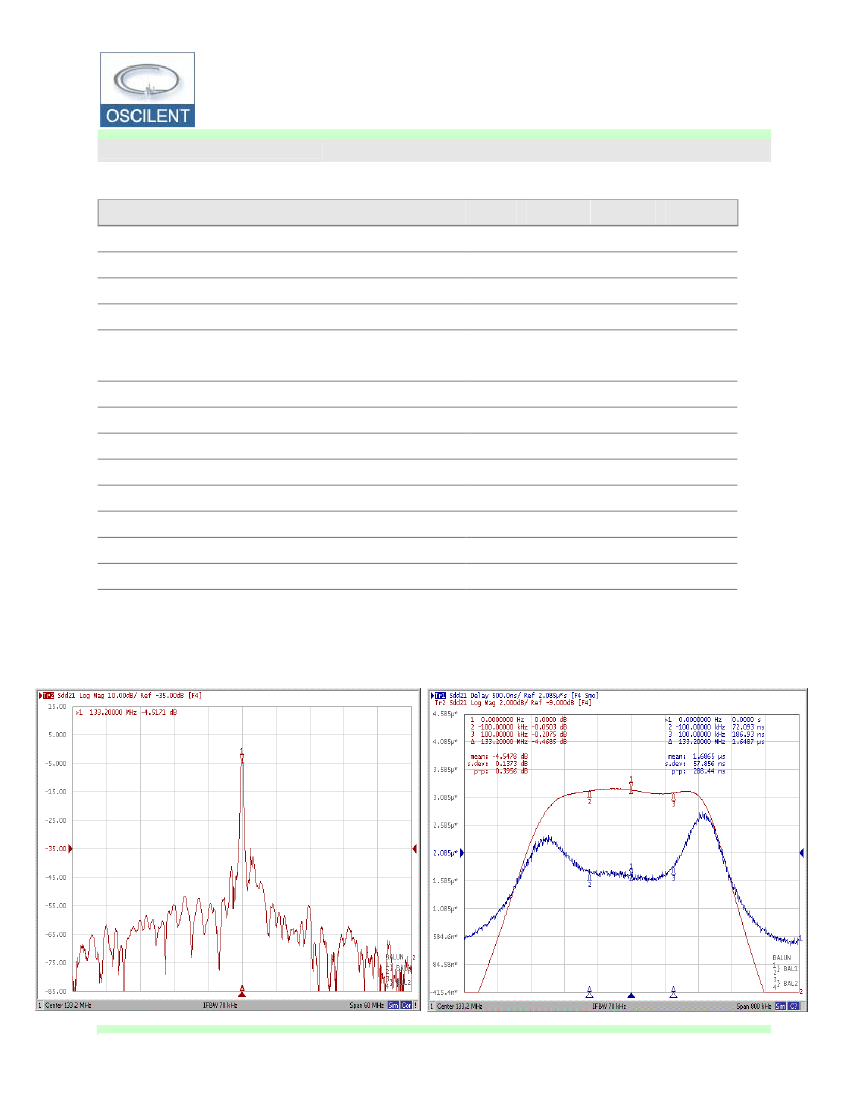

Frequency Response
Frequency Response
Ripple & Group Delay Variation Fo±100 KHz
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
807-SL133.2M-02A
January 2011 Rev A
133.2 MHz IF SAW Filter 430 KHz Bandwidth

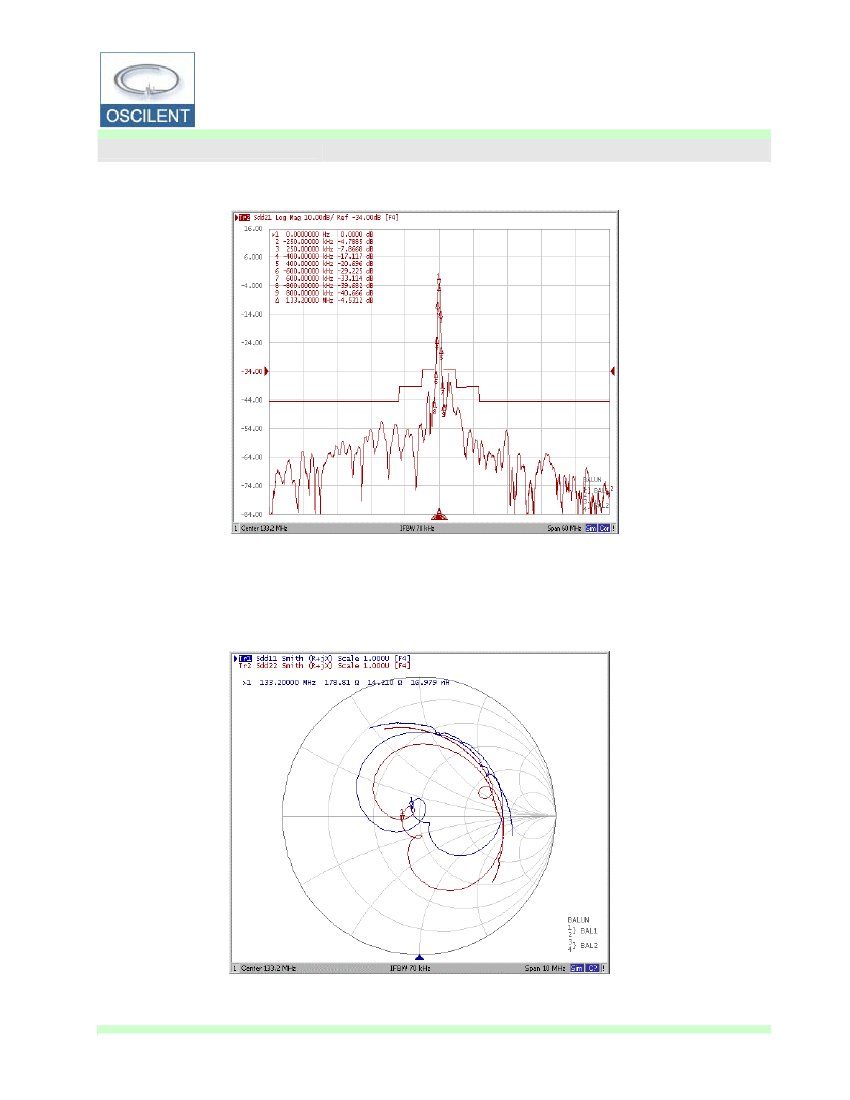

Relative Attenuation
Smith Chart
Product Specification
P. 4
www.oscilent.com
