CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305J.1

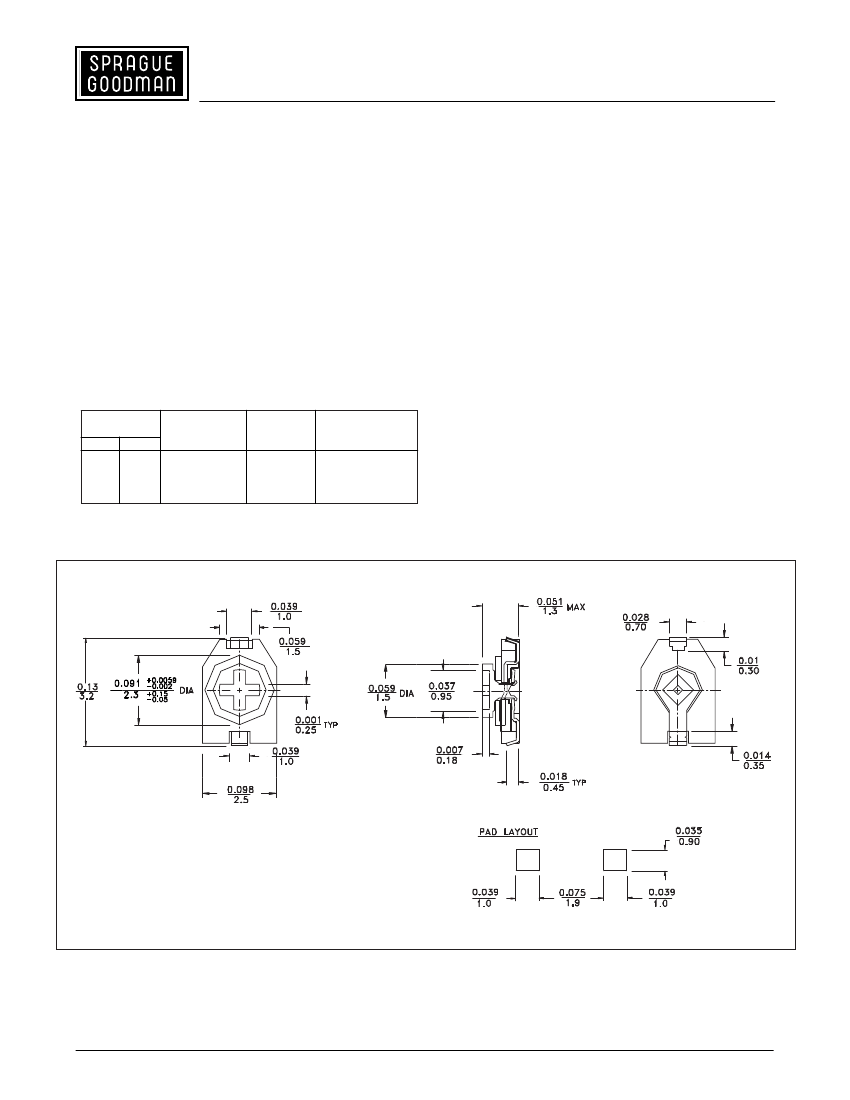

SURFTRIM
®
SURFACE MOUNT
GKRP SERIES
FEATURES
• Sealed for washability
• Low mounting profile.
• Carrier and reel packaging standard.
• NPO temperature coefficient (up to 10 pF max).
• Self resonant frequency above 1 GHz.
SPECIFICATIONS
Operating Temperature Range: –40°C to +85°C
Voltage Rating: 25 VDC
Dielectric Withstanding Voltage: 75 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.1 oz-in)
3.2 x 2.5 x 1.3 mm
Models
Capacitance
(pF)
min
max
3.0
5
3.0
10
5.0
20
30
7.0
TCC
(ppm
/
°C)
0 ± 500
0 ± 500
N750 ± 500
N750 ± 500
Q min
(1 MHz)
150
150
150
150
Carrier and
Reel Pack
Model No.
GKRP5R066
GKRP10066
GKRP20066
GKRP30066
All dimensions are in
/
mm.
Unless otherwise specified, the tolerance on
dimensions is ± 0.004
/
0.1.
2
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305J.1
SURFTRIM
®
SURFACE MOUNT

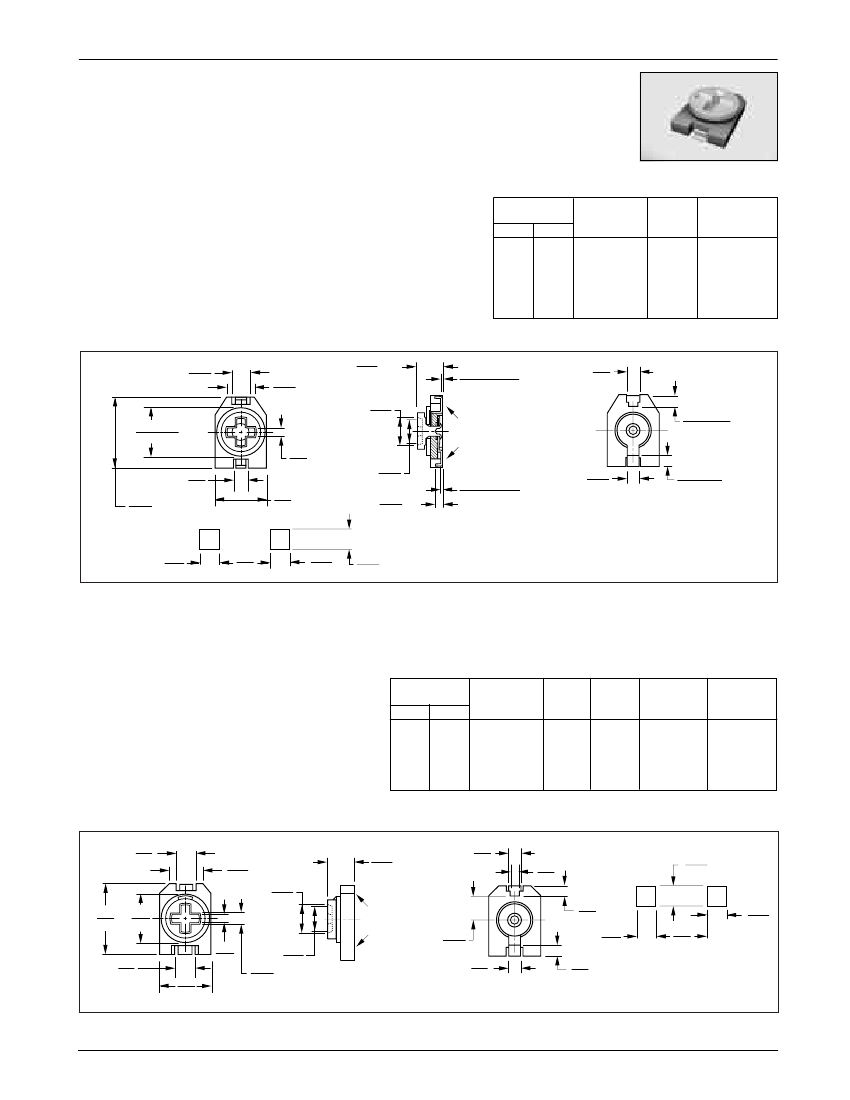

GKY WASHABLE SERIES
FEATURES
• Designed for reflow soldering.
• Carrier and reel packaging.
• Sealed for washability
3.2 x 4.5 x 1.8 mm Models
Capacitance
(pF)
min
max
1.0
3
2.5
10
4.5
20
4.5
30
4.5
40
4.5
50
TCC
Q min
(ppm
/
°C) (1 MHz)
0 ± 500
300
0 ± 300
300
N750 ± 400
300
N750 ± 500
300
N750 ± 500
300
N750 ± 500
300
Carrier and
Reel Pack
Model No .
GKY3R086
GKY10086
GKY20086
GKY30086
GKY40086
GKY50086
SPECIFICATIONS
Operating Temperature Range: –40°C to +85°C
Voltage Rating: 25 VDC
Dielectric Withstanding Voltage: 75 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.08 oz-in)
0.043
1.1
0.071
MAX
1.8
0.071
1.8
0.067
1.7
0.0059
±
0.002
0.15
±
0.05
STATOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
SURFACE
ROTOR
0.0047
±
0.002
0.12
±
0.05
0.02
0.6
+0
+0.006
0.12
– 0.002
3.0
+0.15
– 0.05
DIA
0.02
TYP
0.5
0.13
3.2
0.02
– 0.004
0.6
+0
– 0.1
0.04
0.9
0.18
4.5
0.059
1.5
0.018
TYP
0.45
0.031
0.78
0.02
– 0.004
0.6
+0
– 0.1
+0
PAD LAYOUT
0.047
1.2
0.11
2.9
0.047
1.2
0.059
1.5
GKY _ _ _ 86
GKY STANDARD SERIES
FEATURES
• Designed for reflow soldering.
• Available in carrier and reel packaging.
3.2 x 4.5 x 1.8 mm Models
Capacitance
(pF)
TCC
min
max (ppm
/
°C)
1.7
2.5
3.0
5.0
6.0
3.0
0
6.0
0
10.0 N400
20.0 N900
30.0 N1200
±
±
±
±
±
300
300
400
400
500
Q min
(1 MHz)
500
500
500
300
300
Color
Code
Brown
Blue
White
Red
Green
Bulk Pack
Model No.
GKY3R000
GKY6R000
GKY10000
GKY20000
GKY30000
Carrier and
Reel Pack
Model No.
GKY3R066
GKY6R066
GKY10066
GKY20066
GKY30066
SPECIFICATIONS
Operating
Temperature Range: –25°C to +85°C
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.08 oz-in)
0.05
1.2
Carrier and reel specifications on page 11.
0.03
0.8
0.079
2.0
0.071
MAX
1.8
0.075
1.9
STATOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
0.065
SURFACE
1.65
ROTOR
0.02
0.6
0.02
0.6
0.047
1.2
0.047
1.2
0.18
4.5
0.12
3.0
0.02
0.5
0.13
3.2
0.067
1.7
0.13
3.3
PAD LAYOUT
0.047
1.2
0.05
1.2
0.026
0.65
0.03
0.8
0.02
0.6
GKY _ _ _ 00, 66
All dimensions are in
/
mm. Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
3
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305J

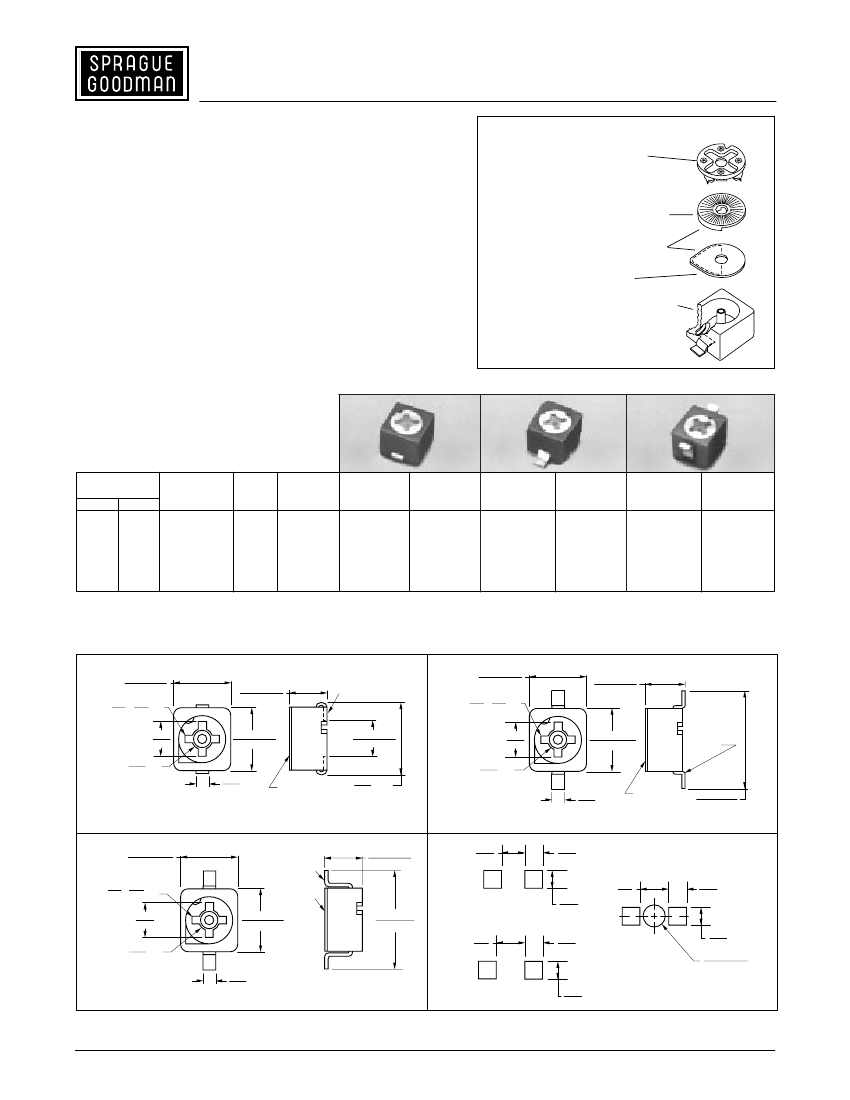

CONSTRUCTION DETAILS OF 4 x 4.5 mm GKG MODELS
Model GKG __ __ __ 27 Shown
• Special “drive assembly” with
pointed spring fingers to engage rotor
upper surface contour. Spring fingers
also provide proper tension for smooth
torque and low resistance.
• Special rotor with die-formed “drive”
contour on upper surface.
• Flat-lapped and lubricated surfaces
join for reliable capacitance settings.
• Special ceramic stator insert
with metalized electrode.
• Solid one-piece housing with integrally
molded terminals and contact areas.
Central tubular column is spun-out
into a flare after assembly to maintain
built-in spring tension.
SURFTRIM
®
SURFACE MOUNT
Sealed Construction
FEATURES
• Process seal provides protection against conta-
minants (flux, solvents, etc.) during production.
• Designed for flow and reflow soldering.
• Available in carrier and reel packaging.
SPECIFICATIONS
Operating Temperature Range: –25°C to +85°C
(For expanded temperature range applications,
consult factory.)
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 15 to 100 g-cm (0.2 to 1.39 oz-in)
4 x 4.5 x 2.7 mm Models
Capacitance
(pF)
*min
max
1.4
3.0
2.0
6.0
3.0
10.0
4.5
20.0
6.5
30.0
15.0
50.0
TCC
(ppm
/
°C)
0 ± 200
0 ± 200
0 ± 300
N900 ± 300
N1100 ± 450
N1700 ± 500
Q min
Color
(1 MHz) Code
300** †Red Dot
500**
Blue
500**
White
500**
Red
300
Green
300
Orange
Bulk Pack
Model No.
GKG3R026
GKG6R026
GKG10026
GKG20026
GKG30026
GKG50H26
Carrier and
Reel Pack
Model No.
GKG3R066
GKG6R066
GKG10066
GKG20066
GKG30066
GKG50H66
Bulk Pack
Model No.
GKG3R027
GKG6R027
GKG10027
GKG20027
GKG30027
GKG50H27
Carrier and
Reel Pack
Model No.
GKG3R067
GKG6R067
GKG10067
GKG20067
GKG30067
GKG50H67
Carrier and
Bulk Pack
Reel Pack
Model No. Model No.
GKG3R028 GKG3R068
GKG6R028 GKG6R068
GKG10028 GKG10068
GKG20028 GKG20068
GKG30028 GKG30068
GKG50H28 GKG50H68
† Marking on bottom of capacitor.
* Re-rated in 1994 for lower min capacitance.
** Q at 10MHz
Available without seal — consult factory.
Carrier and reel specifications on page11.
Add –07 to Model No. for 700
/
reel, –25 for 2500
/
reel.
0.16 ± 0.008
4.0 ± 0.2
SLOTS
0.02 0.02
x
DP
0.5
0.5
0.094
2.4
0.055
DIA
1.4
0.11 ± 0.008
2.7 ± 0.2
ROTOR
TERMINALS
APPROX. FLUSH TO
MOUNTING SURFACE
0.16 ± 0.008
4.0 ± 0.2
SLOTS
0.02 0.02
x
DP
0.5 0.5
0.11 ± 0.008
2.7 ± 0.2
ROTOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
SURFACE
0.18 ± 0.008
4.5 ± 0.2
0.11 ± 0.008
2.8 ± 0.2
0.094
2.4
0.055
DIA
1.4
0.18 ± 0.008
4.5 ± 0.2
0.047
TYP
1.2
STATOR
SEAL
0.20 max
5.2
STATOR
0.047
TYP
1.2
SEAL
0.28 ± 0.008
7.0 ± 0.2
GKG _ _ _ 26, 66
0.16
±
0.008
4.0
±
0.2
0.02 0.02
x
DP
0.5
0.5
0.094
2.4
0.055
DIA
1.4
0.047
TYP
1.2
0.18
±
0.008
4.5
±
0.2
TERMINALS
APPROX. FLUSH TO
MOUNTING SURFACE
ROTOR
SLOTS
SEAL
0.28
±
0.02
7.0
±
0.5
0.063
1.6
0.11
±
0.008
2.9
±
0.2
0.094
2.4
0.079
TYP
2.0
GKG _ _ _ 27, 67
PAD LAYOUTS
0.16
4.0
0.079
TYP
2.0
GKG _ _ _ 26, 66
0.16
4.0
0.079
TYP
2.0
0.063
1.6
0.120
±
0.006
DIA
3.05
±
0.15
STATOR
GKG _ _ _ 28, 68
GKG _ _ _ 27, 67
0.063
1.6
GKG _ _ _ 28, 68
All dimensions are in
/
mm.
Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
4
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305J

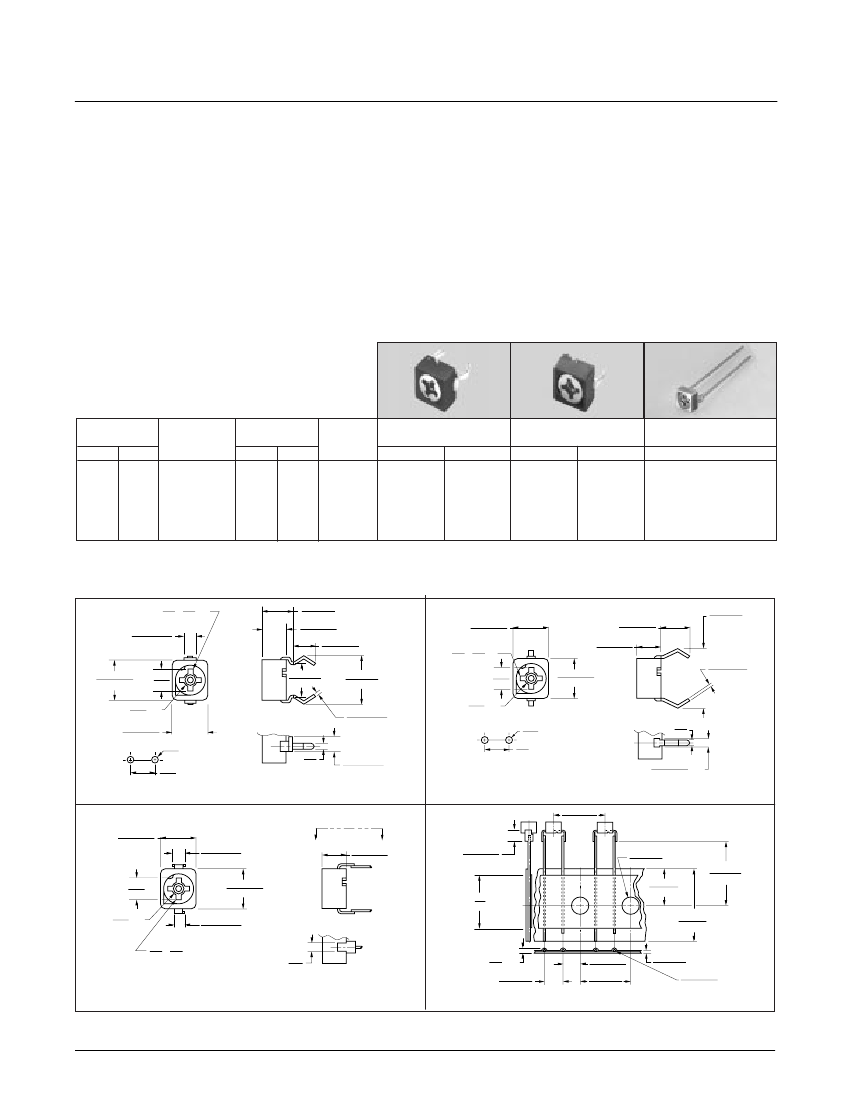

PLASTIC ENCASED TYPE: 4 x 4.5 mm
Available With or Without Adjust Cavity Seal
FEATURES
• Very low cost due to automated production and
solderless touch contact construction.
• Wide selection of capacitance ranges.
• Color coded housings.
• Easy blind tuning (2 slots at 90° angle in adjust
cavity — accepts cross-slotted tool).
• Process seal on adjust screw access face (optional)
provides protection against contaminants (flux,
solvents, etc.) during production.
SPECIFICATIONS
Operating Temperature Range: –25°C to +85°C
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 100 g-cm (0.14 to 1.39 oz-in)
4 x 4.5 mm Models
Capacitance
(pF)
Q min
TCC
Color
1
(ppm
/
°C) 1 MHz 10 MHz Code
min
max
2
Red Dot
1.4
3.0
0 ± 200 300
300
2.0
6.0
0 ± 200 500
300
Blue
3.0
10.0
0 ± 300 500
300
White
4.5
20.0
N900 ± 350 500
300
Red
6.5
30.0 N1100 ± 450 300
300
Green
15.0
50.0 N1700 ± 500 300
N.A. Orange
1
2
Top Mount
3
Spring Lead Model No.
Unsealed
Sealed
GKG3R021 GKG3R071
GKG6R021 GKG6R071
GKG10021 GKG10071
GKG20021 GKG20071
GKG30021 GKG30071
GKG50021 GKG50071
3
Top Mount
3
Top Mount
4
Spring Lead Model No. Ammo Pack Model No.
Unsealed
Sealed
Unsealed
GKG3R024 GKG3R074
GKG3R025
GKG6R024 GKG6R074
GKG6R025
GKG10024 GKG10074
GKG10025
GKG20024 GKG20074
GKG20025
GKG30024 GKG30074
GKG30025
GKG50024 GKG50074
GKG50025
Re-rated in 1993.
Marking on bottom of capacitor.
Magazine pack (120 pieces) for auto insertion available — consult
factory for pricing.
4
Ammo pack contains 1000 pcs.
0.13
±
0.02
3.4
±
0.5
0.11
±
0.008
2.7
±
0.2
0.094
±
0.02
2.4
±
0.5
ROTOR
0.148
±
.01
3.75
±
0.3
0.21
±
0.02
5.3
±
0.5
0.24
±
0.02
6.2
±
0.5
SLOTS
0.02 0.02
x
DP
0.5
0.5
0.079
±
0.008
2.0
±
0.2
0.16
±
0.008
4.0
±
0.2
SLOTS
0.02 x 0.02
DP
0.5
0.5
0.094
2.4
0.055
DIA
1.4
0.039 DIA
1.0 (2 HOLES)
0.20
5.0
Mounting Hole Layout
0.18
±
0.008
4.5
±
0.2
0.094
±
0.02
2.4
±
0.5
0.11
±
0.008
2.7
±
0.2
ROTOR
0.18
±
0.008
4.5
±
0.2
0.094
2.4
STATOR
0.008
±
0.002
TYP
0.2
±
0.05
0.055 DIA
1.4
0.16
±
0.008
4.0
±
0.2
0.039
DIA
1.0
(2 HOLES)
0.148
3.75
Mounting Hole Layout
0.008
±
0.002
TYP
0.2
±
0.05
STATOR
0.03
0.7
0.03
0.7
0.063
±
0.008
1.6
±
0.2
0.05
±
0.004
TYP
1.2
±
0.1
GKG _ _ _ 21, 71
0.500
±
0.04
12.7
±
1
GKG _ _ _ 24, 74
0.16
±
0.008
4.0
±
0.2
0.079
±
0.008
2.0
±
0.2
A
A
0.11
±
0.008
2.7
±
0.2
ROTOR
0.059
– 0
1.5
+0.5
–0
+0.020
0.16
±
0.008
DIA
4.0
±
0.2
0.35
±
0.02
9.0
±
0.5
+0.04
– 0.5
0.094
2.4
0.055
DIA
1.4
SLOTS
0.02 x 0.02
DP
0.5
0.5
0.18
±
0.008
4.5
±
0.2
0.650
– 0
16.5
+1.5
–0
+0.06
0.2
min
5.0
STATOR
0.063
±
0.008
1.6
±
0.2
0.71
– 0.02
18
+1
0.047
1.2
VIEW A-A
(ROTOR)
0.06
max
1.5
0.2
±
0.002
5.0
±
0.05
0.152
±
0.03
3.85
±
0.8
0.500
±
0.01
12.7
±
0.3
0.024
±
0.01
0.60
±
0.3
0.02
±
0.002
DIA
0.5
±
0.05
GKG _ _ _ 25
All dimensions are in
/
mm.
Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
GKG _ _ _ 25 TAPE DIMENSIONS
Tape dimensions on page 3.
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
5
京公网安备 11010802033920号
EEWORLD
