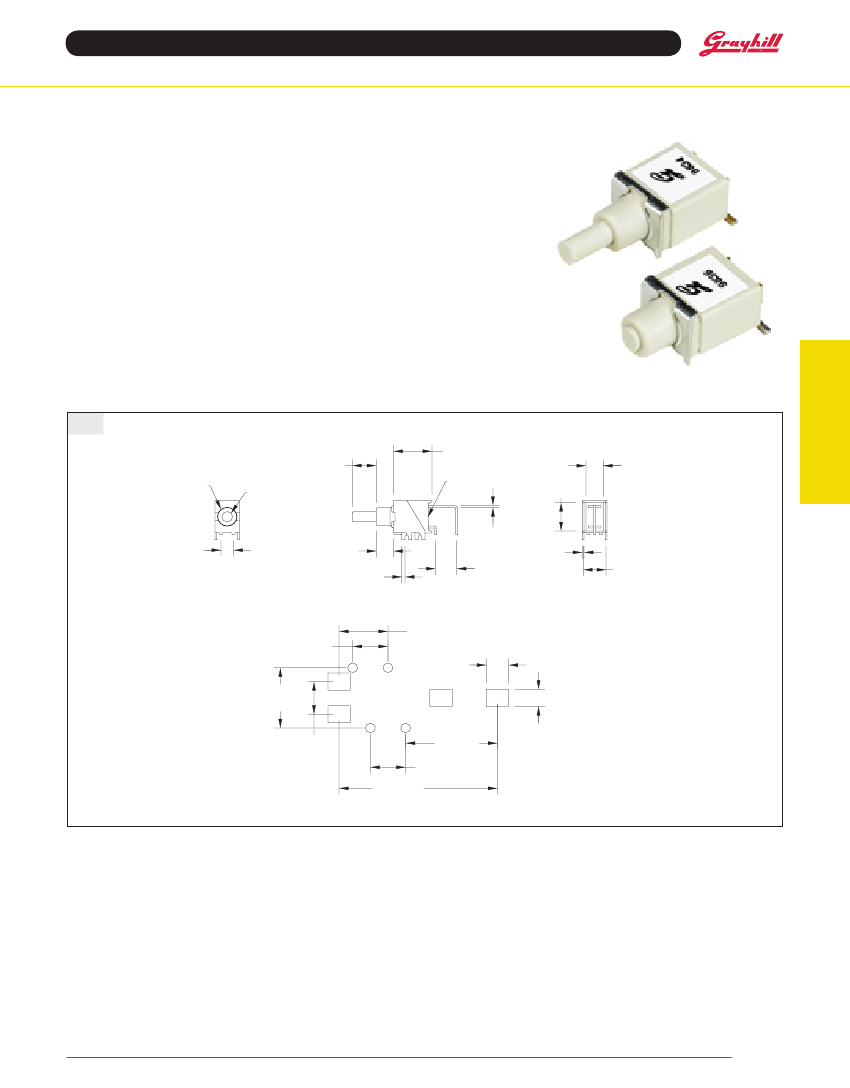

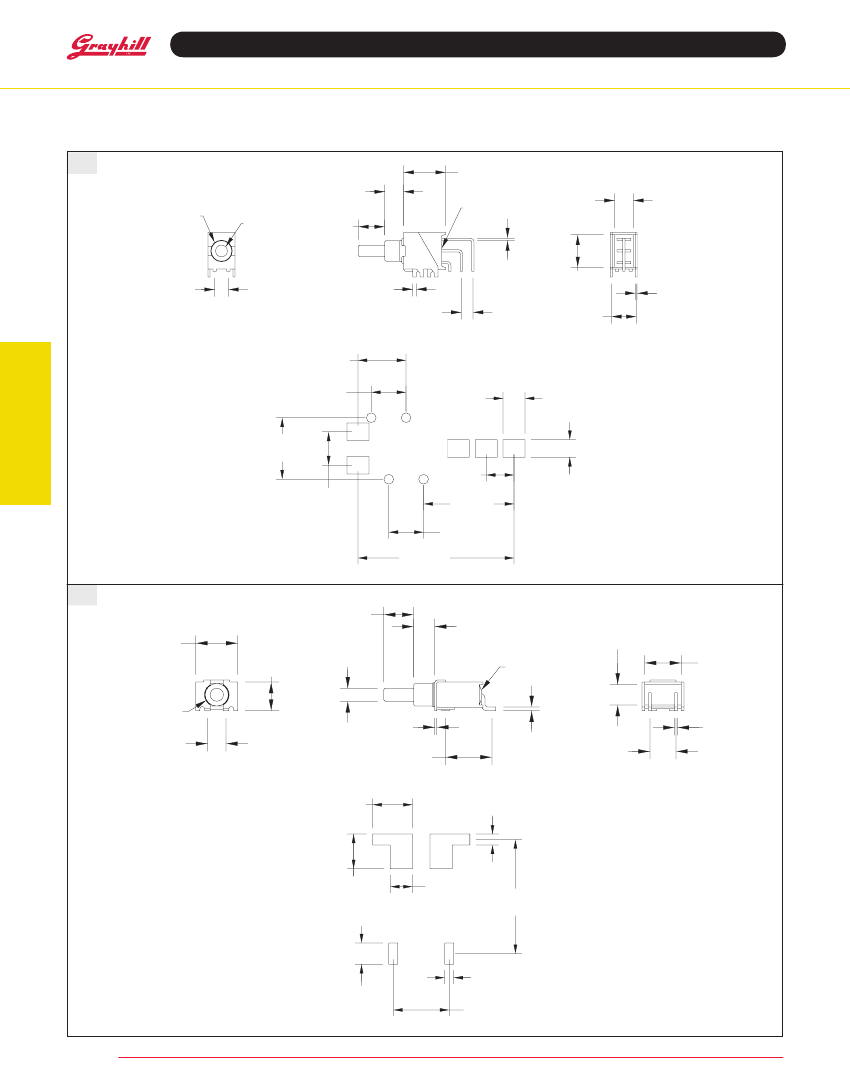

Sealed Surface Mount Subminiature Pushbutton Switches
| 38HWSP9S6GT | 38HWSP8M7GT | 38HWSP8M7QT | 38HWSP8M7RT | 38HWSP8S6GT | 38HWSP8S6QT | 38HWSP9M7GT | 38HWSP9M7QT | 38HWSP9M7RT | 38HWSP9S6QT | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches | Sealed Surface Mount Subminiature Pushbutton Switches |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | - | Grayhill | Grayhill | Grayhill | Grayhill | Grayhill | - | - | Grayhill | - |
| package instruction | - | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | - | compli | compli | compliant | compliant | compliant | compli | compli | compliant | compli |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Actuator type | - | PLUNGER | PLUNGER | PLUNGER | PLUNGER | PLUNGER | PLUNGER | PLUNGER | PLUNGER | PLUNGER |
| body width | - | 5.5 mm | 5.5 mm | 5.5 mm | 8.1 mm | 8.1 mm | 5.5 mm | 5.5 mm | 5.5 mm | 8.1 mm |
| body height | - | 7.1 mm | 7.1 mm | 7.1 mm | 5.75 mm | 5.75 mm | 7.1 mm | 7.1 mm | 7.1 mm | 5.75 mm |
| Body length or diameter | - | 9.3 mm | 9.3 mm | 9.3 mm | 8.97 mm | 8.97 mm | 9.3 mm | 9.3 mm | 9.3 mm | 8.97 mm |
| Contact (AC) maximum rated R load | - | 1A@125VAC | 1A@125VAC | .02A@20VAC | 1A@125VAC | 1A@125VAC | 1A@125VAC | 1A@125VAC | .02A@20VAC | 1A@125VAC |
| Maximum contact current (AC) | - | 1 A | 1 A | 0.02 A | 1 A | 1 A | 1 A | 1 A | 0.02 A | 1 A |
| Maximum contact current (DC) | - | 1 A | 1 A | 0.02 A | 1 A | 1 A | 1 A | 1 A | 0.02 A | 1 A |
| Contact (DC) maximum rated R load | - | 1A@28VDC | 1A@28VDC | .02A@20VDC | 1A@28VDC | 1A@28VDC | 1A@28VDC | 1A@28VDC | .02A@20VDC | 1A@28VDC |
| Maximum contact voltage (AC) | - | 125 V | 125 V | 20 V | 125 V | 125 V | 125 V | 125 V | 20 V | 125 V |
| Maximum contact voltage (DC) | - | 28 V | 28 V | 20 V | 28 V | 28 V | 28 V | 28 V | 20 V | 28 V |
| Electrical life | - | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) | 30000 Cycle(s) |
| JESD-609 code | - | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| Installation features | - | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE | SURFACE MOUNT-RIGHT ANGLE |
| Maximum operating temperature | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C |
| method of packing | - | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL |
| seal | - | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 | EPOXY TERMINAL SEALED; IP67 |
| surface mount | - | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Switch action | - | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY | MOMENTARY |
| switch function | - | SPDT | SPDT | SPDT | SPDT | SPDT | SPST | SPST | SPST | SPST |
| Switch type | - | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH | PUSHBUTTON SWITCH |
| Terminal surface | - | Gold (Au) | Silver (Ag) | Gold (Au) - with Nickel (Ni) barrier | Gold (Au) | Silver (Ag) | Gold (Au) | Silver (Ag) | Gold (Au) - with Nickel (Ni) barrier | Silver (Ag) |
| Termination type | - | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Base Number Matches | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
