PX0580/PC/GH: DescriptionMains Power Connector, 10/15A, 250/125VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

PX0580/PC/GH Overview

Mains Power Connector, 10/15A, 250/125VAC, Male, Solder Terminal, ROHS COMPLIANT

PX0580/PC/GH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: IEC/EN 60320-1/C14; UL94V-0; CSA; VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10/15A, 250/125VAC
Manufacturer's serial number	PX0580
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	3

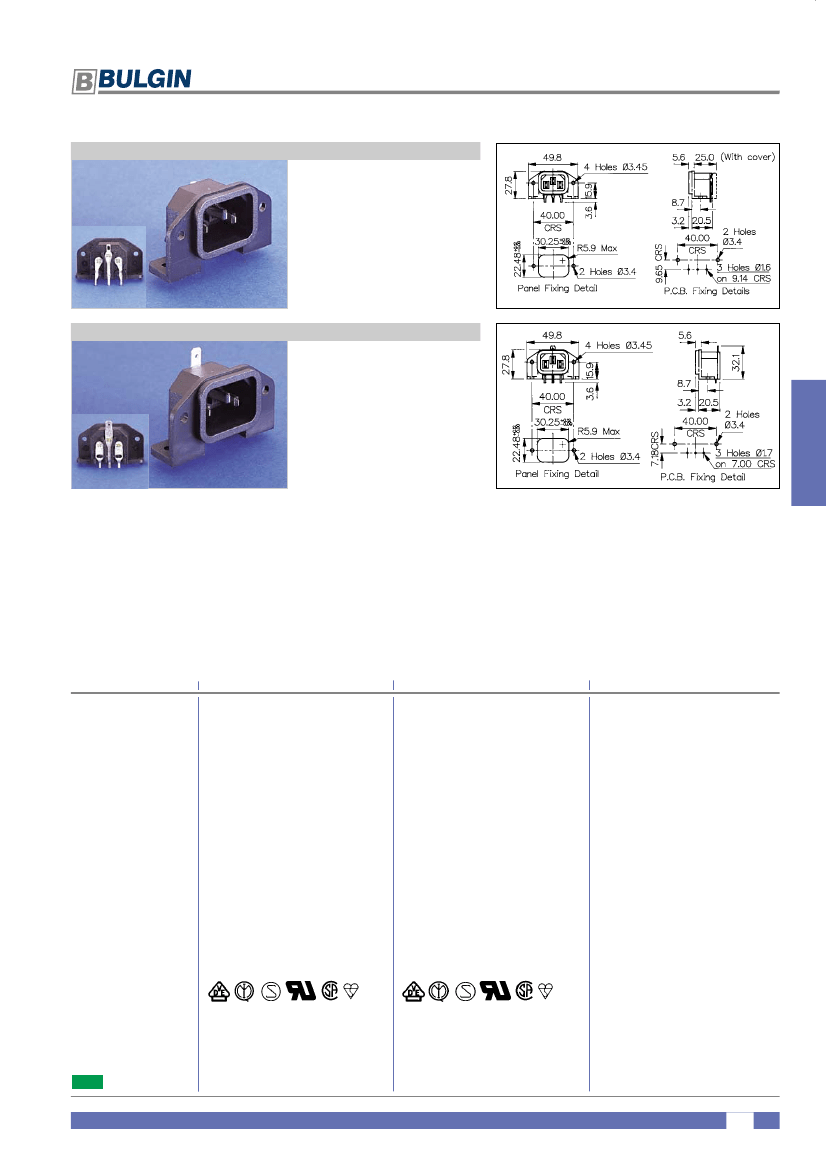

PX0580/PC/GH Preview

IEC CONNECTORS

EN60 320-1 Standard Sheet C14 Class I Cold Condition

PC FLANGE REAR MOUNT INLET

With or Without Rear Cover

PC Spills

10A, 250V a.c.

(15A, 250V a.c. UL & CSA)

Rear View

PX0580/PC

PC FLANGE REAR MOUNT INLET

With or Without Cover

PC Spills

10A, 250V a.c.

(15A, 250V a.c. UL & CSA)

IEC CONNECTORS

65

4.8mm Top Tab (earth)

Rear View

PX0580/PC/7

Specification

Fixing:

Terminations:

Colours:

Max. Rating:

Contact Resistance:

Insulation Resistance:

A.C. Breakdown:

Operating Temp. Range:

Max. Pin Temp.:

Mouldings:

Contacts:

Approvals:

Accessories / Notes:

Mating Connectors:

PX0580/PC/Col

P

.C.B./Flange

P Spills

.C.

PX0580/PC/7/Col

P

.C.B./Flange

P Spills

.C.

No suffix (Black), /WH (White), /GY (Grey) No suffix (Black), /WH (White), /GY (Grey)

10A, 250V a.c.

(UL & CSA 15A, 250V a.c.)

<10mΩ

>10

3

MΩ

Pole-Pole 5.4kV. Poles-Panel 10kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated.

Spills, Tin Plated

10A, 250V a.c.

(UL & CSA 15A, 250V a.c.)

<10mΩ

>10

3

MΩ

Pole-Pole 4kV. Poles-Panel 6kV

–40˚C to +70˚C

+70˚C

Nylon, Flammability Rating UL94V-0

Brass: Pins, Nickel Plated. Spills, Tin

Plated

Standard without cover.

With cover add /12132 to P

.No.

PX0587, PX0587/SE, PX0588

PZ0100, PZ0200

Compliant

Standard with cover.

Without cover add LC to P

.No.

PX0587, PX0587/SE, PX0588

PZ0100, PZ0200

Compliant

RoHS

www.bulgin.co.uk

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
