PDB241-GTR03-253B0 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PDB241-GTR03-253B0

PDB241-GTR03-253B0: DescriptionPotentiometer, Carbon Film, 0.25W, 25000ohm, 250V, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size236KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PDB241-GTR03-253B0 Overview

Potentiometer, Carbon Film, 0.25W, 25000ohm, 250V, 20% +/-Tol, 1 Turn(s), ROHS COMPLIANT

PDB241-GTR03-253B0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	Panel Mount,
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SHAFT
structure	Circular
gang number	1
Installation features	Panel Mount
Number of terminals	3
number of turns	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package diameter	24 mm
Package length	11.5 mm
Package shape	RECTANGULAR PACKAGE
Package form	Panel Mount
Rated power dissipation(P)	0.25 W
resistance	25000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
rotation angle	300 deg
surface mount	NO
technology	CARBON
Terminal shape	LUG
Tolerance	20%
Operating Voltage	250 V

Preview

Download Datasheet

View All

Features

■

Low torque

■

Carbon element

■

Plain or knurled shaft option

■

Metal bushing

Metal shaft

Rear solder lugs

Audio or linear taper options

■

Variety of resistance values

■

RoHS compliant*

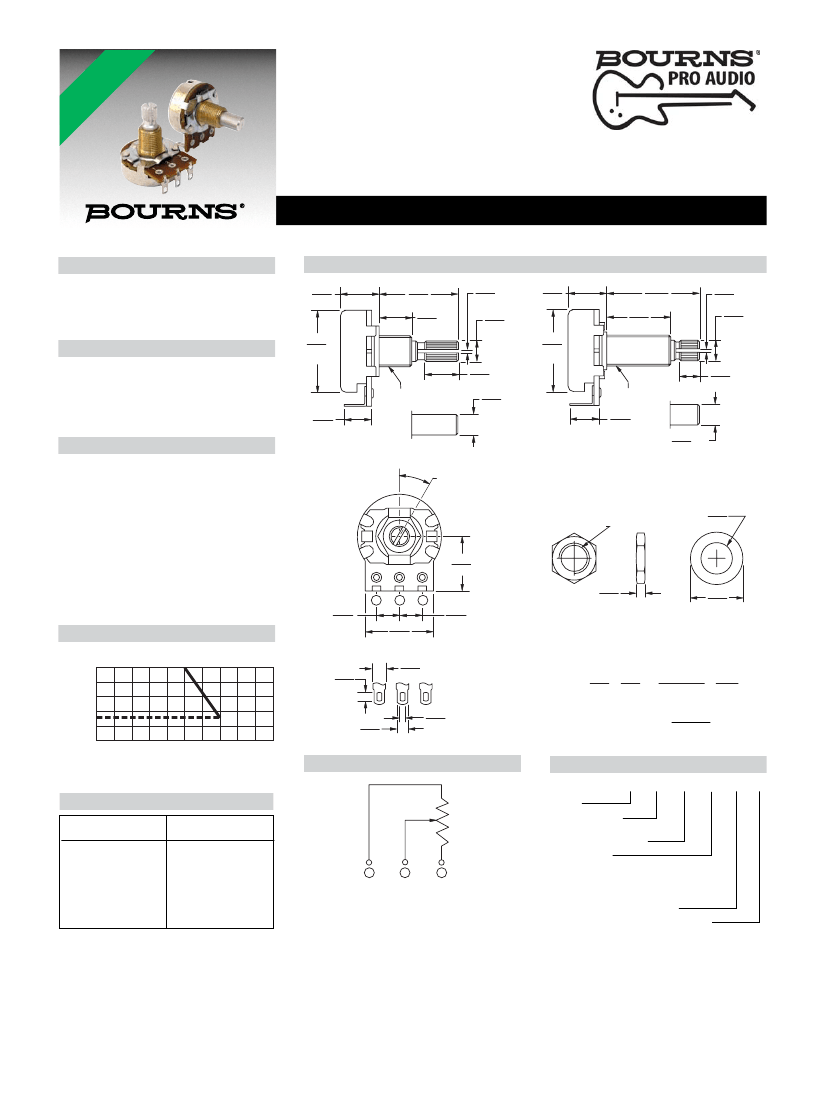

PDB241-GTR Series - 24 mm Guitar Potentiometer

Electrical Characteristics

Taper ........................................Audio, linear

Standard Resistance

.................................... 10K to 1M ohms

Standard Resistance Tolerance........ ±20 %

Product Dimensions

11.5

(.453)

19.0

(.748)

9.5

(.374)

24.0

(.945)

DIA.

1.0

(.039)

6.00

(.236)

DIA.

18 TEETH

KNURLED

SHAFT

11.5

(.453)

27.5

(1.083)

19.0

(.748)

24.0

(.945)

DIA.

1.0

(.039)

6.00

DIA.

(.236)

18 TEETH

KNURLED

SHAFT

(LONG)

6.0

(.236)

3/8”-32UNF

8.0

(.315)

6.35

DIA.

(.250)

PLAIN

SHAFT

(LONG)

Environmental Characteristics

Operating Temperature

.................................... -10 °C to +70 °C

Power Rating ................................0.25 watt

Maximum Operating Voltage ..............250 V

Rotational Noise .....................150 mV max.

6.0

(.236)

3/8”-32UNF

8.0

(.315)

6.35

DIA.

(.250)

PLAIN

SHAFT

Mechanical Characteristics

Mechanical Angle ........................300 ° ±5 °

Rotational Torque ................. 10 to 45 g-cm

Stop Strength .........................8 kg-cm min.

Rotational Life ...............15,000 cycles min.

Soldering Condition

Manual Soldering

........................300 °C within 3 seconds

Wave Soldering

........................260 °C within 3 seconds

Hardware .....................One ﬂat washer and

mounting nut supplied per

potentiometer with bushing

30 °

FULL CCW

DIA.

3/8”-32UNF

9.7

(.382)

16.0

(.630)

2.0

(.079)

6.7

(.264)

NUT

14.0

(.551)

DIA.

WASHER

6.7

(.264)

20.0

(.787)

3.6

(.142)

Derating Curve

Rating Power Ratio (%)

100

2.5

(.098)

TOLERANCES:

±0.5

10.0 ~ 100

10.0

±0.3

UNDER

(.394 ~ 3.937) (±.020)

(.394) (±.012)

1.4

(.055)

3.0

(.118)

DIMENSIONS:

(INCHES)

10 20 30 40 50 60 70 80 90 100

Ambient Temperature (°C)

Circuit

How To Order

PDB24 1 - GTR 01 - 504 A2

Standard Resistance Table

Resistance

(Ohms)

10,000

25,000

50,000

100,000

250,000

300,000

500,000

1,000,000

Resistance

Code

103

253

503

104

254

304

504

105

Model

Number of Units

1 = Single

Guitar Pot Designator

Conﬁguration

1 = Knurled Shaft / Solder Lugs

2 = Plain Shaft / Solder Lugs

3 = Knurled Shaft (Long) / Solder Lugs

4 = Plain Shaft (Long) / Solder Lugs

Resistance Code (See Table)

Resistance Taper (See Taper Charts)

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
