Preview

DB3CC1AA: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, 3 PCB Hole Cnt, Solder Terminal, Spherical Head Type Actuator, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size278KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

DB3CC1AA Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, 3 PCB Hole Cnt, Solder Terminal, Spherical Head Type Actuator, Through Hole-straight, ROHS COMPLIANT

DB3CC1AA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.087 inch
Actuator stroke	1.6 mm
Actuator type	SPHERICAL HEAD TYPE
Other features	ELECTRICAL LIFE AND ELECTRICAL RATING FOR EN ALSO AVAILABLE
body width	6.45 mm
body height	9.65 mm
Body length or diameter	20 mm
Contact (AC) maximum rated R load	10.1A@250VAC
Maximum contact current (AC)	10.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@80VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	80 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	DB
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	1.5 N
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
PCB hole count	3
Maximum pre-travel	1 mm
seal	IP50
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

Subminiature Snap Switch

Single Pole

DB Series

Features

•

Precision switch with high repeat accuracy

O

Models available for operating temperature up to 120 C

Various contact materials available

RoHS compliant

1

•

Various aux actuators (can be retrofitted)

Two mounting positions

Mechanical life up to 15,000,000 operations

Standard Parts

DB1C-A1AA

DB1C-A1LB

DB1C-A1LC

DB1C-A1MC

DB1C-A1RB

1

DB1C-A1RC

DB1C-B1AA

DB1C-B1LB

DB1C-B1LC

DB1C-B1MC

DB1C-B1RC

DB1C-C1AA

DB2C-A1AA

DB2C-A1LB

DB2C-A1LC

DB2C-A1MC

DB2C-A1RC

DB2C-B1AA

DB2C-B1LC

DB2C-B1RC

DB2C-C1AA

DB3C-A1AA

DB3C-A1LB

DB3C-A1LC

DB3C-A1RC

DB3C-B1AA

DB3C-B1LB

DB3C-B1LC

DB3C-B1MC

DB3C-B1RC

DB3C-C1AA

The part number configuration matrix below provides details to the part numbers above.

For configurable part numbers that are not listed above, not listed in your region, or for custom part numbers, contact the factory or your distributor.

Part Number Breakdown

DB1B-B1AA

Series

DB

Contact Rating

2

120

O

C or 85

O

C

Configuration

120

O

C

Terminal Type millimeters (inches)

A1

B1

C1

D1

D2

D3

D4

D5

Solder, short

2.8 x 0.5 (0.110 x 0.020) QC, straight

1.3 x 0.5 (0.051 x 0.020) PCB, straight

0.6 x 0.5 (0.024 x 0.020) PCB, straight

0.6 x 0.5 (0.024 x 0.020) PCB, RH

side w/location pins

0.6 x 0.5 (0.024 x 0.020) PCB, LH side

w/location pins

0.6 x 0.5 (0.024 x 0.020) PCB, RH

side

0.6 x 0.5 (0.024 x 0.020) PCB, LH side

1

2

3

5 Amp

10.1

Amp

0.1

Amp

A

B

C

SPST NO

SPST NC

SPDT

85

O

C

Actuator Type

Spherical-head, no

AA

auxiliary actuator

Radius, no auxiliary

BA

actuator

For others, see actuator

table at

www.cherryswitches.com

85

O

C only

5

6

7

2

1 Amp

5 Amp

10.1

Amp

E

F

G

SPST NO

SPDT NC

SPDT

UL current rating; see table below for complete details

Electrical Specifications – Contact Ratings

Contact

1

2

3

4

5

6

7

EN61058

6 A, 250 VAC; 0.1 A, 80 VDC

10 (1.5) A, 250 VAC; 0.1 A, 80 VDC

0.1 A, 250 VAC; 0.1 A, 80 VDC

4 A, 250 VAC

1 A, 250 VAC

6 A, 250 VAC

10 (1.5) A, 250 VAC

UL1054

5 A, 125/250 VAC; 1 A, 48 VDC

10.1 A, 125/250 VAC; ¼ HP, 125 VAC

0.1 A, 125/250 VAC

4 A, 125/250 VAC; 1 A, 48 VDC

1 A, 125/250 VAC; 1 A, 48 VDC

5 A, 125/250 VAC

10.1 A, 125/250 VAC, ¼ HP, 125 VAC

UL file number E314201

www.cherryswitches.com

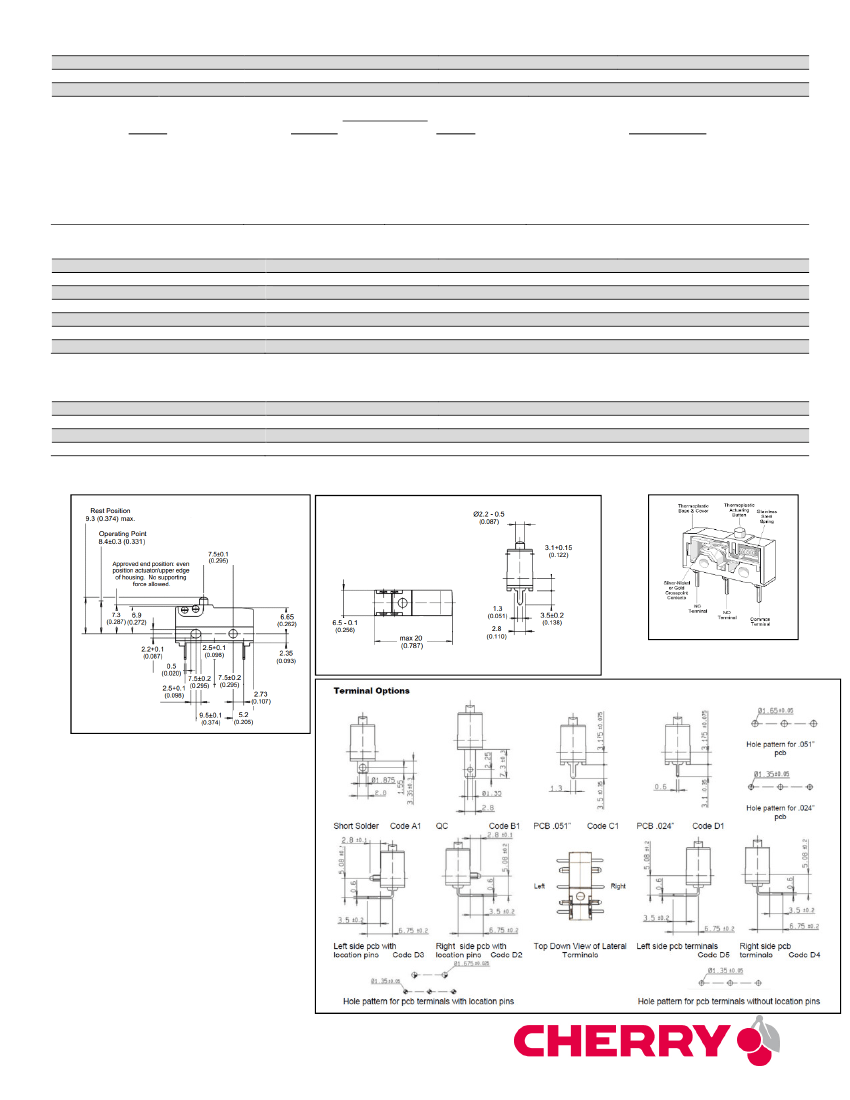

Page 1 of 2, Last update 2015-04-06, Specifications subject to change without notice.
