DF156: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, 600V V(RRM), Silicon, DIP-4; CategoryDiscrete semiconductor diode; File Size299KB，5 Pages; ManufacturerSangdest Microelectronics (Nanjing) Co., Ltd.

Download Datasheet Parametric Compare View All

DF156 Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, 600V V(RRM), Silicon, DIP-4

DF156 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Sangdest Microelectronics (Nanjing) Co., Ltd.
package instruction	R-PDIP-T4
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDIP-T4
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

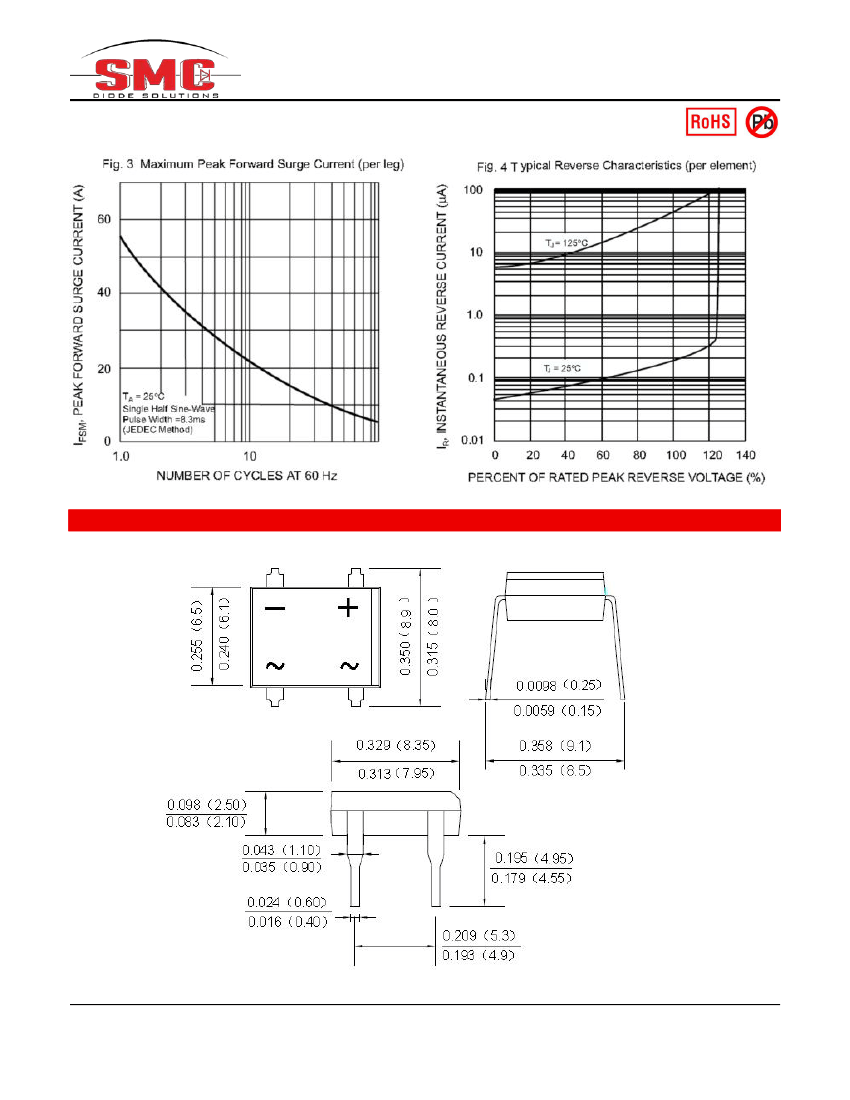

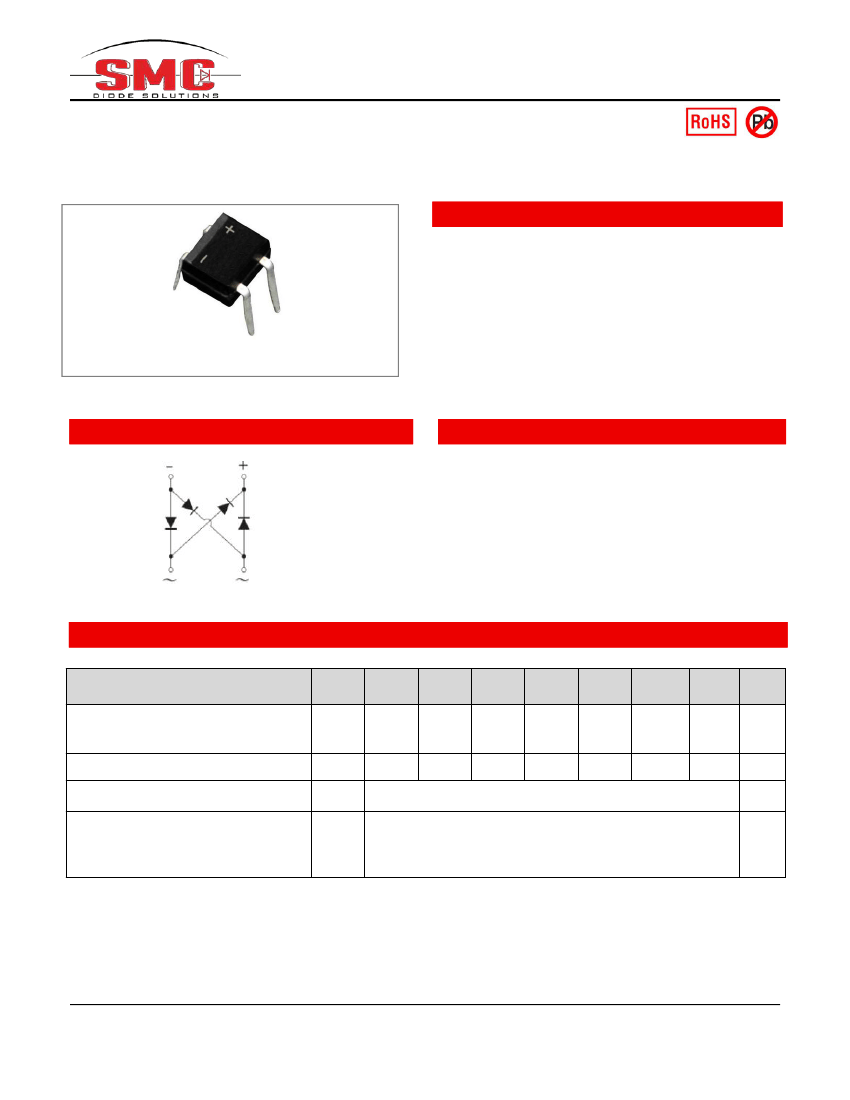

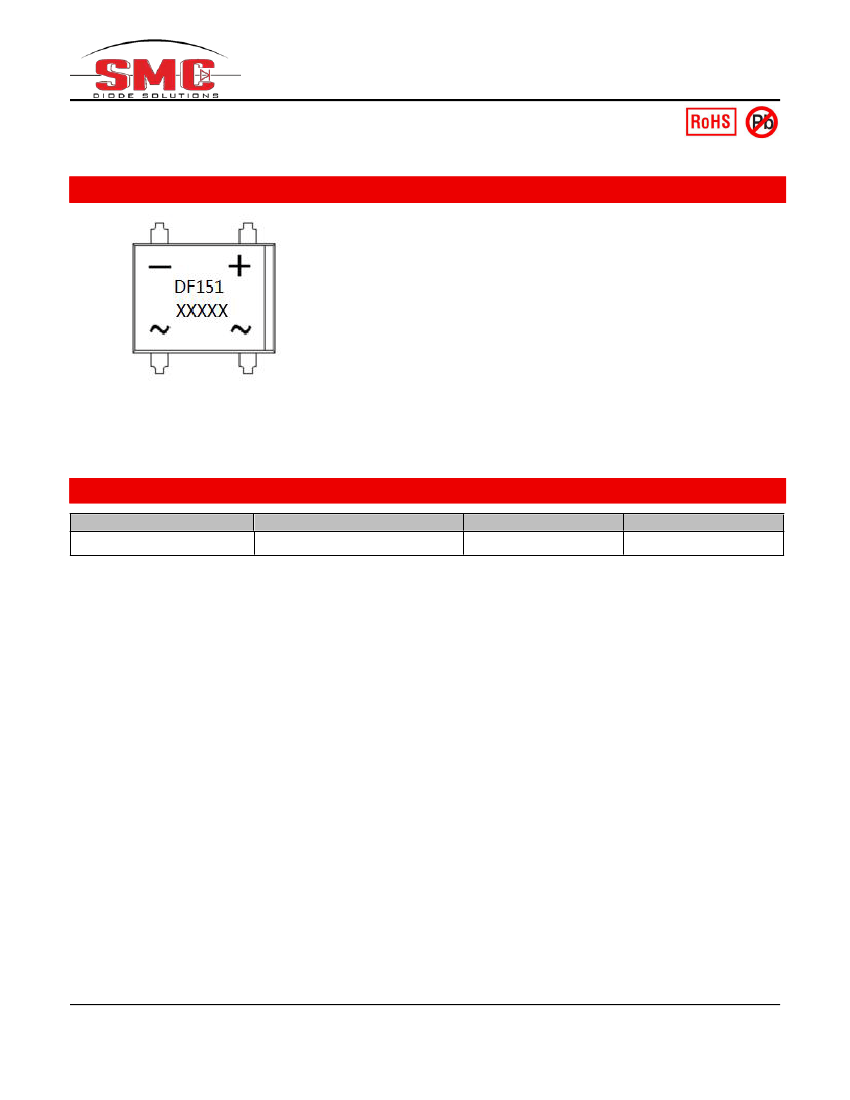

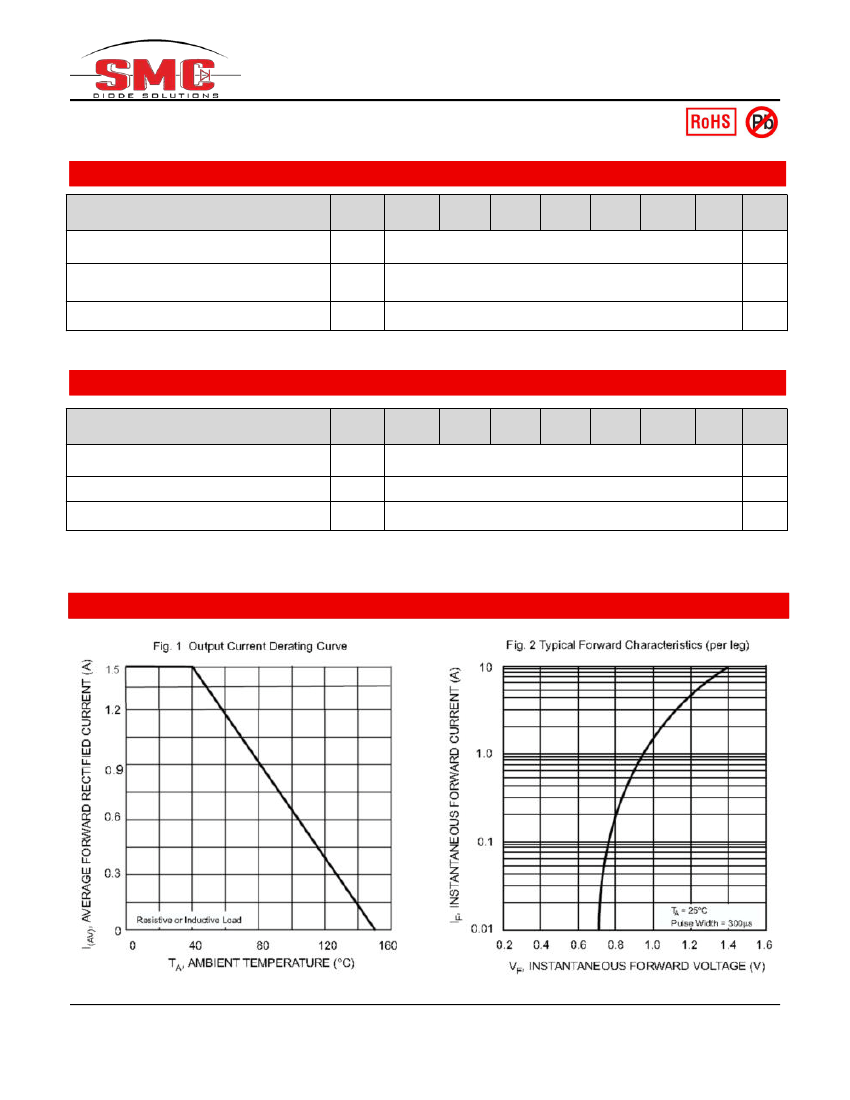

DF151 THRU DF157

Technical Data

Data Sheet N1736, Rev. A

GLASS PASSIVATED SILICON BRIDGE RECTIFIER

Features



Glass passivated die construction

Low forward voltage drop

High current capability

High surge current capability

Plastic material-UL flammability 94V-0

This is a Pb − Free Device

All SMC parts are traceable to the wafer lot

Additional testing can be offered upon request

DF151 THRU DF157

SINGLE-PHASE

DB-M

Circuit Diagram

Mechanical Data



Case: DB-M, Molded plastic

Terminals: Plated leads solderable per MIL-STD-202,

Method 208

Polarity: as marked on case

Mounting Position: Any

Marking: Type Number

Lead Free: For RoHS / Lead Free Version

Maximum Ratings and Electrical Characteristics

=25°C unless otherwise specified

Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Output Current

(Note 1)

@ T

=40°C

Non-Repetitive Peak Forward Surge

Current 8.3ms Single half sine-wave

superimposed on rated load (JEDEC

Method)

Symbol

RRM

RWM

RMS

F(AV)

DF151

DF152

100

DF153

200

140

DF154

400

280

1.5

DF155

600

420

DF156

800

560

DF157 Units

1000

700

FSM



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com



DF151 THRU DF157

Technical Data

Data Sheet N1736, Rev. A

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of

the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall

SMC Diode Solutions

be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s).

SMC Diode Solution

assumes no responsibility for any intellectual property

claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall

SMC Diode Solutions

be liable for any failure in a semiconductor device or any secondary damage resulting from use

at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or

SMC Diode Solutions.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of

SMC

Diode Solutions.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com


