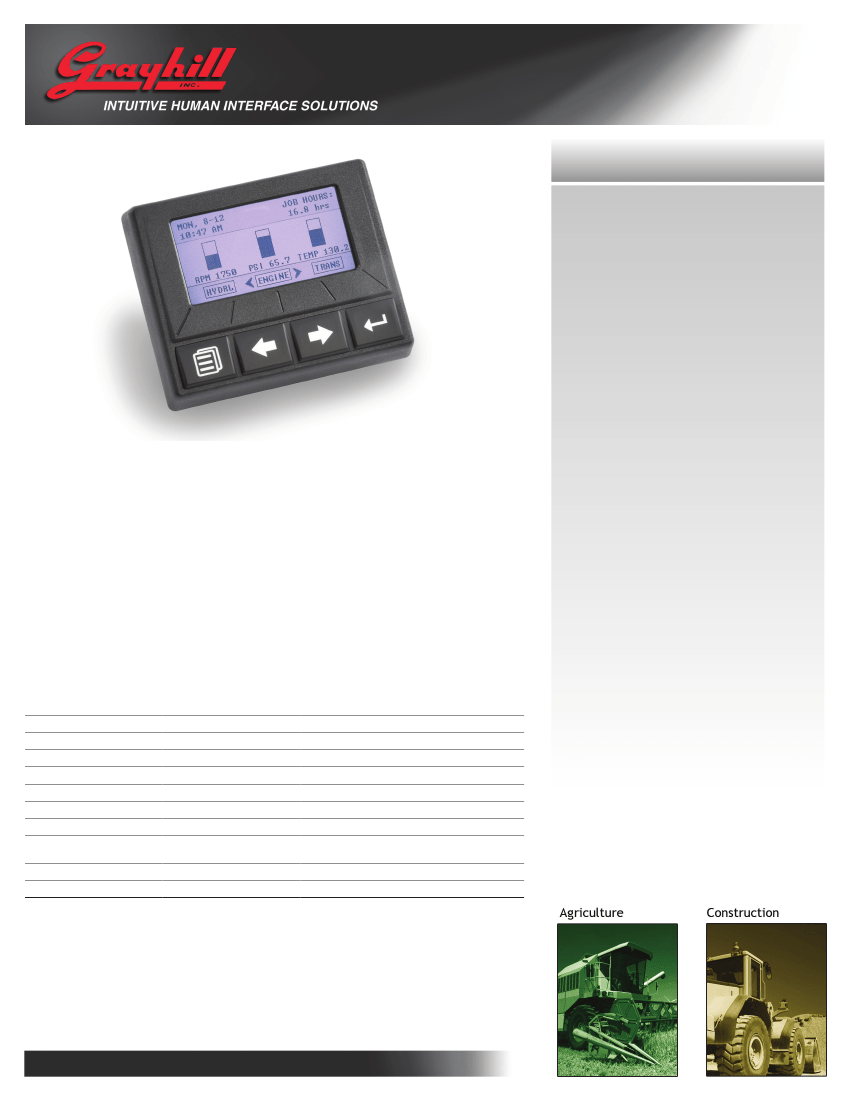

Graphic MicroDisplay
•
Easily display custom graphic icons,
text boxes and active gauge elements.
- Use PC-based software tools
to develop graphic objects
- Store graphic objects in
on-board flash memory
- Recall objects at run
time via J1939 commands
- Recall objects at run time
using the menu object
- Recall objects at run time
using the screen list object
•
The MicroDisplay makes it easy to create screens with custom graphics, text
and even gauges that automatically adjust based on J1939 values.
Due to its innovative design, native coding is not required for custom user
interfaces. Screens and graphic objects are created with the included PC
software tool and stored in the on-board flash memory.
When in use the MicroDisplay can be controlled two different ways. First, a
vehicle’s ECU (Electrical Control Unit) can send and receive commands to con-
trol the display. Second, with the new Menu Object and Screen List Object the
display can be programmed to provide stand-alone functionality. The menu
object allows users to enter and navigate a menu using the menu key. The
Screen List Object allows users to quickly navigate through favorite screens
(objects) by pressing one of the right and left arrow buttons.
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
Storage Temperature
Thermal Shock
Altitude (Barometric Pressure)
Sand and Dust
Solar Radiation
Wash Down
Humidity
Salt Fog
Chemical resistance
Ingress Protection
ANSI/ASAE EP455 5.1.1
ANSI/ASAE EP455 5.1.2
ANSI/ASAE EP455 5.1.3
ANSI/ASAE EP455 5.2
SAE J1455
ISO 4892-2
ANSI/ASAE EP455 5.6
ANSI/ASAE EP455 5.13
ANSI/ASAE EP455 5.9
ISO 16750-5 EP 455 5.8.2
IP67
with mating connector
Method B
Level 2
96% humidity at 35°C for 240 hours
5% aqueous solution of NaCl @ 35°C and
a pH between 6.5 and 7.2 for 48 hours
Level 2: -50°C to +85°C with optional heater
-25°C to +85°C without heater
Level 2: -50°C to +85°C
-40°C to 70°C at a rate of 4°C/min (1 hour at extremes)
101.3kPa to 18.6kPa
Controlled via J1939 PGNs
- Native coding not required
•
Ideal for off-highway vehicle
applications
- Virtual gauges
- Diagnostic menus
- Fault indicators & service reminders
•
Rated for off-highway vehicles
- Extended operating temperature
range: -50º C to +85ºC (with heater)
- Protected against the ingress of
liquids and dust: IP67 rated seal
•
3.2-inch backlit LCD (256x128)
- Excellent daylight readability
- Transflective LCD with anti-glare
- Software controlled RGB backlighting
- Four level grayscale graphics
•
Custom Options Available
- Keypad backlight color
- Key colors and legends
- Icons/screens pre-loaded
•
System Interface
- One CAN-bus port
- Two 200mA outputs (standard option)
- Three discrete inputs (standard option
- One RS-485 serial port (custom option)
•
Styled to sit next to Grayhill
standard 20-button 3K Keypad
Your Experts in Cab Controls
Grayhill specializes in the design, development and production
of human interface controls, including:
- Cab user interface design
- Customized control panels
- CAN-bus interface devices
www.grayhill.com

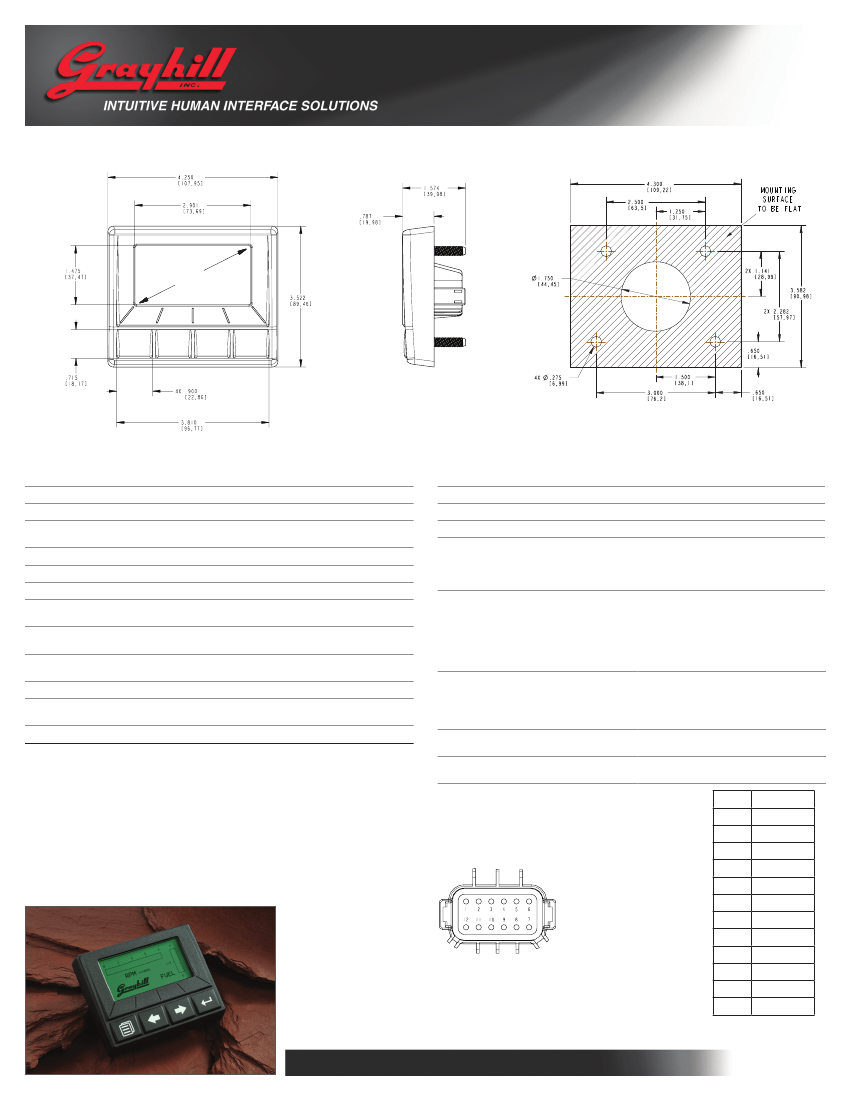

DIMENSIONS
3.2 8]
,2
[81
ELECTRICAL PERFORMANCE SPECIFICATIONS
Maximum load
Jump start voltage
Short circuit protection
Reverse polarity
protection
Starting profile
Battery-less operation
Load dump
Switching spikes
Wire harness inductance
Wire harness inductance-
switching
Inductive load pulse
Mutual coupling
Alternator field decay
ANSI/ASAE EP455 5.1.1
EP455 5.10.2
EP455 5.10.4
EP455 5.10.3
ISO 16750-2
ANSI/ASAE EP455 5.11.3
ISO 7637-2 Test Pulse 5b
ISO 7637-2 Test Pulse 3a
and 3b
ISO 7637-2 Test Pulse 2a
and 2b
ISO 7637-3 Test Pulse
a and b
ANSI/ASAE EP455 5.11.4
ANSI/ASAE EP455 5.11.6
Level 2
ANSI/ASAE EP455 5.11.2
Level 2
36V for 60 minutes; -36V for 60 minutes
36V
-36V
Level II code C, Level IV code A
Level 2
Us* = 60V
ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS
ESD
Radiated Immunity
Conducted emissions
Radiated emissions
ANSI/ASAE EP455 5.12
EP455 5.16
SAE J1113-41
ISO14982
Level 1 +/- 25KV
Level 1
Level 4
CE COMPLIANCE
EMC
EN 13309:2010
ESA
MECHANICAL PERFORMANCE
Vibration, Random
ANSI/ASAE EP455
5.15.1
ANSI/ASAE EP455
5.15.2
2h each axis @52.4m/s2 RMS overall
acceleration and spectral power density of
2m2/s3 from 50Hz to 2000Hz
A logarithmic sweep from 10Hz to 2000Hz to
10Hz over a period of 20 minutes for 4 hours
in each of 3 orthogonal axes with amplitude
1.5mm from 10Hz to 40Hz and a constant
acceleration of 35m/s2 RMS from 40Hz to 2KHz
11ms half sine pulse of 490 m/s2 in 3
perpendicular axes
Drop component 400 mm onto a hardwood
benchtop on all practical edges.
0
1
2
3
4
5
6
7
8
Function
V in Positive
V Return
RS-485 +
RS-485 -
Digital in 1
Digital in 2
Digital in 3
Digital out 1
Digital out 2
CAN shield
CAN HI
CAN LOW
Vibration, Sinusoidal
Shock / Crash Safety
Drop
ANSI/ASAE EP455 5.14
ANSI/ASAE EP455
5.14.2 Level 1
PART NUMBER
3D32XK-200
3D32HK-200
3D32XKR-200
3D32HKR-200
3D32CABLE-1
DESCRIPTION
MicroDisplay with CAN, I/O
MicroDisplay with CAN, I/O and heater
MicroDisplay with CAN
MicroDisplay with CAN and heater
MicroDisplay Programming Cable
with Power Supply
specifications subject to change
MOUNTING INFO
Use M6 Nut (1mm pitch)
Max Torque 25 in-lbs
REAR CONNECTOR
CONTACT GRAYHILL FOR CUSTOM OPTIONS
Mating Connector:
DEUTSCH DT06-12SA
9
10
11
Grayhill, Inc.
561 Hillgrove Avenue
LaGrange, Illinois 60525
phone: (708) 354-1040
fax: (708) 354-2820
Bulletin 1144
Rev 07/13
12
www.grayhill.com
www.grayhill.com
