URS2A220MNA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> URS2A220MNA

URS2A220MNA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size55KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

URS2A220MNA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED

URS2A220MNA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.066 mA
Manufacturer's serial number	RS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	130 mA
surface mount	NO
Delta tangent	0.08
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

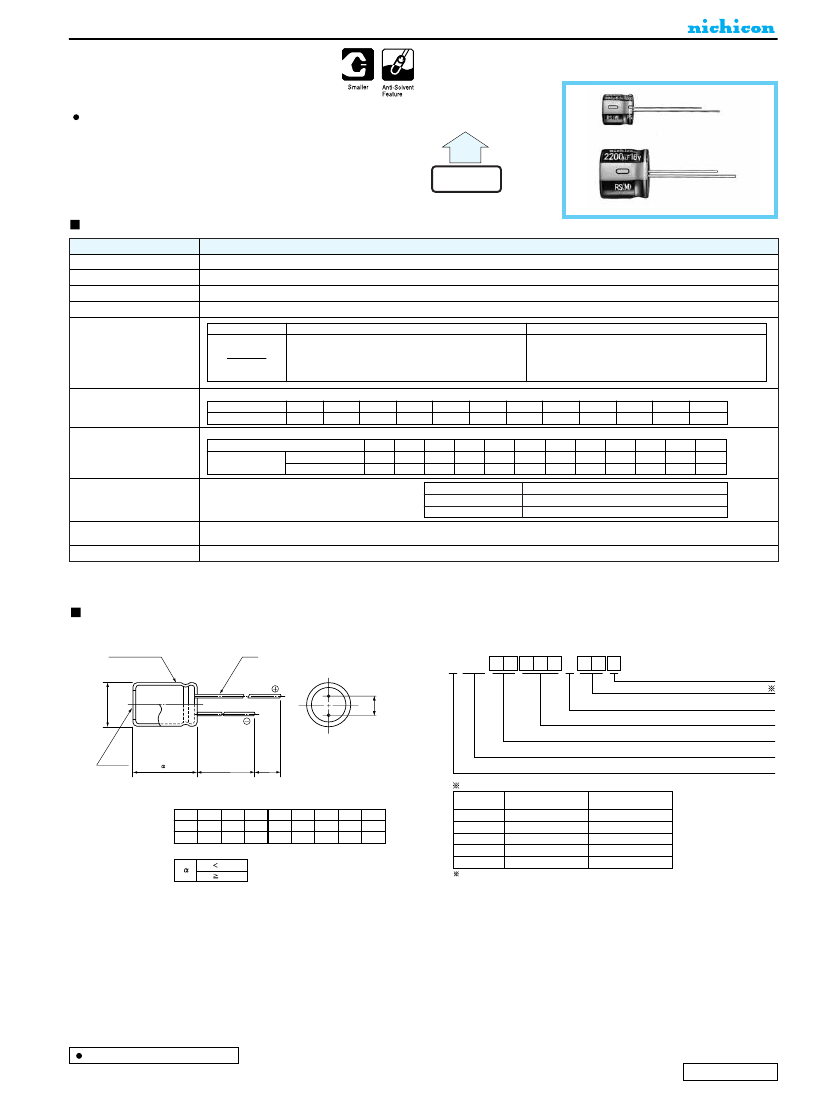

ALUMINUM ELECTROLYTIC CAPACITORS

Compact & Low-profile Sized

series

(Through 100V only)

More compact & low profile case sizes than VS series.

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 40 ~ +85˚C

6.3 ~ 400V

0.1 ~ 10000µF

± 20% at 120Hz, 20˚C

Rated voltage

(

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

160 ~ 400

After 1 minute's application of rated voltage.

= 0.04CV+100 (µA) or less

Leakage Current

Measurement frequency : 120Hz, Temperature : 20˚C

tan

Rated voltage (V)

tan

(

MAX.

)

6.3

0.28

0.24

0.20

6.3

0.16

0.14

0.12

0.10

100

0.08

160

0.20

100

200

0.20

160

200

250

0.20

250

400

0.25

400

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

After 2000 hours' application of rated voltage

at 85˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 85˚C for 1000 hours, they meet the specified

value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

9 10 11

Size code

Configuration

0.5

URS 1 A 3 3 1 MND

φD

0.5 MAX

Capacitance tolerance (±20%)

Rated Capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

L+

MAX

MIN

Type

Configuration

(mm)

5 · 6.3

8, 10

12.5

12.5 ~ 18

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

10.0

1.0

(φD 20) 1.5

(φD 20) 2.0

Please contact to us if other configurations are required.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100T
