824-00150: DescriptionDatacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT; 1.41CT:1CT, PCMCIA16B; CategoryPower management transformer; File Size95KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

824-00150 Overview

Datacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT; 1.41CT:1CT, PCMCIA16B

824-00150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	PCMCIA16B
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HEIGHT DIM. INCLUDE TERMINALS ALSO
application	LAN; 10/100 BASE-T
high	1.98 mm
Insulation voltage	1500 V
length	12.95 mm
Manufacturer's serial number	824-00150
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L12.95XB9.53XH1.98 (mm)
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1.41CT:1CT
width	9.53 mm
Base Number Matches	1

Preview

Download Datasheet

View All

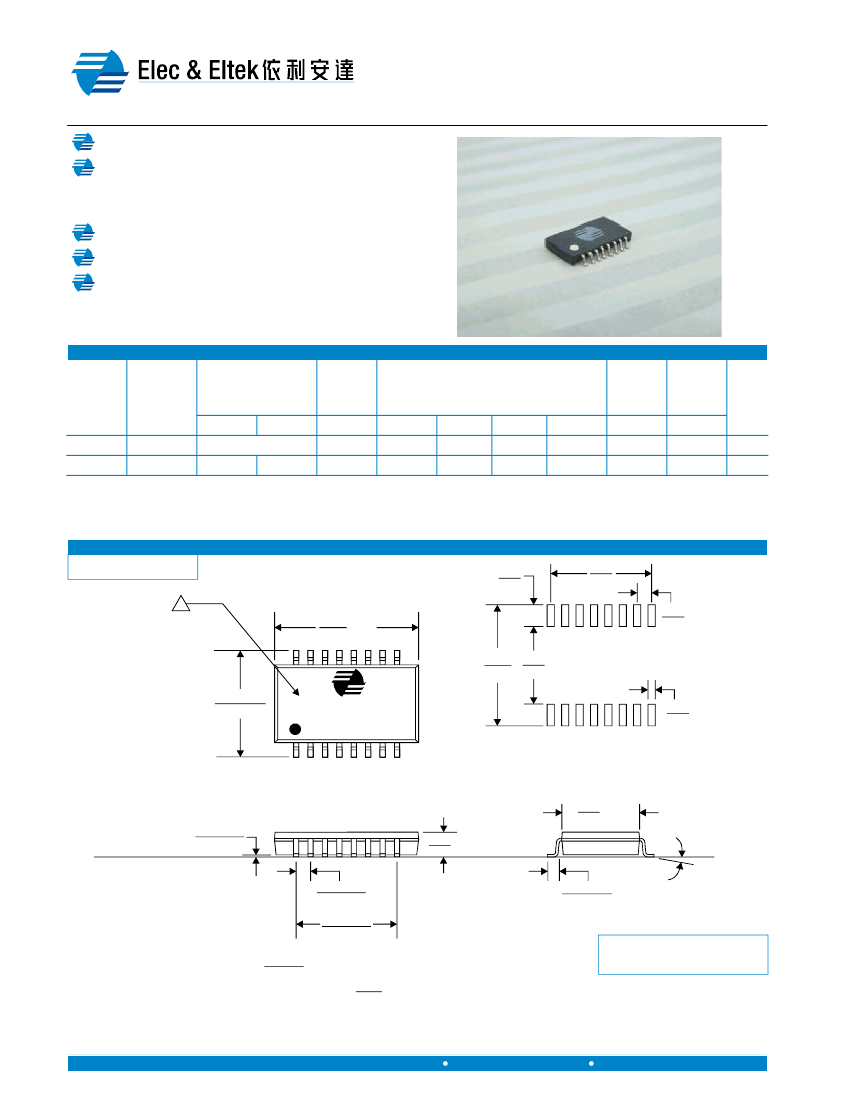

E & E Magnetic Products Limited

10/100 Base-T Single Port

PCMCIA LAN Magnetic Module

For Transceiver Requiring 1:1 Transmit Turns Ratios

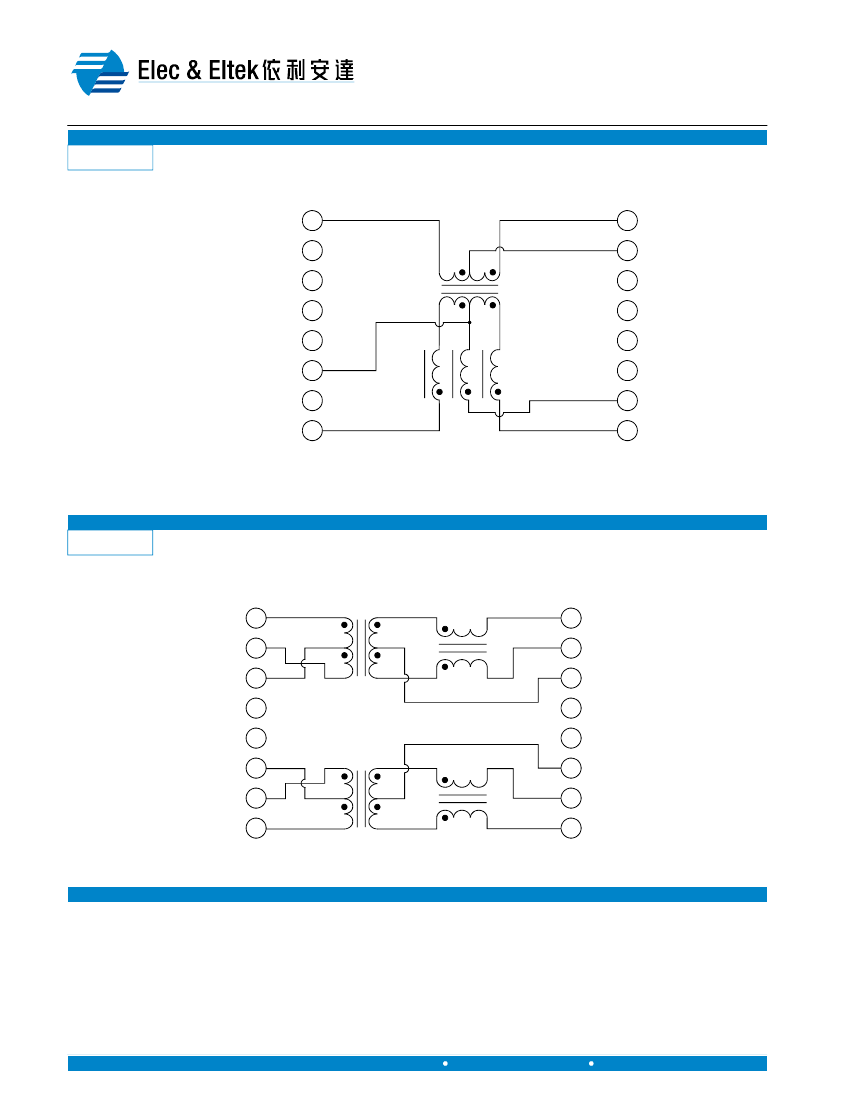

S

CHEMATICS

Compliant with IEEE802.3 standard

Models with integrated transmit and receive channels

in ultra-low profile SMT package of 0.078” (1.98mm)

thickness

Designed for automatic pick and place process

Operating temperature 0°C to +70°C

RoHS compliant versions are available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

1

RoHS

Part

Number

Turns Ratio

Tx

Rx

1CT:1CT

1CT:1CT 1.41CT:1CT

Insertion

Loss

(dB Typ)

.1-100MHz 1-30MHz

1.1

1.5

18.0

Return Loss

(dB Typ)

40MHz

15.5

50MHz

13.5

CMRR

(dB Typ)

Crosstalk

(dB Typ)

Hipot

(Vrms)

60-80MHz .1-100MHz .1-100MHz

12.0

10.0

30.0

-

35.0

1500

824-00150 824-00150R

824-00195 824-00195F

Notes:

1. Can be used for either transmit or receive channel.

M

ECHANICAL

D

IMENSIONS

Package: PCMCIA16B

.075

1.91

.350

8.89

.050

1.27

4

.510

12.95 MAX

.420

10.67

.375±.005

9.53±0.13

.270

6.86

824-001xx

(DATE)

.025

0.64

Recommended

Pad Layout

.285

7.24 MAX

REFERENCE OR

GAUGE PLANE

.005±.003

0.13±0.08

.078

1.98 MAX

0-8°

.050±.005

1.27±0.13

.350±.010

8.89±0.25

.030±.010

0.76±0.25

Notes:

Weight (in gram)

:

0.5 typ.

Tape & Reel

:

1400 / reel

2. All dimensions are specified in inches with higher precedence in inches.

mm

3. Unless otherwise specified, all tolerances are ± .010 .

0.25

4. For available RoHS part number, the part will be marked with “824-001xxF” or “ 824-001xxR”, instead of “824-001xx”.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH203(06)

Revised in 08/01

824-00150 Related Products

	824-00150	824-00150R	824-00195F	824-00195
Description	Datacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT; 1.41CT:1CT, PCMCIA16B	Datacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT, PCMCIA16B, ROHS COMPLIANT	Datacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT; 1.41CT:1CT, PCMCIA16B, ROHS COMPLIANT	Datacom Transformer, LAN; 10/100 BASE-T Application(s), 1CT:1CT, PCMCIA16B
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
package instruction	PCMCIA16B	PCMCIA16B, ROHS COMPLIANT	PCMCIA16B, ROHS COMPLIANT	PCMCIA16B
Reach Compliance Code	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HEIGHT DIM. INCLUDE TERMINALS ALSO	HEIGHT DIM. INCLUDE TERMINALS ALSO	HEIGHT DIM. INCLUDE TERMINALS ALSO	HEIGHT DIM. INCLUDE TERMINALS ALSO
application	LAN; 10/100 BASE-T	LAN; 10/100 BASE-T	LAN; 10/100 BASE-T	LAN; 10/100 BASE-T
high	1.98 mm	1.98 mm	1.98 mm	1.98 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V
length	12.95 mm	12.95 mm	12.95 mm	12.95 mm
Manufacturer's serial number	824-00150	824-00150	824-00195	824-00195
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	L12.95XB9.53XH1.98 (mm)	L12.95XB9.53XH1.98 (mm)	L12.95XB9.53XH1.98 (mm)	L12.95XB9.53XH1.98 (mm)
surface mount	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1.41CT:1CT	1CT:1CT	1CT:1CT; 1.41CT:1CT	1CT:1CT
width	9.53 mm	9.53 mm	9.53 mm	9.53 mm
Base Number Matches	1	1	1	1
