Power entry modules without line filter
www.schurter.com/PG05

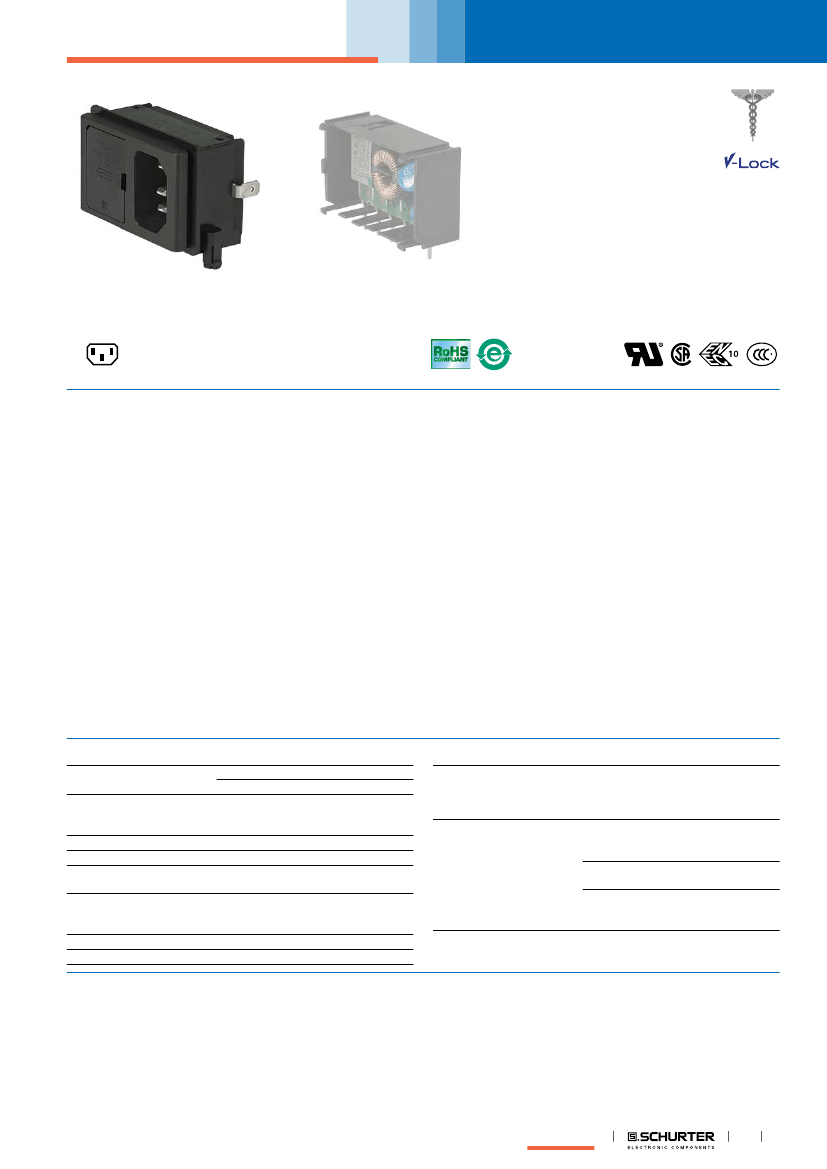

IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole
KP (FH)
Medical fuse drawer
Inlet with fuseholder (5x20 mm)
KPF Filter Module
(not enclosed)
C14
70° C
Description
- Panel Mount:
Sandwich/rear-side
- 2 Functions:
Appliance Inlet Protection class I, Fuseholder for fuse-links
5␠x␠20␠mm 1␠ or 2␠pole
- For PCB mounting
Characteristics
Approvals
-
-
-
-
-
Approval Reference Type: KP01
VDE Certificate Number: 40029370
UL File Number: E93617
CSA File Number: 38456
CCC File Number: 2013010204594658
- Panel mount from rear or "sandwich" between top and bottom/side to
side panels
PCB mount with snap-in or screw-on feet (self tapping screws Ø 3 x 8
mm)
- All single elements are already wired
- Fuse drawer meets requirements of medical standard IEC/EN 60601-1
The fuse drawer can only be opened with the aid of a tool
The fuseholder is accessible from the equipment front
- Insulation cover on the rear-side
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
- Solder terminals
- Quick-connect terminals
- For protection class II
References
Weblinks
Alternative: version with line filter
KPF
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 125 VAC; 60 Hz
> 2.3 kVAC between L-N
> 2.8 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting Quick connect termi-
nals 4.8 x 0.8 mm
Solder terminal on request
Snap-in: 1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Fuseholder
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Panel Thickness s
Material: Housing
Connectors
1
KP (FH)

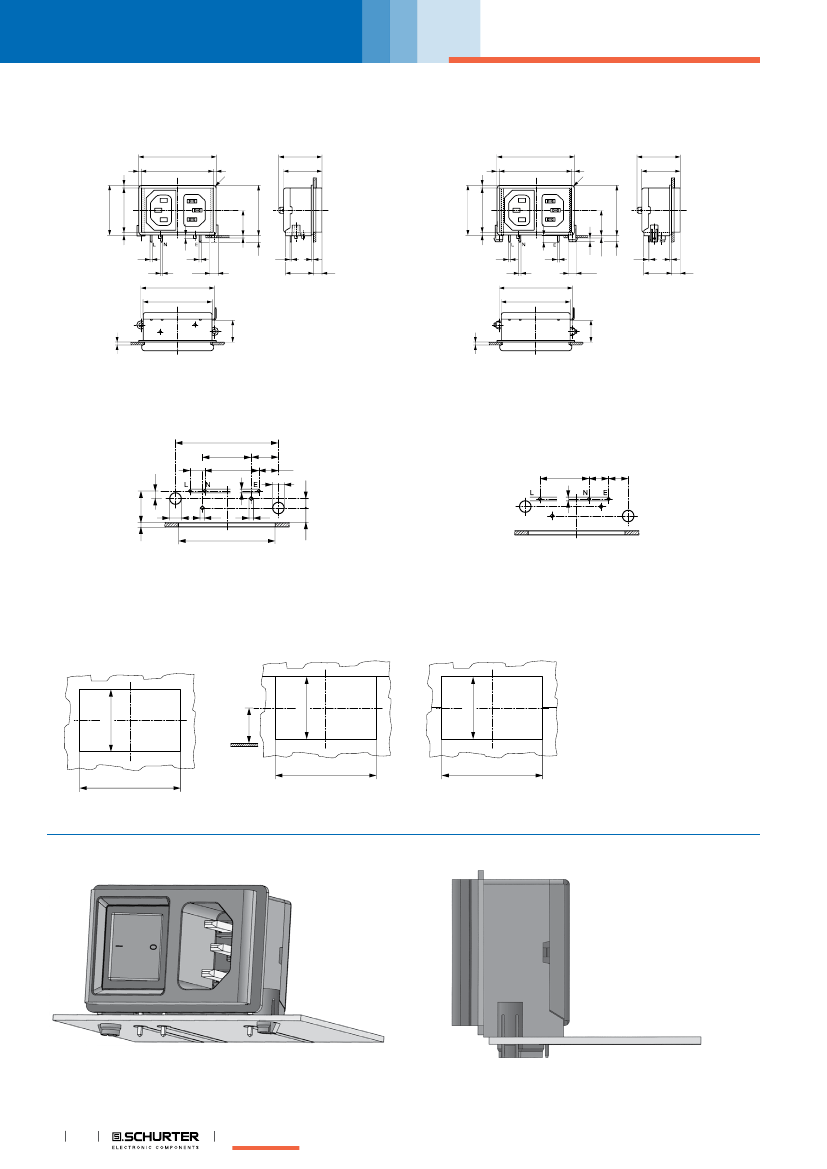

Dimensions
Screw-on mounting
56.1
2
2
52.1
2
R2
31.2
27.8
2
2
Power entry modules without line filter
www.schurter.com/PG05
Snap-in mounting
56.1
52.1
2
R2
31.2
27.8
36.5
18.5
4.5
1.6
±0.1
2
2.5
A
2
2.9
18.5
4.5
0.8
20.2
1.3
6.2
1.3
1.1
53.34
50.1
4.5
1.1
1.1
1.3
ø 5.9
53.34
50.1
36.5
36
32
36
32
1.1
0.8
20.2
1.3
6.2
ø 5.9
-0.1
0
16
S
±0.1
A = for PCB-thickness 1.2/1.6/2.0/2.4 mm
Additional quick connect terminal 4.8 x 0.8 mm
Additional quick connect terminal 4.8 x 0.8 mm
s = panel thickness
For 2-pole inlet/switch, 2-pole inlet
fuseholder and inlet/outlet
53.34
25.4
7.62
3.82
27.94
+0.1
0
for combinations:
inlet/switch 1-pole
Inlet/ fuseholder 1-pole
13.97
10.16
5.08
D1
25.4
1.6
+0.1
0
S
±0.1
(16.45)
D1
D2
X
±0.1
1.6
D2
7.55
d1 = 6 ± 0.05 für (snap-in)
d1 = 3.6 (screw-on)
d2 = 2.1 + 0.1/-0 (screw-on)
Dimensions without tolerance:
≤
15 = ± 0.05;
≥
15 = ± 0,1␍
S
±0.1
S and X see mounting holes
Mounting holes for backside moun-
ting
Sandwich mounting holes
Sandwich mounting holes
32.3
±0.1
32.3
±0.1
18.5
X
±0.1
52.4
±0.1
32.3
±0.1
X
±0.1
X = 48.4 at S = 1.5 and 2.5
X = 50.4 at S = 2.0 and 3.0
X = 48.4 at S = 1.5 and 2.5
X = 50.4 at S = 2.0 and 3.0
Assembly Instructions
Stable snap feet requires minimal
insertion force
Module must lay flat on the PCB when soldering
2
Connectors
16
10.16 10.16
Power entry modules without line filter
www.schurter.com/PG05
KP (FH)
Screw-on mount
uses self-tapping screws
Insertion from behind
"Sandwich" mounting with split
enclosure panels

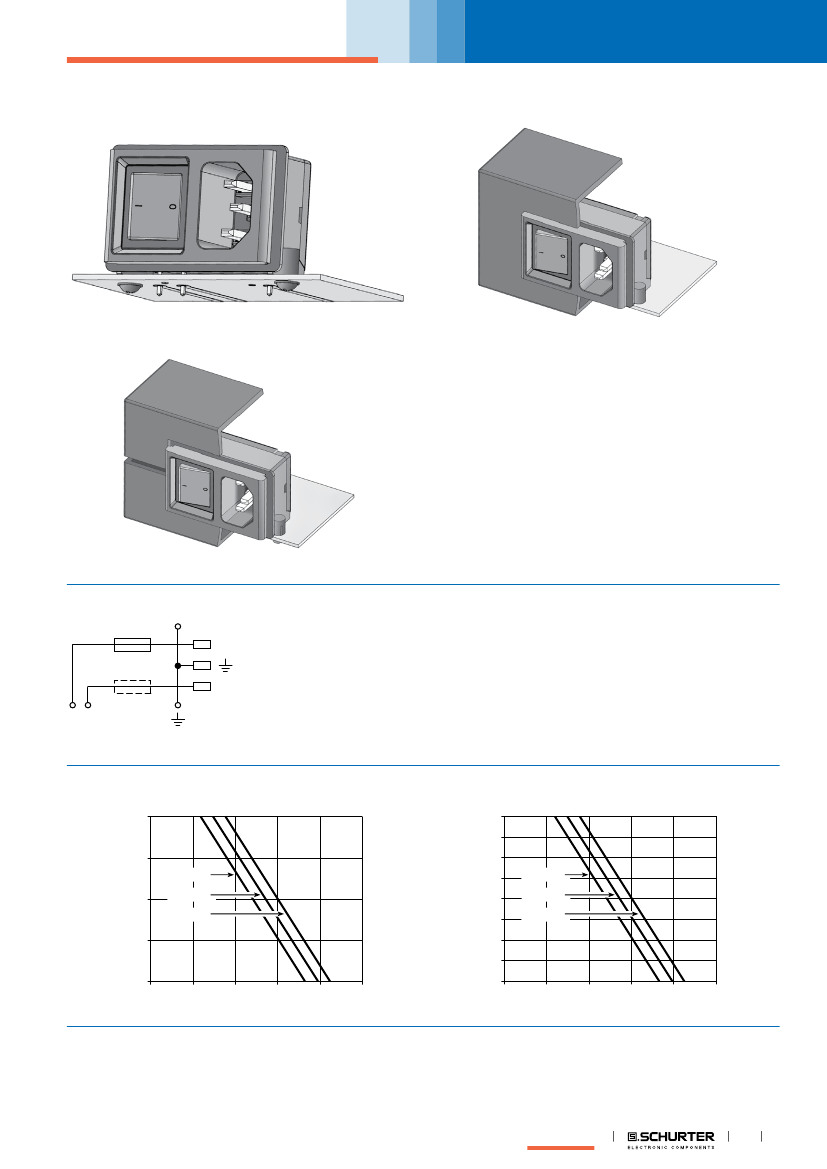

Diagrams
S1
L
S1
N
L N
Inlet with fuseholder
(5 x 20 mm)
Derating Curves
1-pole
2.0
2-pole
Admissible power acceptance in Watt per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Admissible power acceptance in Watt
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = << I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Connectors
3
KP (FH)
Variants
Panel mounting
Screw
Screw
Screw
Screw
Snap-in
Snap-in
Snap-in
Snap-in
Panel Thickness
s [mm]
2
2
3
3
2
2
3
3
PCB [mm]
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
1.2/1.6/2.0/2.4
1.6
1.6
1.6
1.6
Line Switch
-
-
-
-
-
-
-
-
Fuseholder
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
Power entry modules without line filter
www.schurter.com/PG05
Connector
-
-
-
-
-
-
-
-
Order Number
KP01.1452.01
KP01.1352.01
KP01.1453.01
KP01.1353.01
KP01.1412.01
KP01.1312.01
KP01.1413.01
KP01.1313.01
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Suffix "21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Type KP without cover: KP01.XXXX.XX90
Ground Terminal with solder pin: KP01.XXXX.X3XX
Packaging unit
50 Pcs

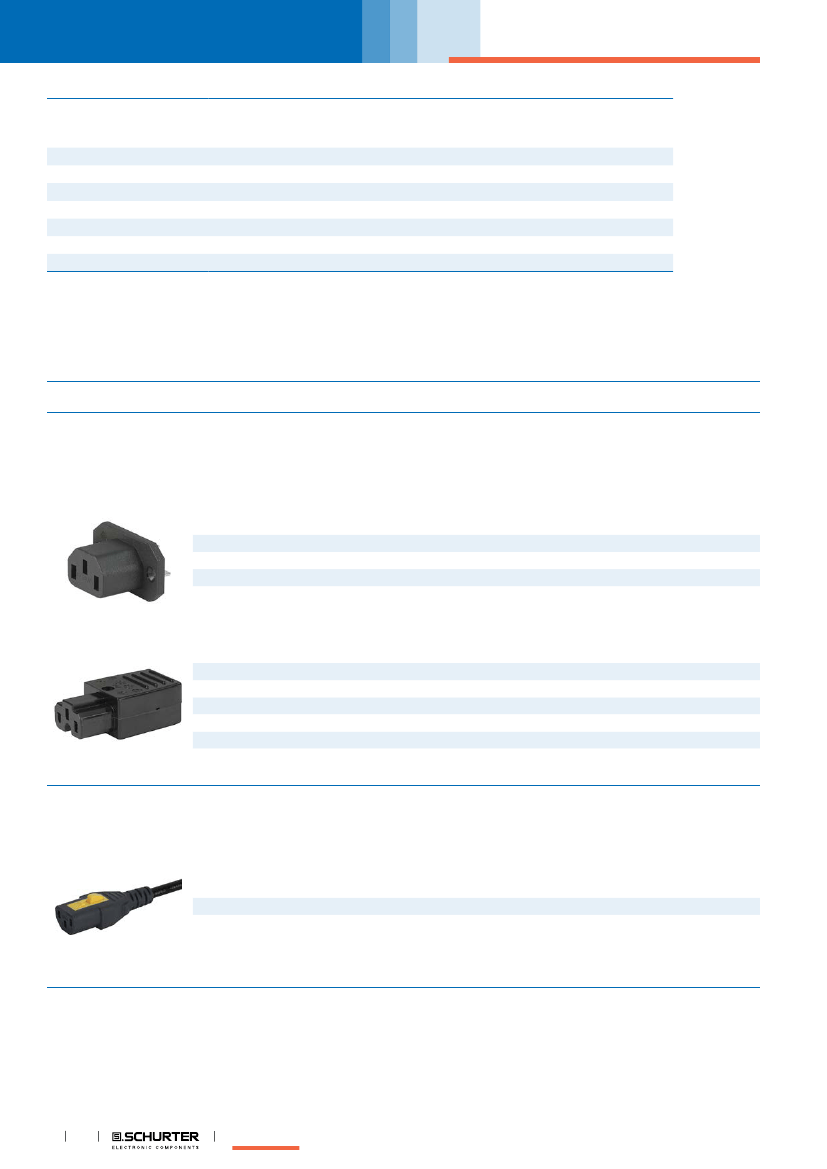

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to KP (FH)
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to KP (FH)
0102
0102-G
0112
4012
4022
...
Passende Dose verriegelt
Power Cord Overview complete
Overview Power Supply Cord with IEC Connector C13, V-Lock, straight
Power Cord further types to KP (FH)
VAC13KS
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments.
Information furnished is believed to be accurate and reliable. However, users should independently evaluate
the suitability and test each product selected for their own applications.
26.04.2014
