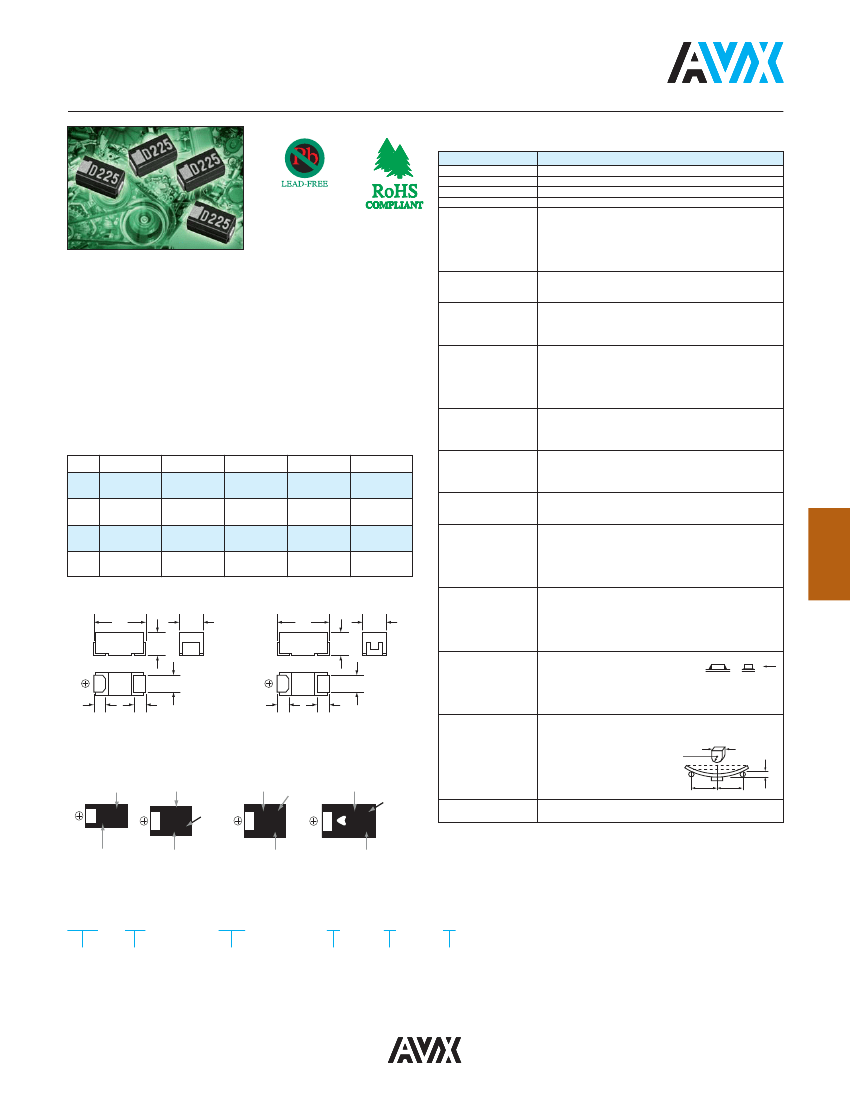

F97 Series
Resin-Molded Chip, Improved Reliability J-Lead
TECHNICAL SPECIFICATIONS
Item
Category Temperature Range
Capacitance Tolerance
Dissipation Factor
ESR (100kHz)
Performance Characteristics
-55 to +125°C (Rated temperature: +85°C)
±20%, ±10% (at 120Hz)
Refer to next page
Refer to next page
• After 1 minute’s application of rated voltage, leakage current at 20°C
is not more than 0.01CV or 0.5μA, whichever is greater.
• After 1 minute’s application of rated voltage, leakage current at 85°C
is not more than 0.1CV or 5μA, whichever is greater.
• After 1 minute’s application of derated voltage, leakage current at 125°C
is not more than 0.125CV or 6.3μA, whichever is greater.
+15% Max. (at +125°C)
+10% Max. (at +85°C)
-10% Max. (at -55°C)
At 85ºC, 85% R.H., For 1000 hours (No voltage applied)
Capacitance Change ........... Within ±10% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. 125% or less than the initial specified value
After 1000 hour’s application of rated voltage in series with a 33Ω resistor
at 85˚C, 85% R.H., capacitors meet the characteristics requirements
table below.
Capacitance Change ........... Within ±10% of the initial value
Dissipation Factor ................ 120% or less than the initial specified value
Leakage Current .................. 200% or less than the initial specified value
At -55°C / +125°C, For 30 minutes each, 1000 cycles
Capacitance Change ........... Within ± 5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
10 seconds reflow at 260°C, 5 seconds immersion at 260°C.
Capacitance Change ........... Within ± 5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After immersing capacitors completely into a solder pot at 245ºC for 2 to 3
seconds,more than 3/4 of their electrode area shall remain covered with
new solder.
After application of surge voltage in series with a 33Ω resistor at the rate of
30 seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85ºC,
capacitors shall meet the characteristic requirements table below.
Capacitance Change ........... Within ± 5% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After 2000 hours’ application of rated voltage in series with a 3Ω resistor at
85°C, or derated voltage in series with a 3Ω resistor at 125°C, capacitors
shall meet the characteristic requirements table below.
Capacitance Change ........... Within ±10% of the initial value
Dissipation Factor ................ Initial specified value or less
Leakage Current .................. Initial specified value or less
After applying the pressure load of 5N for 10
±1 seconds horizontally to the center of
capacitor side body which has no electrode
17.7N (1.8kg
•
f)
For 60 seconds
and has been soldered beforehand on a
substrate, there shall be found neither
exfoliation nor its sign at the terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside down and
supporting the substrate at both of the opposite bottom points 45mm apart
from the center of capacitor, the pressure
20
strength is applied with a specified jig at the
R230
center of the substrate so that substrate
may bend by1mm as illustrated. Then, there
shall be found no remarkable abnormality
45
45
on the capacitor terminals.
0.5% per 1000 hours at 85ºC, VR with 0.1 /V series impedance, 60%
confidence level.
1mm
LEAD-FREE COMPATIBLE
COMPONENT
Leakage Current
FEATURES
• Compliant to the RoHS2 directive 2011/65/EU
• Compliant to AEC-Q200
• Improved reliability - FR=0.5%/1000hrs (twice better than standard)
• SMD J-lead
Capacitance Change
by Temperature
Damp Heat
(Steady State)
APPLICATIONS
• Automotive electronics(Engine ECU)
• Industrial equipment
Load Humidity
Temperature Cycles
CASE DIMENSIONS:
millimeters (inches)
Code
A
B
C
N
L
3.20 ± 0.20
(0.126 ± 0.008)
3.50 ± 0.20
(0.126 ± 0.008)
6.00 ± 0.20
(0.236 ± 0.008)
7.30 ± 0.20
(0.287 ± 0.008)
W
1
1.60 ± 0.20
(0.063 ± 0.008)
2.80 ± 0.20
(0.110 ± 0.008)
3.20 ± 0.20
(0.126 ± 0.008)
4.30 ± 0.20
(0.169 ± 0.008)
W
2
1.20 ± 0.10
(0.047 ± 0.004)
2.20 ± 0.10
(0.087 ± 0.004)
2.20 ± 0.10
(0.087 ± 0.004)
2.40 ± 0.10
(0.094 ± 0.004)
H
1.60 ± 0.20
(0.063 ± 0.008)
1.90 ± 0.20
(0.075 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
2.80 ± 0.20
(0.110 ±0.008)
S
0.80 ± 0.20
(0.031 ± 0.008)
0.80 ± 0.20
(0.031 ± 0.008)
1.30 ± 0.20
(0.051 ± 0.008)
1.30 ± 0.20
(0.051 ± 0.008)
Resistance to
Soldering Heat
Solderability
Surge
A, B CASE
L
H
W
1
C, N CASE
L
H
W
1
Endurance
W
2
S
S
S
S
W
2
Shear Test
MARKING
A CASE
Capacitance
Code
B CASE
Capacitance
(μF)
C CASE
Capacitance
(μF)
Month
Code
Month
Code
N CASE
Capacitance
(μF)
Month
Code
Terminal Strength
Rated Voltage
Code
Rated Voltage
(V)
Rated Voltage
(V)
Rated Voltage
(V)
HOW TO ORDER
F97
1C
335
Type
Rated
Voltage
Capacitance
Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
K = ±10%
M = ±20%
47
10r
C 475
10
16r
10
16r
Failure Rate
A
Case
Size
See
table
above
Packaging
See page
168 for
details
JANUARY 2014
■
99
